Details

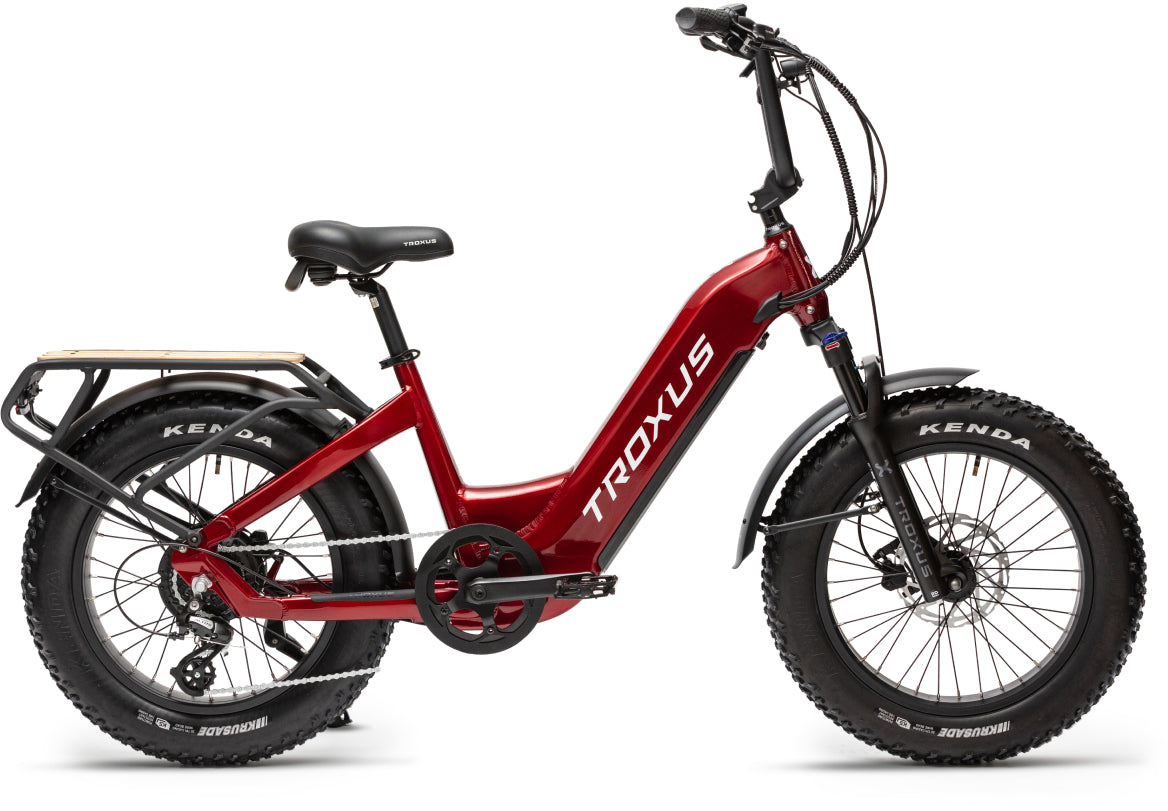

Better than ever, the new Lynx Plus fat tire electric bike, a mini cargo hauler, is ready to roam and explore. Highly maneuverable and nimble, it's perfect for city dwellers, but with 20" fat tires, it can escape the urban jungle to explore nature too.
Maximum Load: 400 lbs
One Size Fits Most
Frame Size | Standard (mm) |
---|---|
Wheel size | 20"x4.0" |
Seat tube | 375 |
Seat tube angle | 71° |
Head tube length | 145 |
Head angle | 68° |
Effective top tube | 645 |
Bottom bracket height | 285 |
Bottom bracket drop | 10 |
Chainstay length | 425 |
Offset | 46 |
Wheelbase | 1148 |
Frame Reach | 460 |
Frame Stack | 538 |
Fork Travel | 80 |
Fork Height | 440 |
Specs
Frame | 6061-T6 Aluminum Step-Thru Frame |
---|---|
Fork | Front Suspension Fork, 80mm Travel |
Rims | Alloy Double Wall, 20"x4.0" w/ Eyelets |
Hubs |
Front: Alloy, 36H, 110mm, 3/8" Axle Rear: Bafang 48V 750W/ 28 MPH. 86Nm |
Spokes | Stainless 13G. Front / 12G. Rear |
Tires | KENDA 20"x4.0", w/ Anti-Puncture K-Shield |
Bottom Bracket | Square Taper Sealed Bearings, Torque & Cadence Sensors Included |
Crankset | Aluminum, 46T, w/ Single Alloy Chainguard, Square Taper, 165mm |
Shifters | Shimano 8-Speed |
Rear Derailleur | Shimano RD-M310-L, Altus, 8-Speed |
Cassette/Freewheel | Shimano 8-Speed, 12-32T |
Chain | KMC 1/2"x3/32" |
Brakes | Tektro Hydraulic, w/ Brake Sensors |
Rotors | 180mm / 160mm |
Handlebars | Alloy 6061-T6, 31.8mmx 680mm Wide, 261mm Rise |
Tape/Grips | Ergonomic Comfort |
Stem | Alloy, BMX style, Top-Load, 30 Deg. Angle, 50mm Extension |
Headset | Threadless, Locking Internal 1-1/8" |
Seatpost | Alloy, 30.9x400mm, Adjustable |
Saddle | Troxus Comfort w/ Back Handle |
Pedals | 9/16? Alloy Platform with Reflectors |
Accessories & Extras | Front Light, Rear Light w/ Turn & Hazard Signals |
Motor | Bafang 48V/750W Hub-Drive Motor, 86Nm Max. Torque |
Battery | UL-2771 Certified / Internal / Removable / Lithium Ion, 48V/20Ah (960Wh) with Samsung Cells |
Controller/Display | Color Display, Bluetooth, w/ Turn Light Signals, w/ Multi-Function Remote, w/ USB Charging |
Charger | 3A / 100-240V Input / 54.6V Output |
* Subject to change without notice.
