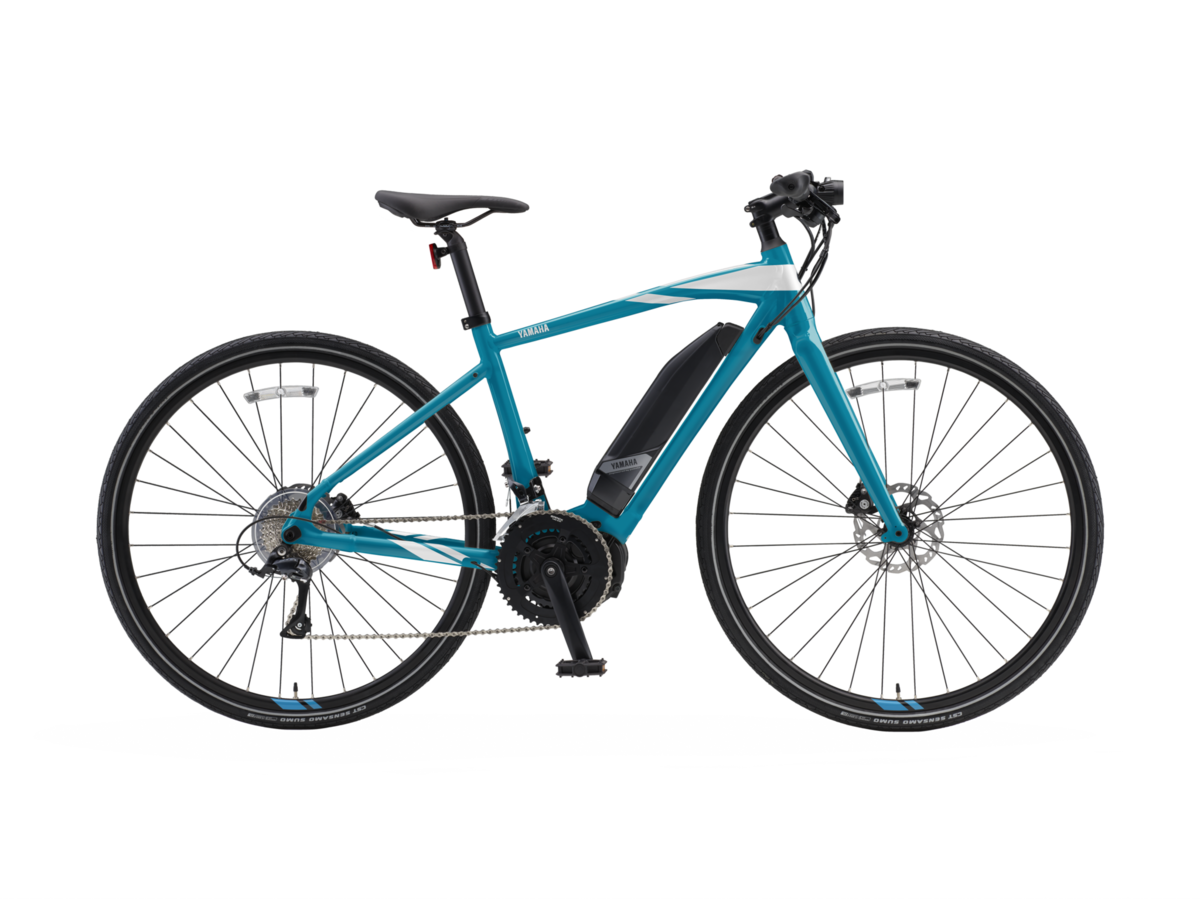

Yamaha CrossCore
$1,919.20
$2,399.00
Details
Your daily trek isn’t like others. You’re surrounded by hills and you demand more than just a regular fitness bike. You want the efficiency of a road bike, ergonomic comfort of a flat handlebar, and power assist technology that allows you to charge the day. Grab your CrossCore and live Generation Go!
- Hydroformed and butted aluminum
- Alloy, fender compatible fork
- 700c dual channel welded pin wheel set
- 18-speed Shimano Sora components
- Shimano Sora mechanical disc brakes
- PWSeries SE motor
WARNING: This product can expose you to chemicals known to the state of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Specs
| Motor | PWSeries SE, Center mount, Square taper spindle, Triple Sensor System with integrated speed sensor as part of rear hub, Weight: 7.71lb, Rated power: 250W (Nominal), 500W (Max) Max torque: 70Nm, Max cadence support: 110rpm, Max speed support: 20mph, Support modes: ECO+, ECO, STANDARD, HIGH |
|---|---|
| Battery | Yamaha 500Wh with charge-life indicator and self-diagnosis display, Side-exiting dock station with anti-vibration mounting plate, Weight 6.61lb, 500Wh 36V, 4-hour charge time |
| Display | Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%) |
| Max Assisted Speed | 20mph |
| Charger | Yamaha battery charger |
| Frame | Yamaha hydroformed and butted aluminum tubing, Internal cable/housing routing, Accessory mount, Fender and Rack compatible 3-bolt motor mount, 12 x 142 rear spacing, Integrated speed sensor harness |
| Fork | Alloy, 12mm thru-axle, fender compatible, internal cable housing routed 1 1/8in steerer |
| Headset | Integrated headset with 30mm headset spacers |
| Axles | Front: 12x100mm Thru-Axle Rear: 12x142mm |
| Rims/Wheels | 700c Dual channel welded pin rim, Eyelet spoke holes, Width 24.5mm (OUTSIDE) 19mm (INSIDE) |
| Hubs | Anodized, Centerlock brake mount, front hub 12 x 100 TA, rear hub 12 x 142 Shimano freehub and Yamaha Bicycles Speed Sensor |
| Spokes | Spokes SUS304 |
| Tires | CST Sensamo Sumo 700 x 35c Level-5 Flat, Protection, Reflective Sidewall approved for eBike use PV Tube |
| Chainrings | 50/34T E-Ring 110 BCD |
| Chain | KMC X9e |
| Front Derailleur | Shimano Sora (2 x 9) Braze-on |
| Rear Derailleur | Shimano Sora RD-3000 GS 9-speed |
| Cassette/Rear Cogs | Shimano 9-speed. 11/30T |
| Shifters | Shimano 9-speed Sora trigger shifter |
| Handlebars | Alloy flat bar. 31.8mm diameter. 640mm width |
| Tape/Grips | Ergonomic locking. Two-tone. |
| Stem | 4-bolt faceplate. 31.8 diameter. 80mm length (53cm, 55cm). 100mm length (58cm) |
| Brakes | Shimano Sora BL-R3000 Mechanical Disc 160mm SM-RT68 Centerlock Rotor |
| Saddle | Yamaha Road Plus Cro-Mo Rail |
| Seatpost | Alloy 30.9 x 260mm(S),315mm(M),350mm(L) with 2-bolt |
* Subject to change without notice.
Videos
Yamaha Bicycles CrossCore Coming Soon
How Does a Power Assist Bicycle Work?
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| Aqua Blue/White / Small | CCORESBLU | 210000001110 |
| Aqua Blue/White / Medium | CCOREMBLU | 210000001111 |
| Aqua Blue/White / Large | CCORELBLU | 210000001112 |
| Olive/Black / Small | CCORESOLV | |
| Olive/Black / Medium | CCOREMOLV | |
| Olive/Black / Large | CCORELOLV |
