The Amflow PX Carbon features the Avinox M2S Drive Unit with 150N·m torque, a 700Wh battery, and 40 geometry combinations for versatile trail riding.
The Amflow PX Carbon features the Avinox M2S Drive Unit with 150N·m torque, a 700Wh battery, and 40 geometry combinations for versatile trail riding.
Amflow

Amflow PX Carbon

$7,999.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Amflow PX Carbon

Brand:Amflow

Code:Amflow Px Carbon

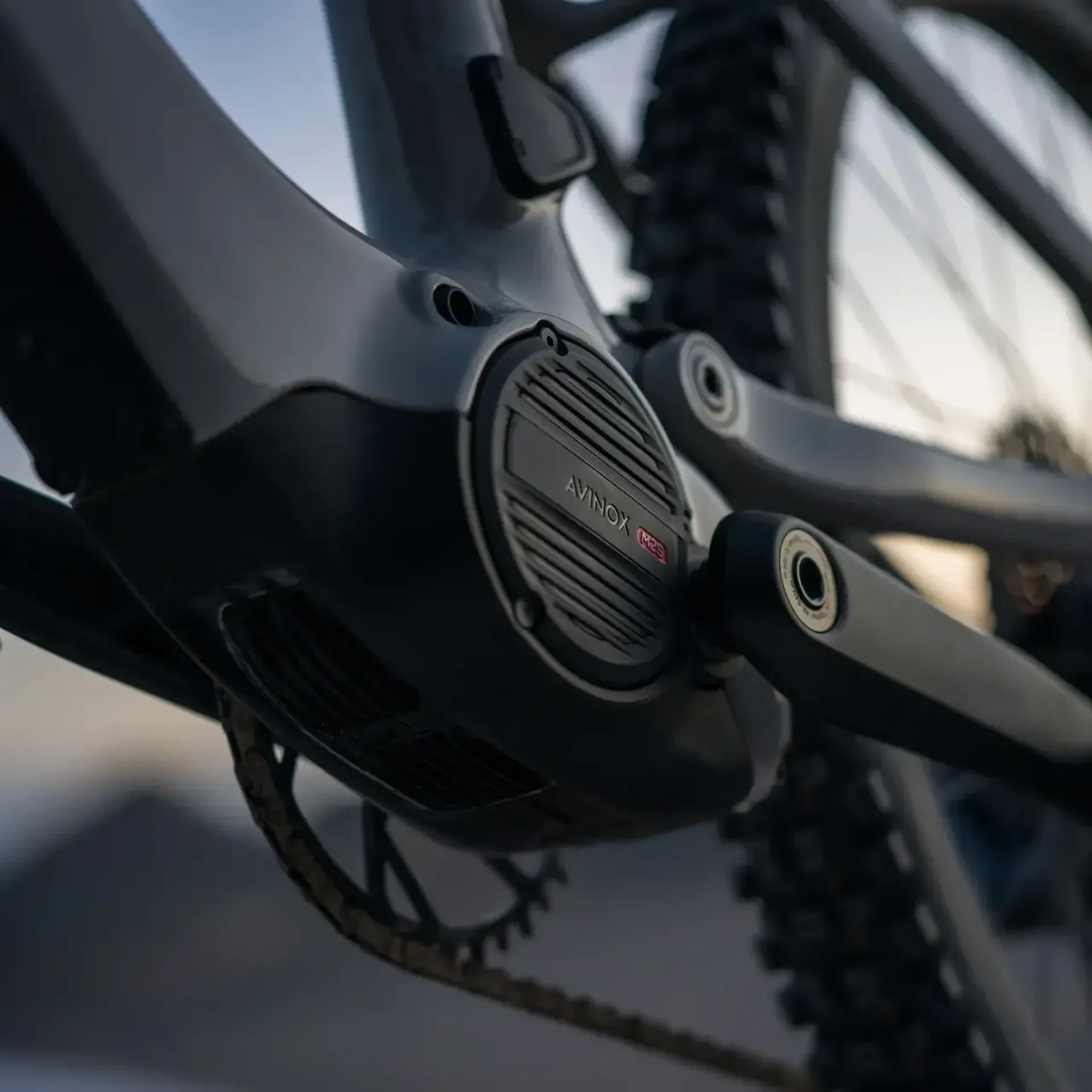

The Avinox M2S Drive Unit uses sensors and smart algorithms for linear pedaling feel, with up to 150N·m max torque.

The Avinox M2S Drive Unit features innovative compound planetary gears and a helical gear design to reduce operating noise to as low as 45dBA for a quieter, more immersive ride. A 700Wh high-capacity battery paired with 3x super-fast charging supports all-day epic rides.

The bike offers versatile geometry with up to 40 combinations, allowing for fine-tuning of the head tube angle, bottom bracket height, and chainstay length to suit different trails and riding styles. At 2.59kg, the drive unit boosts torque density by 21.6% compared to the previous generation. Smart offline navigation is supported through the Avinox Ride app, which imports third-party routes and turns ride history into route files for one-click data synchronization.

Features:

  • Avinox M2S Drive Unit with 150N·m max torque
  • 700Wh high-capacity battery with 3x super-fast charging
  • Up to 40 geometry combinations for custom trail tuning
  • Avinox Ride app for offline navigation and data synchronization
  • Includes comprehensive road safety and full-bike accessory kits
Technical Information
  • Frame
    Amflow PX Carbon
  • Geometry configurations
    40
  • Wheel compatibility
    27.5″ and 29″ rear wheels
  • Drive unit
    Avinox M2S, Nominal 130N·m, Peak 150N·m
  • Display
    Avinox 2-inch OLED
  • Battery
    Avinox Integrated 700Wh
  • Wireless controllers
    Avinox (Right and left sides)
  • Charger
    Avinox 12A/508W
  • Rear shock
    FOX Float X Performance, 2-position lever, custom tune, LSR adjustment, 210×55mm, air shock
  • Fork
    FOX 36 Performance, 160mm travel, GRIP damper, Sweep/LSR adjustment, 15×110mm, 44mm offset
  • Rear derailleur
    SRAM S1000 Eagle Transmission
  • Chainring
    SRAM Eagle Transmission DM 38T
  • Shift levers
    SRAM AXS Pod Controller
  • Cassette
    SRAM XS-1270 Eagle Transmission 10-52T
  • Chain
    SRAM Eagle 70 Transmission Flattop
  • Crankset
    Avinox SL (M/L: 155mm; XL/XXL: 160mm)
  • Brakes
    Magura Gustav Pro Hydraulic Disc, 4-piston calipers
  • Brake rotors
    Magura Sensor (203mm, 2.5mm)
  • Wheelset
    Amflow XMA-30 Mullet
  • Front rim
    Alloy, 29″, 30mm inner width, 32H, tubeless ready
  • Rear rim
    Alloy, 27.5″, 30mm inner width, 32H, tubeless ready
  • Spokes
    SAPIM E-Light
  • Front hub
    Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt
  • Rear hub
    Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG
  • Front tire
    Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready
  • Rear tire
    Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready
  • Handlebar
    Amflow Enduro Alloy, 40mm Rise, 800mm Width, 35mm Diameter, 5-degree upsweep, 9-degree backsweep
  • Accessories
    Avinox Front Light, Amflow Bottle Cage, Geometry Adjustment Systems, Dropper Post Travel Reducing Spacer, Rear Light, Clear Frame Protection Film
Sizing Information
Measurement M L XL XXL
Height (in) 5'4 - 5'10 5'7 - 6'1 5'9 - 6'3 6'1 - 6'7
Height (cm) 162 - 178 cm 170 - 185 cm 175 - 191 cm 185 - 201 cm
