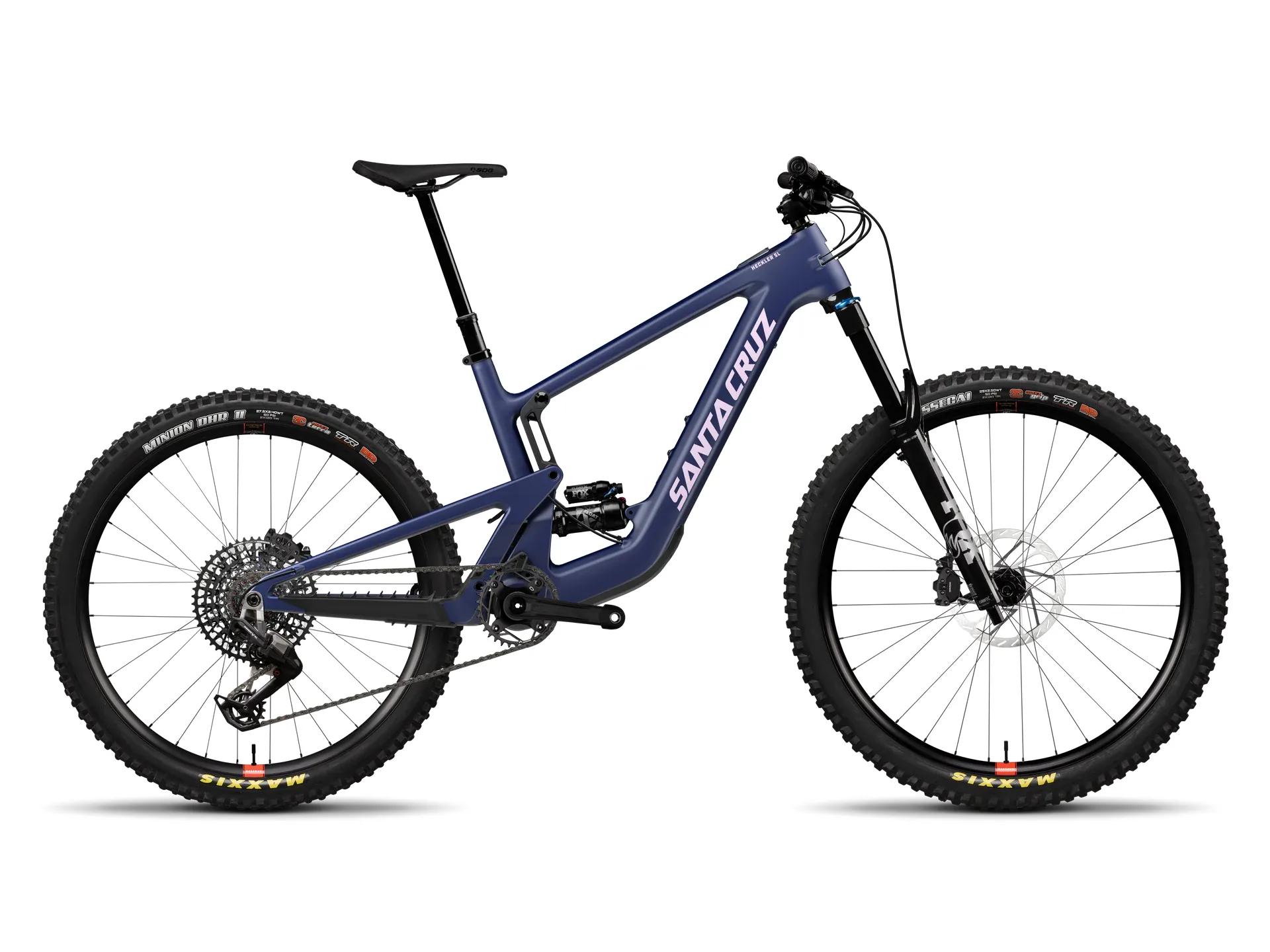

The Santa Cruz Heckler SL 90 is a lightweight, powerful ebike featuring 150mm of VPP™ suspension, mixed wheels, and the FAZUA RIDE 60 drive unit.
The Santa Cruz Heckler SL 90 is a lightweight, powerful ebike featuring 150mm of VPP™ suspension, mixed wheels, and the FAZUA RIDE 60 drive unit.
Santa Cruz

Santa Cruz Heckler SL 90

$8,699.00
Earn
in Customer Rewards when you buy this item today
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Santa Cruz Heckler SL 90

Brand:Santa Cruz

Code:Santa Cruz - Heckler SL 9

The Santa Cruz Heckler SL 90 is a lightweight, powerful ebike with surprising range.

This bike features all the on-trail traits of a Santa Cruz combined with the FAZUA RIDE 60 drive unit. With 150mm of legendary VPP™ suspension, mixed wheels, and progressive geometry, the Heckler SL is a natural handling trail bike with the added power of an ebike. The FAZUA drive unit combined with a 430 Wh battery provides an equivalent range of many full-power ebikes with bigger batteries.

Features:

  • FOX 36 Float Performance Fork
  • FOX Float X Performance Shock
  • SRAM 90 Eagle T-Type Drivetrain
  • Fazua Ride 60 Drive Unit
  • 430 Wh Battery
  • Flip Chip
  • VPP™ Suspension
  • C Carbon Frame
Technical Information
  • Frame Material
    Carbon C
  • Frame Features
    150mm Travel VPP
  • Fork Travel
    160mm
  • Weight
    44.35 lbs / 20.12 kg
  • Wheel Size
    MX
  • Fork
    FOX 36 Float Performance, Grip, 160mm
  • Shock
    FOX Float X Performance, 210x55
  • Cassette
    SRAM XS 1275 Eagle T-Type, 10-52t
  • Chain
    SRAM GX Eagle T-Type, Flattop, 12spd
  • Chainguide
    OneUp Chainguide
  • Crankset
    E13 Helix eSpec, 165mm
  • Rear Derailleur
    SRAM 90 Eagle T-Type, 12spd
  • Right Shifter
    SRAM 90 Eagle T-Type, Single Click, 12spd
  • Front Brakes
    SRAM Maven Base
  • Front Rotor
    SRAM HS2 200mm
  • Rear Rotor
    SRAM HS2 200mm
  • Grips
    Santa Cruz Bicycles House Grips
  • Handlebars
    OneUp Aluminum Bar
  • Headset
    Cane Creek 10 IS Integrated Headset
  • Saddle
    SDG Bel-Air V3, Max Lux-Alloy
  • Seatpost
    OneUp Dropper Post, 31.6
  • Stem
    OneUp Enduro Stem, 42mm
  • Front Rim
    Reserve 30|HD AL
  • Front Hub
    E13 SL, 15x110, 6-Bolt, 32h
  • Front Tire
    Schwalbe Albert, 29x2.5, Trail Radial Ultra Soft
  • Rear Rim
    Reserve 30|HD AL
  • Rear Hub
    E13 SL E-Spec, 12x148, XD, 6-Bolt, 32h
  • Rear Tire
    Schwalbe Albert, 27.5x2.5, Trail Radial Soft
  • Battery
    Fazua 430Wh Integrated Battery
  • Drive Unit
    Fazua Ride 60
  • Bottom Bracket Shell
    Fazua DU w/ E-TOR spindle
  • Rear Brake Mount
    PM 200mm
  • Shock Length
    210mm
  • Fork Axle to Crown
    571mm
  • Fork Offset
    44mm
  • Front Derailleur Mount
    No
  • Headset Standard
    IS 41 / IS52
  • Max Chainring Size
    36t
  • Max Rotor Size
    220mm
  • Max Tire Clearance
    2.6"
  • Rear Spacing
    148mm
  • Shock Bushing Size Front
    30x8
  • Shock Bushing Size Rear
    30x8
  • Shock Stroke
    55mm
  • UDH Compatible
    Yes
Sizing Information

Find Your Size

If you are on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with.

Size Height (cm) Height (in) Reach (mm)
Small 154 - 165 cm 5'1" - 5'5" 435 mm
Medium 165 - 175 cm 5'5" - 5'9" 460 mm
Large 172 - 185 cm 5'8" - 6'1" 480 mm
X-Large 182 - 193 cm 6'0" - 6'4" 500 mm
XX-Large 190 - 200 cm 6'3" - 6'7" 525 mm

Geometry

All units are in millimeters or degrees.

Size Reach (Hi/Lo) Stack (Hi/Lo) Head Tube Angle (Hi/Lo) Head Tube Length Rear Center (Hi/Lo) Front Center (Hi/Lo) BB Height (Hi/Lo) BB Drop Front (Hi/Lo) BB Drop Rear (Hi/Lo) Wheelbase (Hi/Lo) Top Tube Length (Hi/Lo) Seat Tube Length Seat Tube Angle (Hi/Lo) Standover Height (Hi/Lo)
S 435/432.4 mm 614.9/616.8 mm 64.3/64 deg 100 mm 443/443.8 mm 766.1/765.9 mm 344/340.7 mm 28.5/31.8 mm 9.9/13.3 mm 1209.1/1209.7 mm 569.2/579.6 mm 380 mm 76.8/76.6 deg 720.1/716.2 mm
M 460/457.4 mm 624/625.8 mm 64.3/64 deg 110 mm 443/443.8 mm 795.4/795.3 mm 344/340.7 mm 28.5/31.8 mm 9.9/13.3 mm 1238.4/1239.1 mm 602.7/602.9 mm 405 mm 77.1/76.9 deg 733/728.8 mm
L 480/477.5 mm 633/634.9 mm 64.3/64 deg 120 mm 443/443.8 mm 819.7/819.6 mm 344/340.7 mm 28.5/31.8 mm 9.9/13.3 mm 1262.7/1263.4 mm 620.6/621.5 mm 430 mm 77.5/77.2 deg 733.4/729.3 mm
XL 500/497.4 mm 651/653 mm 64.3/64 deg 140 mm 446/446.8 mm 848.4/848.3 mm 344/340.7 mm 28.5/31.8 mm 9.9/13.3 mm 1294.4/1295.1 mm 641.8/642.7 mm 460 mm 77.7/77.5 deg 731.7/731.6 mm
XXL 525/522.5 mm 664.5/666.5 mm 64.3/64 deg 155 mm 450/450.7 mm 879.9/879.8 mm 344/340.7 mm 28.5/31.8 mm 9.9/13.3 mm 1329.9/1330.5 mm 669.1/670 mm 500 mm 77.8/77.5 deg 741/738.6 mm
