Experience the Troxus Explorer Plus iQ fat tire electric bike, designed for stability and long-range adventure. Features a 750W motor, 20Ah battery, and Ride iQ smart protection with GPS tracking and anti-theft alerts for safer exploration.
Experience the Troxus Explorer Plus iQ fat tire electric bike, designed for stability and long-range adventure. Features a 750W motor, 20Ah battery, and Ride iQ smart protection with GPS tracking and anti-theft alerts for safer exploration.
Troxus

Troxus Explorer Plus iQ Electric Bike

$1,999.00 $2,499.00 20% off
Earn
in Customer Rewards when you buy this item today
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

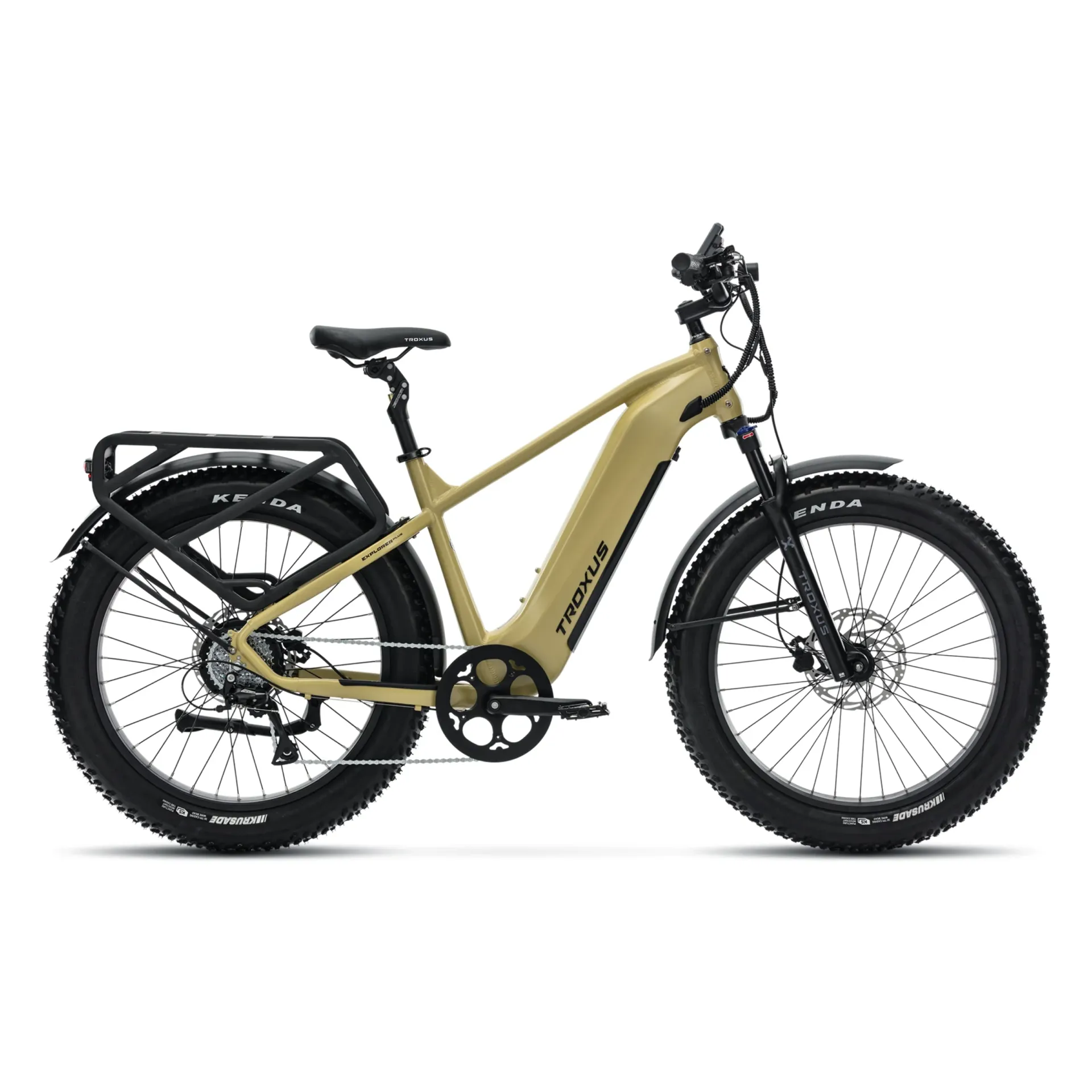

Troxus Explorer Plus iQ Electric Bike

Brand:Troxus

Code:Explorer Plus IQ

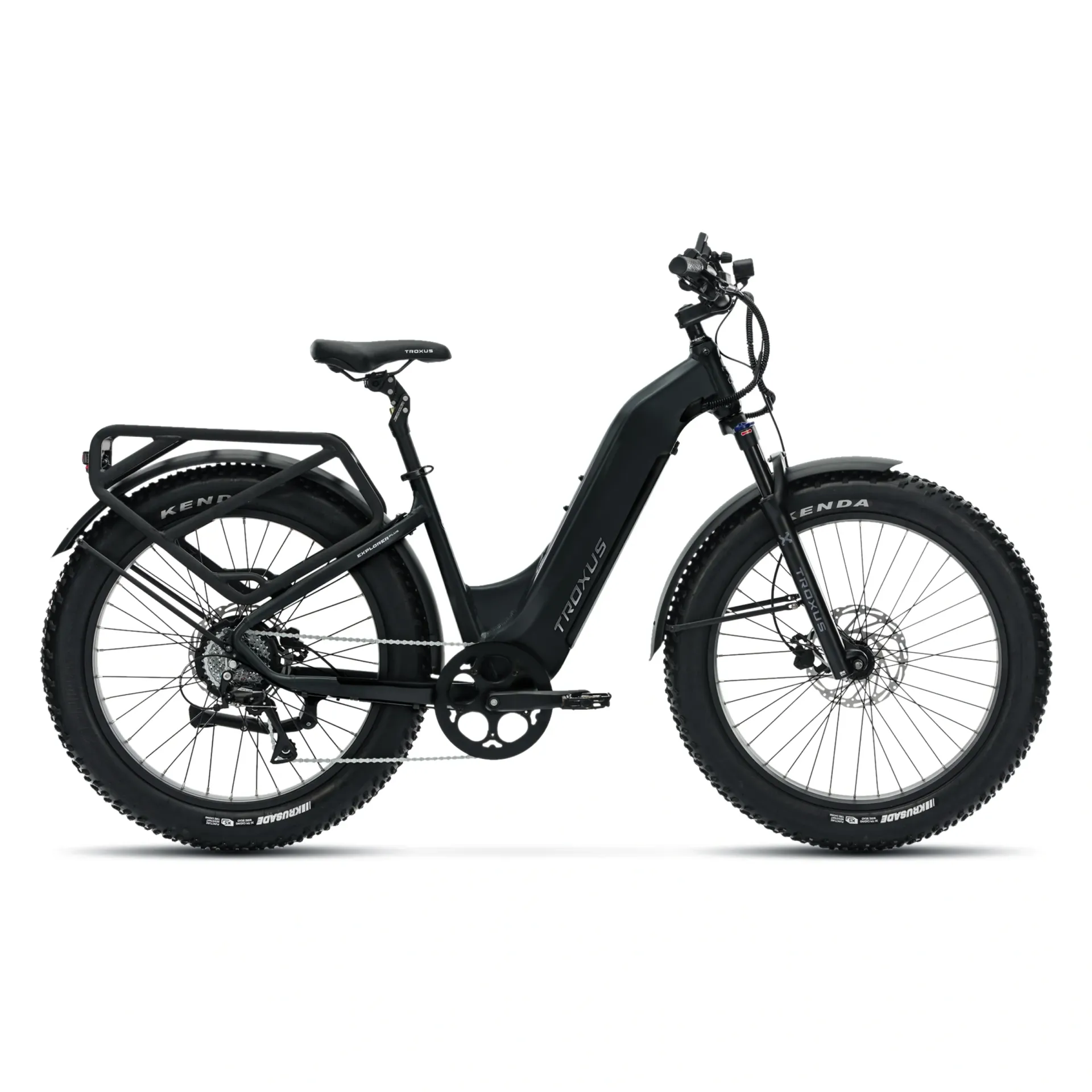

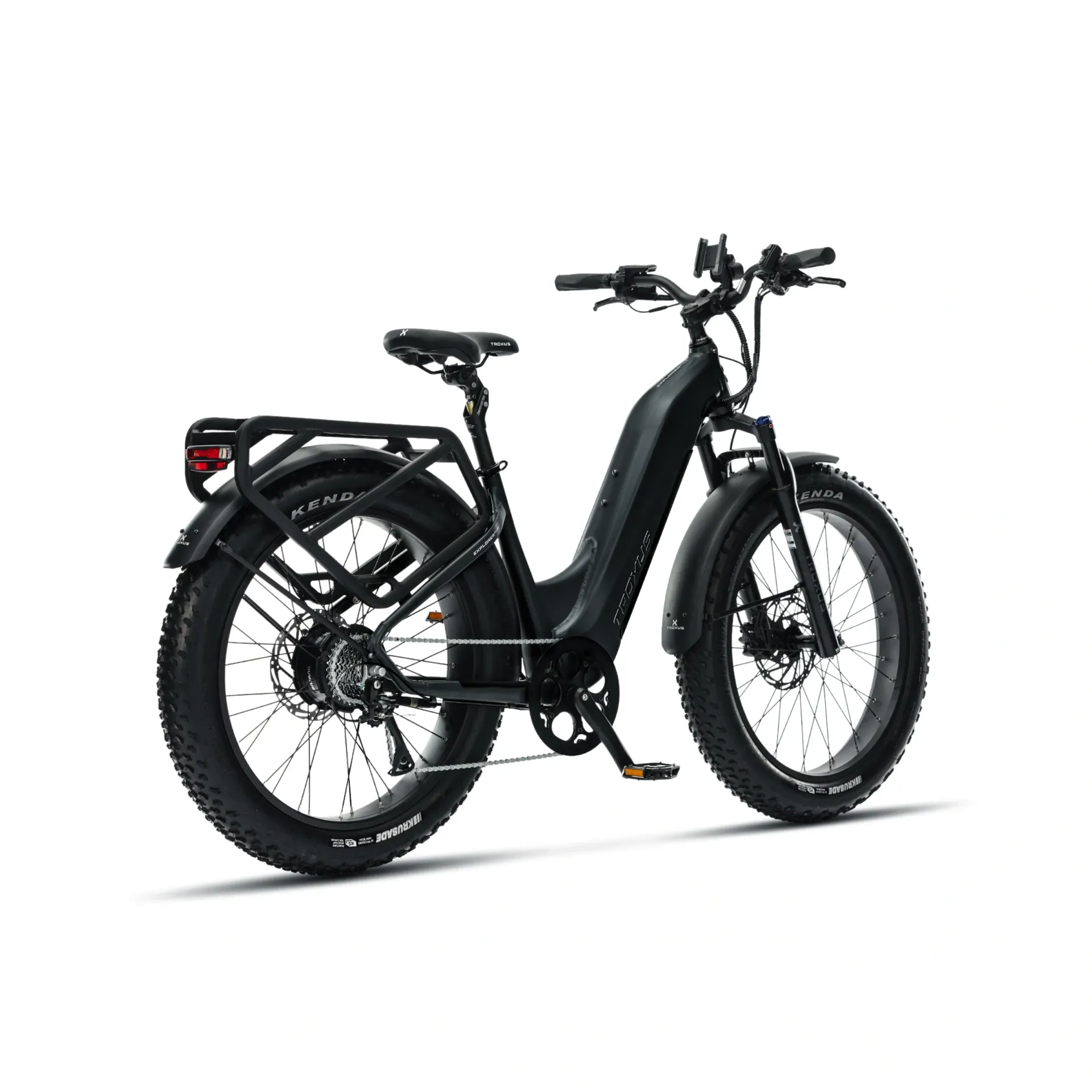

Experience the Troxus Explorer Plus iQ fat tire electric bike designed for adventure riding.

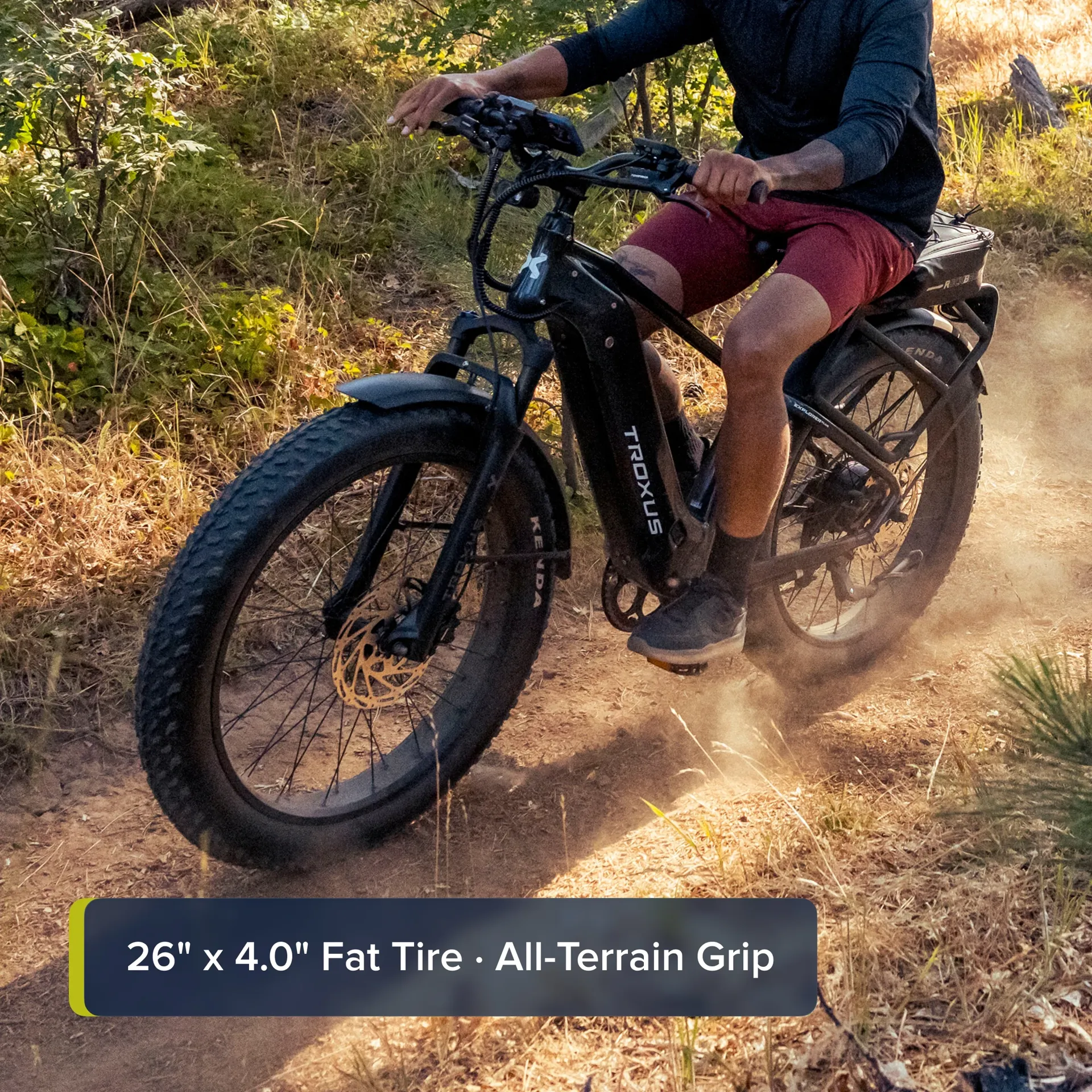

Built for stability, long-range confidence, and Ride iQ smart protection with GPS tracking, anti-theft alerts, and real-time ride monitoring for safer exploration on every terrain. The 4.0-inch fat tires create a larger contact surface with the ground, improving grip on gravel, dirt, sand, and uneven pavement. This design helps riders feel more confident when exploring beyond smooth city roads, offering a planted and secure ride feel even on unpredictable terrain.

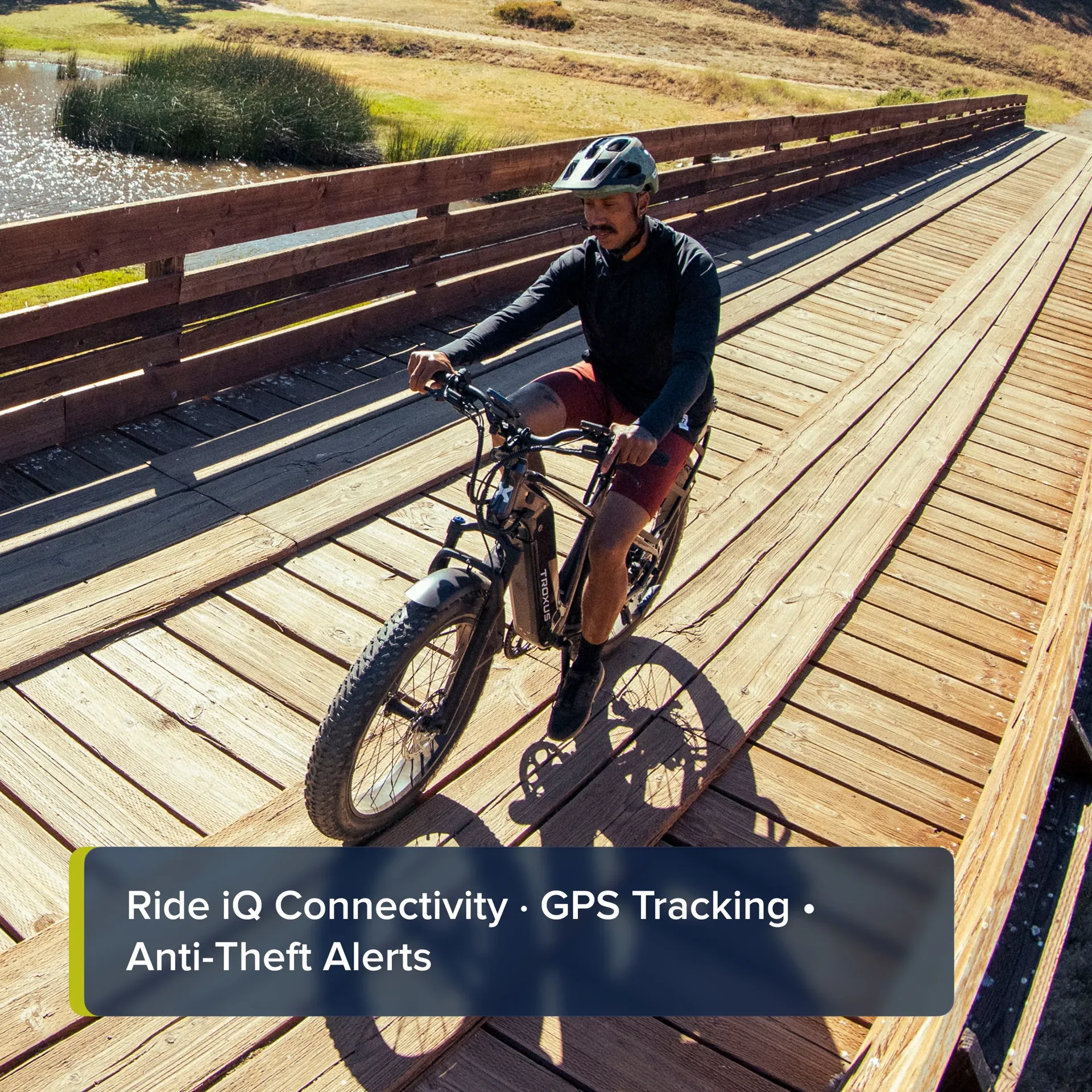

Equipped with a 750W high-torque motor delivering up to 86Nm, the bike provides smooth and controlled power for climbing hills, carrying loads, and riding through soft or uneven terrain. The assistance feels natural, helping riders maintain control during longer adventure rides. With a high-capacity 20Ah battery, the bike is designed for long-distance exploration. Smart power management ensures consistent support so every ride feels predictable and reliable. Ride iQ transforms the bike into a connected riding system with GPS tracking, motion alerts, and real-time monitoring to improve security.



Technical Information
  • Max Speed
    Up to 20 mph on throttle / up to 28 mph on pedal assist
  • Net Weight
    83.8 lbs

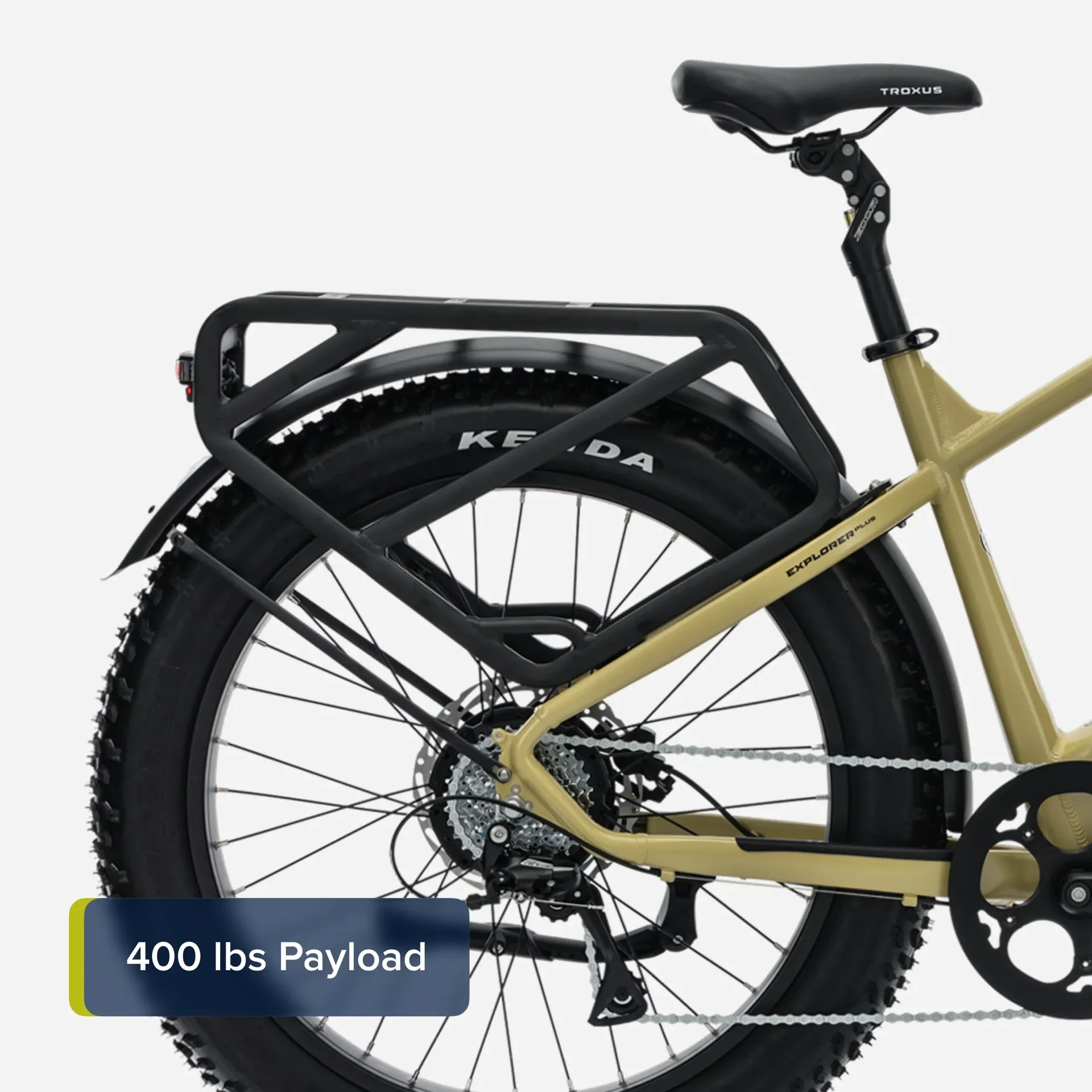

  • Weight Capacity
    400 lbs total; 100 lbs rear rack capacity

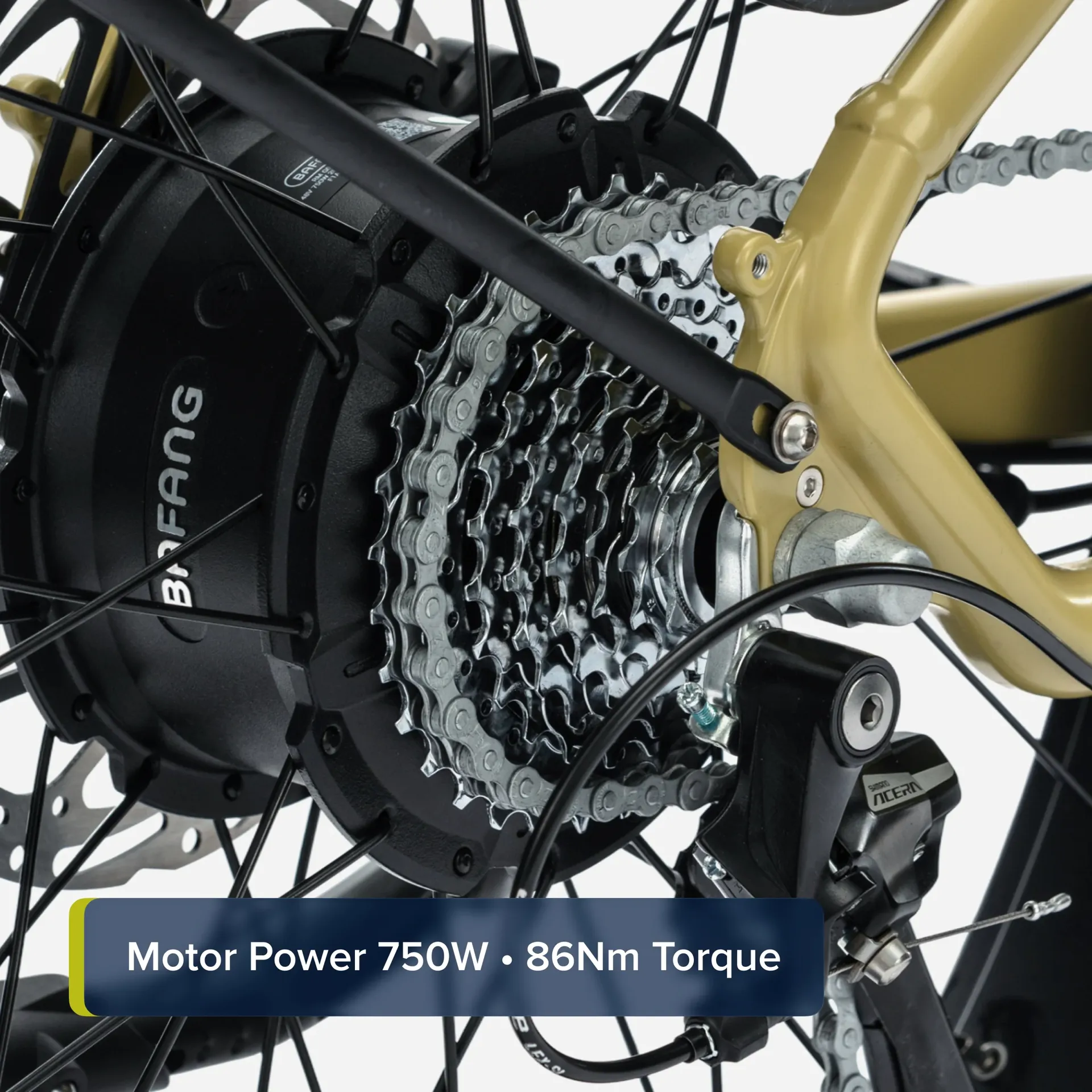

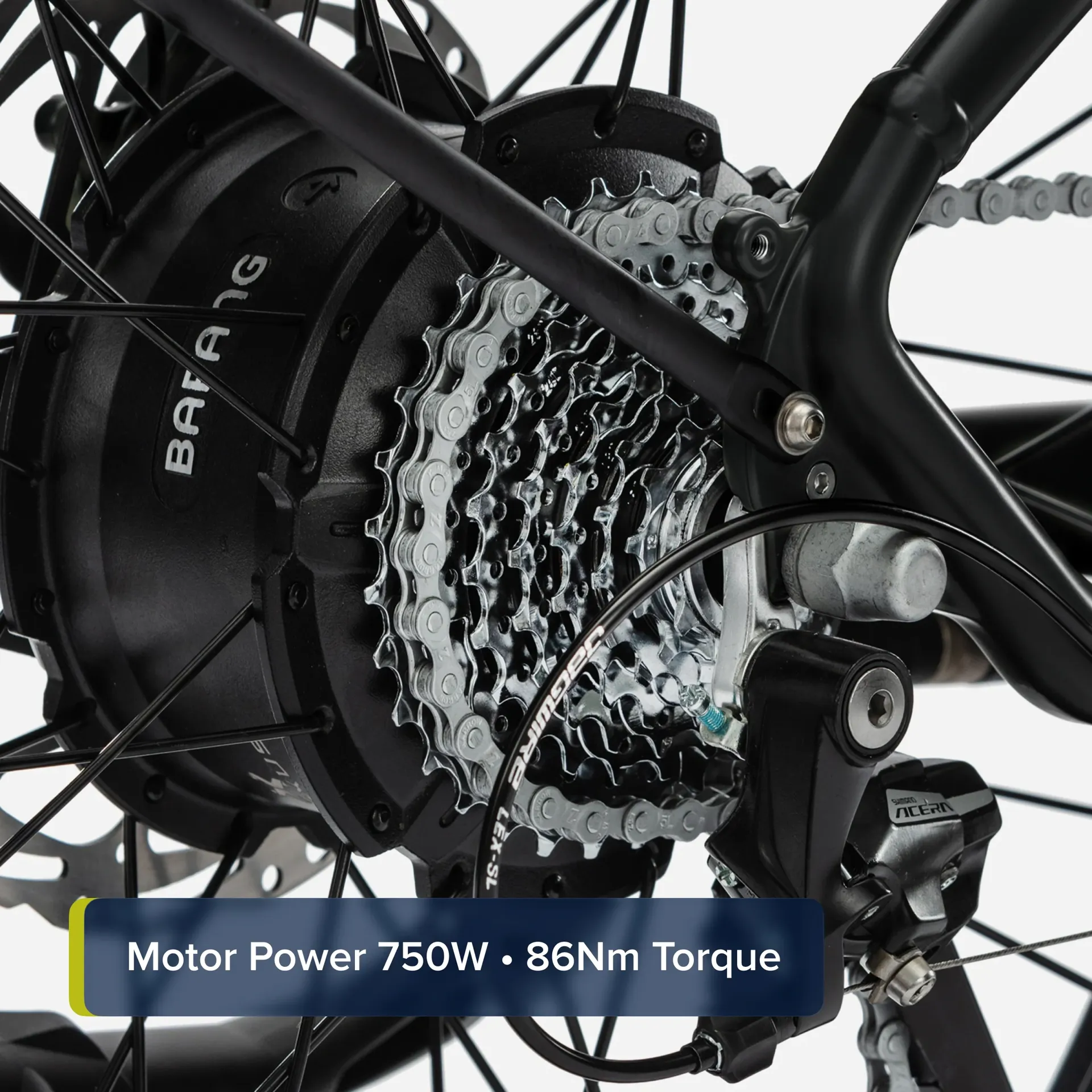

  • Motor
    48V/750W hub-drive, 86Nm max. torque

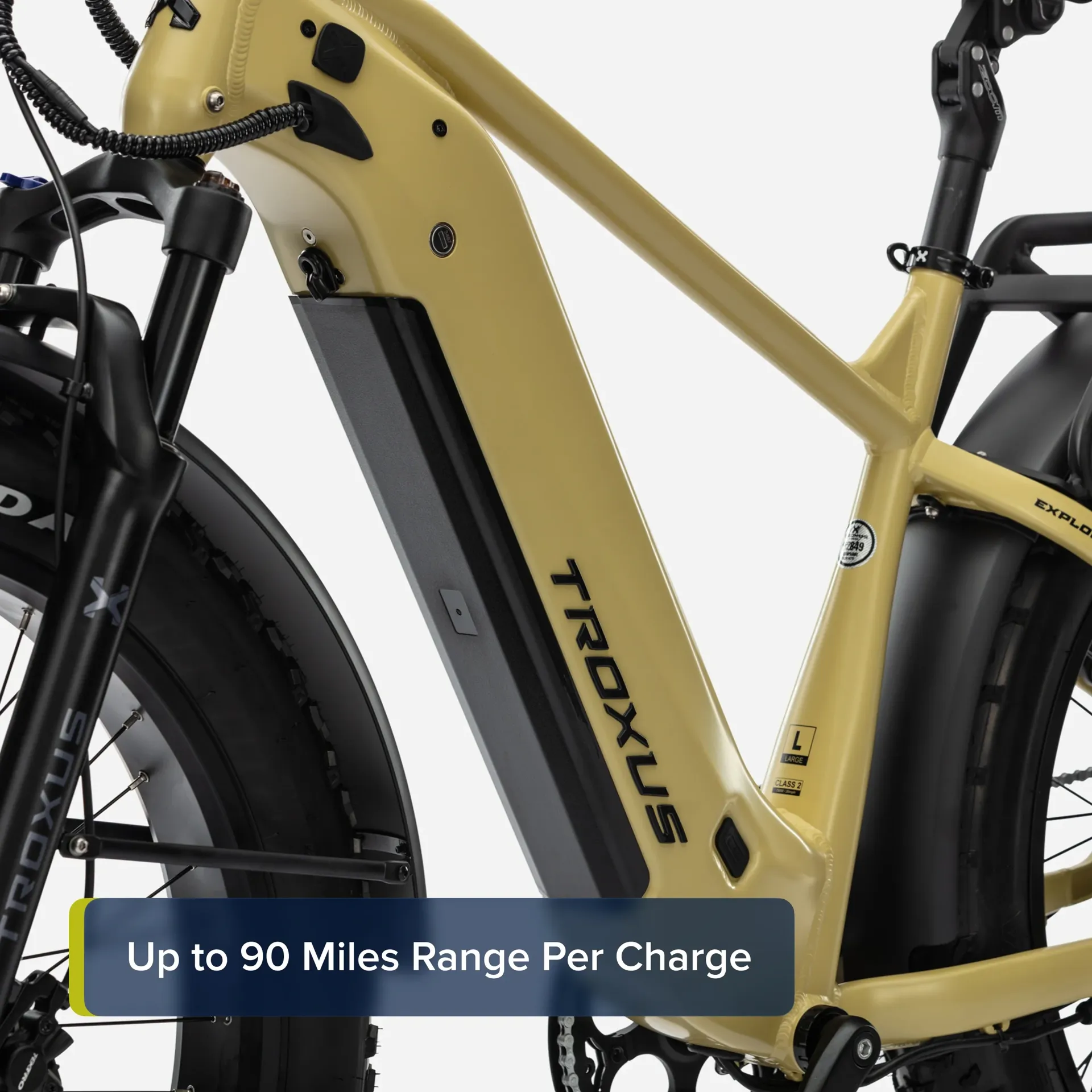

  • Battery
    48V/20Ah (960Wh) lithium ion with Samsung cells
  • Display
    Color display, Bluetooth, turn light signals, multi-function remote, USB charging
  • Sensor
    Switchable torque and cadence sensor modes
  • Pedal Assist
    0-5 level pedal assist
  • Charger
    3A / 100-240V input / 54.6V output

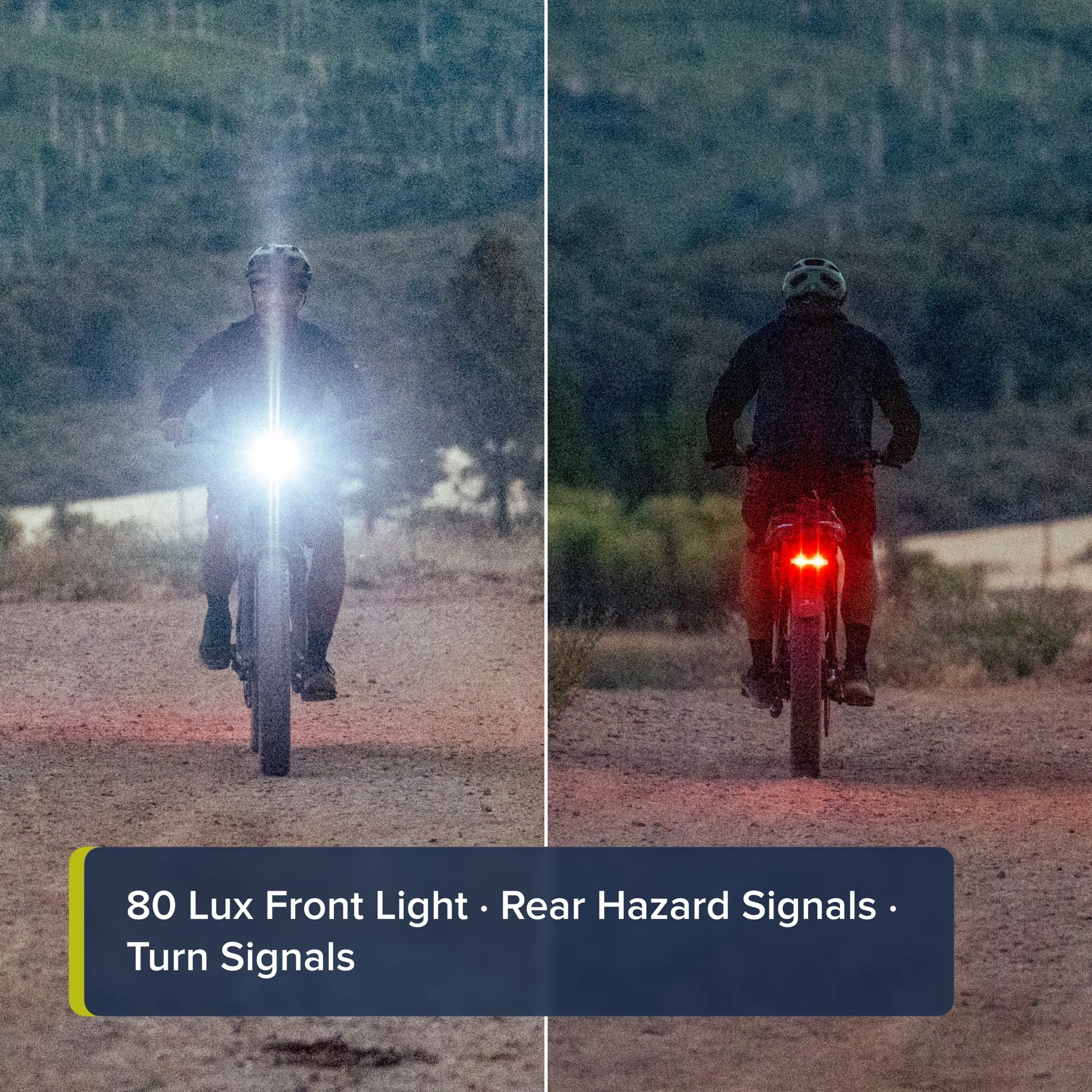

  • Lights
    Front and rear
  • Frame
    6061-T6 aluminum
  • Fork
    Front suspension, 90mm travel
  • Tires
    26"x4.0" with anti-puncture K-Shield
  • Brakes
    Tektro hydraulic with brake sensors
  • Rotors
    203mm front and rear
  • Drivetrain
    Shimano 8-speed
  • Crankset
    Aluminum, 46T, single alloy chainguard, square taper, 170mm
  • Bottom Bracket
    Square taper sealed bearings
  • Seat Post
    Alloy, 30.9x350mm, adjustable
  • Handlebar
    Alloy, 31.8mmx700mm wide
  • Stem
    Alloy, threadless, 1-1/8", 75mm extension, 7-degree rise
  • Pedals
    9/16" alloy platform

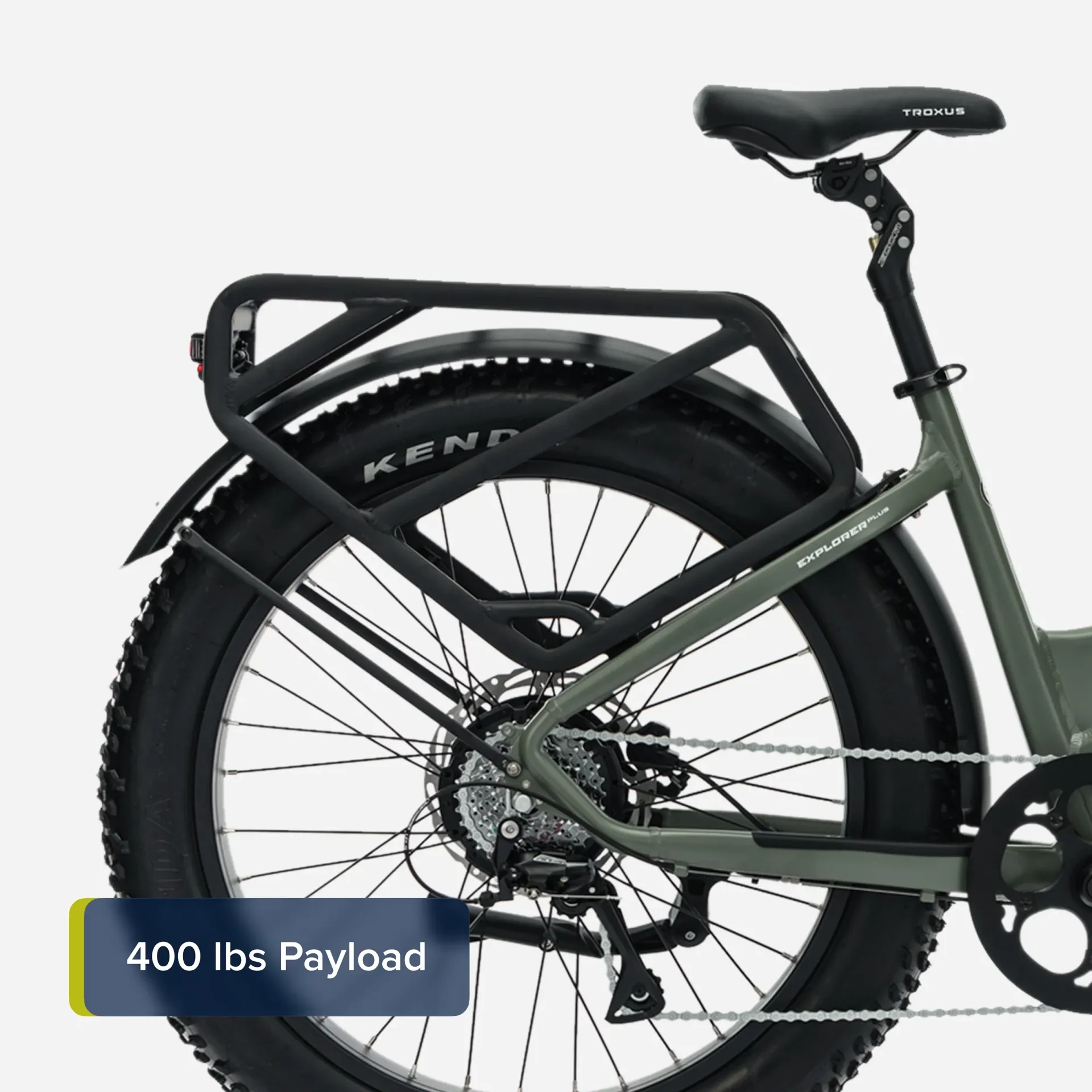

  • Rack
    Semi-integrated alloy, MIK-compatible
  • Fender
    Alloy, 27.5"x4.0", full coverage
  • Kickstand
    Adjustable side kickstand
Sizing Information
Troxus Explorer Plus iQ Electric Bike

Frame Geometry

Measurement Small / 16.5" (Step-Thru) Medium / 18.0" (Step-Thru) Large / 20" (Step-Over)
Wheel Size 26x4.0" 26x4.0" 26x4.0"
A - Seat Tube Length 419 mm 457 mm 500 mm
B - Seat Tube Angle 71.5˚ 71.0˚ 71.0˚
C - Head Tube Length 145 mm 145 mm 160 mm
D - Head Tube Angle 68˚ 68˚ 68˚
E - Effective Top Tube Length 609 mm 625 mm 625 mm
F - Bottom Bracket Height 305 mm 305 mm 305 mm
G - Bottom Bracket Drop 70 mm 70 mm 70 mm
H - Chainstay Length 490 mm 490 mm 490 mm
I - Fork Offset 46 mm 46 mm 46 mm
J - Wheelbase 1163 mm 1171 mm 1173 mm
K - Frame Reach 383 mm 392 mm 387 mm
L - Frame Stack 677 mm 677 mm 691 mm
Fork Travel 90 mm 90 mm 90 mm
Fork Height 525 mm 525 mm 525 mm

Performance and Capacity

Feature Specification
Max Speed Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist
Range Up To 90 Miles Per Charge
Maximum Load 400 lbs
Maximum Rear Rack Capacity 100 lbs
Net Weight 83.8 lbs
