The Lynx T-Scram is a dual-suspension, moped-style e-bike featuring an Ananda® 750W motor, 960Wh battery, and 51x10cm (20x4.0") tires for all-surface.
The Lynx T-Scram is a dual-suspension, moped-style e-bike featuring an Ananda® 750W motor, 960Wh battery, and 51x10cm (20x4.0") tires for all-surface.
Troxus

Troxus Lynx T-Scram 2025 in Natural Slate

$1,999.00 $2,599.00 23% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Troxus Lynx T-Scram 2025 in Natural Slate

Brand:Troxus

Code:10870100318

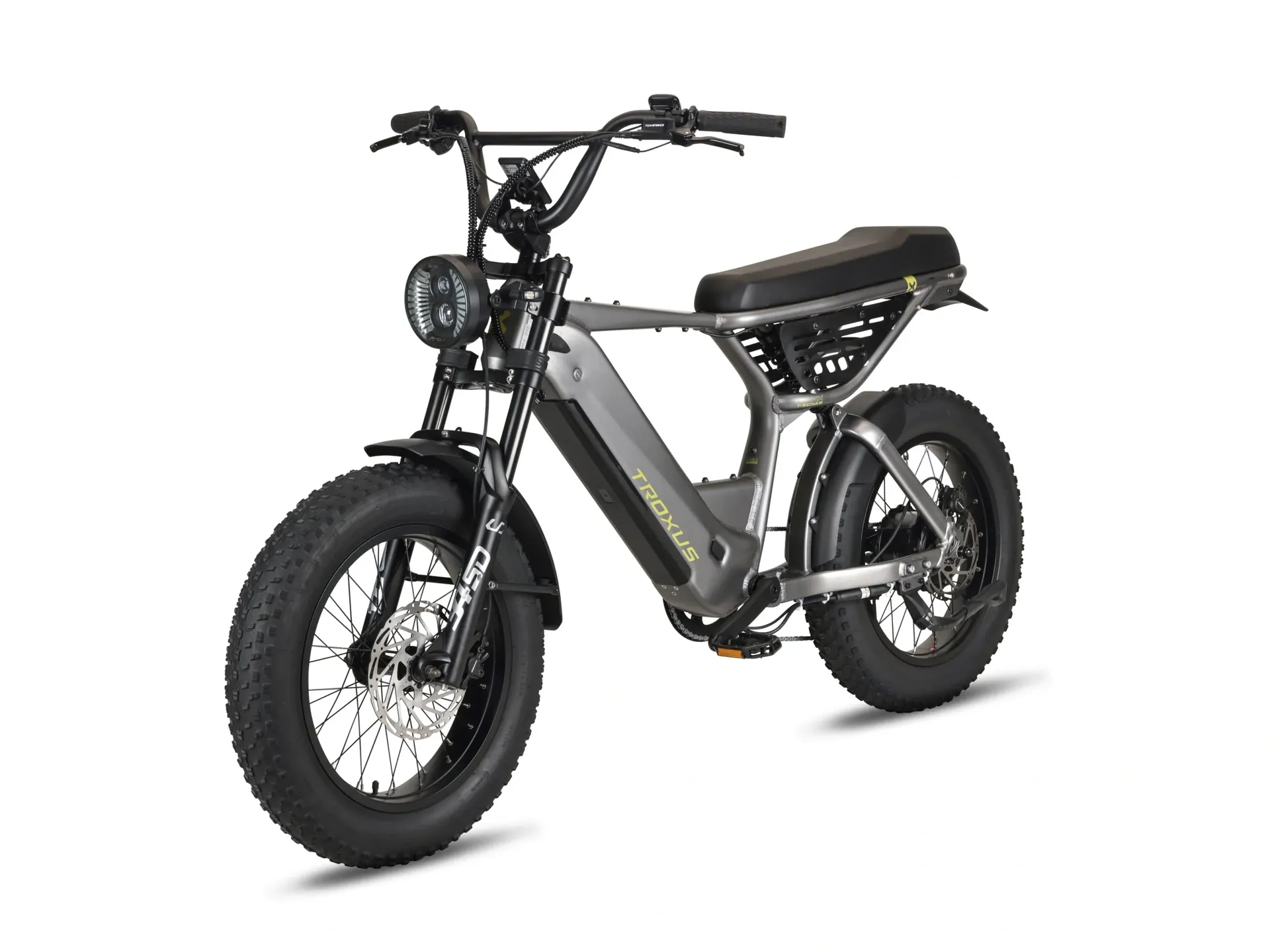

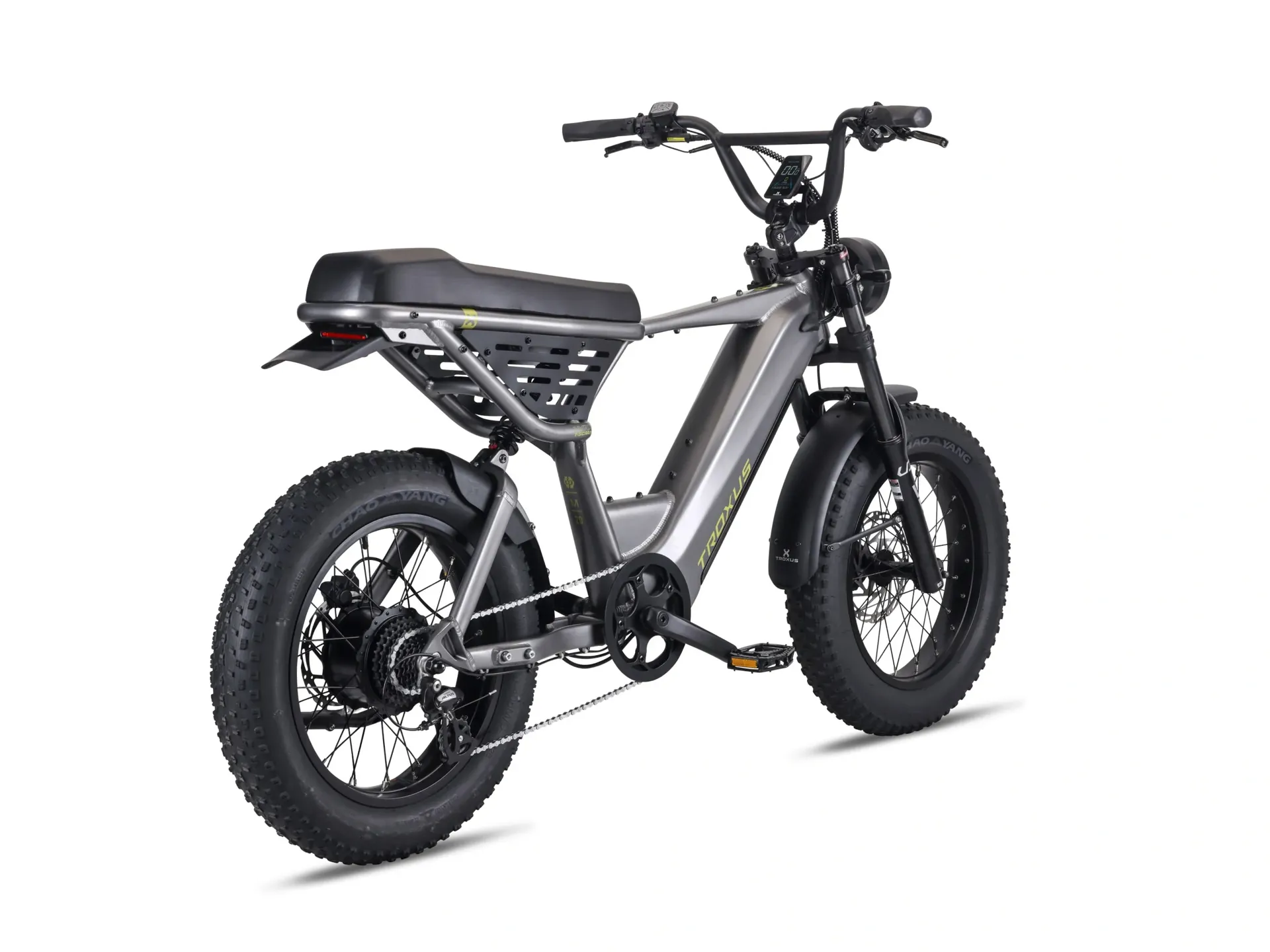

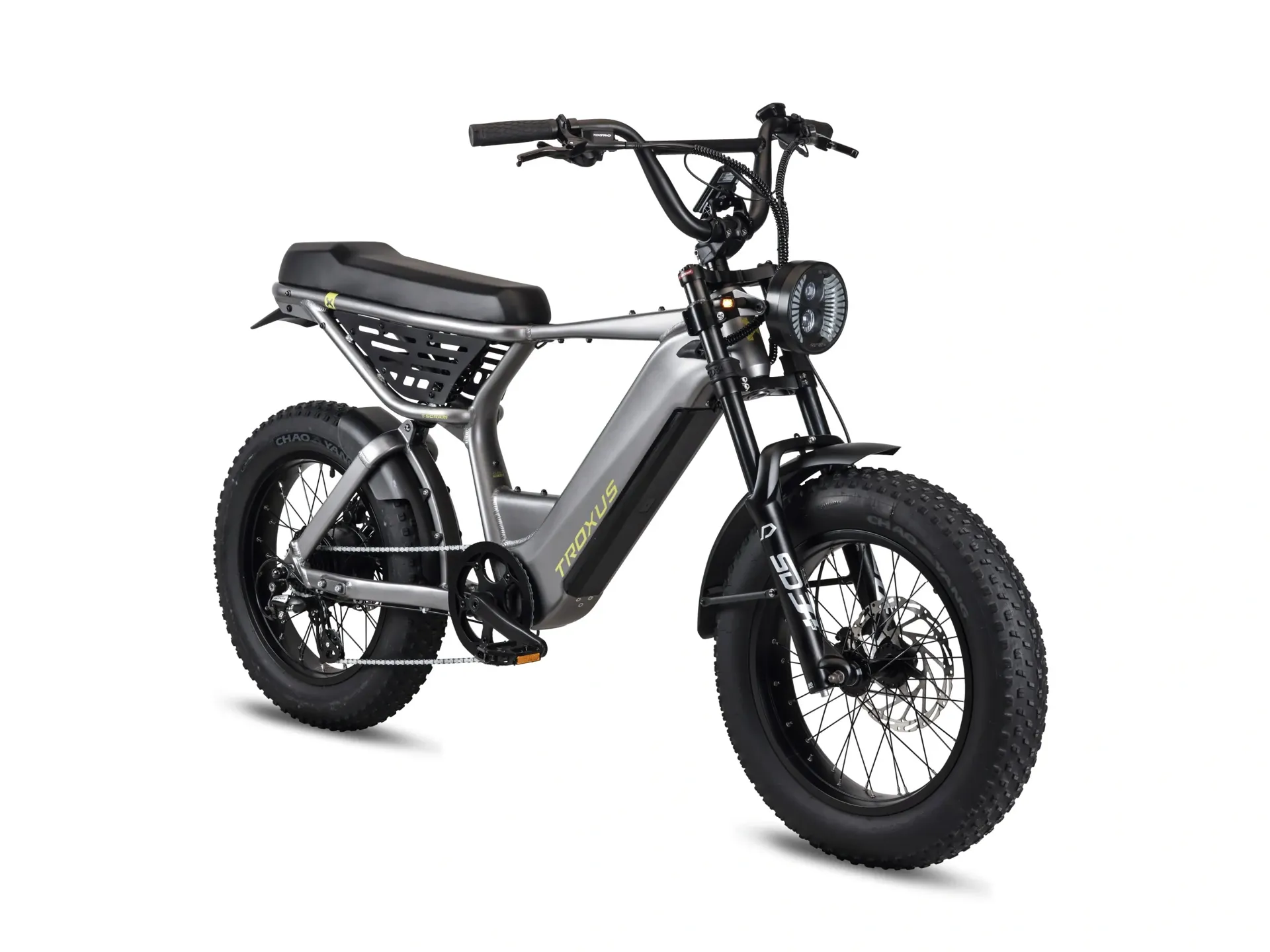

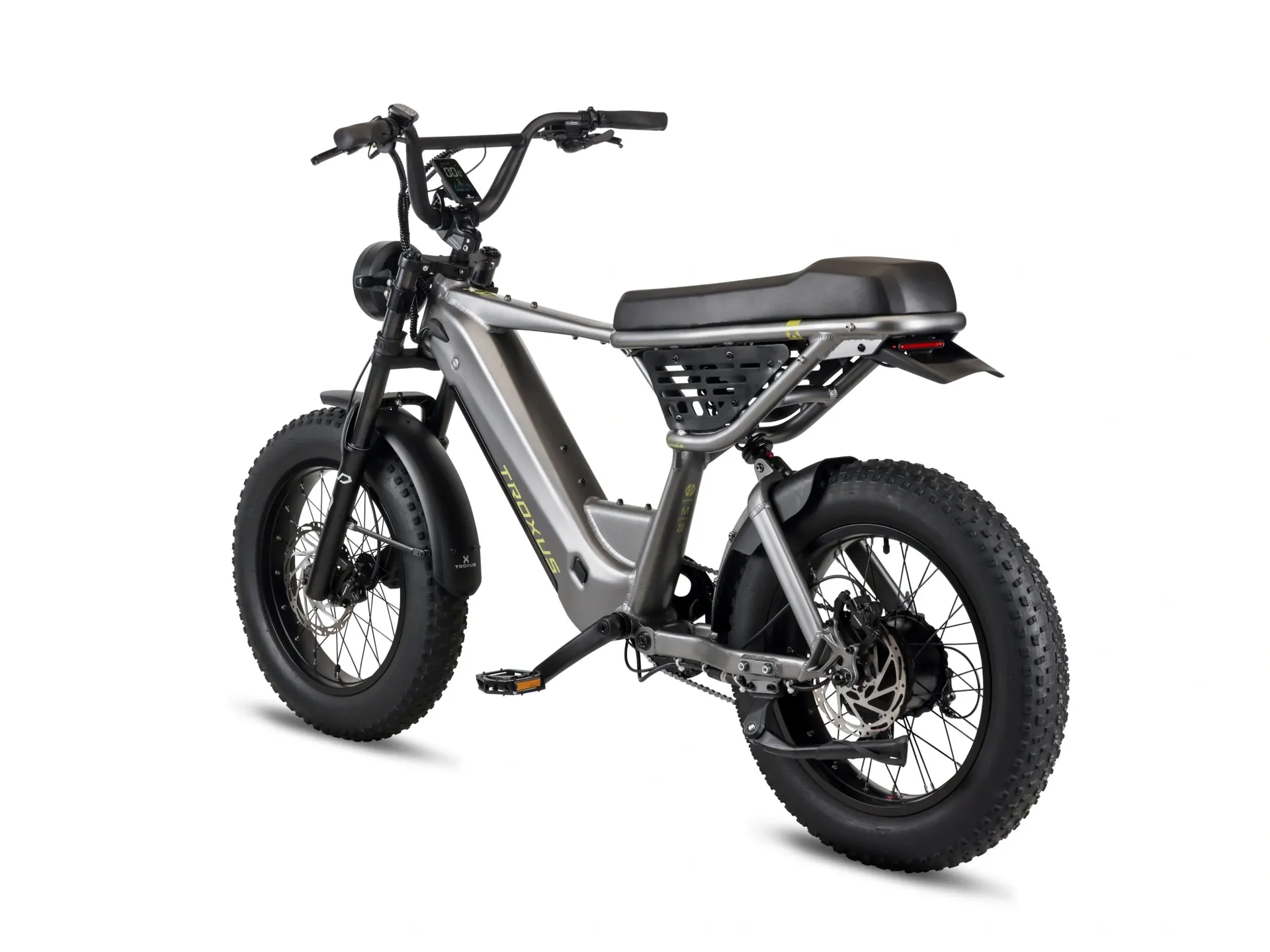

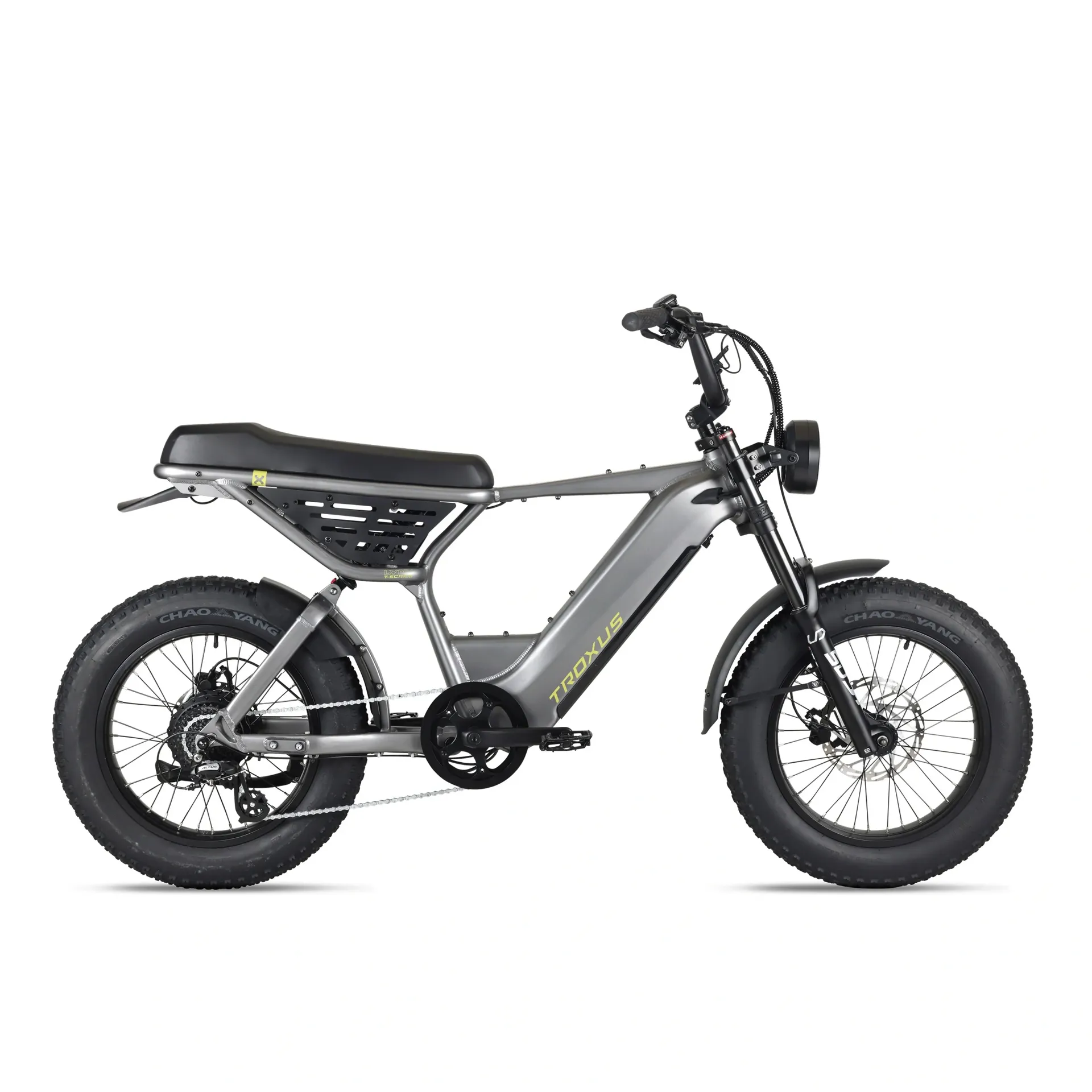

The Lynx T-Scram is a dual-suspension, moped-style e-bike that blends bold design and everyday versatility. It features powerful all-surface capabilities, making it perfect for exploring the city and beyond. Equipped with an Ananda® 750W motor, dual suspension, and 51x10cm (20x4.0") tires, it handles rough terrain with ease. A 960Wh battery and switchable torque and cadence sensor modes deliver impressive range and smooth, responsive pedal-assist.

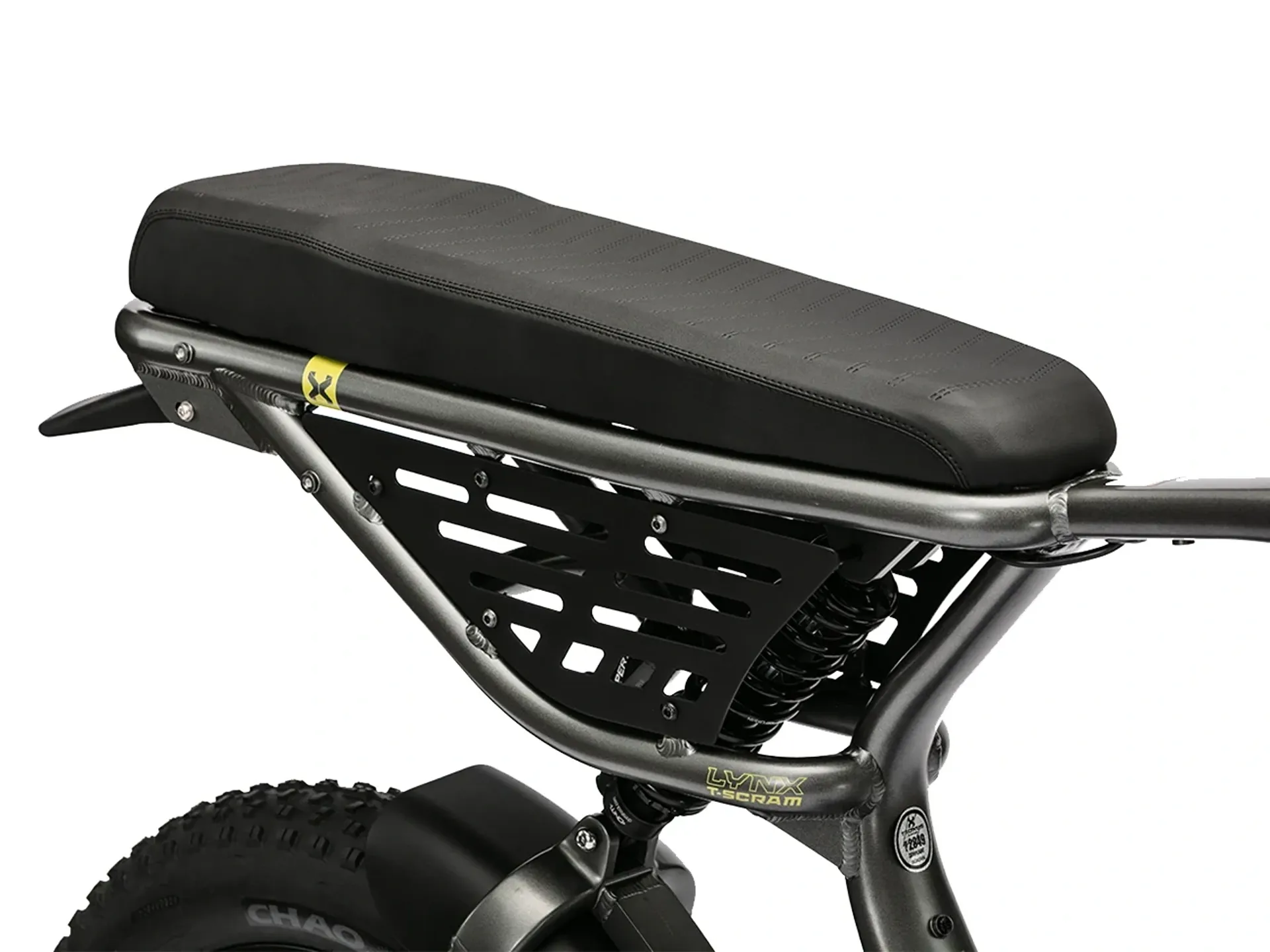

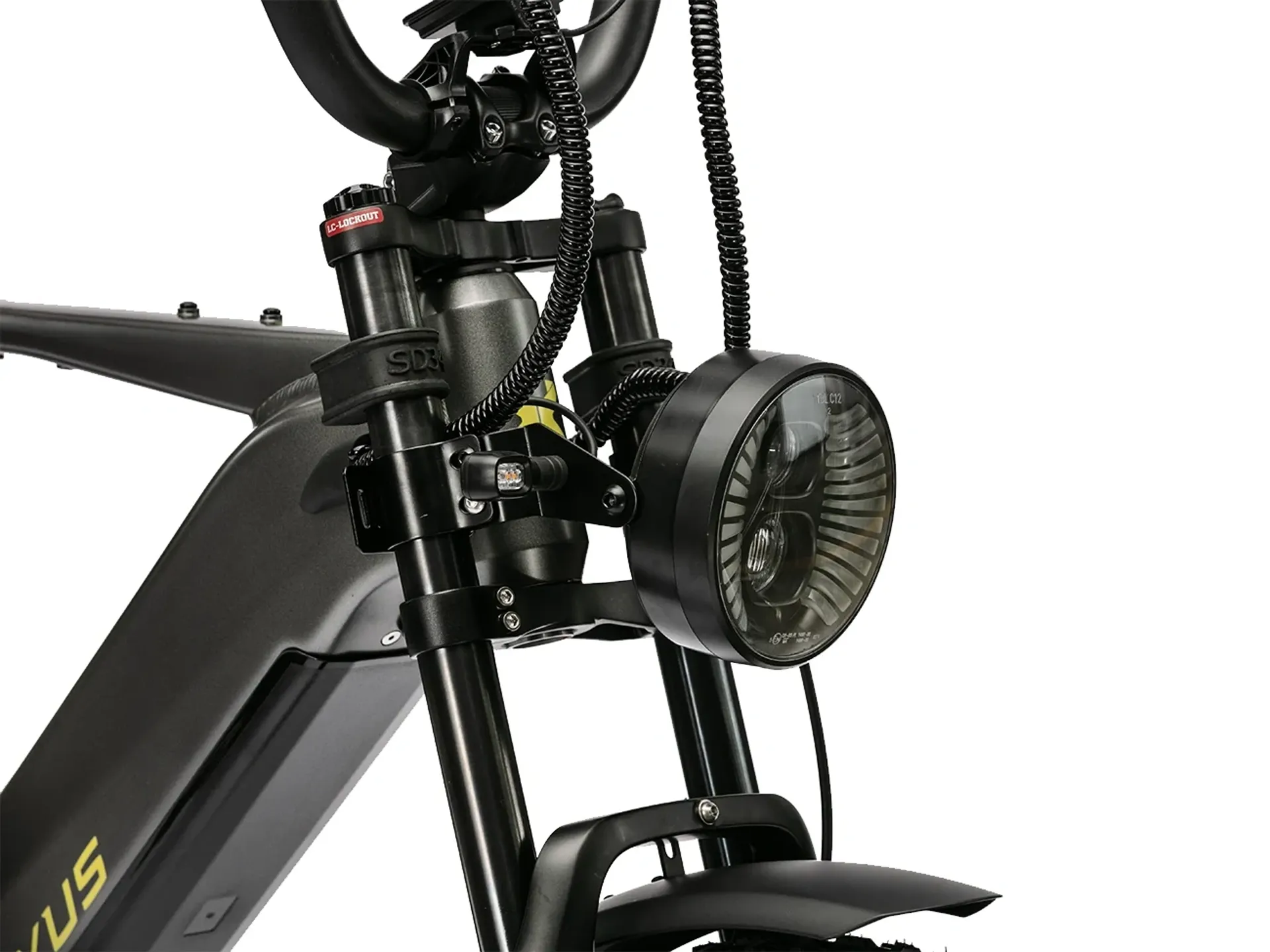

The extra-long saddle is designed for two riders, and the optional fold-down foot pegs keep things safe. With a max load of 400 lbs (181 kg), it is made to carry weight comfortably. Safety features include Tektro® hydraulic disc brakes, front and rear turn signals, and a moto-style headlight to keep riders visible day or night.

Technical Information
  • Frame Size
    Universal
  • Wheel Size
    20"x4.0"
  • Head Tube Length
    145
  • Head Tube Angle
    67˚
  • Effective Top Tube Length
    652
  • Bottom Bracket Height
    316
  • Bottom Bracket Drop
    0
  • Chainstay Length
    500
  • Fork Offset
    51
  • Wheelbase
    1241
  • Frame Reach
    457
  • Frame Stack
    520
  • Fork Travel
    100
  • Fork Height
    460
  • Max Speed
    Up to 20 MPH on throttle / Up to 28 MPH on pedal assist
  • Range
    Up to 90 miles per charge
  • Weight Limit
    Maximum load: 400 lbs / Rider: 250 lbs. / Passenger: 150 lbs.
  • Net Weight
    88.5 lbs.
  • Motor
    Ananda® 48V/750W hub-drive motor, 85Nm peak torque
  • Battery
    UL-2271 certified, internal, removable, lithium ion, 48V/20Ah (960Wh) with Samsung® cells

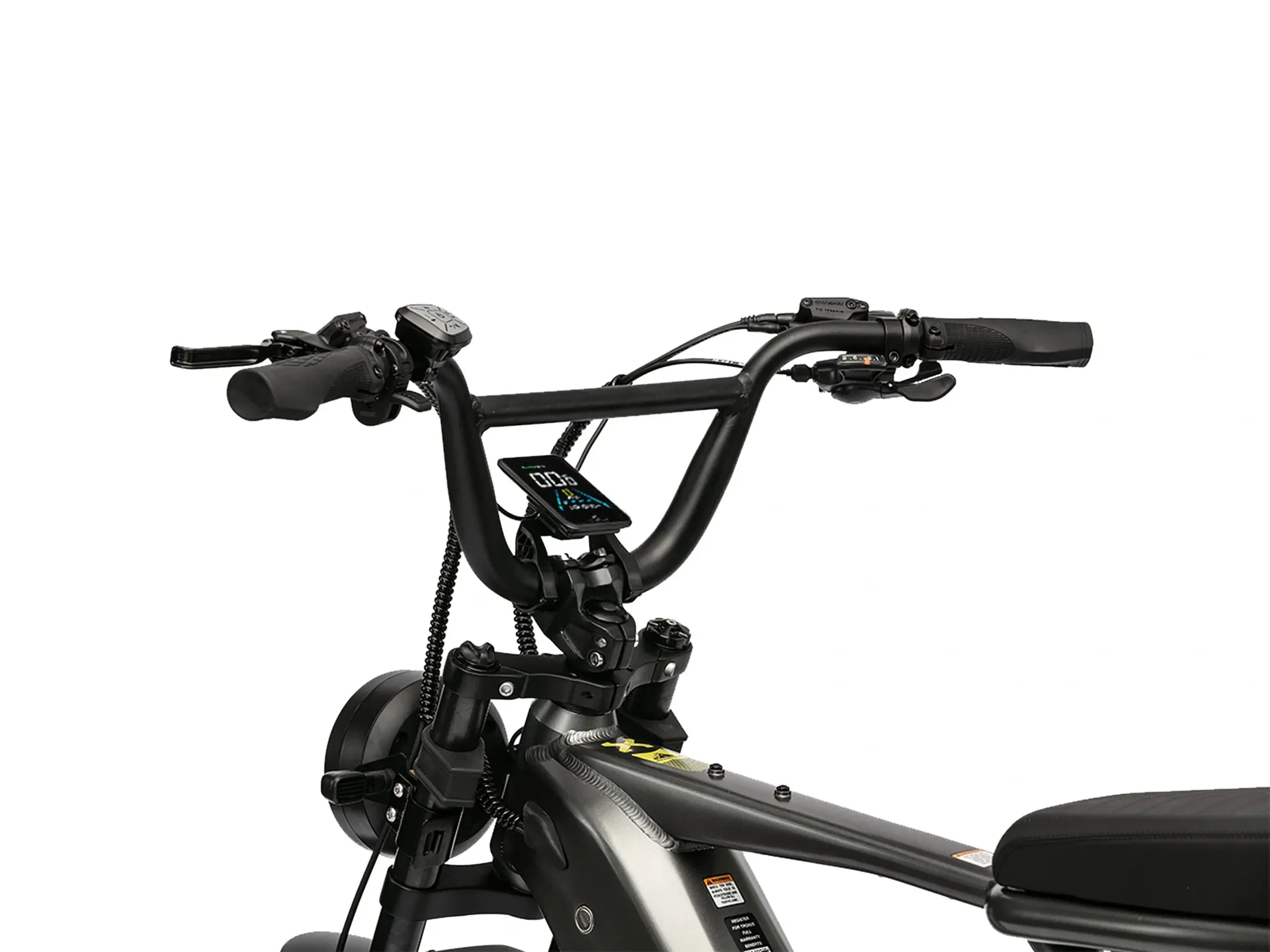

  • Display
    Color display, Bluetooth, with front & rear turn signals, with multi-function remote
  • Sensor
    Switchable torque and cadence sensor modes
  • Pedal Assist
    0~5 level pedal assist
  • Charger
    3A / 100-240V input / 54.6V output
  • Lights
    Front light & rear light
  • Controller
    48Vx22A/12V
  • Frame

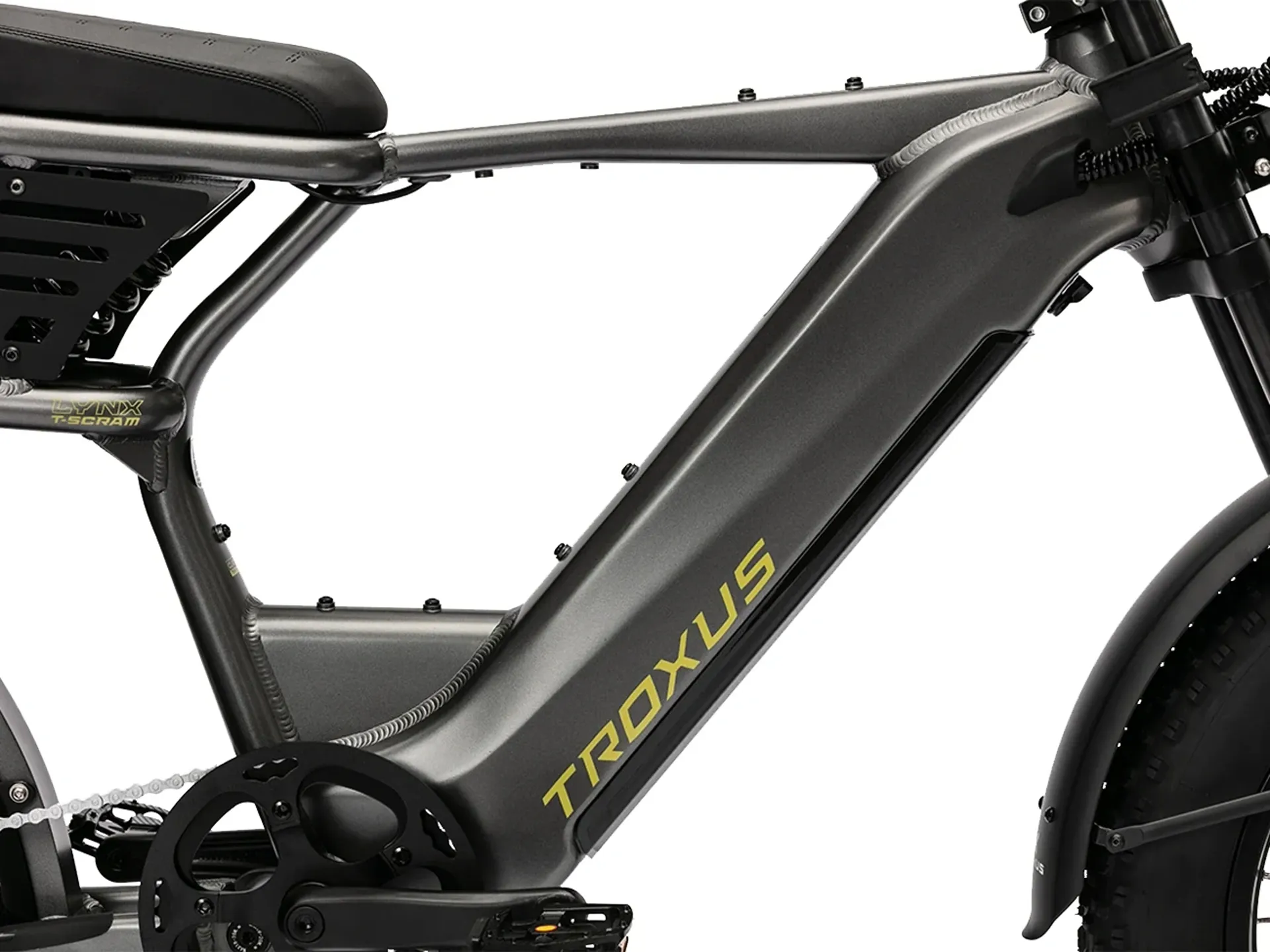

    6061-T6 aluminum step-over frame, dual suspension, 85mm travel
  • Fork
    Front suspension fork, 100mm travel
  • Chain
    KMC® 1/2"x3/32"
  • Crankset
    Aluminum, 48T, with alloy outer chainguard, square taper, 150mm

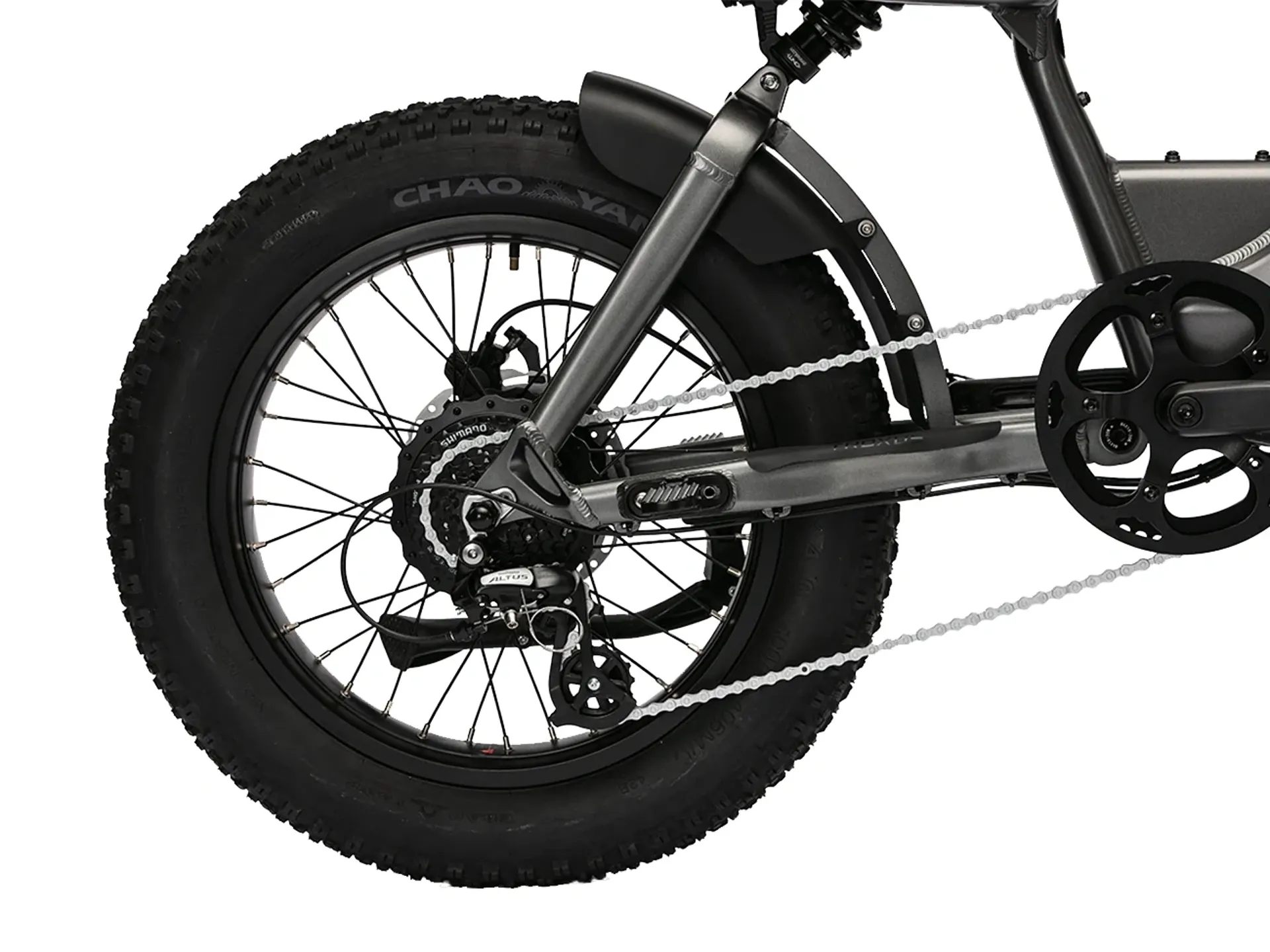

  • Rear Derailleur
    Shimano® RD-M310-L, Altus, 8-speed
  • Cassette
    Shimano® 8-speed, 11-32T
  • Shifter
    Shimano® 8-speed
  • Bottom Bracket
    Square taper sealed bearings, torque & cadence sensors included
  • Tires
    BIG-DADDY® 20"×4.0"
  • Front Hub
    Alloy, 13Gx36H, O.L.D. 135mm, 3/8" axle with nuts, length: 160mm
  • Rear Hub
    Ananda® 48V 750W/ 28 MPH, 85Nm
  • Rims
    Alloy double wall, 20"x4.0" with eyelets
  • Spokes
    Stainless 13G front / 12G rear

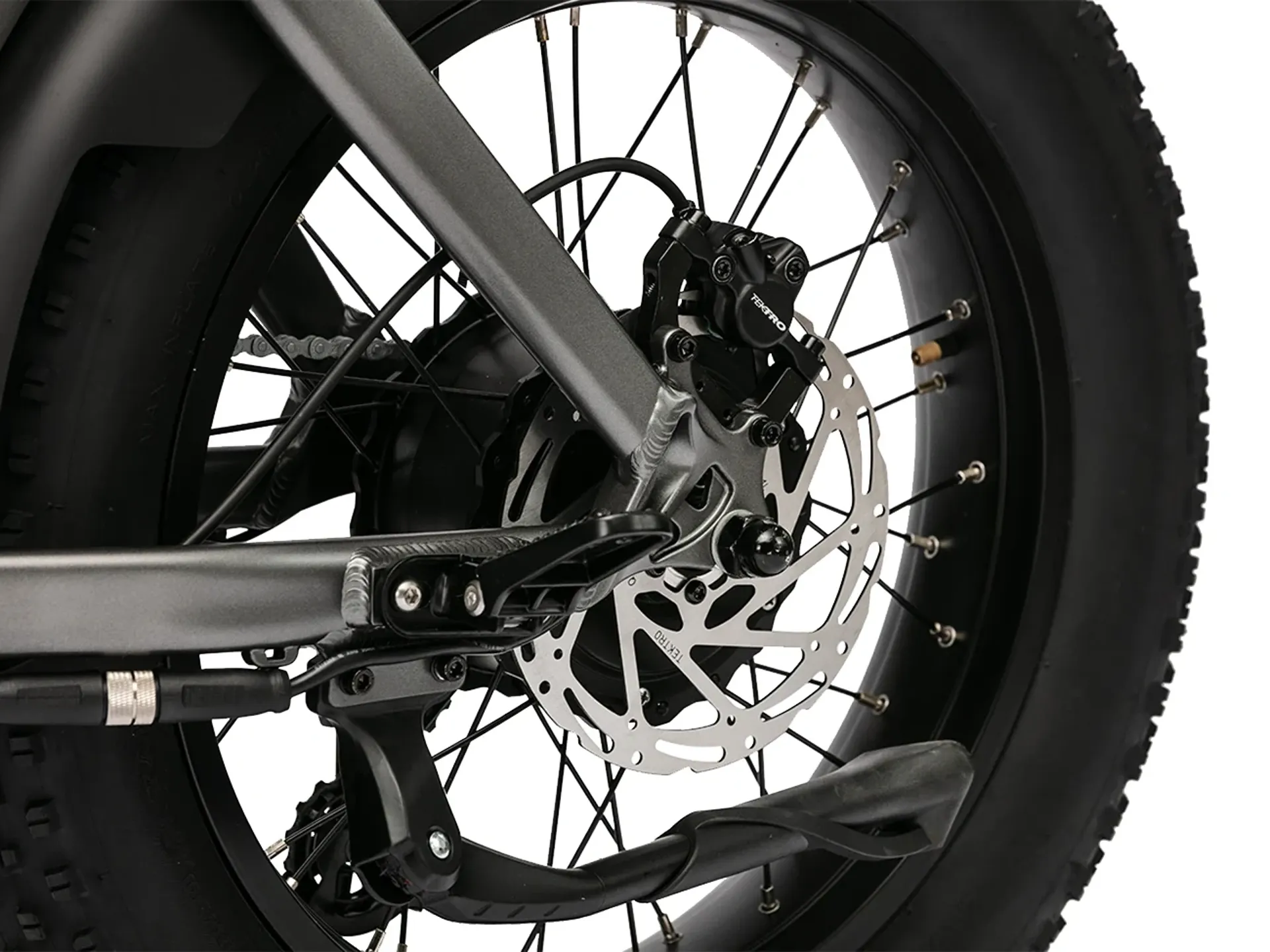

  • Brakes
    Tektro® hydraulic, with brake sensors
  • Rotors
    203mm / 180mm

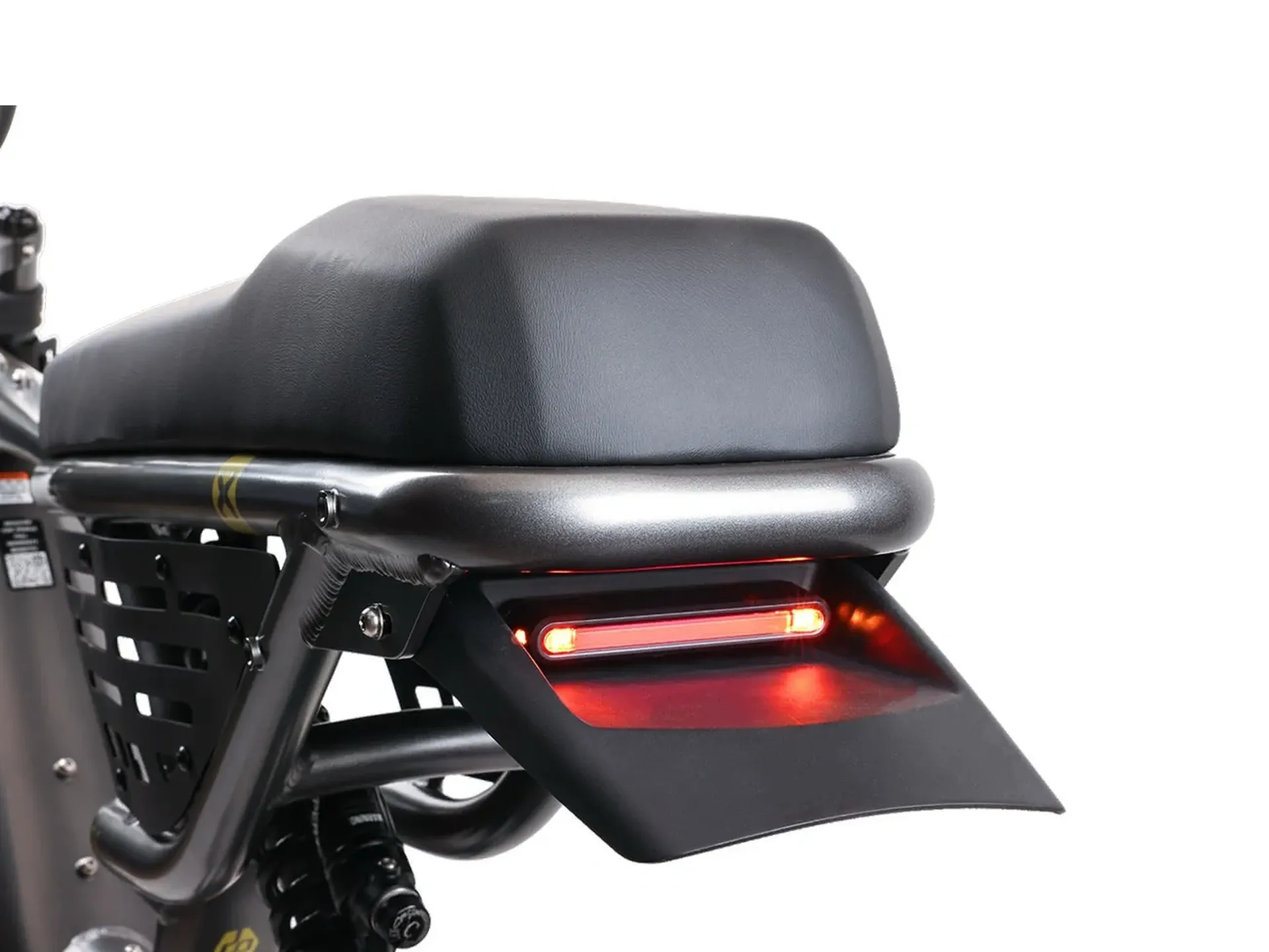

  • Saddle
    Long / for 2 passengers
  • Stem
    Alloy, BMX style, top-load, 30º angle, 50mm extension
  • Handlebar
    Alloy 6061-T6, 31.8mmx700mm wide, 178mm rise
  • Grips
    Ergonomic comfort
  • Pedals
    9/16″ alloy platform with reflectors
  • Headset
    Threadless, internal 1-1/8"
  • Rear Shocks
    DNM RCP-2R rear shock with coil / 240x68mm travel
  • Fender
    Alloy front & 2 plastic rear, 20"x4.0", with alloy hardware
  • Kickstand
    Alloy front & 2 plastic rear, 20"x4.0", with alloy hardware
Sizing Information

Geometry

Measurement Value
Frame Size Universal
Wheel Size 20" x 4.0"
A - Seat Tube Length N/A
B - Seat Tube Angle N/A
C - Head Tube Length 145 mm
D - Head Tube Angle 67˚
E - Effective Top Tube Length 652 mm
F - Bottom Bracket Height 316 mm
G - Bottom Bracket Drop 0 mm
H - Chainstay Length 500 mm
I - Fork Offset 51 mm
J - Wheelbase 1241 mm
K - Frame Reach 457 mm
L - Frame Stack 520 mm
Fork Travel 100 mm
Fork Height 460 mm

Performance & Capacity

Specification Value
Max Speed Up to 20 MPH (Throttle) / Up to 28 MPH (Pedal Assist)
Range Up to 90 miles per charge
Weight Limit 400 lbs (Rider: 250 lbs / Passenger: 150 lbs)
Net Weight 88.5 lbs
