The Trax Plus iQ electric hybrid bike is designed for everyday commuting with added stability. It features a 500W motor and Ride iQ connectivity for GPS tracking, ride monitoring, and smart energy management.
The Trax Plus iQ electric hybrid bike is designed for everyday commuting with added stability. It features a 500W motor and Ride iQ connectivity for GPS tracking, ride monitoring, and smart energy management.
Troxus

Troxus Trax Plus iQ

$2,099.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Troxus Trax Plus iQ

Brand:Troxus

Code:Trax Plus iQ

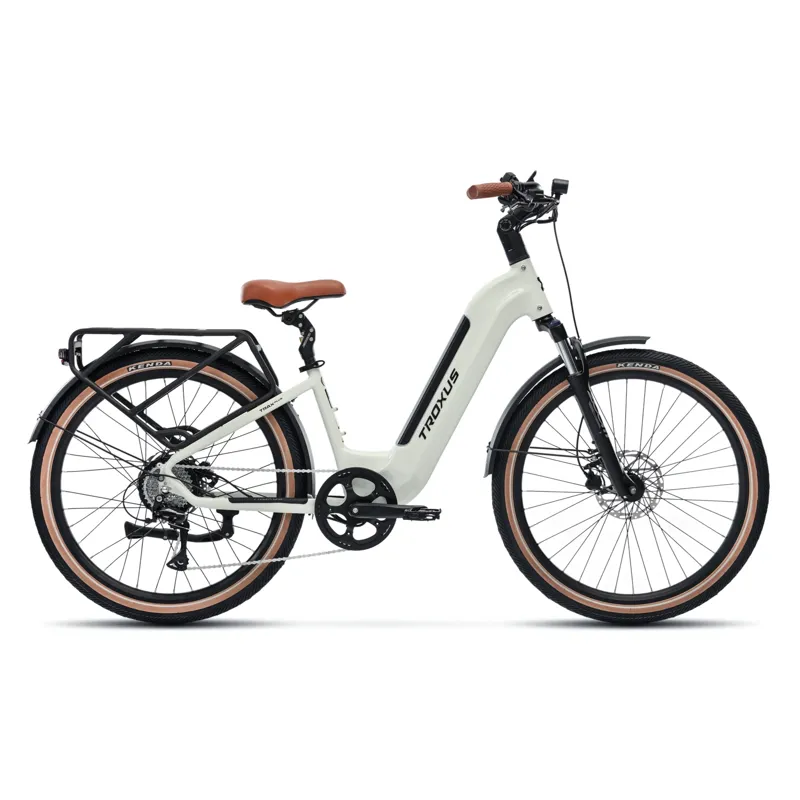

The Trax Plus iQ electric hybrid bike is designed for everyday commuting with added stability for varied city road conditions.

The Trax Plus iQ electric hybrid bike simplifies daily commuting across city streets. Built for comfort and stability, it offers smooth assistance, responsive control, and Ride iQ smart features including GPS tracking and ride monitoring for safer everyday riding.

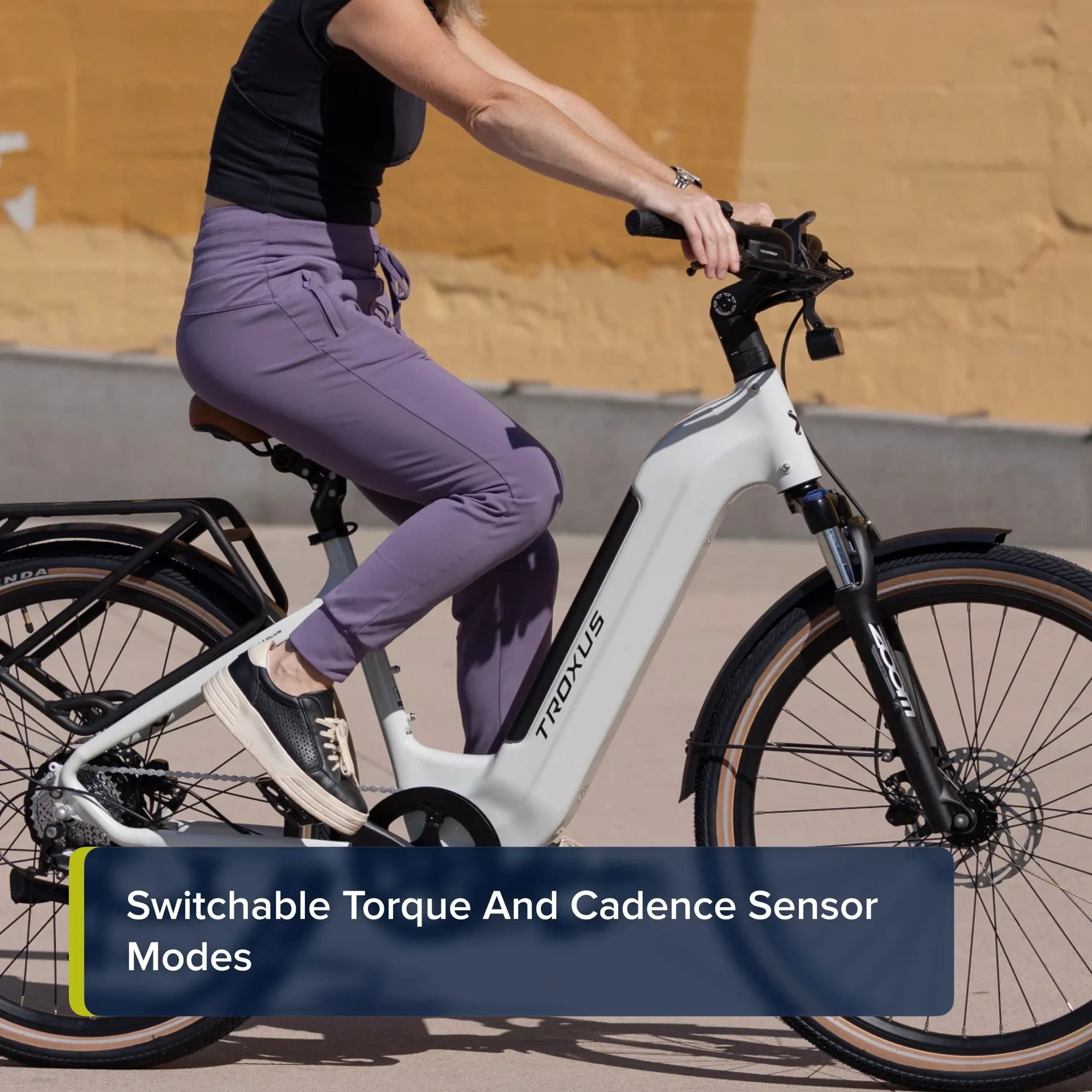

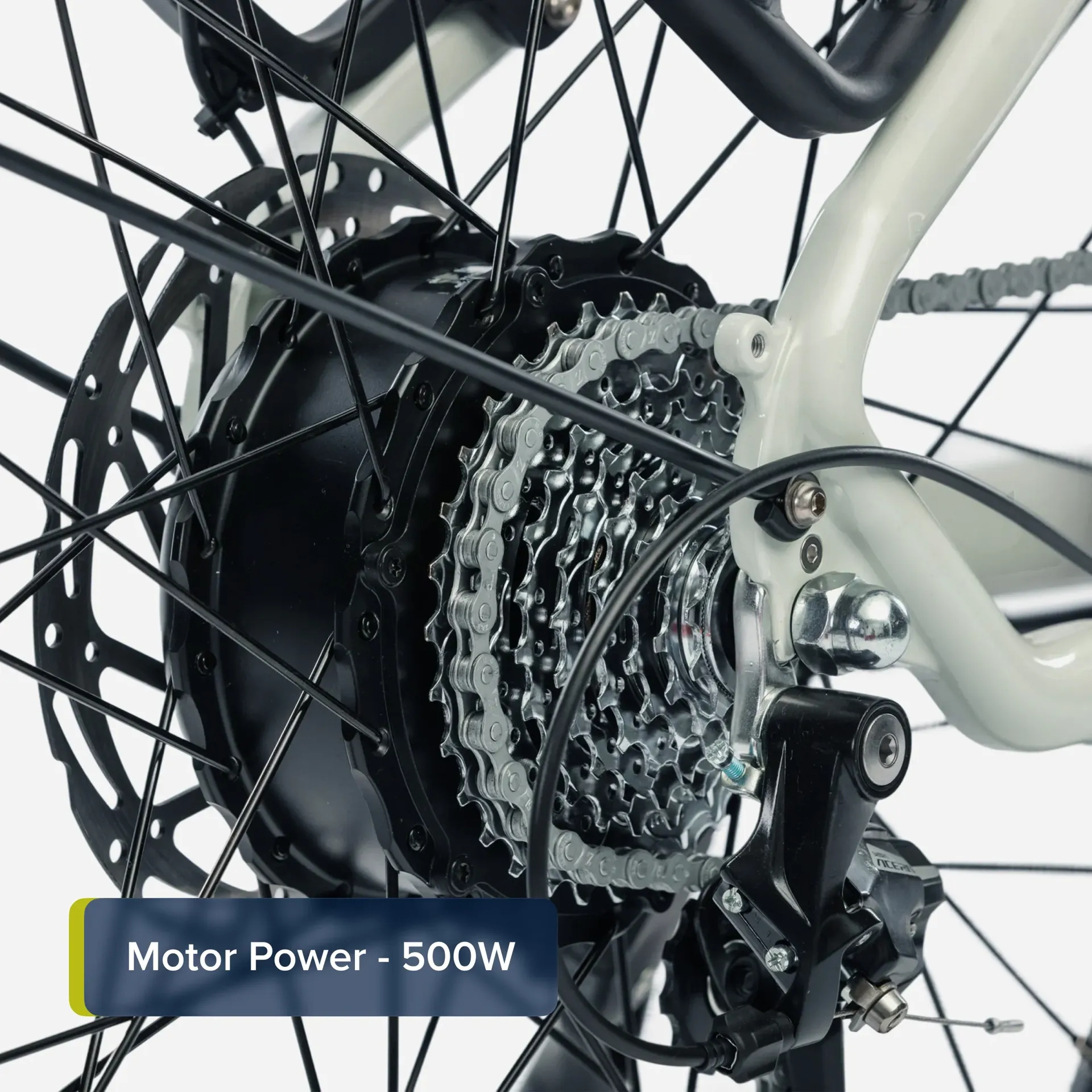

The 500W hub motor delivers 65Nm torque, providing smooth acceleration and reducing the effort of daily riding. This commuter e-bike features switchable torque and cadence modes, giving you the flexibility to choose between a natural, performance-oriented ride or a more relaxed, effortless experience. Ride iQ enhances this further with intelligent power tuning and class selection, allowing the bike to adapt to different riding styles, environments, and preferences.

With GPS tracking, geofence alerts, motion detection, and remote disable, you can monitor and control the bike in real time. Additional features like proximity unlock, anti-tamper alerts, and an audible locator make it easier to secure and recover the bike when needed. The 720Wh battery delivers up to 70 miles of range, while the smart energy system provides real-time battery level, range estimates, and charging insights.

Technical Information
  • Max Speed
    Up to 20 MPH on throttle / Up to 28 MPH on pedal assist
  • Range
    Up to 70 miles per charge

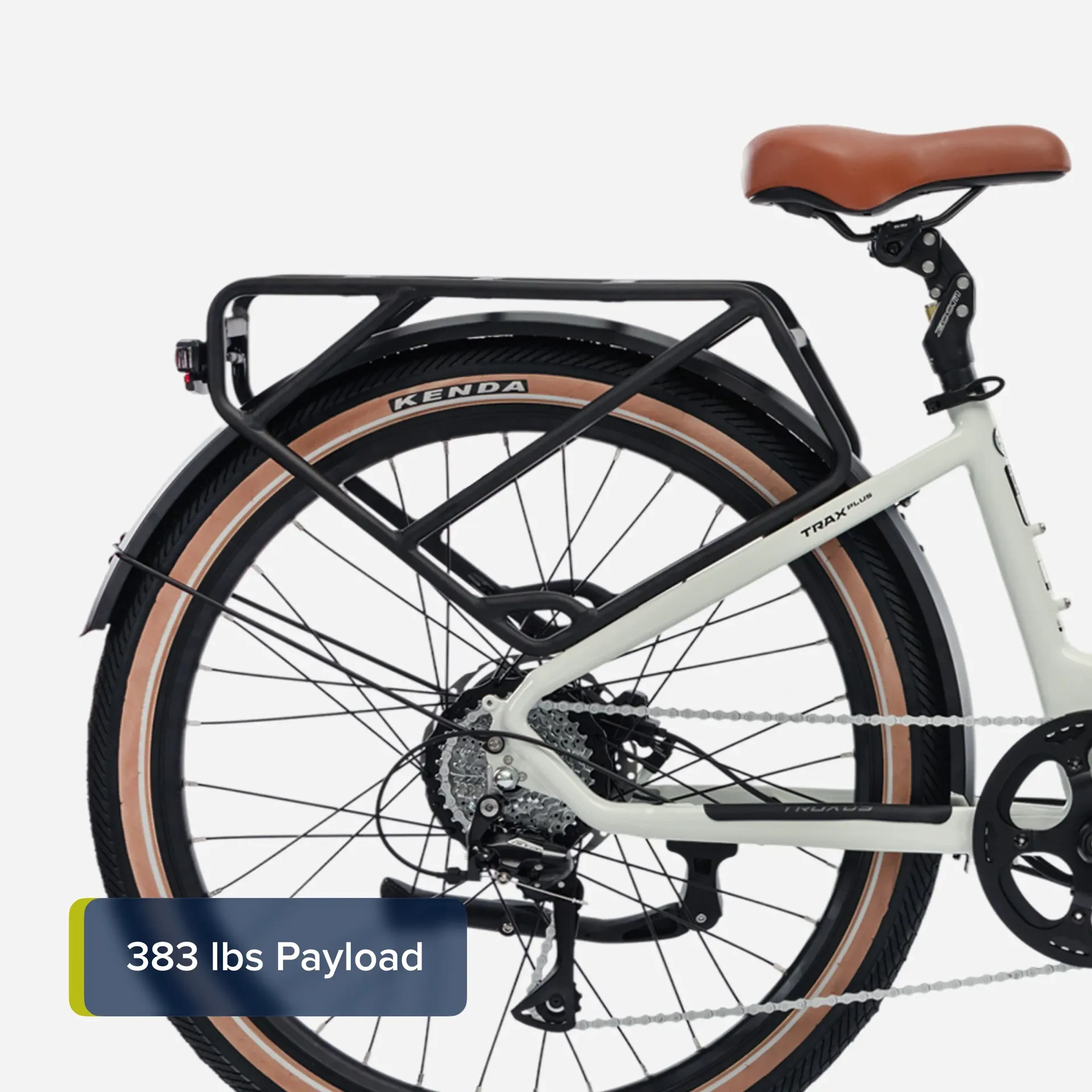

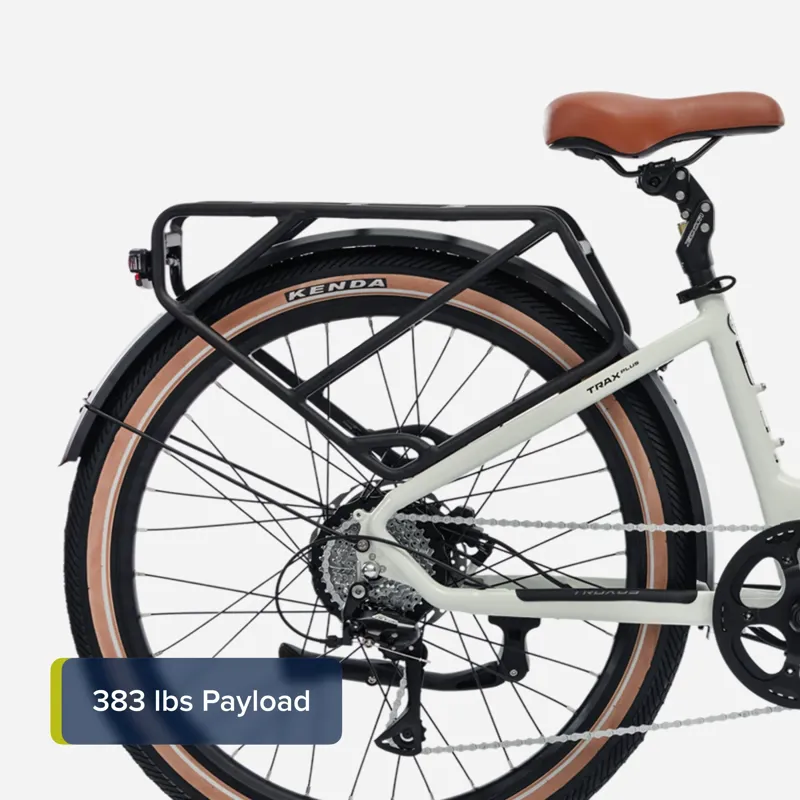

  • Weight Limit
    383 lbs
  • Net Weight
    68.5 lbs
  • Motor
    Ananda 48V/500W hub-drive motor, 65Nm max. torque
  • Battery
    UL-2271 certified, internal, removable, lithium ion, 48V/15Ah (720Wh) with Samsung cells
  • Display

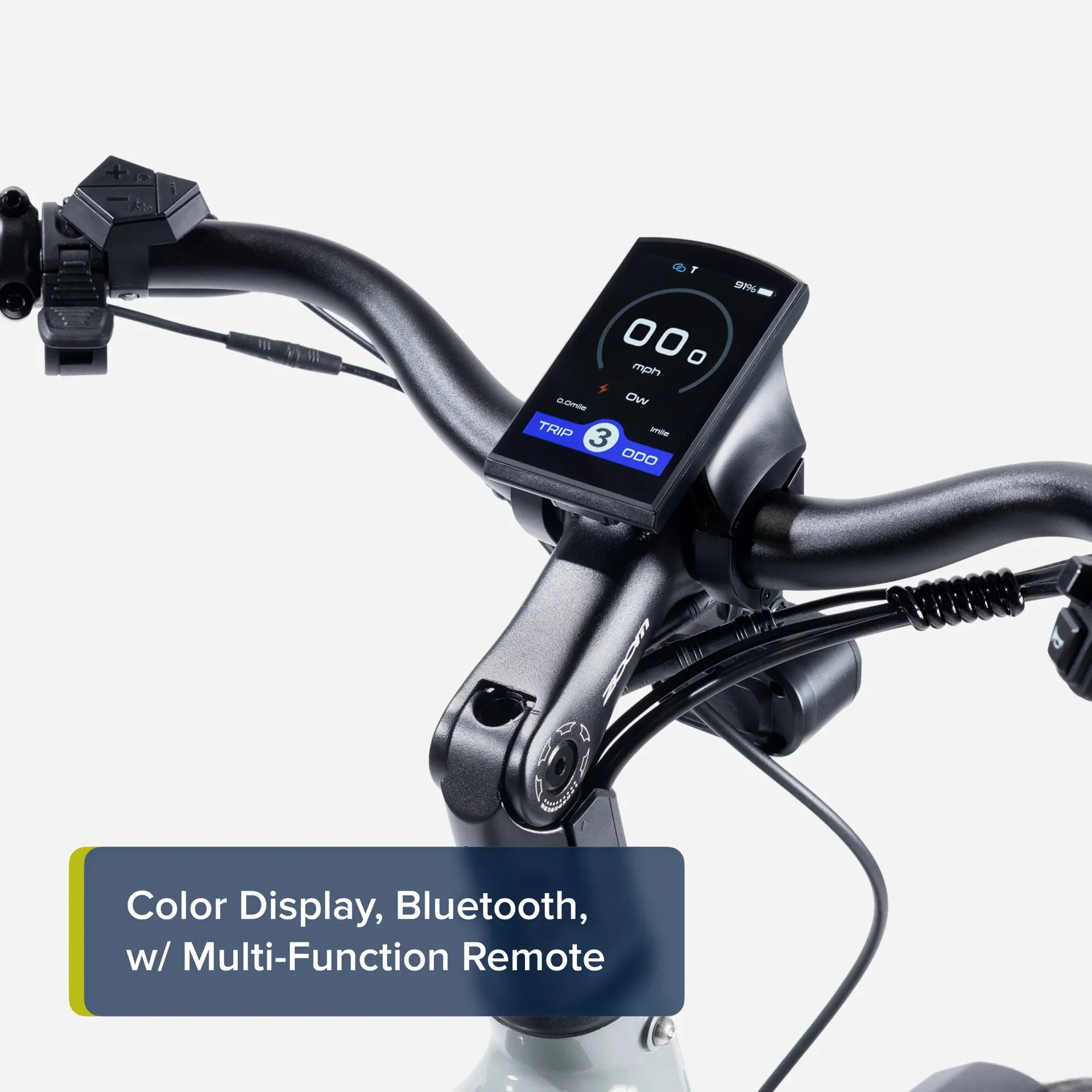

    Troxus Ride iQ 1.0, color display, Bluetooth, with turn light signals and multi-function remote
  • Sensor
    Switchable torque and cadence sensor modes
  • Pedal Assist
    0-5 level pedal assist
  • Charger
    2A / 100-240V input / 54.6V output
  • Lights
    Front and rear light
  • Controller
    48Vx18A/12V
  • Frame
    Hydroformed aluminum
  • Fork
    Zoom front suspension, 65mm travel
  • Chain
    KMC 1/2"x3/32"
  • Crankset
    Aluminum, 48T, with single alloy chainguard, square taper, 170mm
  • Rear Derailleur
    Shimano RD-M310-L, Altus, 8-speed
  • Cassette
    Shimano 8-speed, 12-32T
  • Shifter
    Shimano 8-speed
  • Bottom Bracket
    Square taper sealed bearings
  • Tires

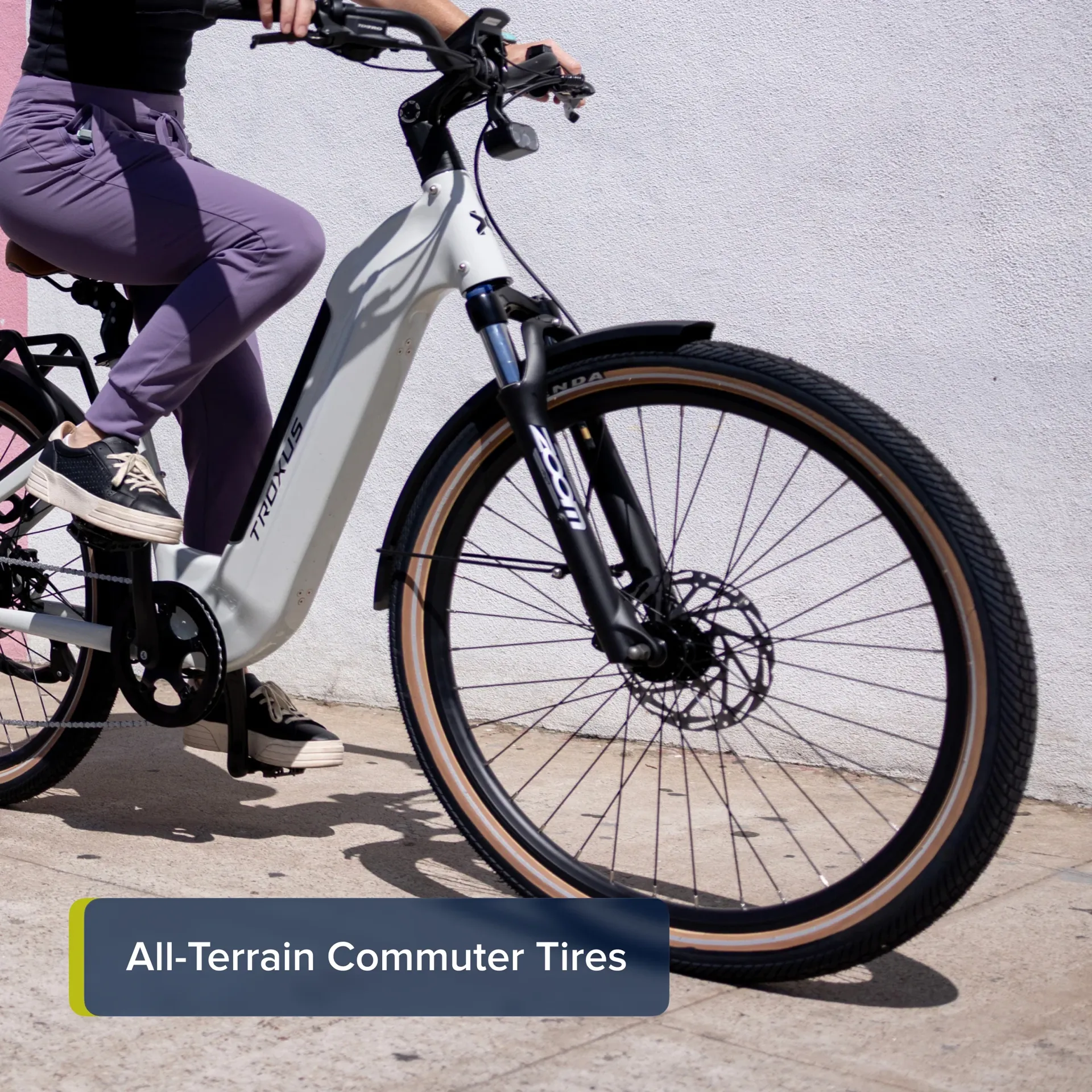

    KENDA KWICK SEVEN-5 27.5"x2.2", reflective stripes, puncture-resistant, E-50 rated
  • Front Hub
    Alloy, 36H, 100mm, 3/8" axle with nuts
  • Rear Hub
    48V 500W, 65Nm
  • Rims
    Alloy single wall front / double wall rear, 36H, 27.5"x2.2", with eyelets
  • Spokes
    Stainless 13G front / 12G rear
  • Brakes
    Tektro hydraulic with brake sensors
  • Rotors
    180mm
  • Saddle
    DDK DE-430 comfort, 200mm wide
  • Seat Post
    Troxus with suspension, alloy 30.9x400mm, adjustable
  • Seat Post Clamp
    Alloy, 35mm with quick release
  • Stem
    Zoom alloy, forged, adjustable, TDS-D634B-8/FOV, 90mm extension
  • Handlebar
    Zoom alloy, 31.8mmx620mm, 35˚ backsweep
  • Grips
    Ergonomic comfort
  • Pedals
    Alloy, 9/16" axles, with reflectors
  • Headset
    Gyneyea T192KS-56, threadless 57/56mm
  • Rack
    Alloy rear, MIK-compatible
  • Fender
    Alloy, 27.5", full coverage
  • Kickstand
    Adjustable side kickstand
Sizing Information
Size Small / 15" Medium / 17" Large / 20"
Model Step Thru Step Thru Step Over
Wheel Size 27.5"x2.2" 27.5"x2.2" 27.5"x2.2"
A - Seat Tube Length (mm) 381 432 500
B - Seat Tube Angle 72˚ 72˚ 72˚
C - Head Tube Length (mm) 150 150 150
D - Head Tube Angle 68˚ 69˚ 69˚
E - Effective Top Tube Length (mm) 613.5 639 645
F - Bottom Bracket Height (mm) 296 296 296
G - Bottom Bracket Drop (mm) 55 55 55
H - Chainstay Length (mm) 480 480 480
I - Fork Offset (mm) 42 42 42
J - Wheelbase (mm) 1163 1168 1183
K - Frame Reach (mm) 410 425 440
L - Frame Stack (mm) 626 631 631
Fork Travel (mm) 65 65 65
Fork Height (mm) 480 480 480

Specification Details
Max Speed Up To 20 MPH on Throttle / Up To 28 MPH on Pedal Assist
Range Up To 70 Miles Per Charge
Weight Limit 383 lbs
Net Weight 68.5 lbs
