The Troxus Trax Plus features a 500W motor, 720Wh battery, and suspension for a smooth, powerful ride. Includes hydraulic disc brakes and 8-speed shifting.
The Troxus Trax Plus features a 500W motor, 720Wh battery, and suspension for a smooth, powerful ride. Includes hydraulic disc brakes and 8-speed shifting.
Troxus

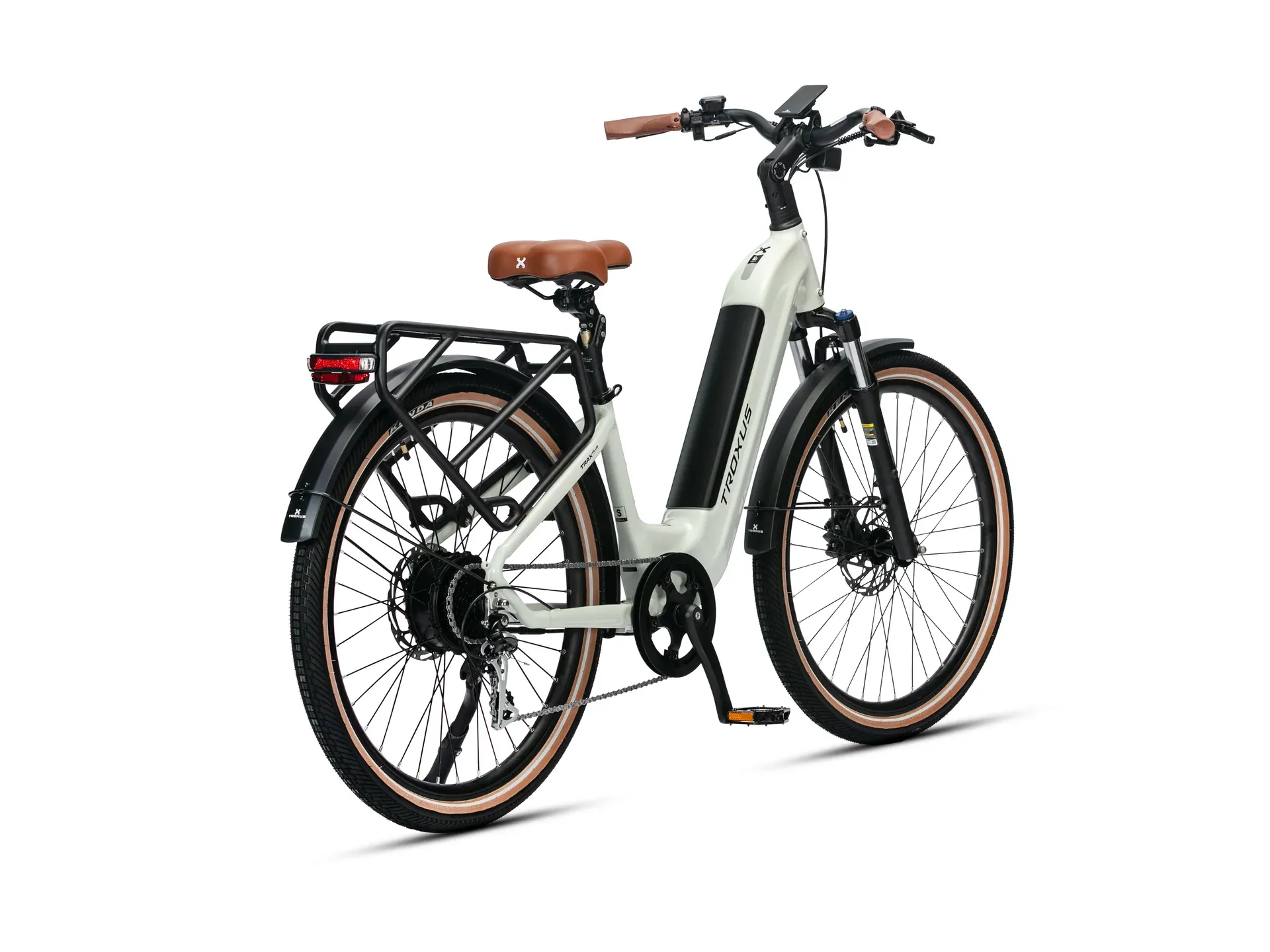

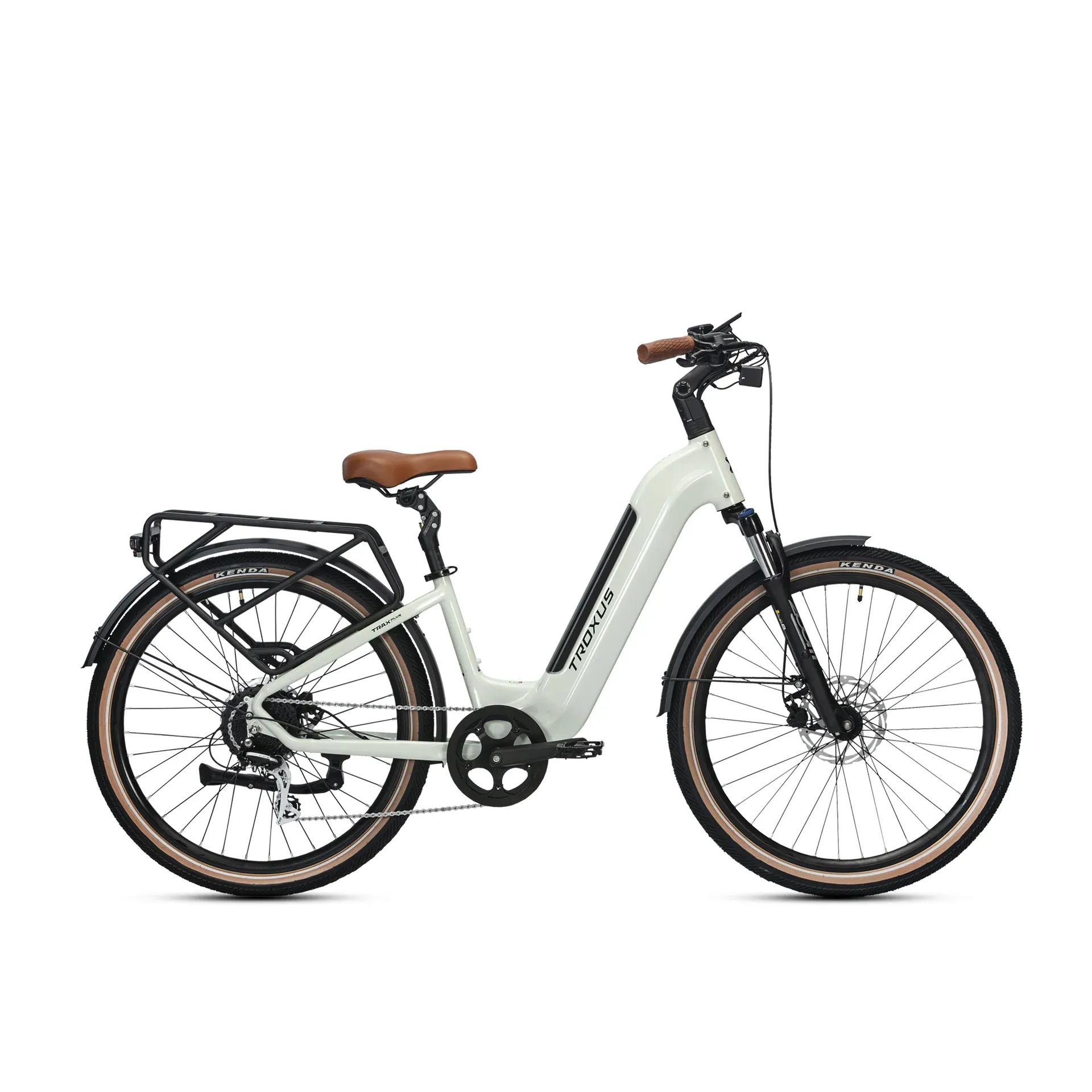

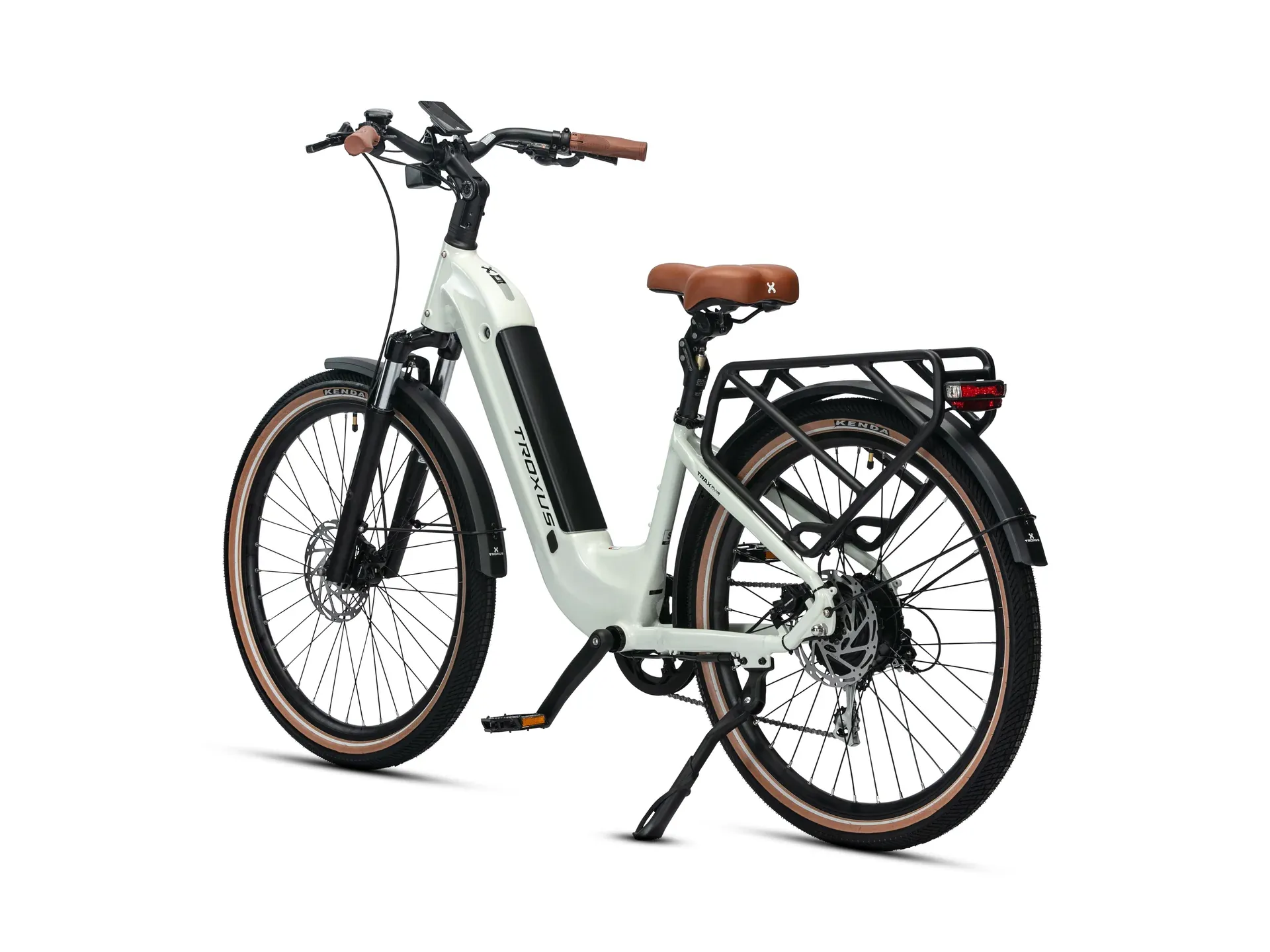

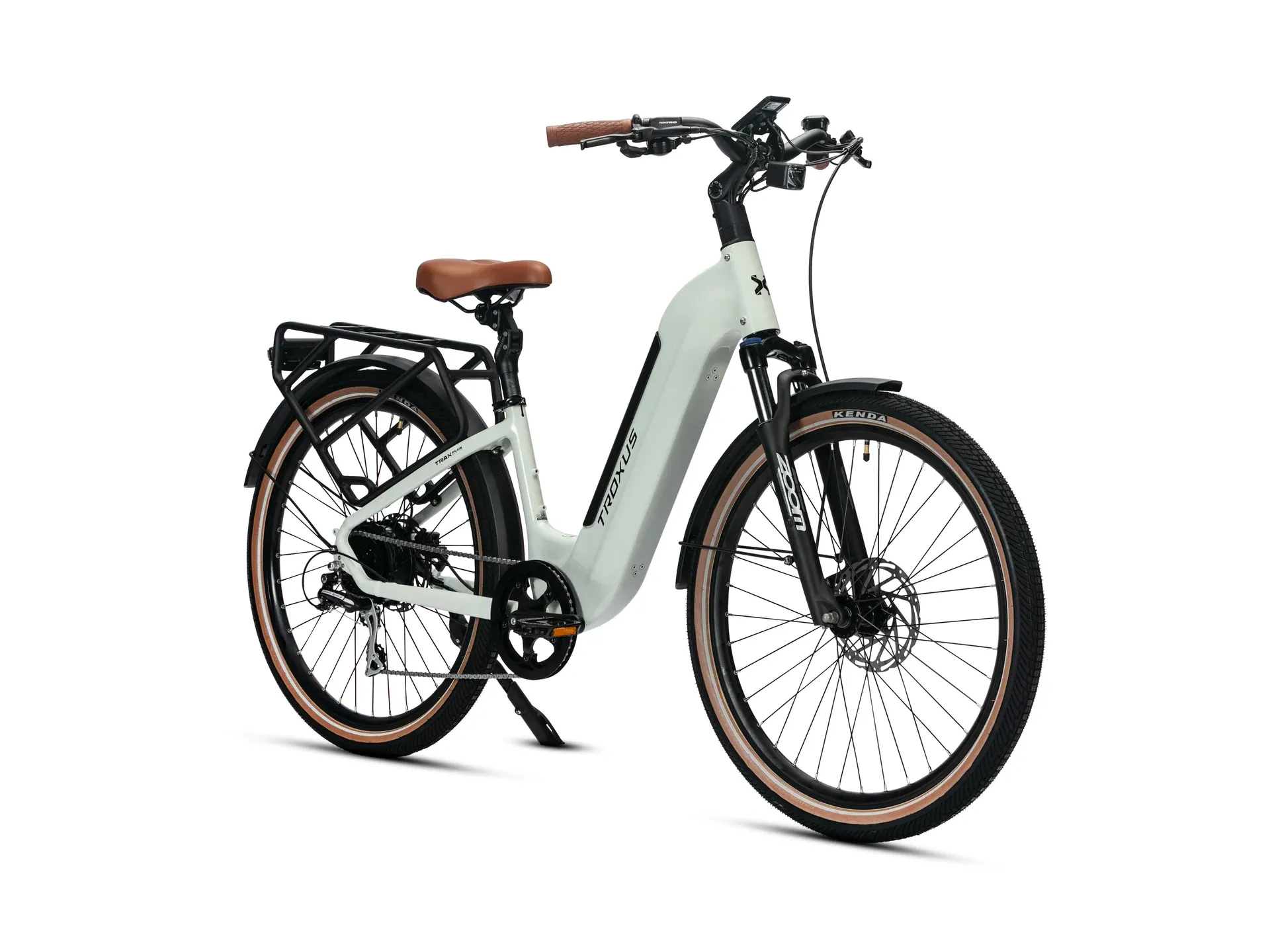

Troxus Trax Plus Step-Thru 500W 15Ah

$2,299.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Troxus Trax Plus Step-Thru 500W 15Ah

Brand:Troxus

Code:Troxus Trax Plus Step-Thr

Powerful & Efficient Performance. Conquer the city and tackle steep hills with ease.

The 500W rear hub motor delivers impressive power, providing a smooth and effortless ride regardless of terrain. The suspension seat post and suspension fork absorb road vibrations and bumps, ensuring a comfortable journey even on rough terrain.

Stay in control with switchable torque or cadence sensor modes and hydraulic disc brakes. The bike features a 720Wh internal battery, powered by premium Samsung cells, offering endurance for daily commutes or long weekend adventures.

Features:

  • 500W rear hub motor
  • 48V 15Ah (720Wh) UL 2271 certified battery with Samsung cells
  • Switchable torque and cadence sensor modes
  • Tektro hydraulic disc brakes
  • Shimano 8-speed gear system
  • MIK-compatible rear rack
  • Color display with Bluetooth connectivity
  • 350 lbs payload capacity
  • Up to 28 MPH max speed
  • Up to 70 miles per charge
Technical Information
  • Motor
    Ananda 48V/500W Hub-Drive, 65Nm Max. Torque
  • Battery
    48V/15Ah (720Wh) Lithium Ion, Samsung Cells, UL-2271 Certified

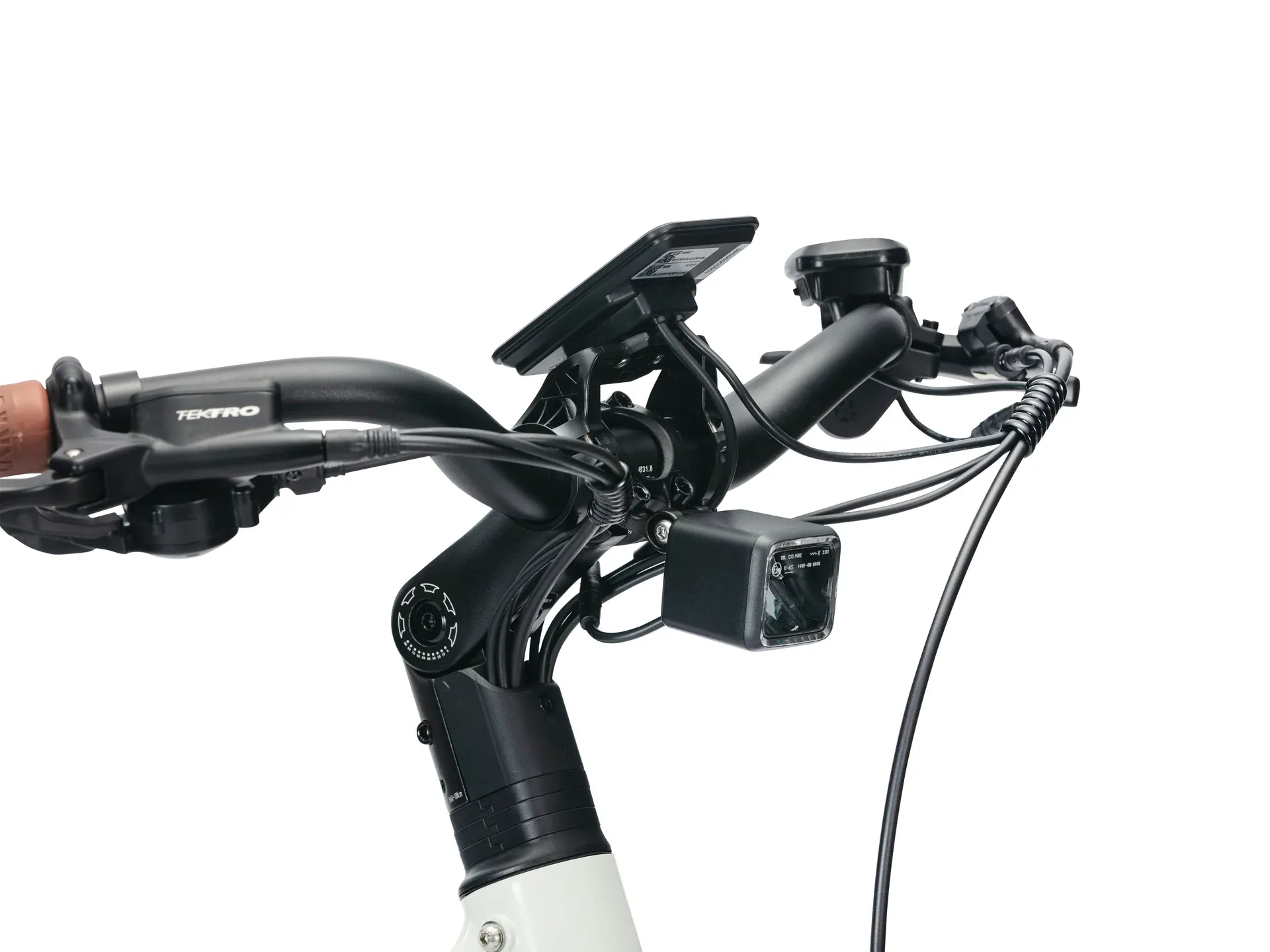

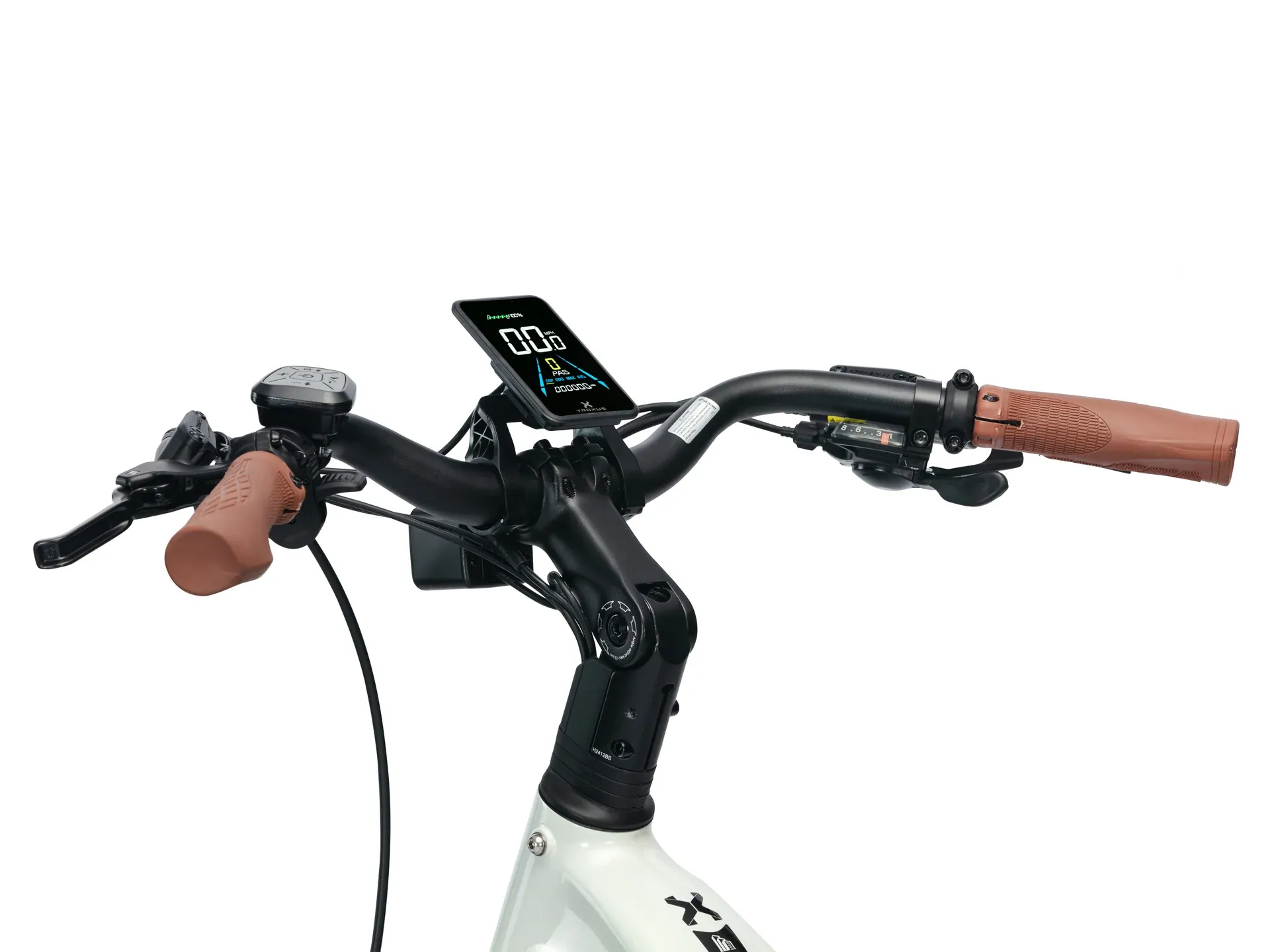

  • Display
    Color, Bluetooth, Turn Light Signals, Multi-Function Remote
  • Throttle
    Thumb Throttle
  • Sensor
    Switchable Torque and Cadence
  • Pedal Assist
    0-5 Levels
  • Charger
    2A, 100-240V Input, 54.6V Output
  • Lights
    80 Lux Front, Rear with Turn and Hazard Signals
  • Controller
    48V/18A/12V
  • Frame
    Hydroformed Aluminum
  • Fork
    Zoom Front Suspension, 65mm Travel
  • Chain
    KMC 1/2"x3/32"
  • Crankset
    Aluminum, 46T, Single Alloy Chainguard, Square Taper, 170mm

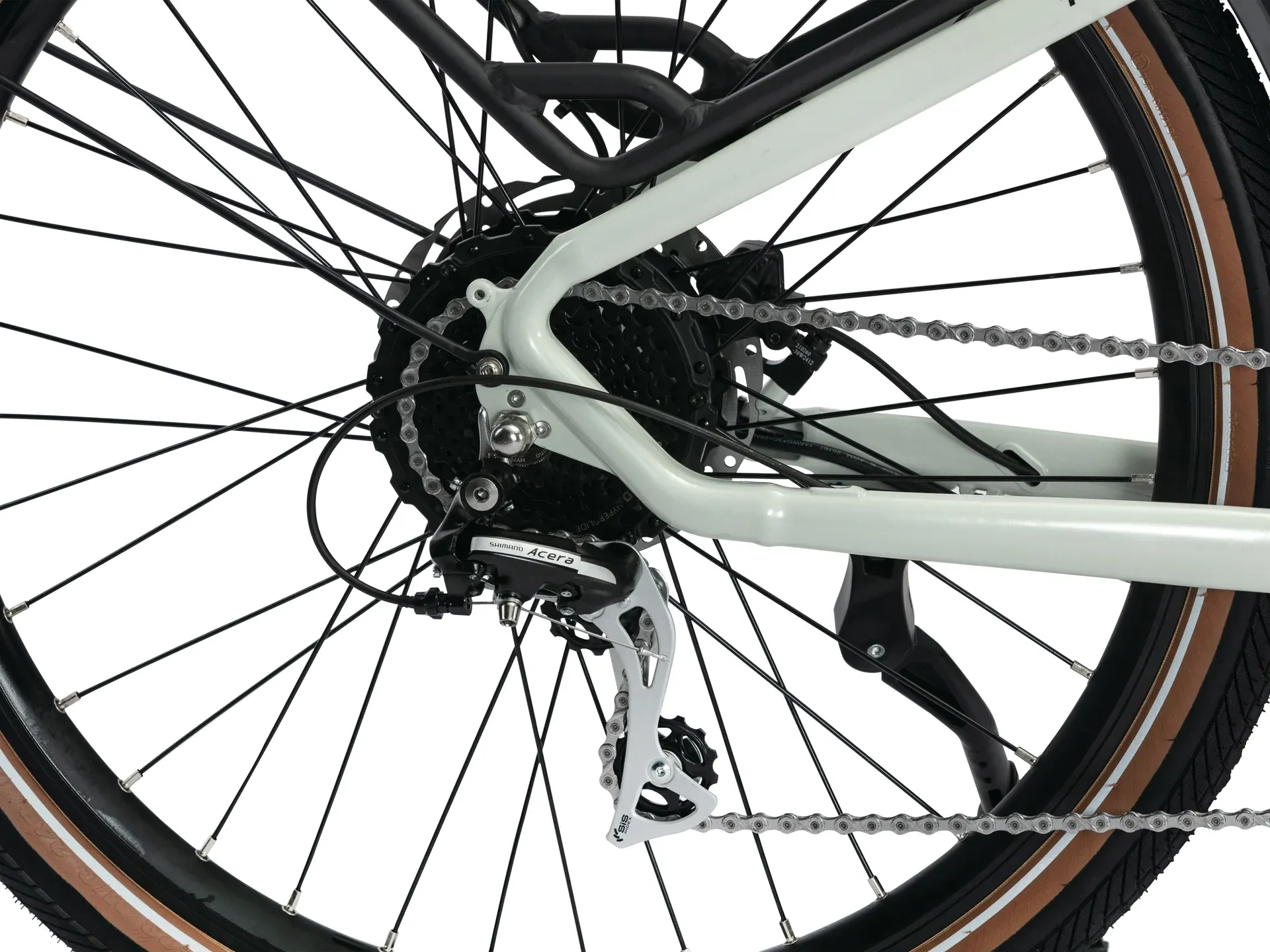

  • Rear Derailleur
    Shimano Acera RD-M3020-8, 8-Speed
  • Cassette
    Shimano 8-Speed, 12-32T
  • Shifter
    Shimano 8-Speed
  • Bottom Bracket
    Square Taper Sealed Bearings
  • Tires
    KENDA 27.5"x2.2", Reflective Stripes, Puncture-Resistant, E-50 Rated
  • Front Hub
    Alloy, 36H, 100mm, 3/8" Axle

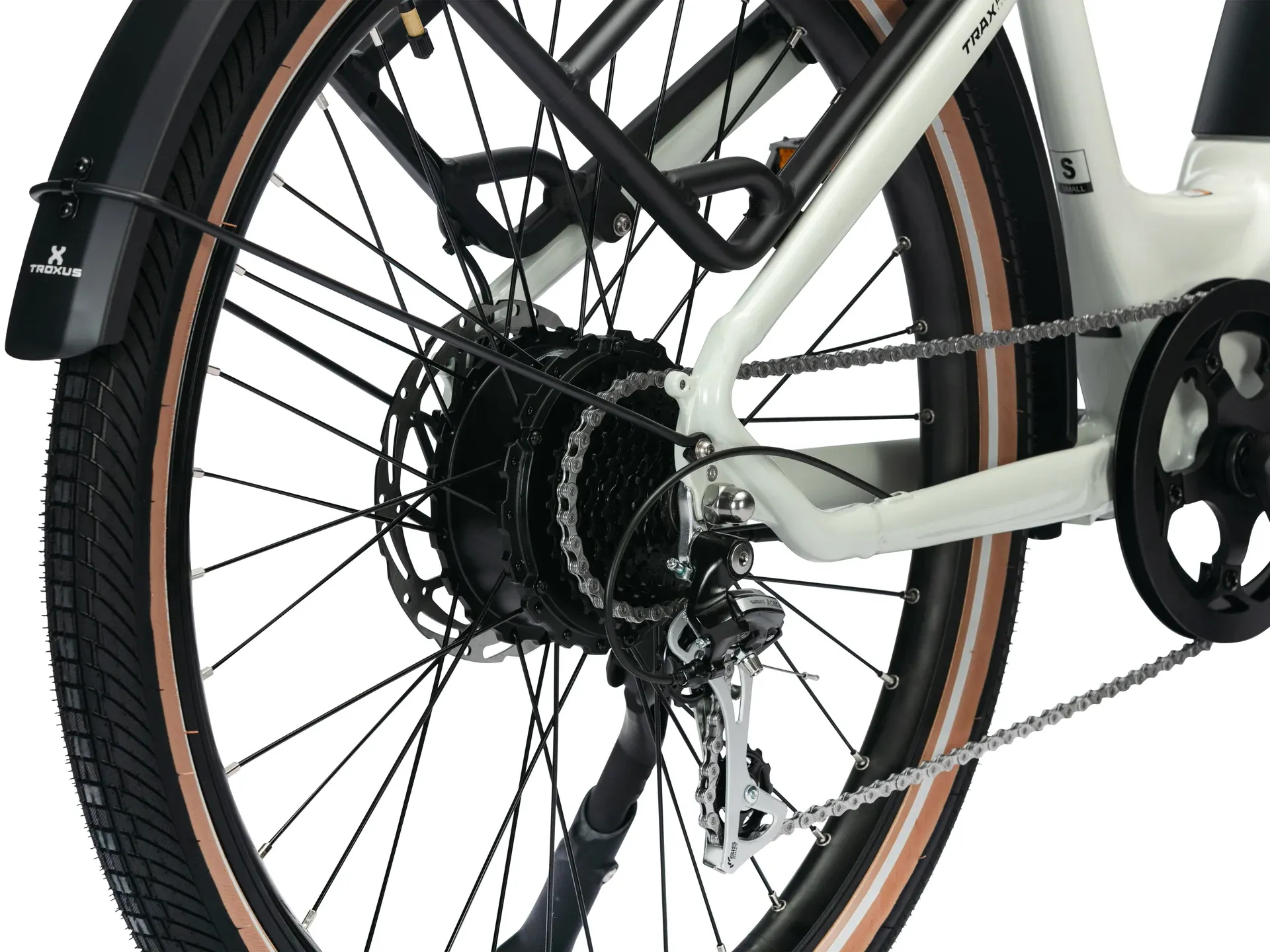

  • Rear Hub
    48V/500W, 65Nm
  • Rims
    Alloy Single Wall Front / Double Wall Rear, 36H, 27.5"x2.2", Eyelets
  • Spokes
    Stainless 13G Front / 12G Rear

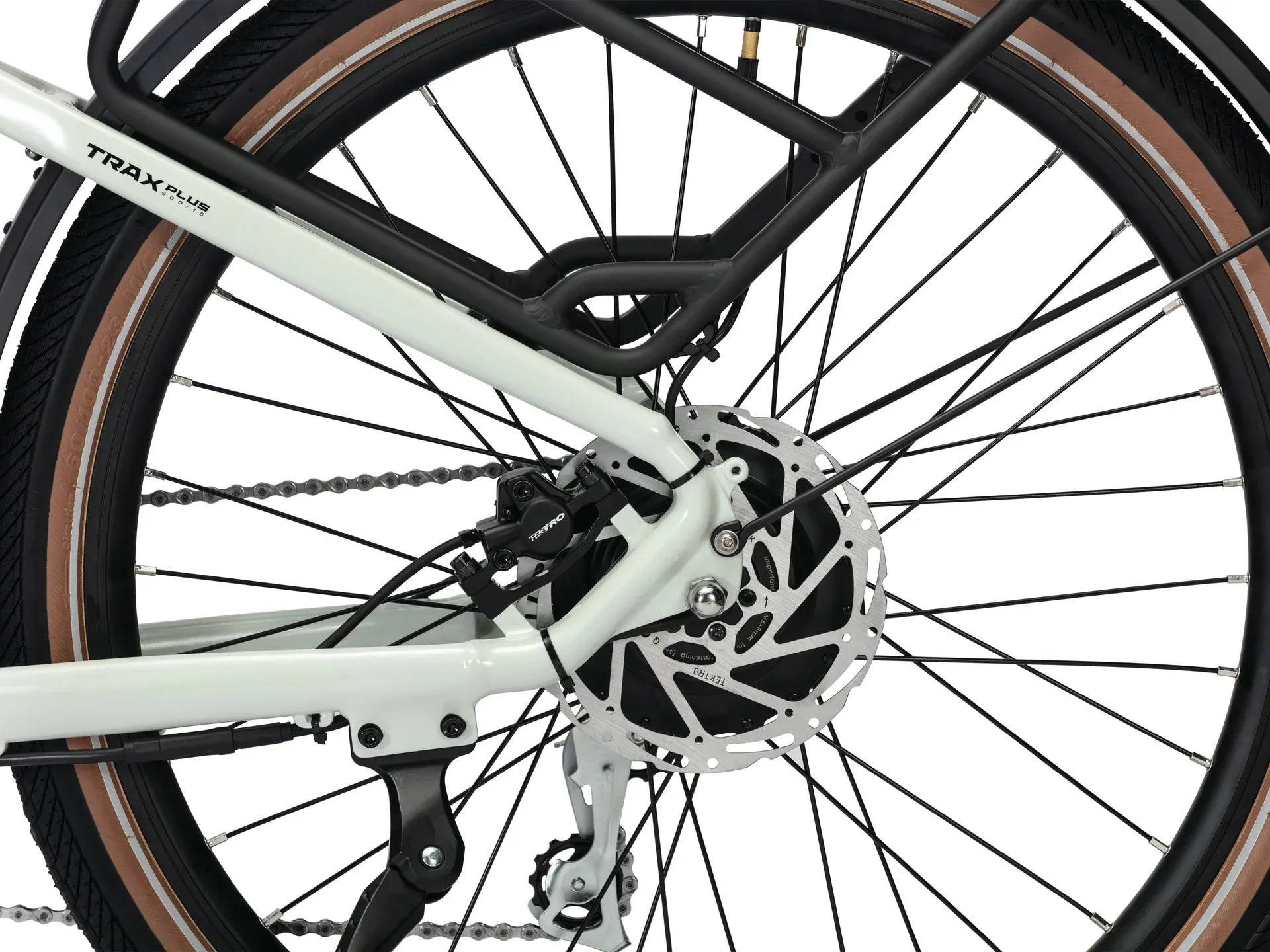

  • Brakes
    Tektro Hydraulic, Brake Sensors
  • Rotors
    180mm Front / 180mm Rear
  • Saddle
    DDK DE-430 Comfort, 200mm Wide

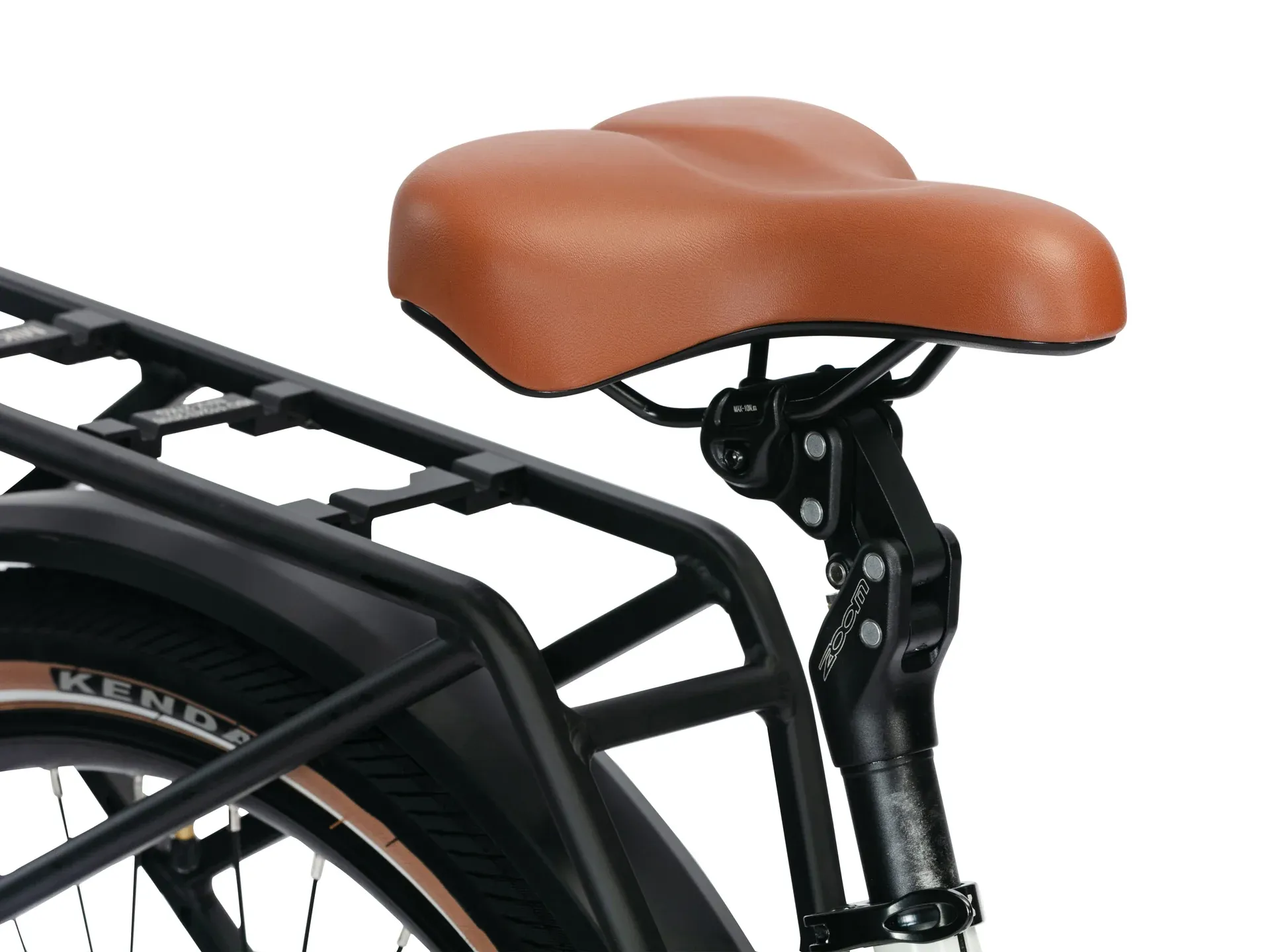

  • Seat Post
    Troxus Alloy, 30.9x400mm, Suspension, Adjustable
  • Seat-Post Clamp
    Alloy, 35mm, Quick Release
  • Stem
    Zoom Alloy, Forged, Adjustable, 90mm, Internal Cable Routing
  • Handlebar
    Zoom Alloy, 31.8mmx620mm, 35˚ Backsweep
  • Grips
    Ergonomic Comfort
  • Pedals
    Alloy, 9/16" Axles, BS Reflectors
  • Headset
    Gyneyea T192KS-56, Threadless 57/56mm, Internal Cable Routing
  • Max Speed
    Up to 20 MPH (Throttle) / 28 MPH (Pedal Assist)
  • Range
    Up to 70 Miles
  • Weight Limit
    383 lbs
  • Net Weight
    68.5 lbs

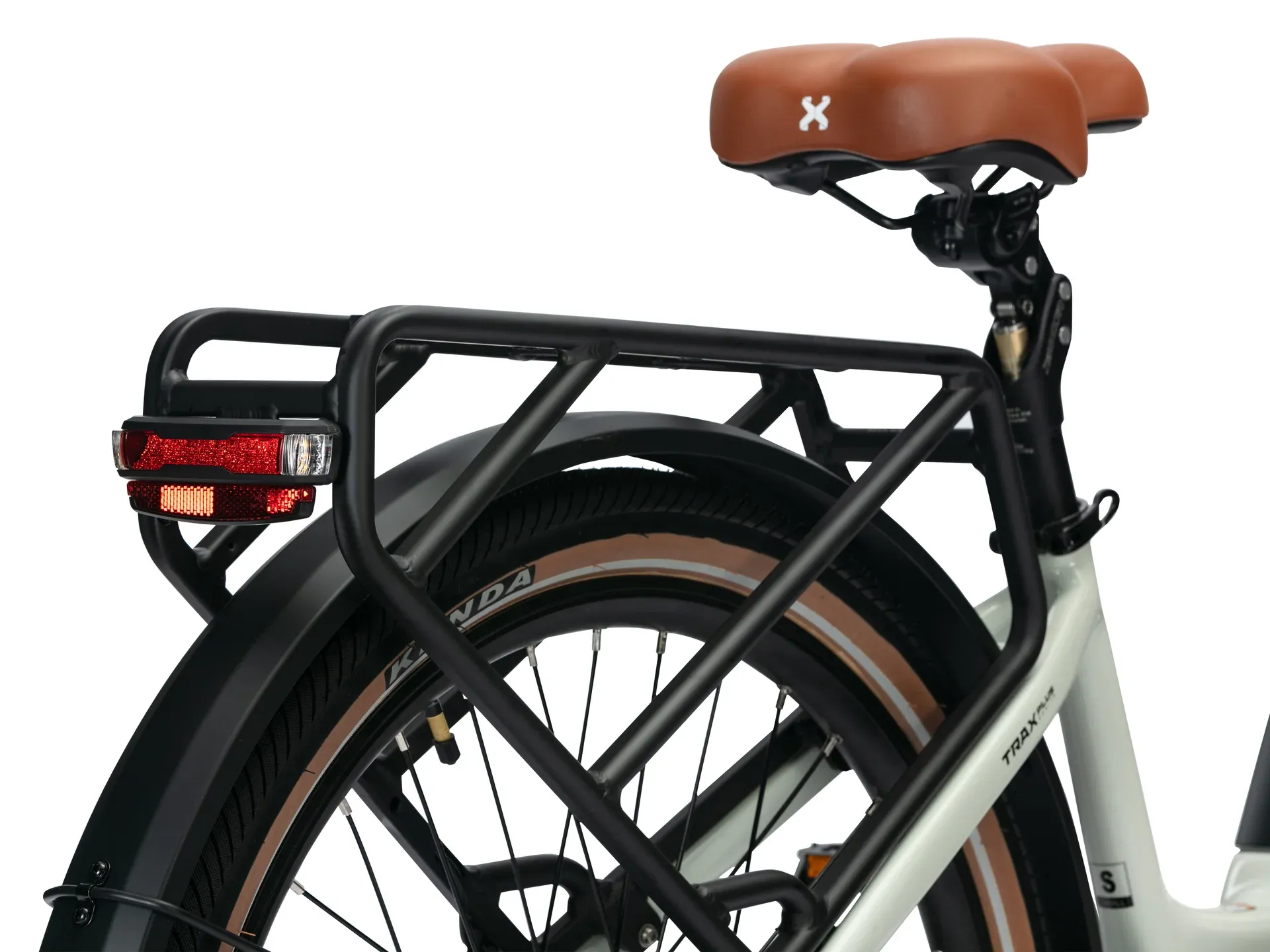

  • Rack
    MIK-Compatible Alloy Rear Rack
  • Fenders
    Alloy, 27.5", Full Coverage
  • Kickstand
    Adjustable Side Kickstand
Sizing Information
Size Recommended Height (in) Recommended Height (cm)
Small Step-Thru 5'0" - 5'7" 153 - 171 cm
Medium Step-Thru 5'6" - 6'2" 168 - 185 cm
Large Step-Over 5'8" - 6'4" 173 - 193 cm
