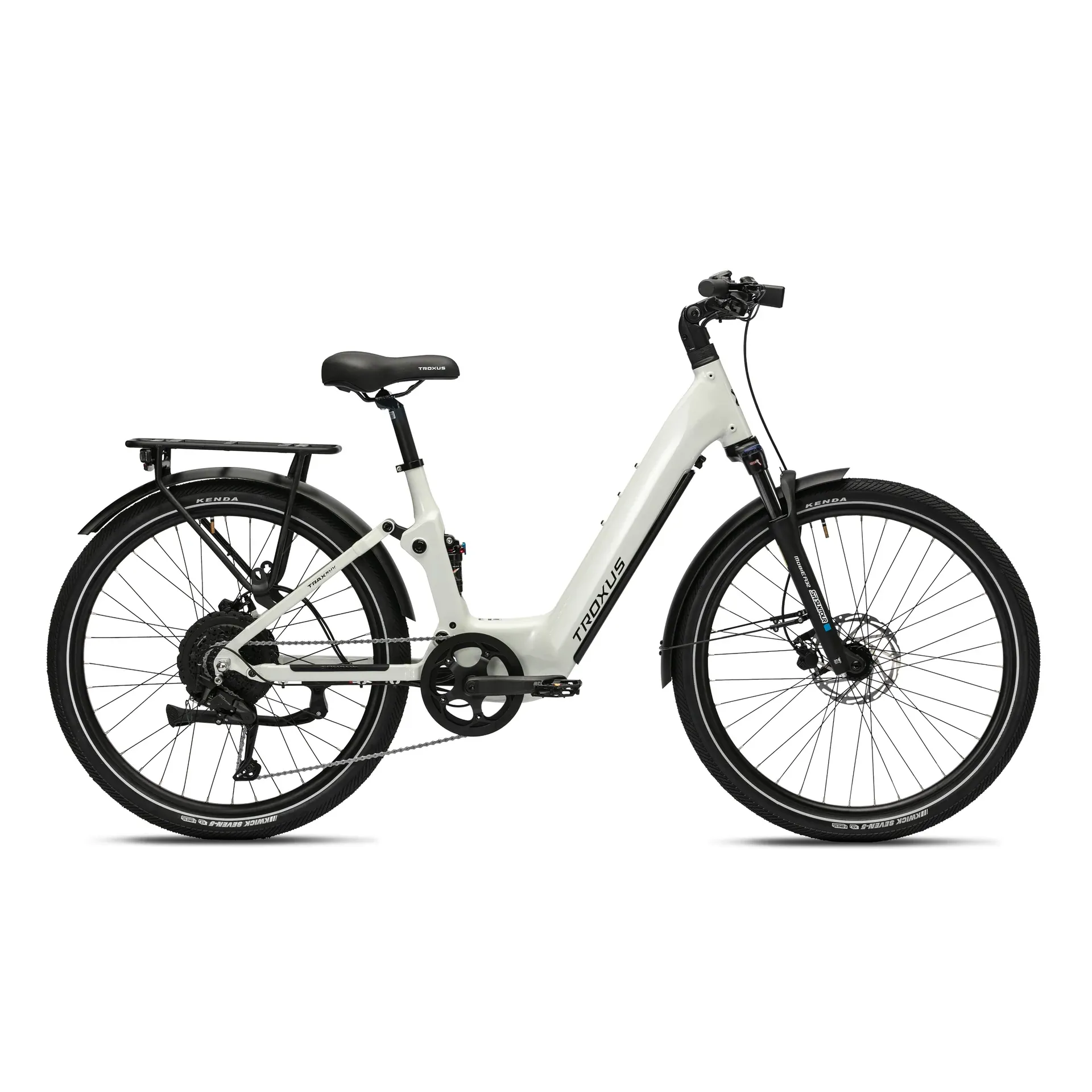

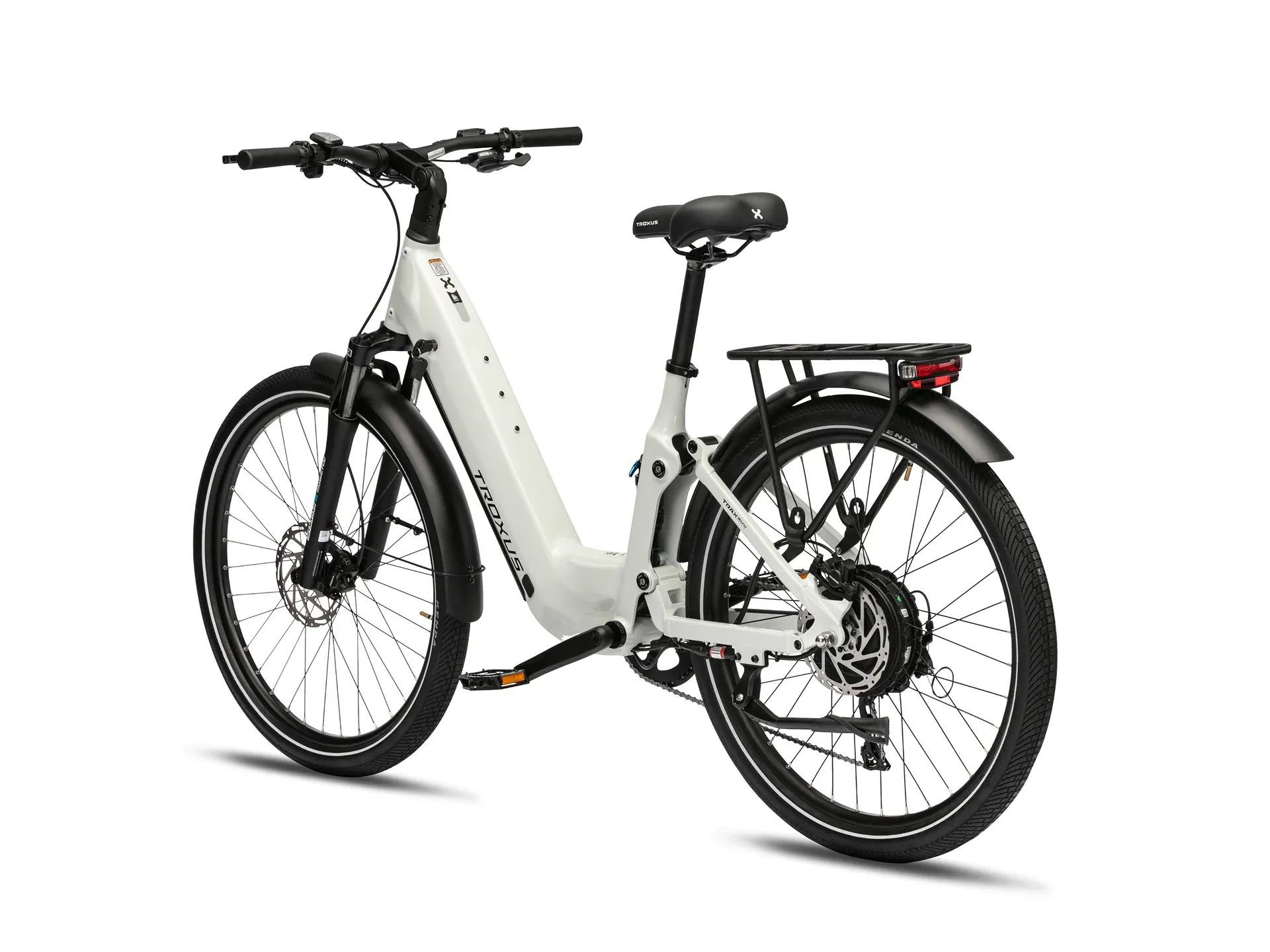

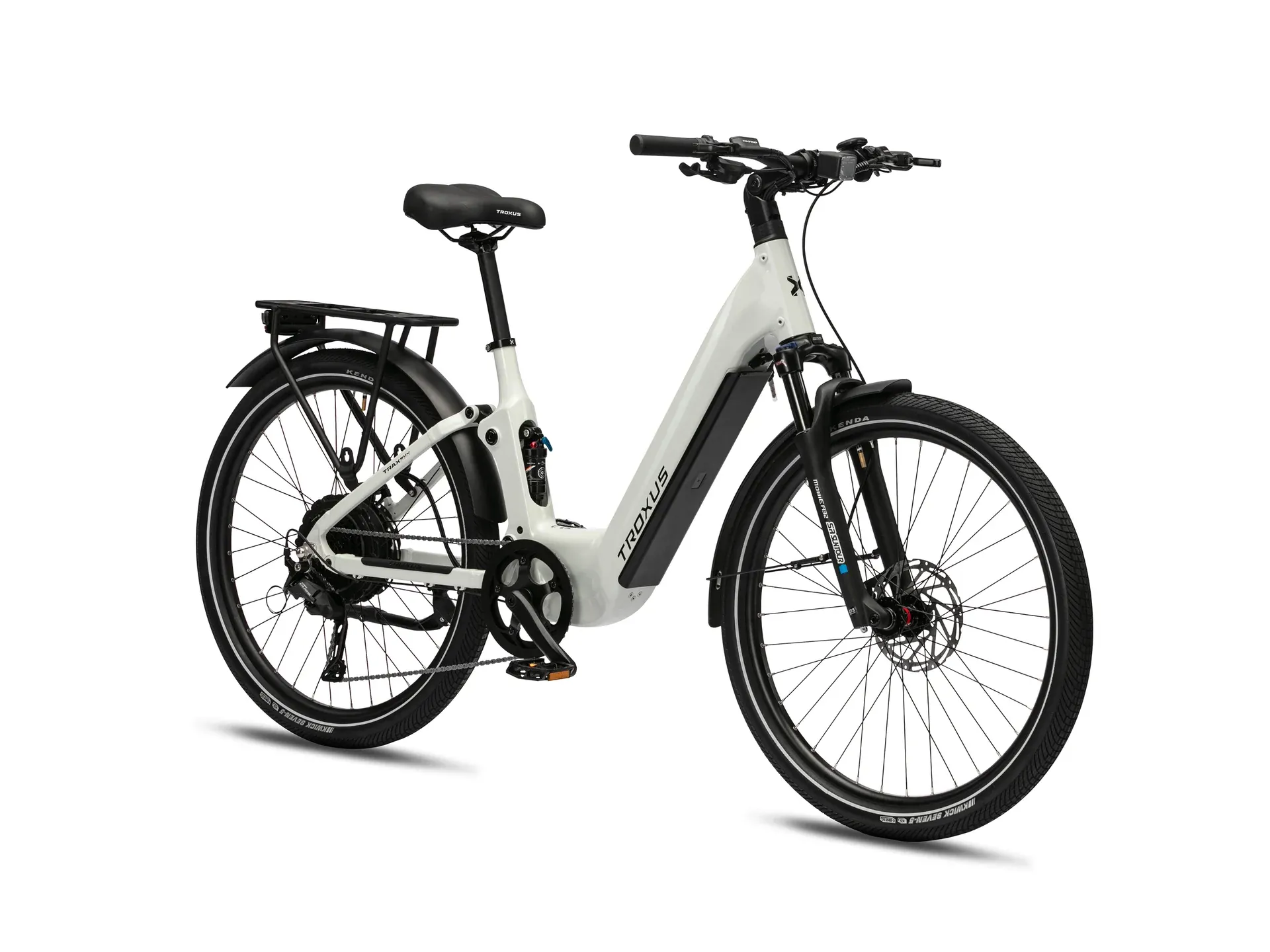

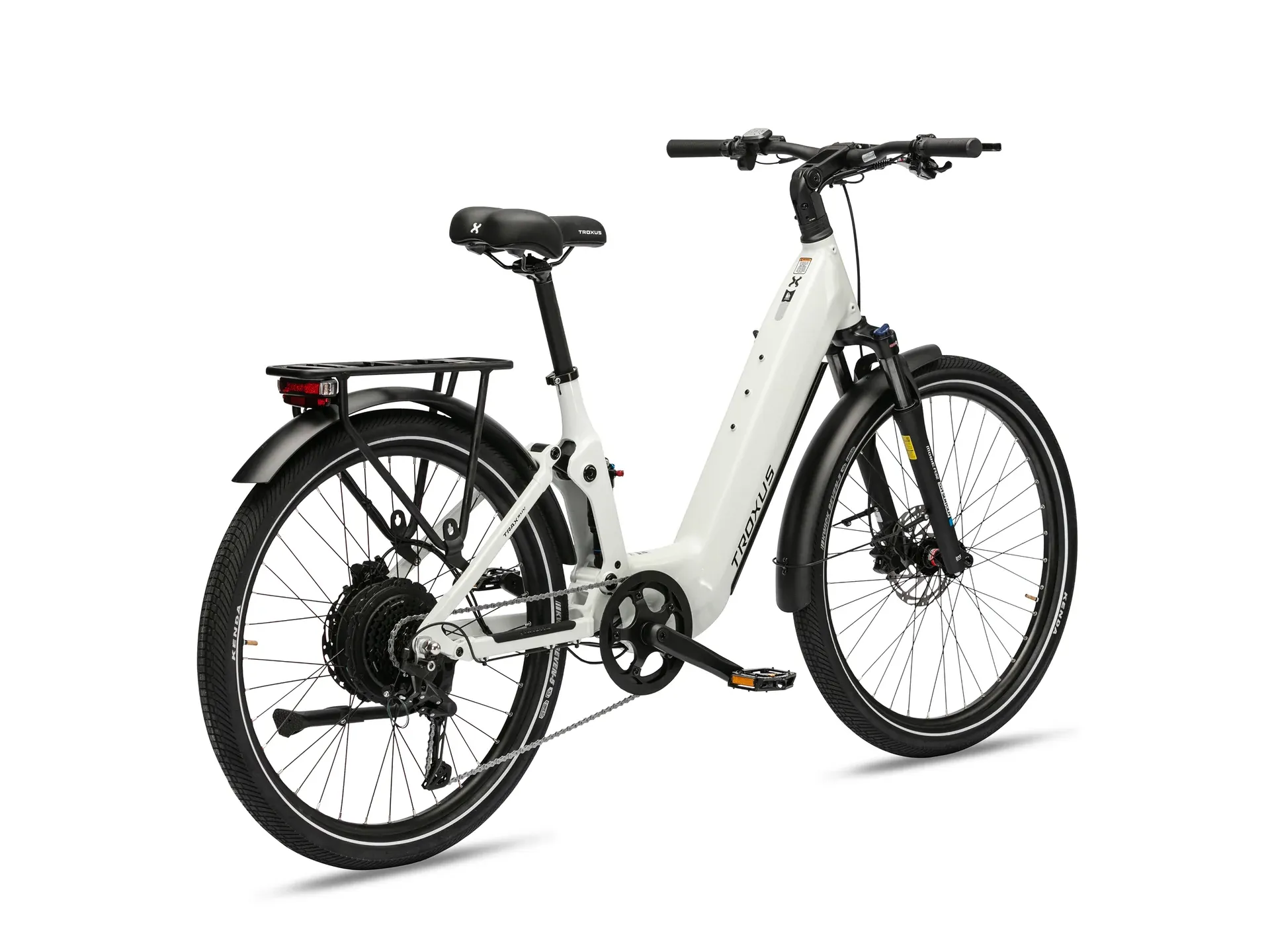

Troxus Trax SUV 750W 15Ah

Brand:Troxus

Code:Troxus Trax SUV 750/15 -

Technical Information
  • Motor
    Bafang 48V/750W Hub-Drive, 85Nm Peak Torque

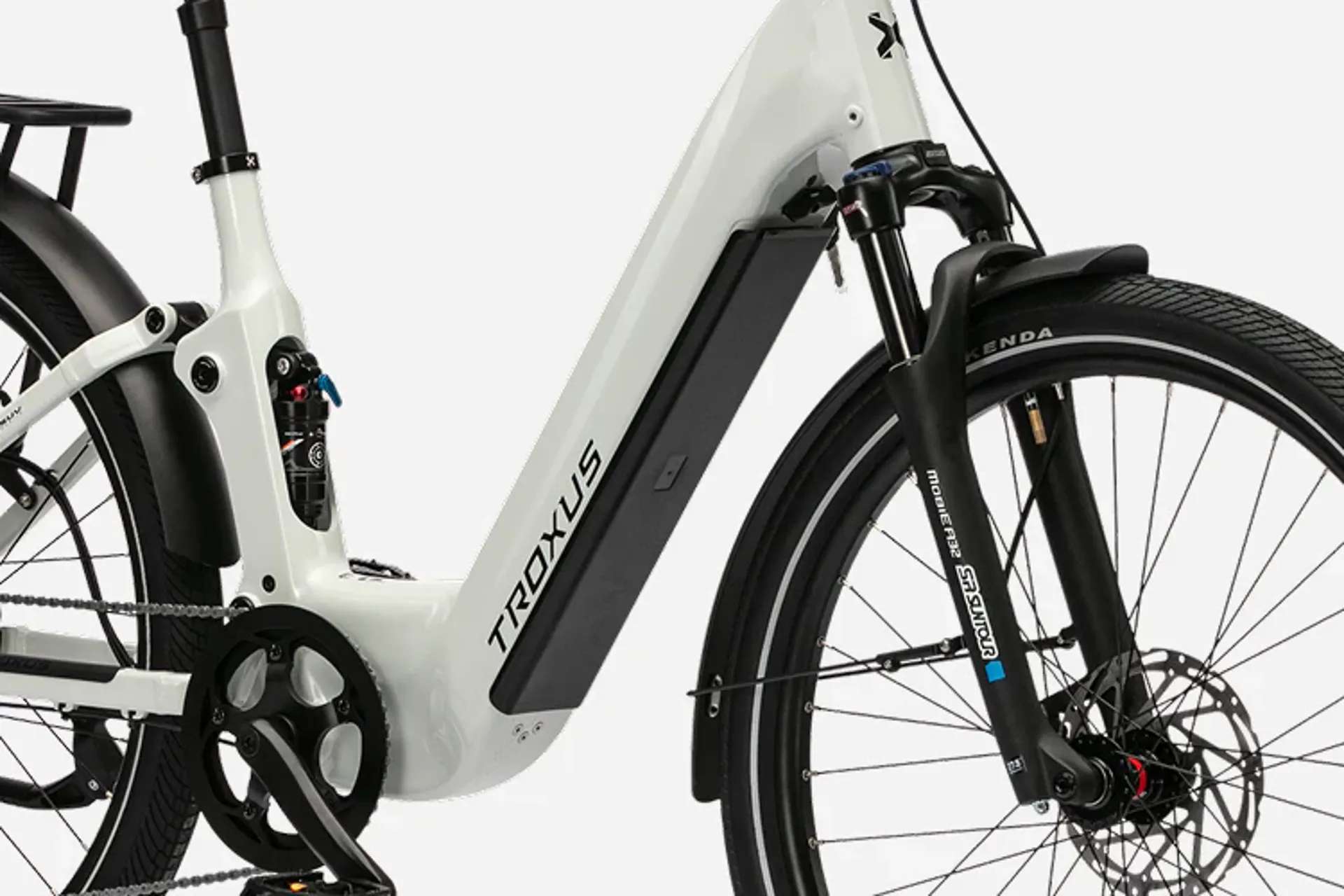

  • Battery
    UL-2271 Certified, Internal, Removable, Lithium Ion, 48V/15Ah (720Wh) with Samsung Cells
  • Display
    Stem-Integrated Color Display, Bluetooth, Turn Signals, Multi-Function Remote
  • Throttle
    Thumb Throttle
  • Sensor
    Switchable Torque and Cadence Sensor Modes
  • Pedal Assist
    0-5 Level
  • Charger
    2A, 100-240V Input, 54.6V Output
  • Lights
    80 Lux Front Light, Rear Light with Turn and Hazard Signals
  • Controller
    48V/22A/12V
  • Frame
    6061-T6 Aluminum, Dual Suspension, 75mm Travel

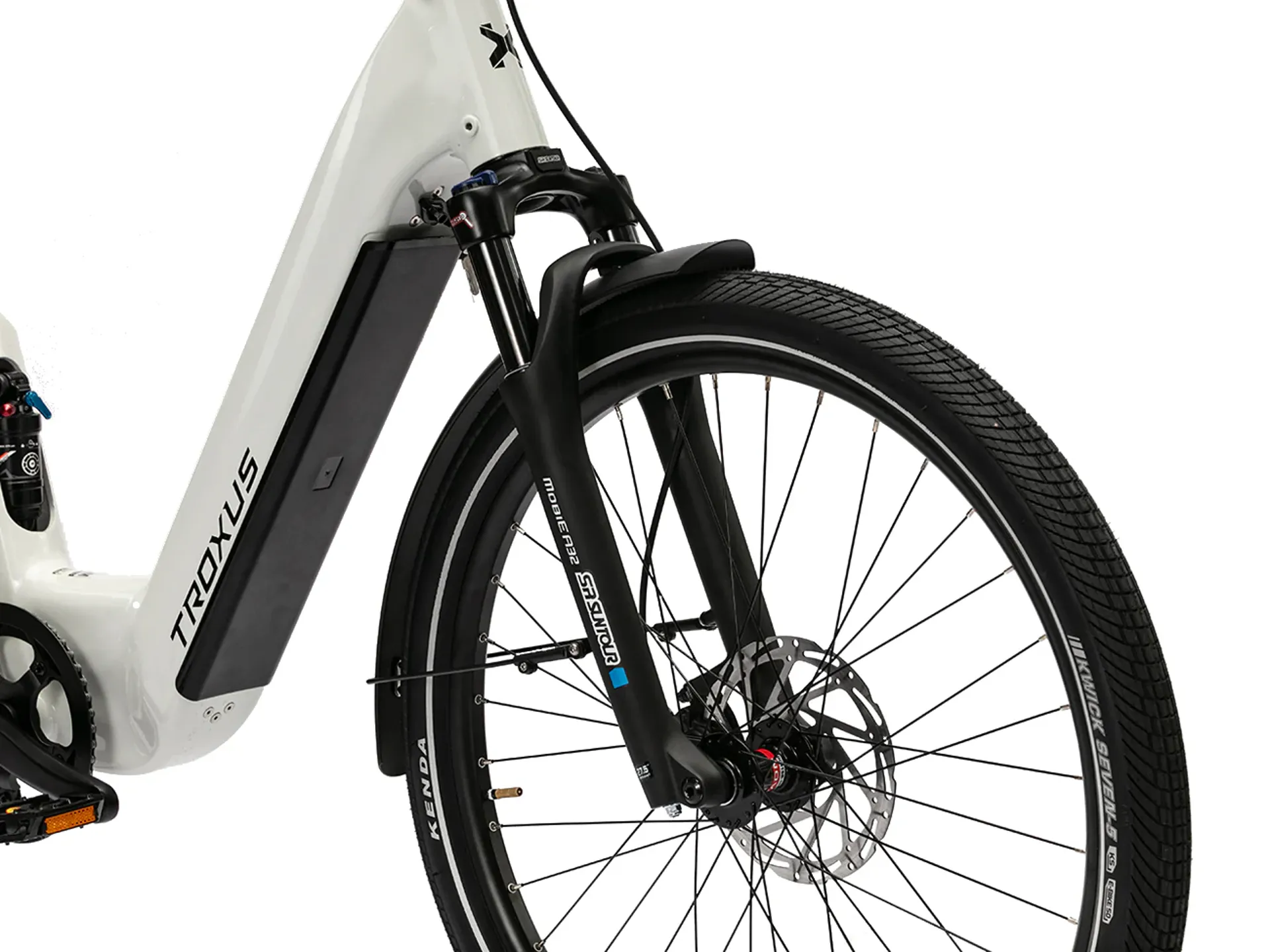

  • Fork
    Suntour MOBIE-A32, 75mm Travel
  • Chain
    KMC CUES 9-Speed
  • Crankset
    Aluminum, 46T, Single Alloy Chainguard, Square Taper, 170mm
  • Rear Derailleur
    Shimano CUES, 9-Speed
  • Cassette
    Shimano 9-Speed, 11-36T
  • Shifter
    Shimano CUES 9-Speed
  • Bottom Bracket
    Square Taper Sealed Bearings
  • Tires
    KENDA 27.5x2.4", Reflective Stripes
  • Front Hub
    Sealed Bearing, 100mm O.L.D., 15mm Thru-Axle

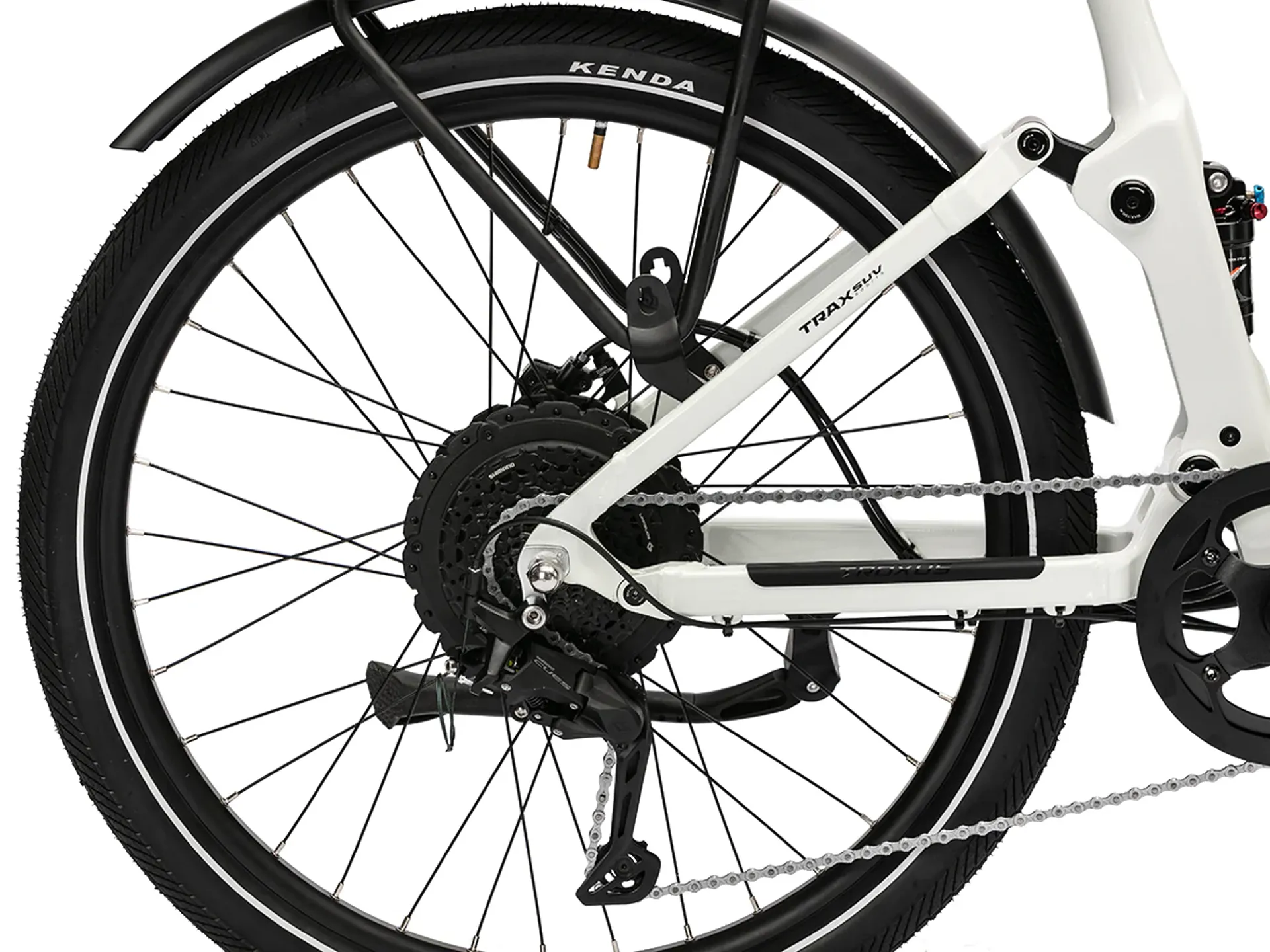

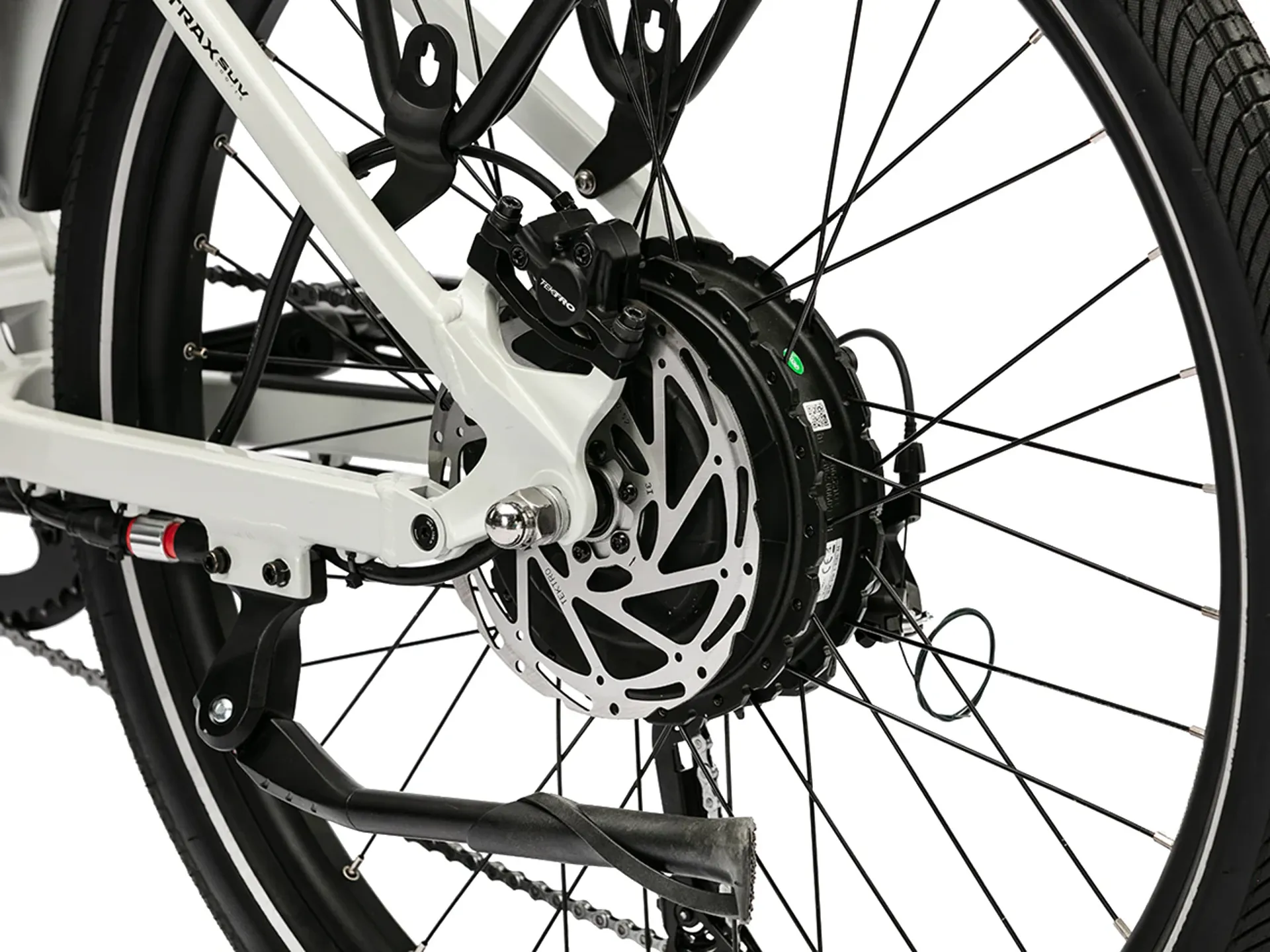

  • Rear Hub
    Bafang 48V 750W, 85Nm
  • Rims
    Alloy, Double Wall, 36H, Eyelets
  • Spokes
    Stainless, 14G Front / 13G Rear
  • Brakes
    Tektro Hydraulic, Brake Sensors
  • Rotors
    180mm
  • Saddle
    Troxus Comfort, 200mm Wide
  • Seat Post
    Alloy, 30.9x200/250mm
  • Seat-Post Clamp
    Alloy, 35mm, Quick Release
  • Stem
    Alloy, Forged, Adjustable, Integrated Display, 110mm Extension, Internal Cable Routing

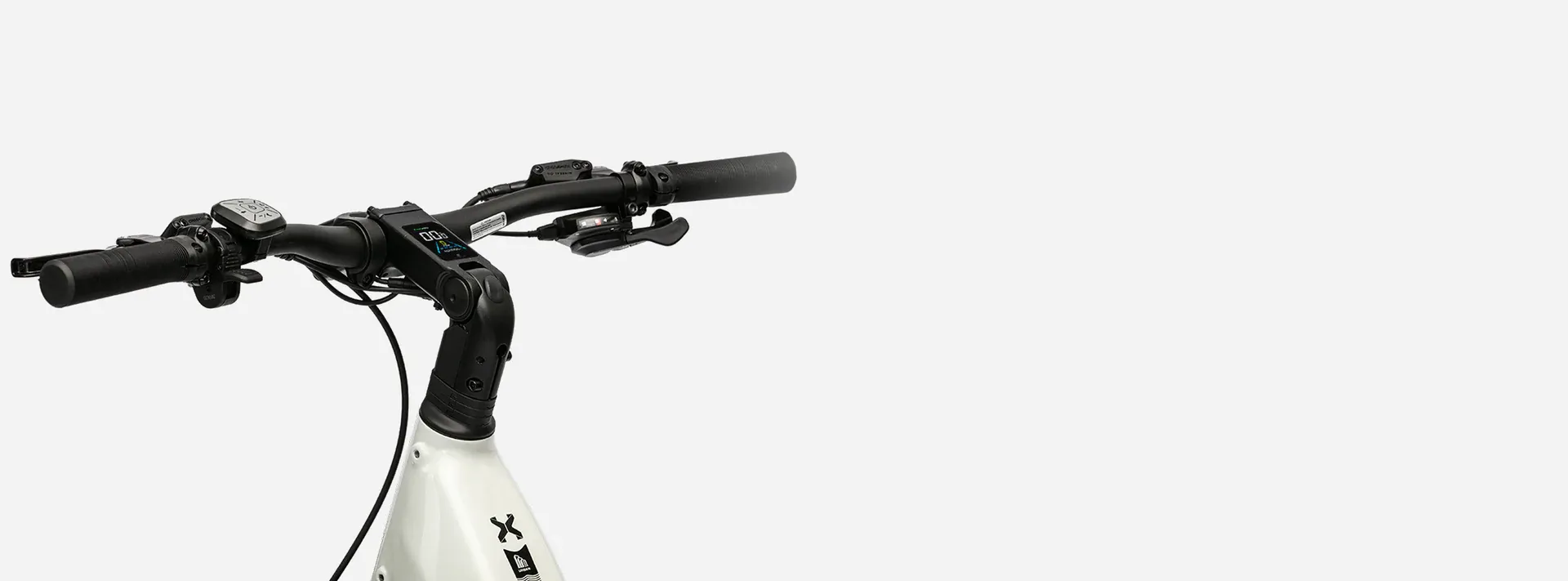

  • Handlebar
    Alloy, 31.8mmx680mm, 25mm Rise, 9 Deg. Backsweep
  • Grips
    Ergonomic Comfort
  • Pedals
    9/16" Alloy Platform with Reflectors
  • Headset
    ICR Type, Threadless, Internal 57/62mm, Internal Cable Routing

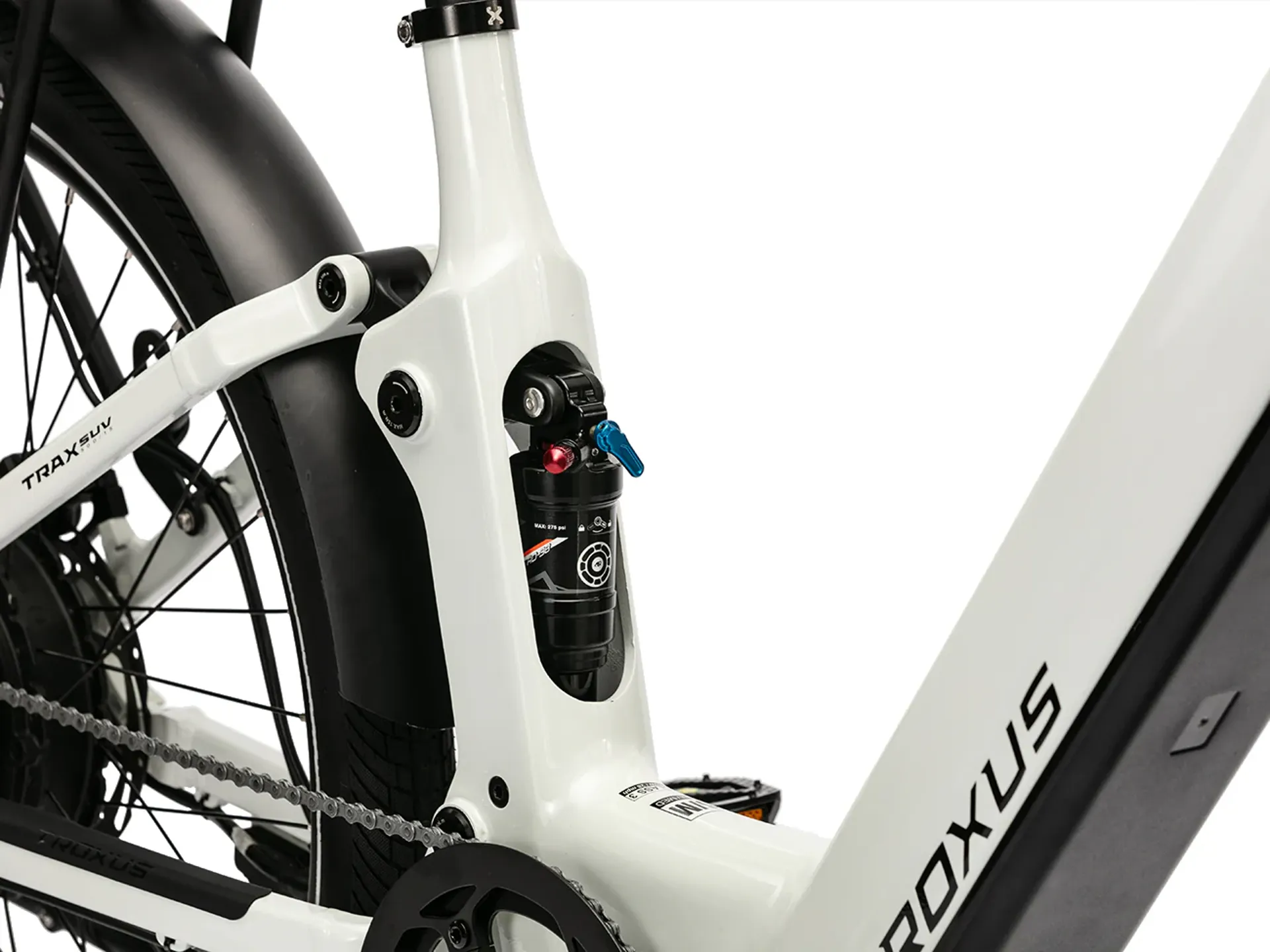

  • Rear Shock
    DNM AO-38RC Air Shock, 165x35mm Travel
  • Max Speed
    20 MPH (Throttle), 28 MPH (Pedal Assist)
  • Range
    Up to 70 miles per charge
  • Weight Limit
    300 lbs (Total), 245 lbs (Rider), 55 lbs (Rear Rack)
  • Net Weight
    75 lbs

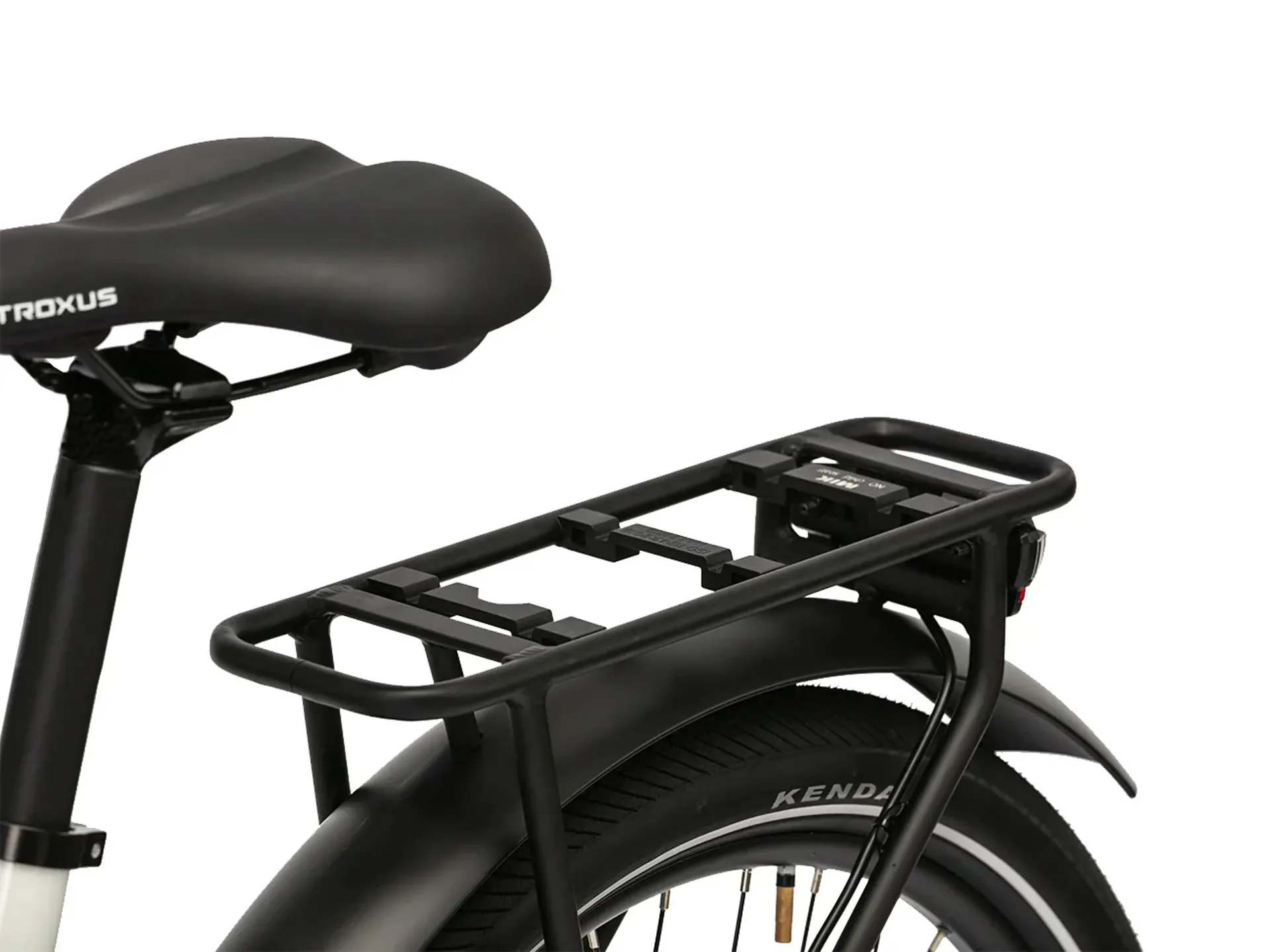

  • Rack
    Semi-Integrated Alloy, MIK-Compatible
  • Fenders
    Alloy, 27.5"x2.4", Full Coverage
  • Kickstand
    Adjustable Side Kickstand
Sizing Information
Model Recommended Height
M Step-Thru 5'5" - 5'10" (166 - 178 cm)
L Step-Over 5'10" - 6'4" (176 - 193 cm)
