Troxus Trax Whim iQ

Brand:Troxus

Code:Trax Whim iQ

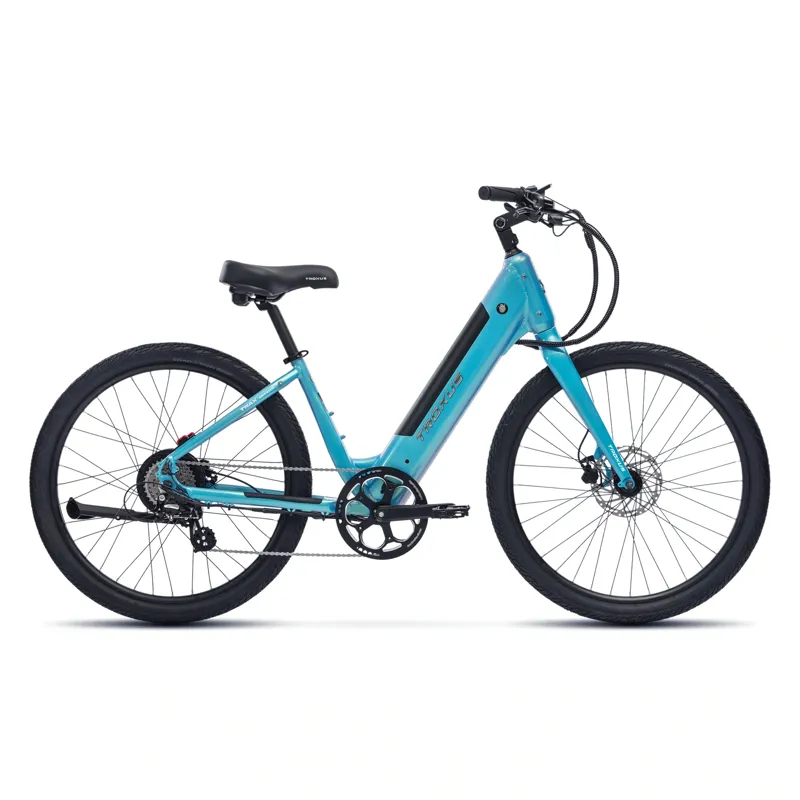

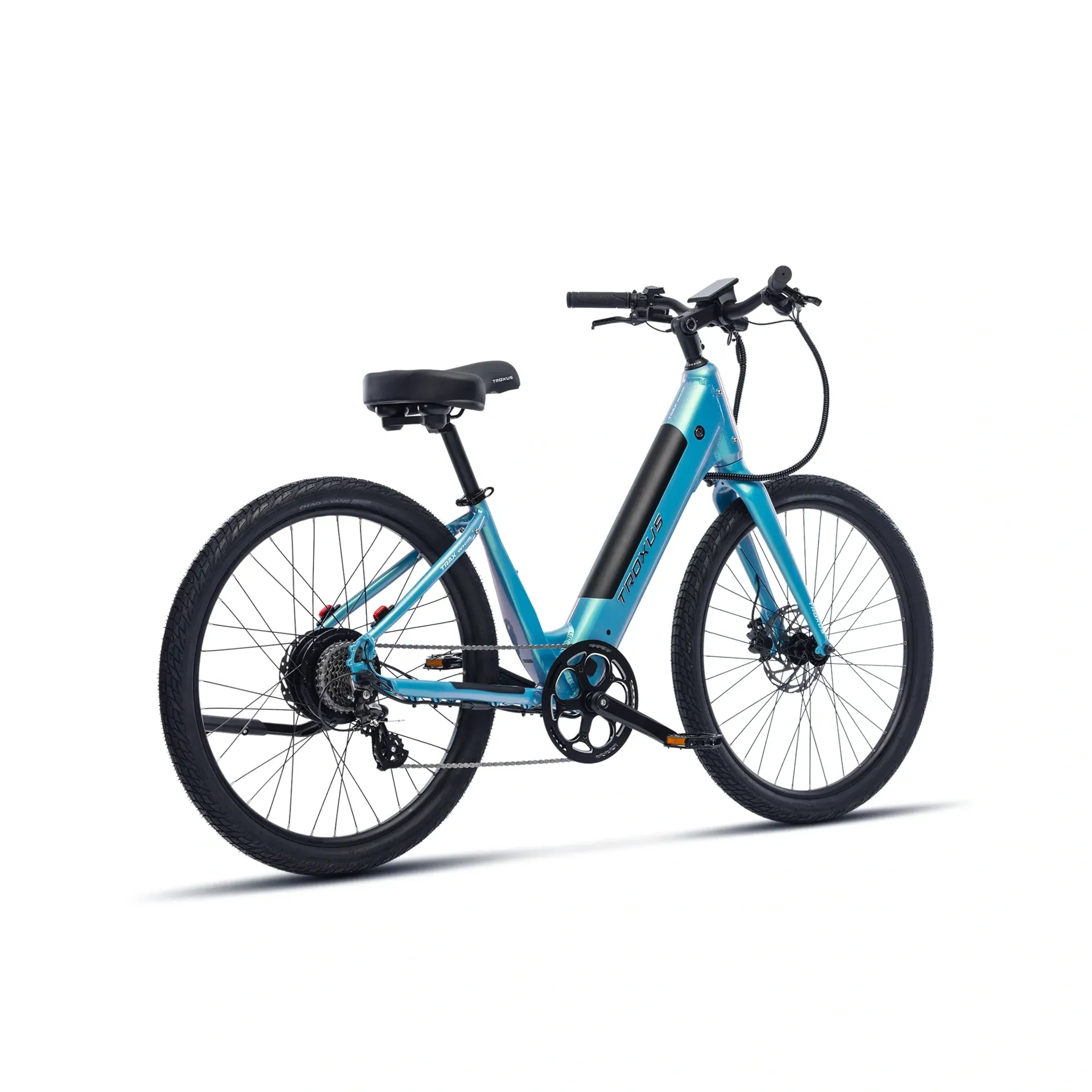

The Trax Whim iQ electric cruiser bike is designed for effortless city riding with comfort-first geometry and Ride iQ smart integration. It simplifies everyday commuting with smooth assist, step-through accessibility, and a relaxed riding experience for urban travel.

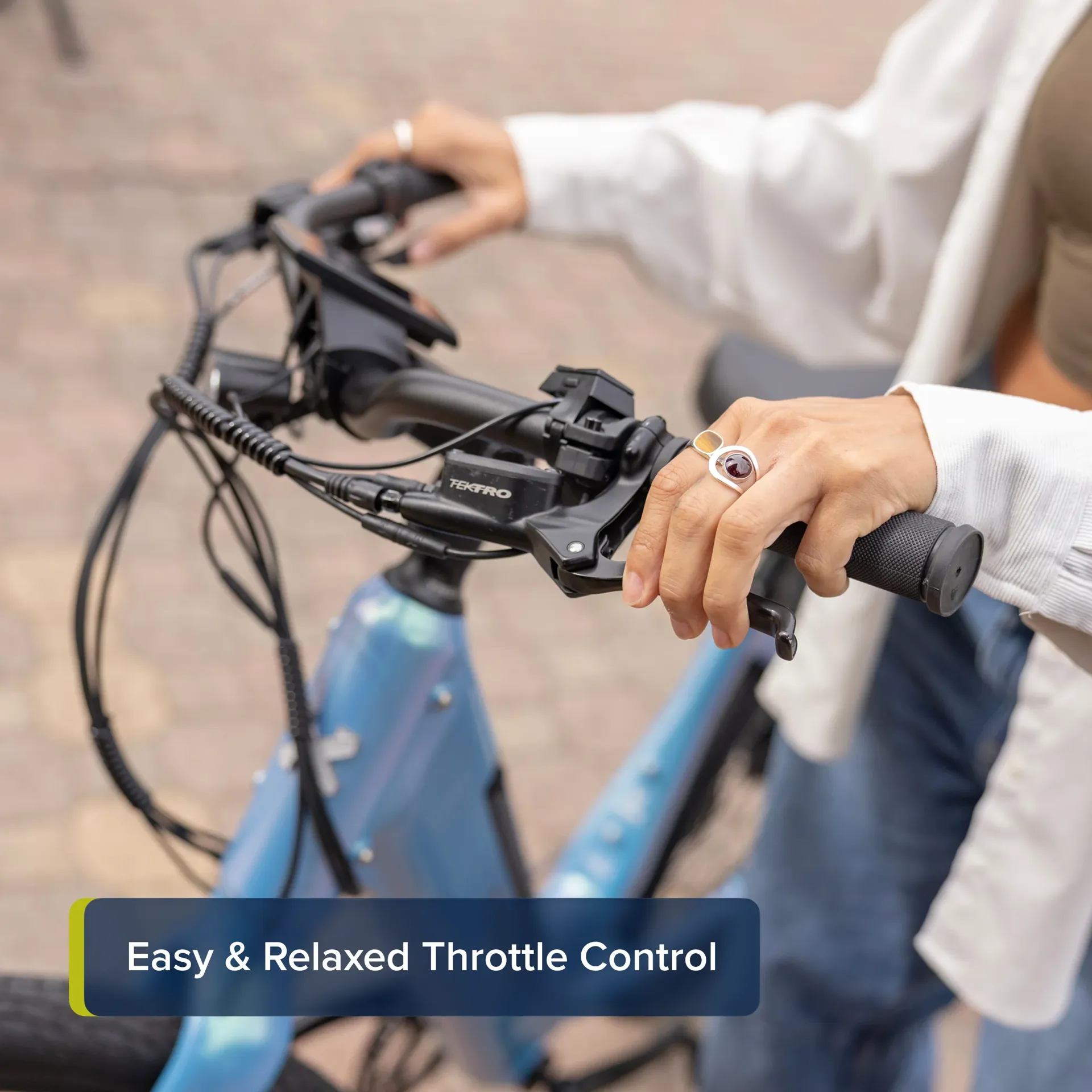

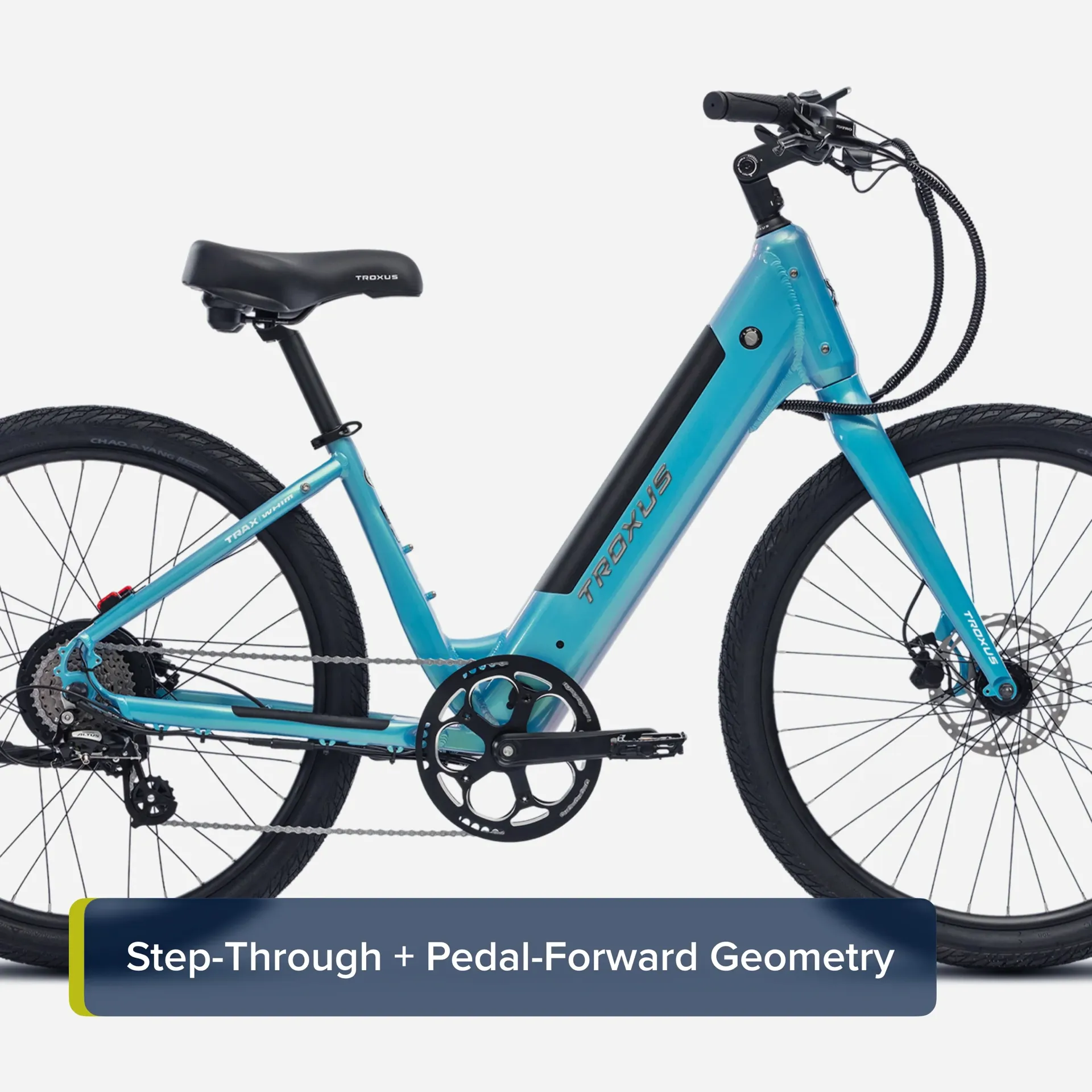

The step-through frame, pedal-forward geometry, and upright riding position create a relaxed riding posture designed for everyday comfort. This upright position reduces wrist and shoulder fatigue, making daily rides easier and more relaxed. The Trax Whim iQ uses a 48V 14Ah (672Wh) lithium battery with Samsung® cells for dependable daily range. Ride iQ smart monitoring allows riders to track battery level and estimated range in real time, ensuring confidence for everyday commuting and neighborhood rides. The 500W motor delivers smooth and predictable assistance, while Ride iQ smart control provides natural power delivery that feels easy to manage.

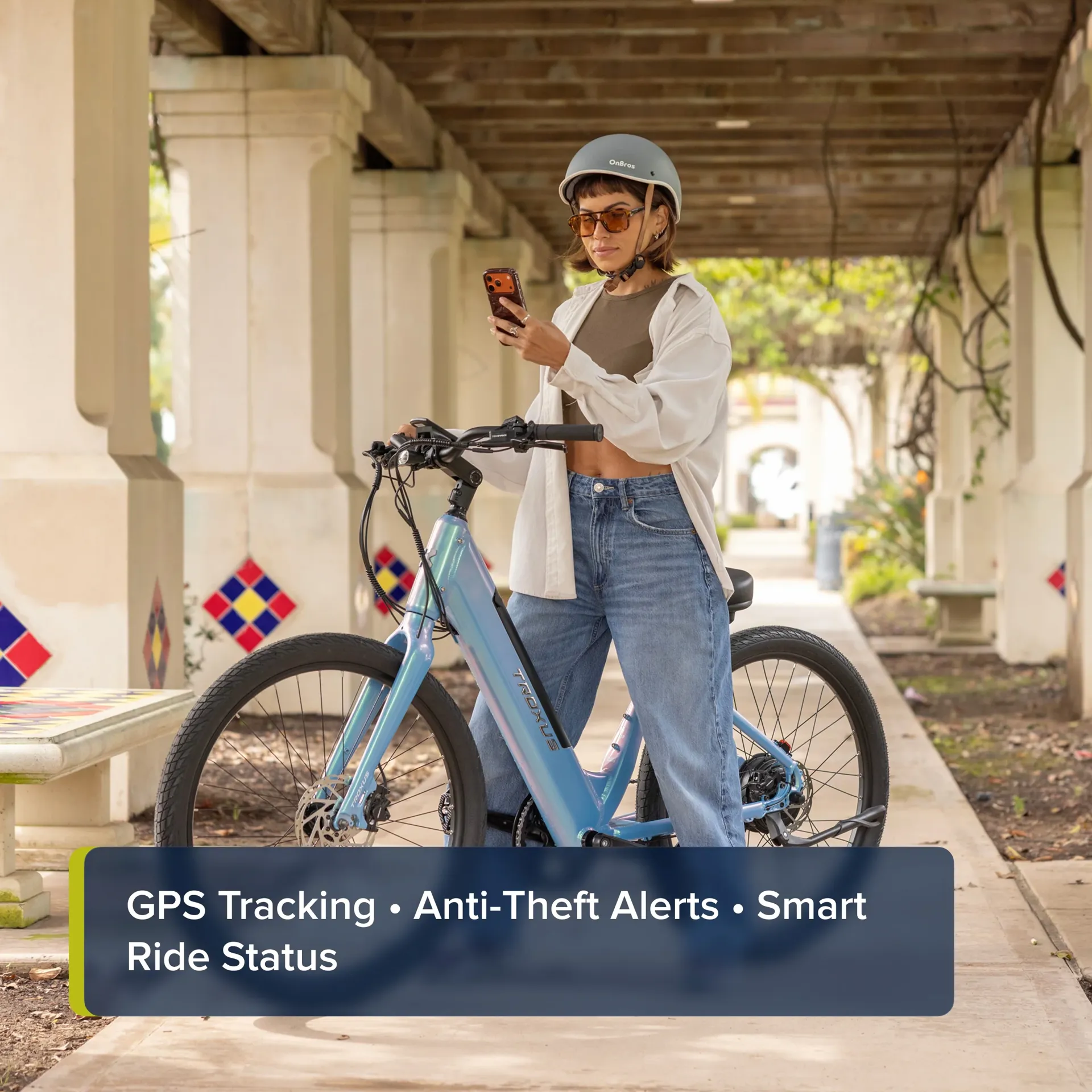

Ride iQ offers built-in GPS tracking, motion alerts, and geofence protection. The system continuously monitors movement and sends real-time notifications if anything unusual happens. With remote disable and anti-tamper alerts, this electric cruiser bike offers enhanced security.

Technical Information

Frame size

Small, Medium
Wheel size

27.5"x2.4"
Seat tube length

394mm (Small), 445mm (Medium)
Seat tube angle

70˚
Head tube length

185mm (Small), 190mm (Medium)
Head tube angle

68˚
Effective top tube length

620mm (Small), 630mm (Medium)
Bottom bracket height

307mm
Bottom bracket drop

70mm
Chainstay length

510mm
Fork offset

42mm
Wheelbase

1128mm (Small), 1138mm (Medium)
Frame reach

357mm (Small), 365mm (Medium)
Frame stack

616mm (Small), 621mm (Medium)
Fork travel

0
Fork height

420mm
Max speed

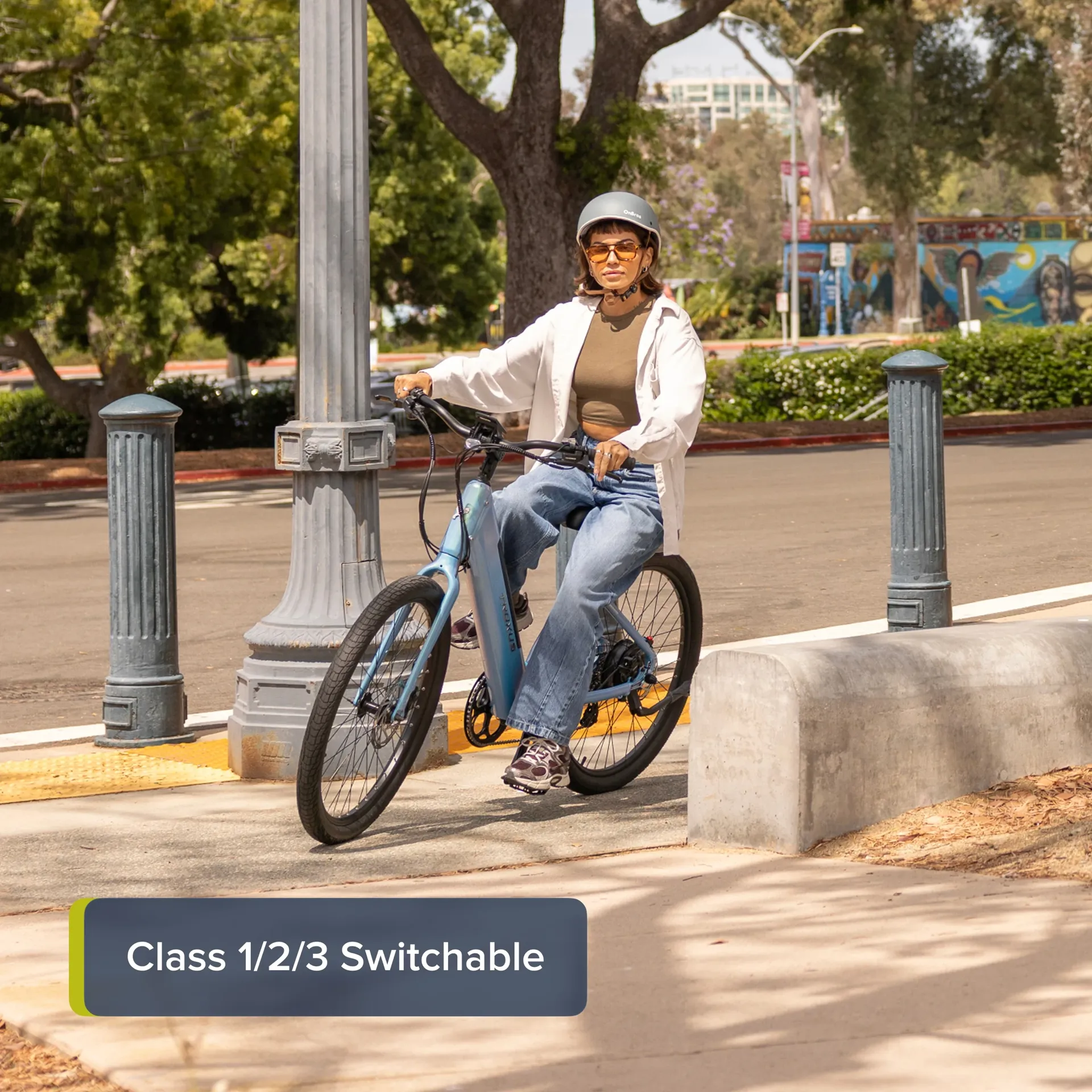

Up to 20 MPH on throttle / Up to 28 MPH on pedal assist
Weight limit

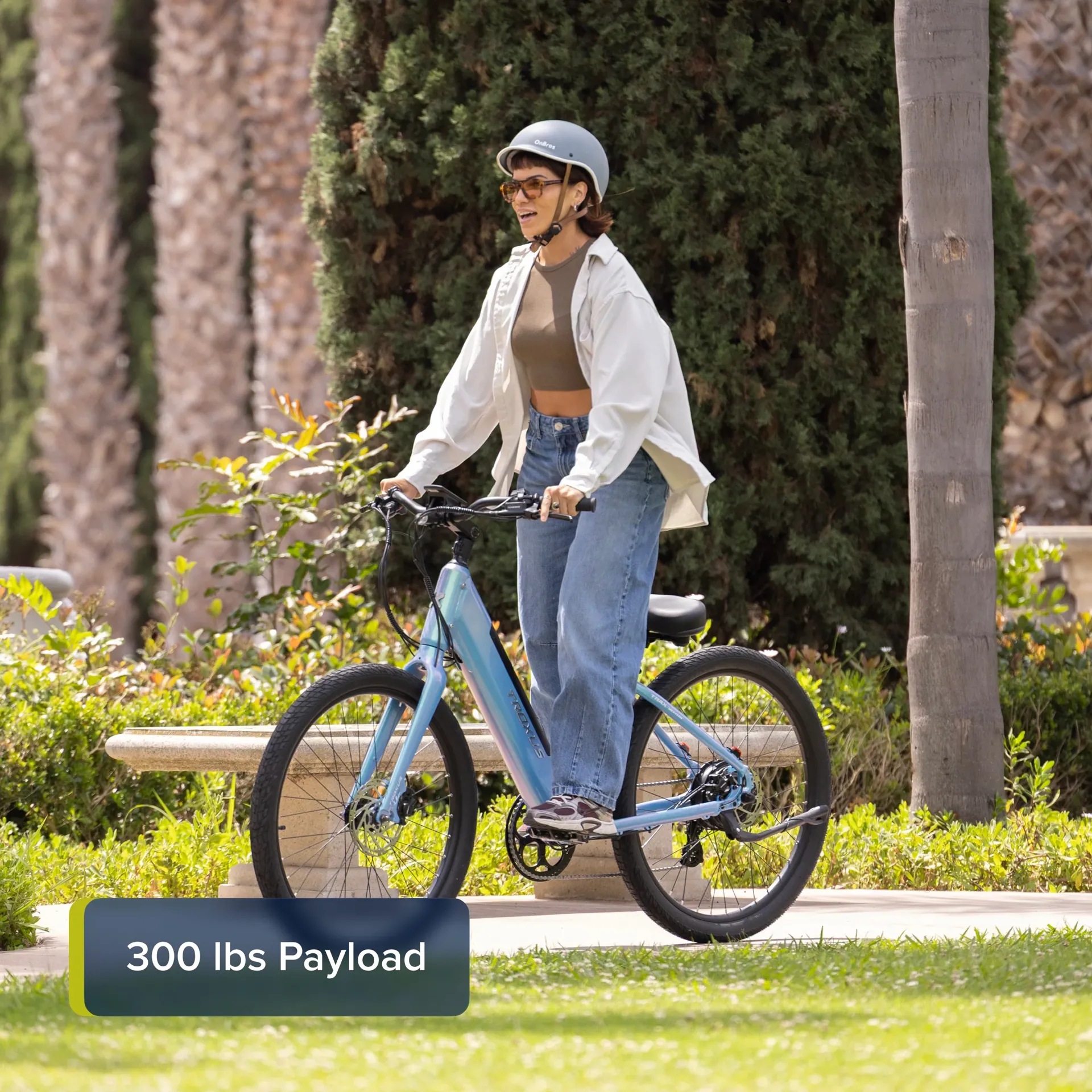

Maximum load: 300 lbs. / Rider: 265 lbs.
Motor

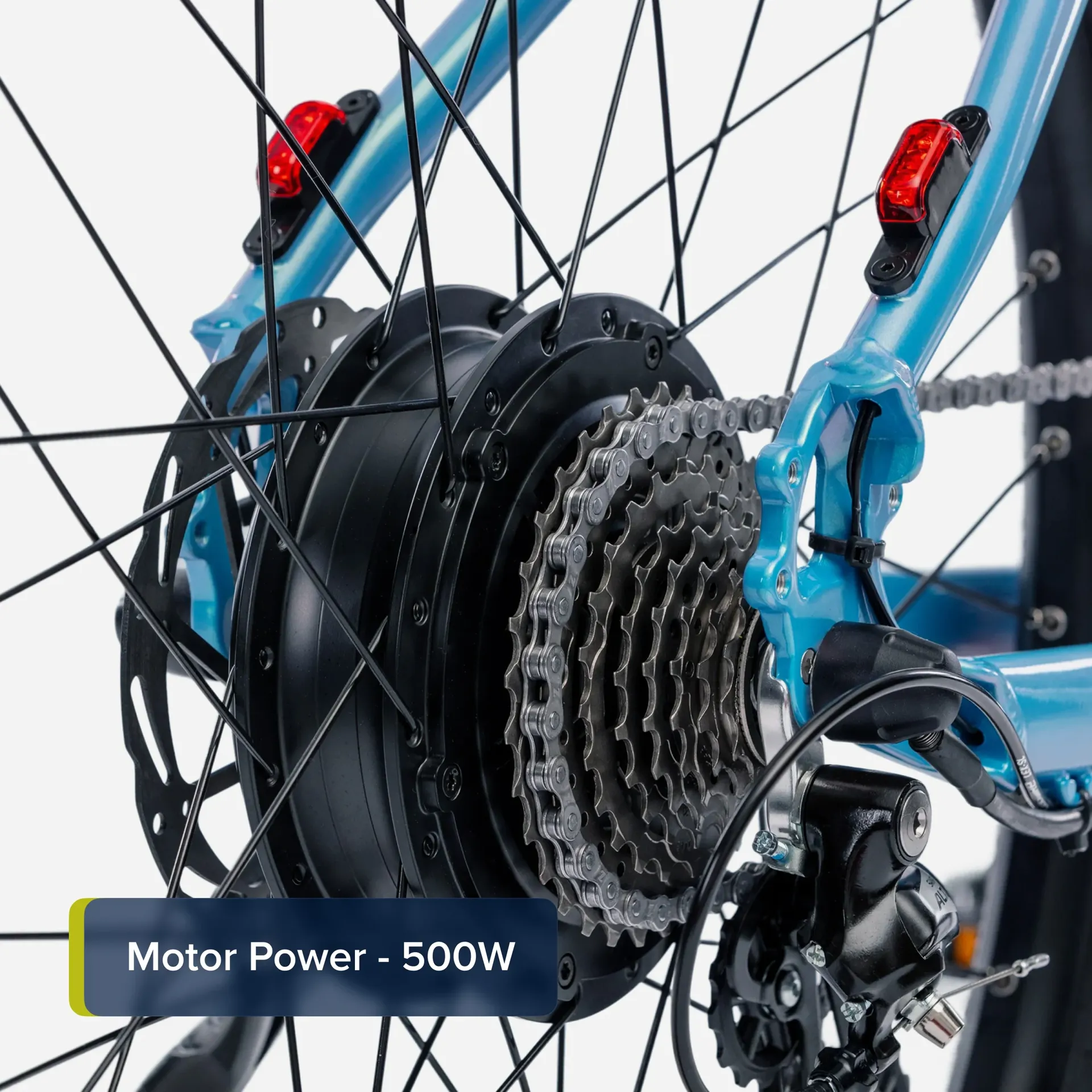

ShengYi 48V/500W hub-drive motor, 50Nm max. torque
Battery

UL-2271 certified, internal, removable, lithium ion, 48V/14Ah (672Wh) with Samsung® cells
Display

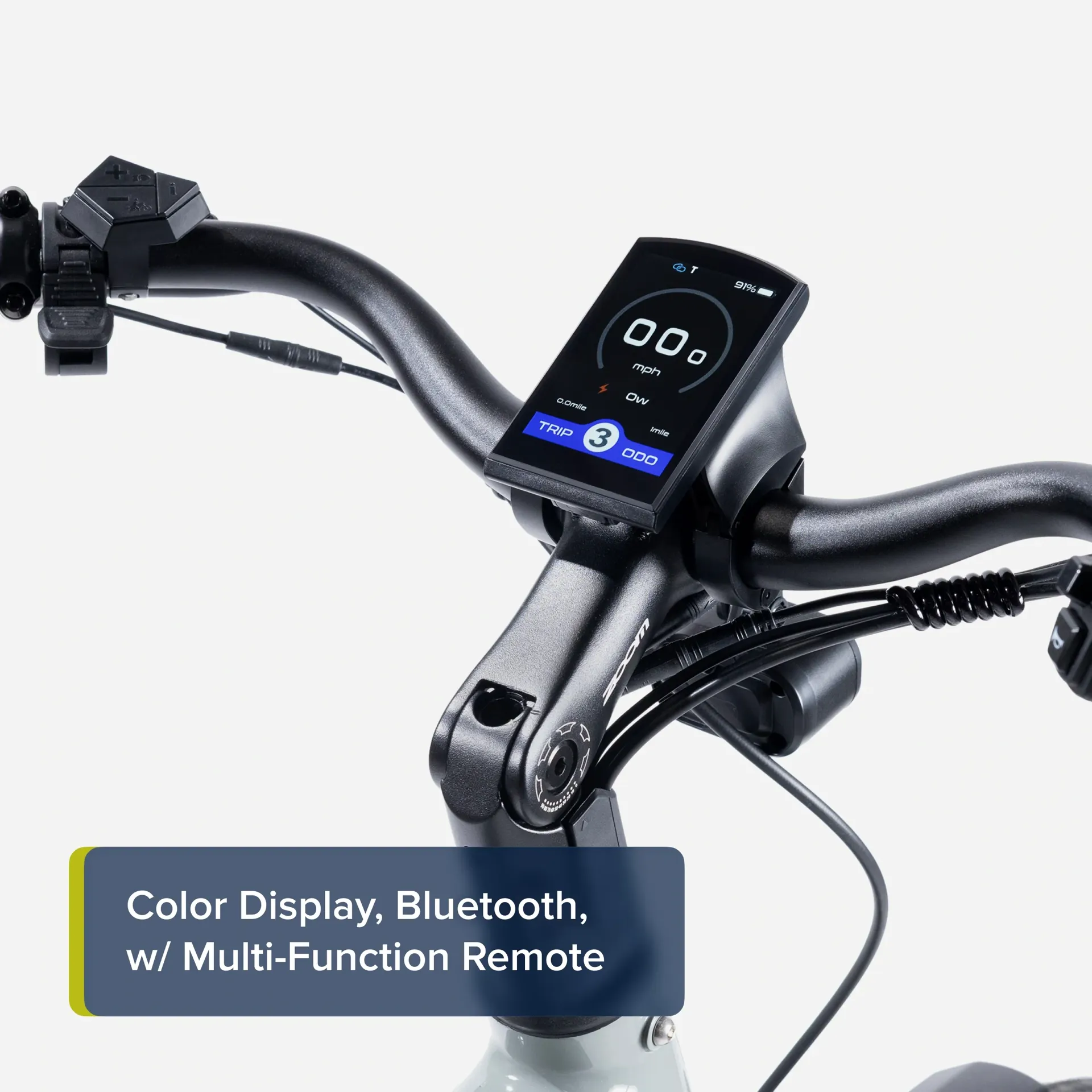

Troxus Ride iQ 1.0, color display, Bluetooth, with multi-function remote
Sensor

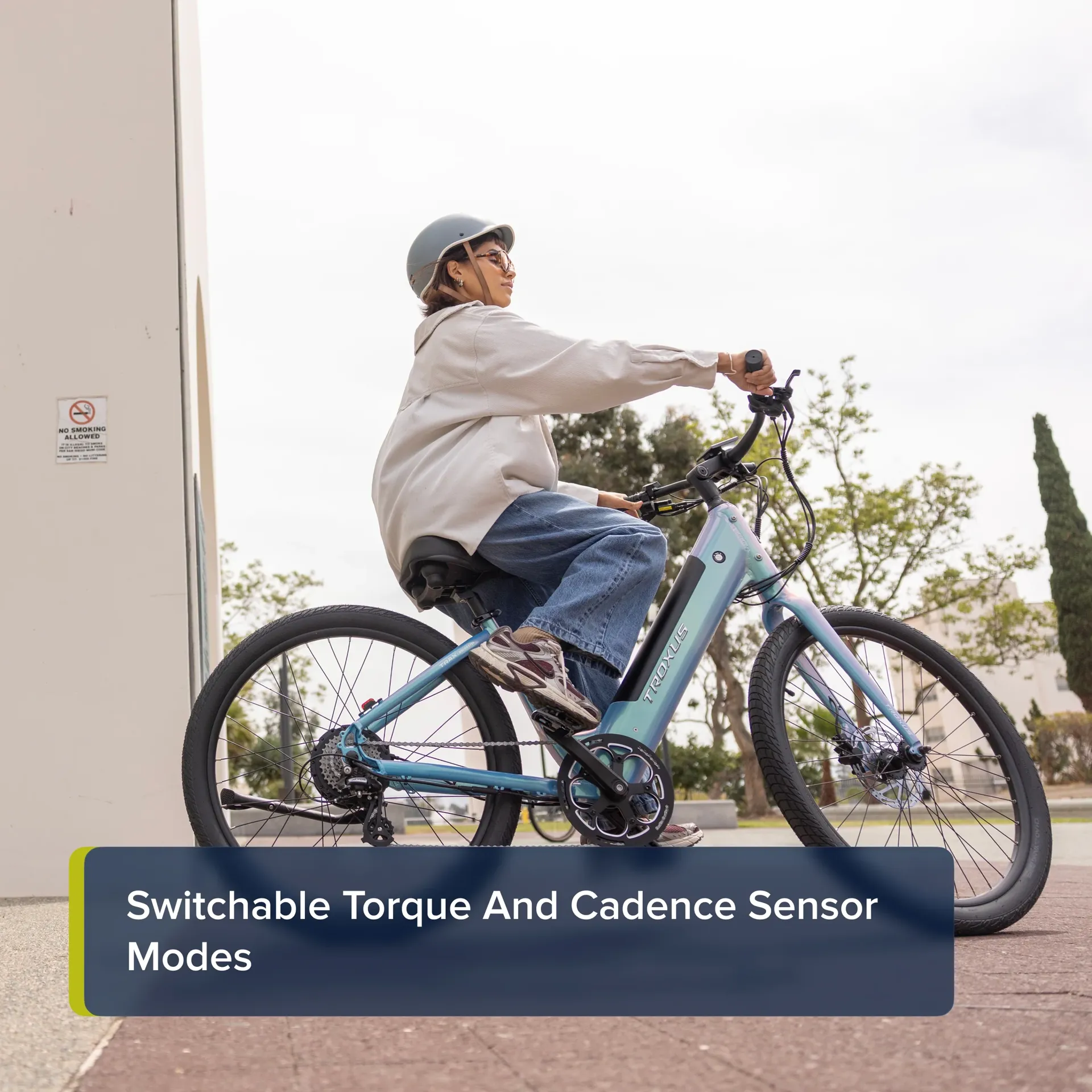

Switchable torque and cadence sensor modes
Pedal assist

0~5 level pedal assist
Charger

2A / 100-240V input / 54.6V output
Lights

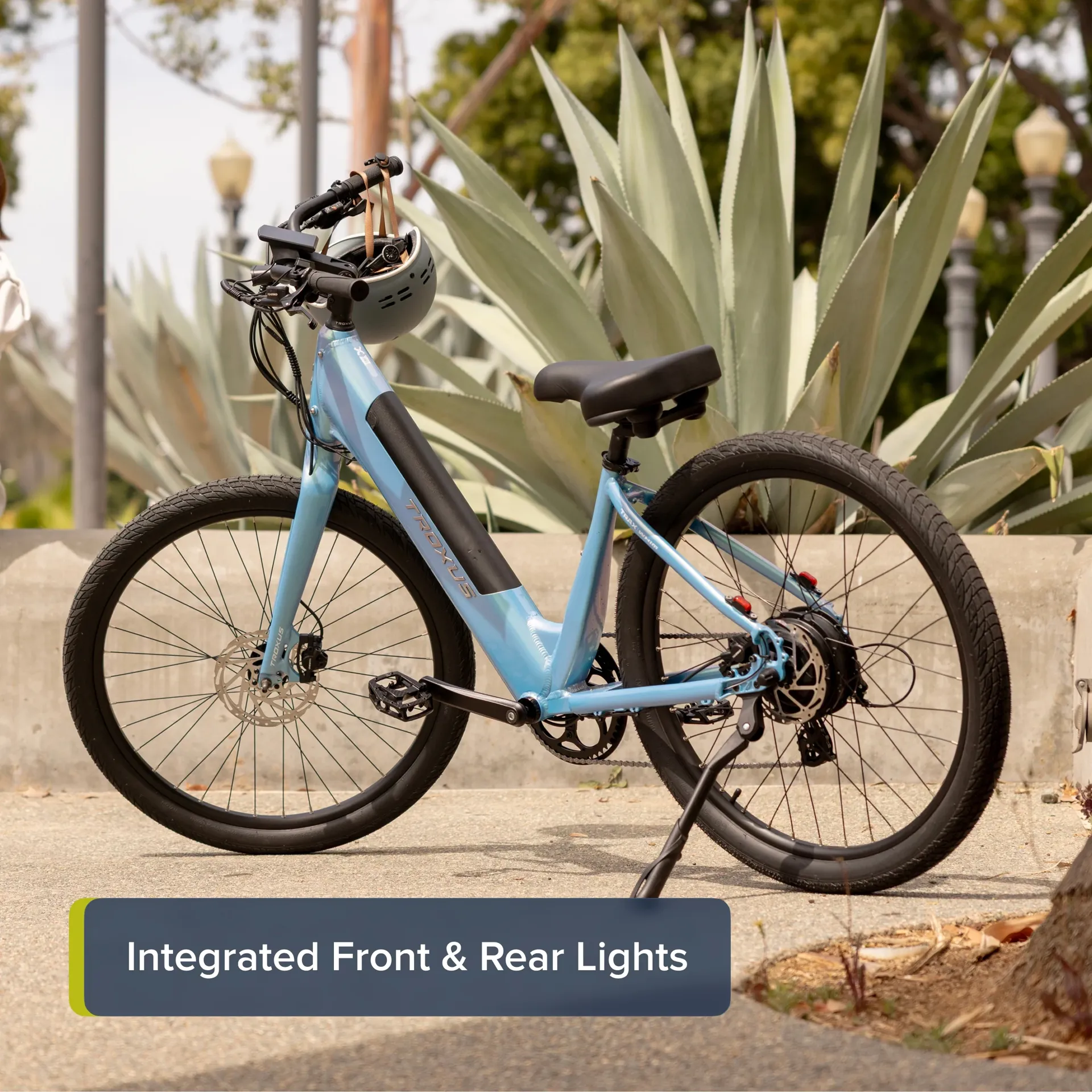

Front light and rear light
Controller

48Vx15A/12V
Frame

6061-T6 aluminum step-thru, pedal forward frame
Fork

Aluminum, rigid fork, threadless steerer
Chain

KMC® 1/2"x3/32"
Crankset

Aluminum, 52T, with single alloy chainguard, square taper, 170mm
Rear derailleur

Shimano® RD-M310-L, Altus, 8-speed
Cassette

Shimano 8-speed, 12-32T
Shifter

Shimano® 8-speed
Bottom bracket

Square taper sealed bearings, torque and cadence sensors included
Tires

27.5x2.4"
Front hub

Alloy, 36H, 100mm, 3/8" axle with nuts
Rear hub

ShengYi 48V/500W, 50Nm
Rims

Alloy, double wall front and rear, 36H, with eyelets
Spokes

Stainless 14G front / 13G rear
Brakes

Tektro® hydraulic, with brake sensors
Rotors

180mm / 160mm
Saddle

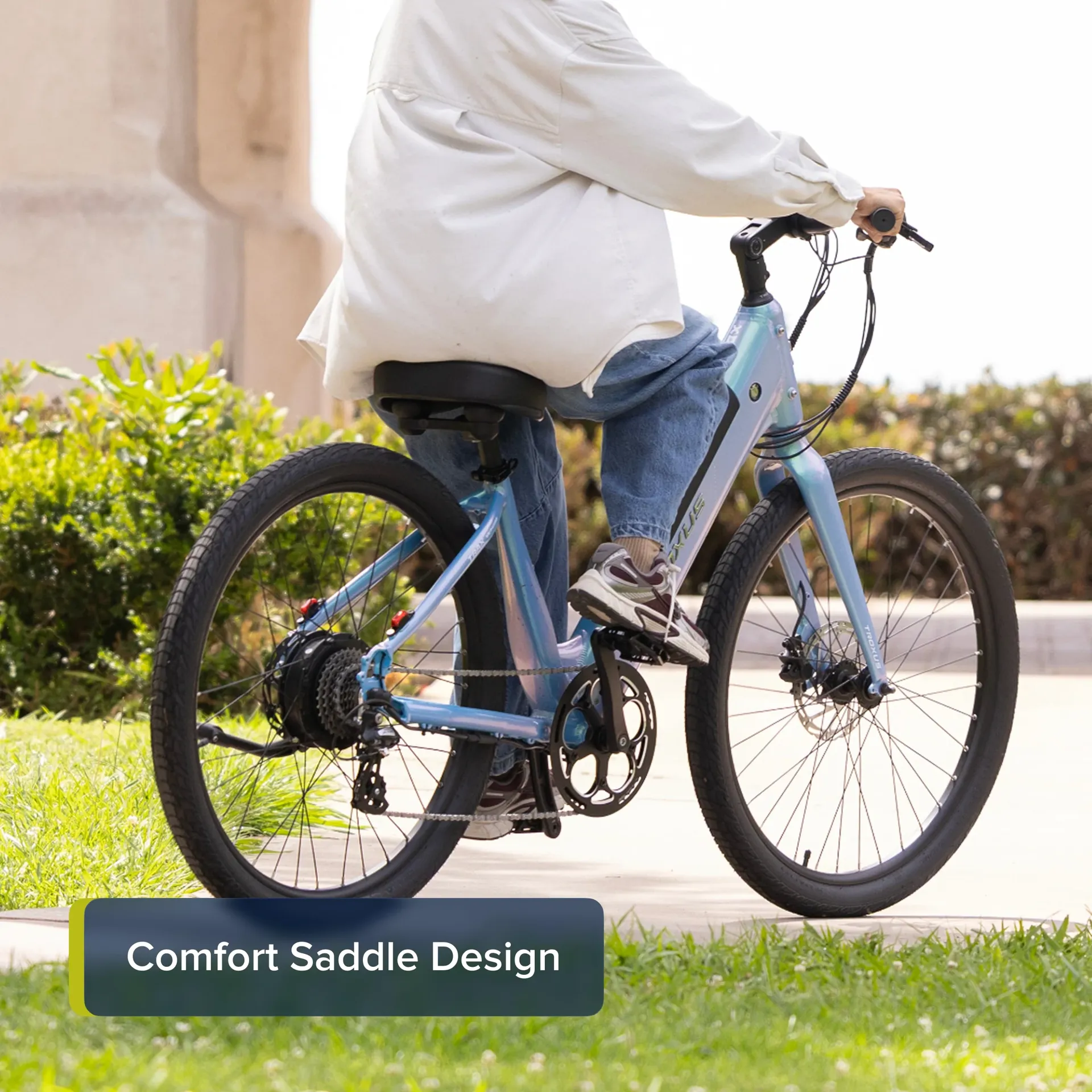

Troxus Comfort
Seat post

Alloy, 30.9x350mm, adjustable
Seat post clamp

Alloy, 35mm with quick release
Stem

Alloy, forged, adjustable, ext. 90mm
Handlebar

Alloy, 31.8mmx680mm wide, 37º backsweep
Grips

Ergonomic comfort
Pedals

9/16" alloy platform with reflectors
Headset

Threadless, internal 1-1/8"
Kickstand

Adjustable side kickstand

Sizing Information

Geometry and Sizing

Measurement	Small	Medium
Frame Size	Small	Medium
Wheel Size	27.5"x2.4"	27.5"x2.4"
A - Seat Tube Length	394 mm	445 mm
B - Seat Tube Angle	70˚	70˚
C - Head Tube Length	185 mm	190 mm
D - Head Tube Angle	68˚	68˚
E - Effective Top Tube Length	620 mm	630 mm
F - Bottom Bracket Height	307 mm	307 mm
G - Bottom Bracket Drop	70 mm	70 mm
H - Chainstay Length	510 mm	510 mm
I - Fork Offset	42 mm	42 mm
J - Wheelbase	1128 mm	1138 mm
K - Frame Reach	357 mm	365 mm
L - Frame Stack	616 mm	621 mm
Fork Travel	0 mm	0 mm
Fork Height	420 mm	420 mm
