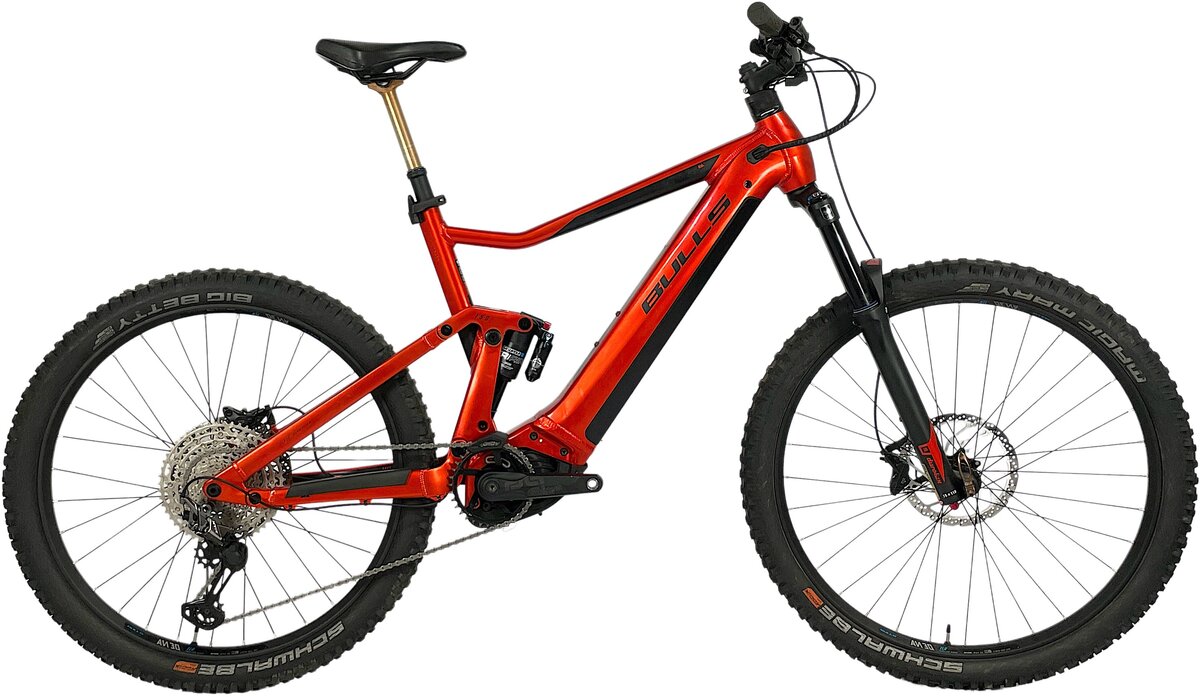

Bulls COPPERHEAD EVO AM 4 750
$2,999.00 - $3,999.00
$3,999.00 - $4,899.00
Details
Our topshell all mountain eMTB.
| Frame Size | 41cm | 44cm | 48cm | 54cm |
|---|---|---|---|---|
| Seat tube length | 410 mm | 440 mm | 480 mm | 540 mm |
| Top tube length | 630 mm | 630 mm | 640 mm | 665 mm |
| Wheelbase | 1237 mm | 1237 mm | 1244 mm | 1269 mm |
| Chain stay length | 445 mm | 445 mm | 445 mm | 445 mm |
| Seat tube angle | 75° | 75° | 74° | 74° |
| Head tube angle | 66° | 66° | 66° | 66° |
| Bottom Bracket Offset | 5 mm | 5 mm | 5 mm | 5 mm |
| Stack | 615 mm | 615 mm | 624 mm | 633 mm |
| Reach | 465 mm | 465 mm | 467 mm | 489 mm |
| Frame | Height | Inseam |
|---|---|---|
| 41cm | 5'5" to 5'9” | 30" to 32" |
| 44cm | 5'9" to 5'11” | 32" to 34” |
| 48cm | 5'11" to 6'2" | 34" to 36" |
| 54cm | 6'3" to 6'8" | 36" to 38" |
Specs
| Motor | Bosch Performance Line CX Smart System (85 Nm) |
|---|---|
| Pedals | BULLS MTB |
| Battery | BOSCH PowerTube 750 Wh Smart System |
| Charger | Bosch Standard Charger - 4A |
| Controller/Display | LCD Remote |
| Fork | SR Suntour Durolux 36 RC2 Boost 29, 150 mm |
| Rims | Ryde Disc 30 |
| Stem | MTB, CCS Slot Mount ready |
| Frame | Aluminum 6061, internal cable routing |
| Tires | Schwalbe Magic Mary Super Gravity 65-622/29 x 2.60 / Big Betty 65-584/27.5 x 2.60 |
| Brakes | Shimano BR6120 4-piston/ BR-M6100 2-piston hydraulic disc 203/203 mm |
| Saddle | Selle Royal Vivo Ergo |
| Crankset | FSA |
| Seatpost | Limotec A1-Z dropper post, 30.9 mm |
| Chainrings | E-Thirteen CR4USM-100, 165 mm, 34T |
| Handlebars | BULLS MTB Alloy, Dia 31.8 mm, 760 mm, 25 mm raise, 9° back swept Brakes Shimano BR6120 4-piston/ 2-piston hydraulic disc 203/203 mm |
| Rear Shock | SR Suntour RS19 TRIAir 3CR, 150 mm |
| Rear Derailleur | Shimano XTR RD-M9100-SGS, 12-SPD |
| Cassette/Freewheel | Shimano CS-M6100, 10-51T |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Metallic Orange / 41cm | 732262503837 | 650-39941 | 210000002619 |
| Metallic Orange / 44cm | 732262503844 | 650-39944 | 210000002620 |
| Metallic Orange / 48cm | 732262503851 | 650-39948 | 210000002621 |
| Metallic Orange / 54cm | 732262503868 | 650-39954 | 210000002623 |
