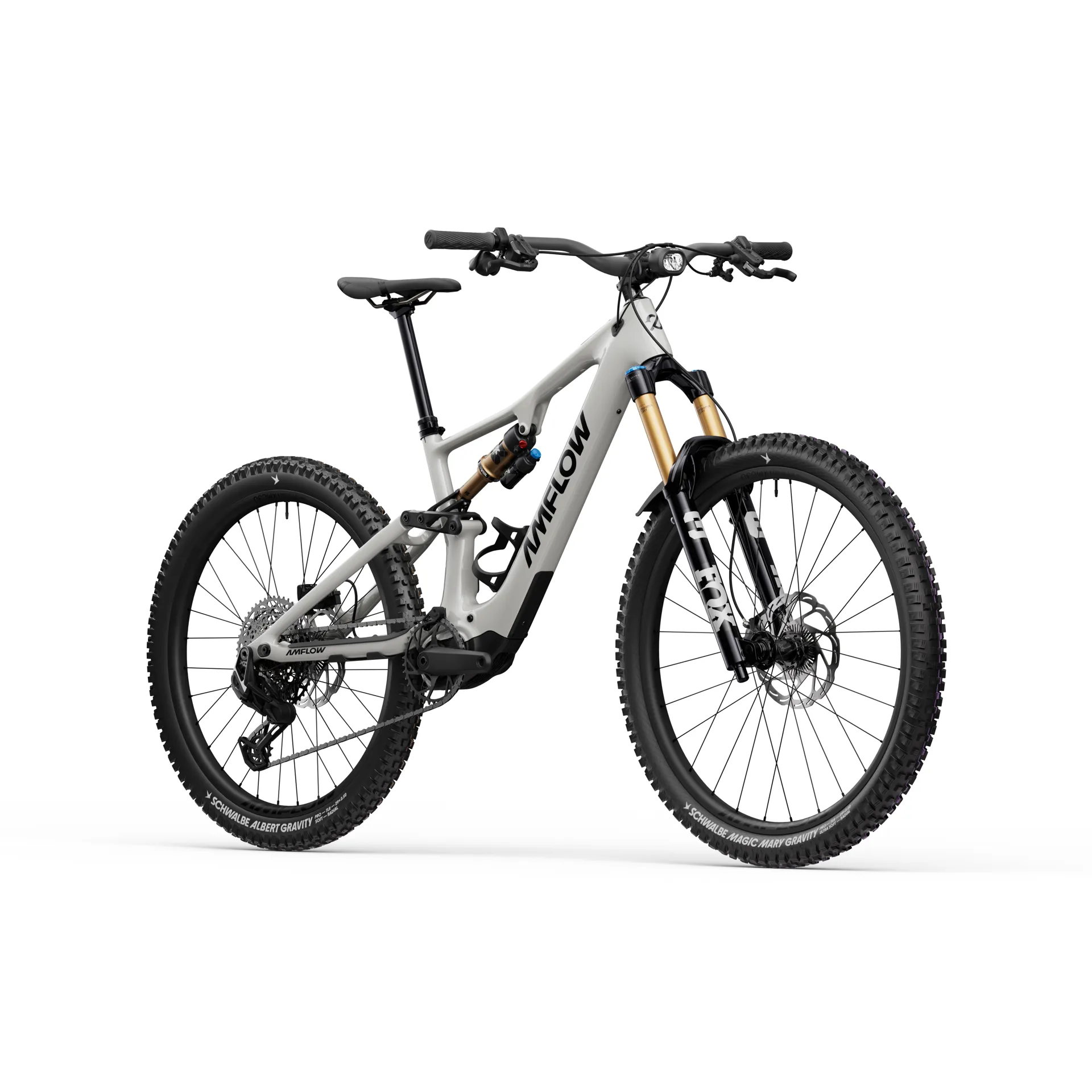

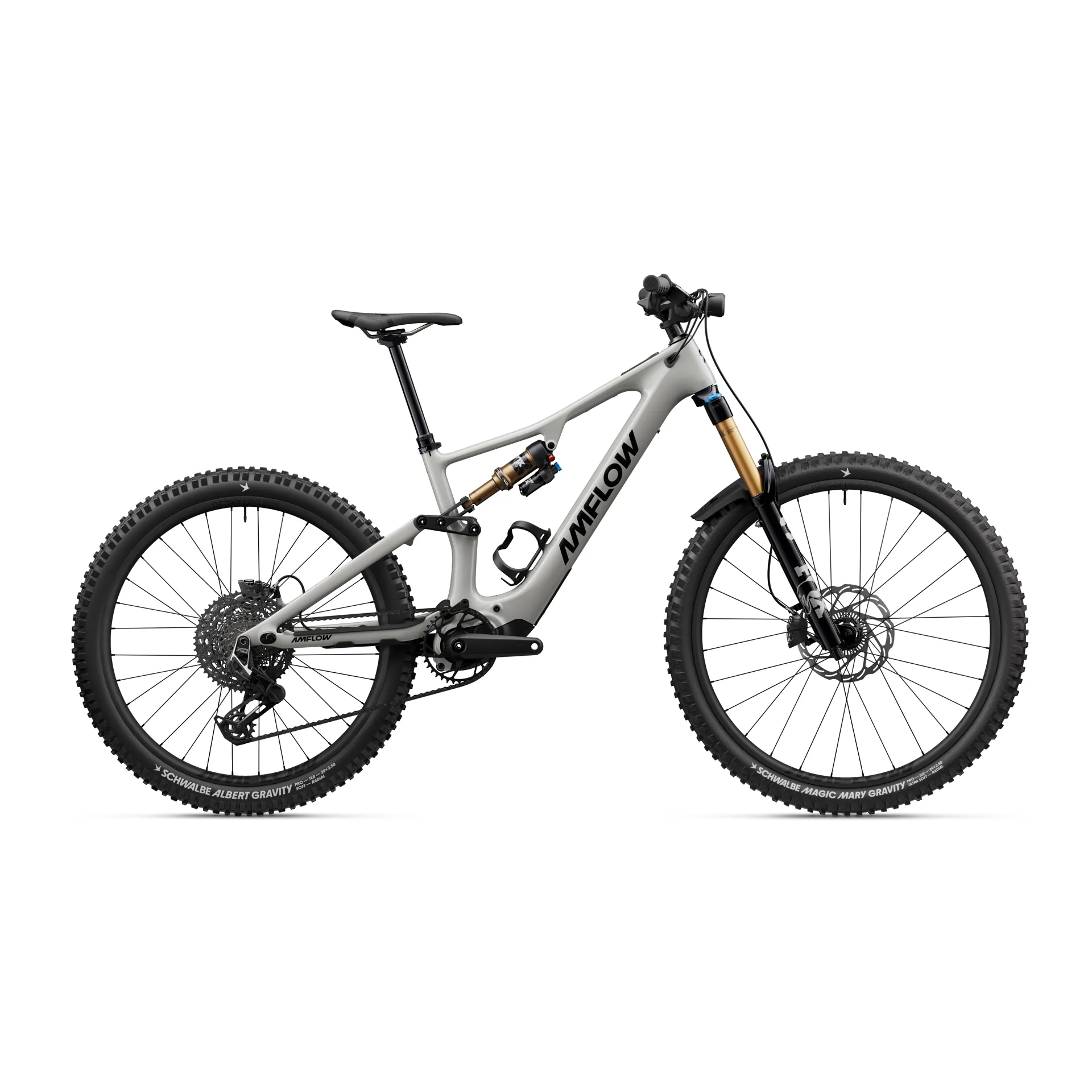

The Amflow PX Carbon Pro features an Avinox M2S drive unit, FOX Factory suspension, and a highly adjustable carbon frame for versatile performance.
The Amflow PX Carbon Pro features an Avinox M2S drive unit, FOX Factory suspension, and a highly adjustable carbon frame for versatile performance.
Amflow

Amflow PX Carbon Pro

$10,199.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Amflow PX Carbon Pro

Brand:Amflow

Code:Amflow PX Carbon Pro

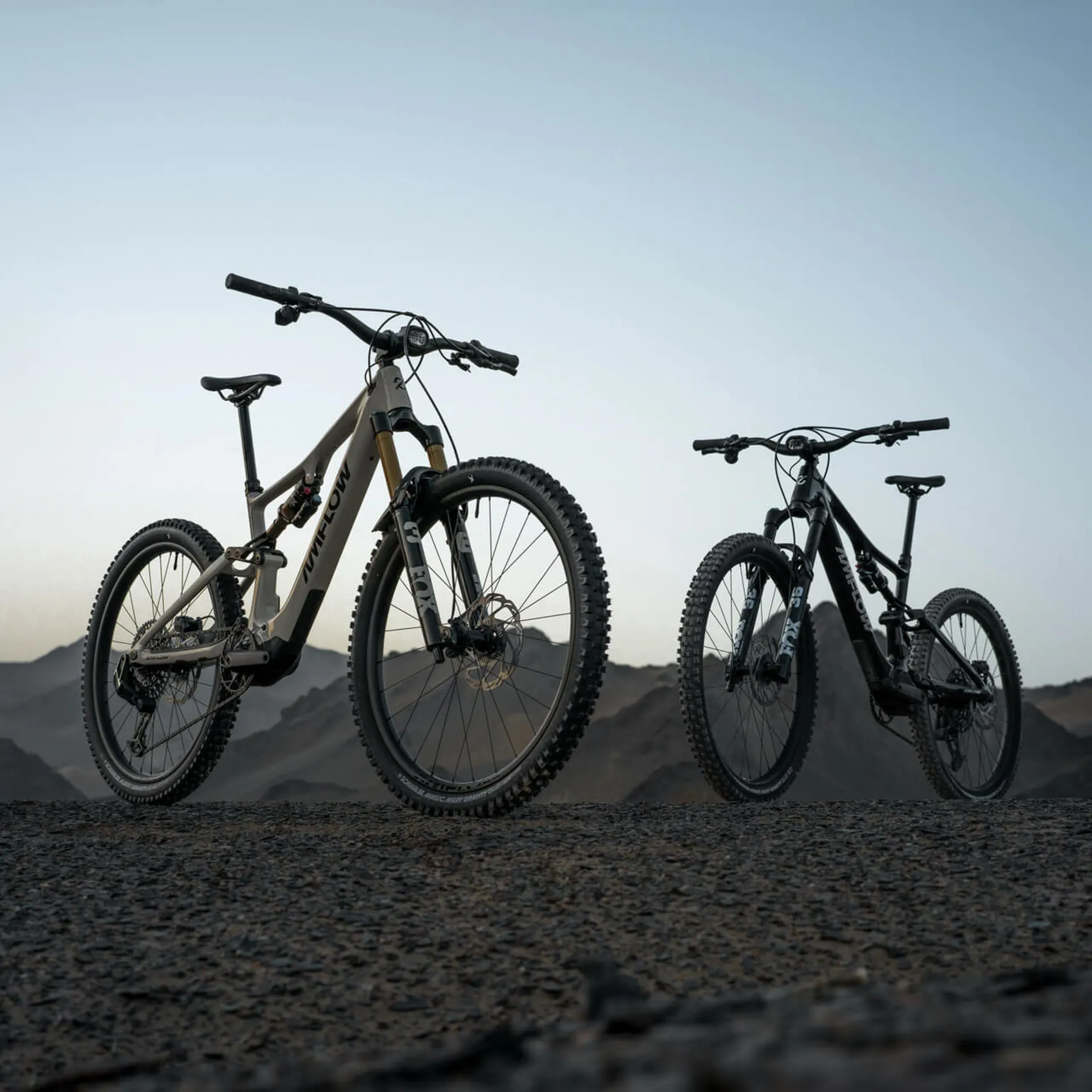

The Amflow PX Carbon Pro is a high-performance e-bike featuring an Avinox M2S drive unit and a highly adjustable carbon frame.

The bike offers 40 geometry configurations, including 5 headset angle settings, 2 bottom bracket height settings, and 4 chainstay length settings, allowing for customization based on riding styles and terrain. It is compatible with both 27.5" and 29" rear wheels.

Features:

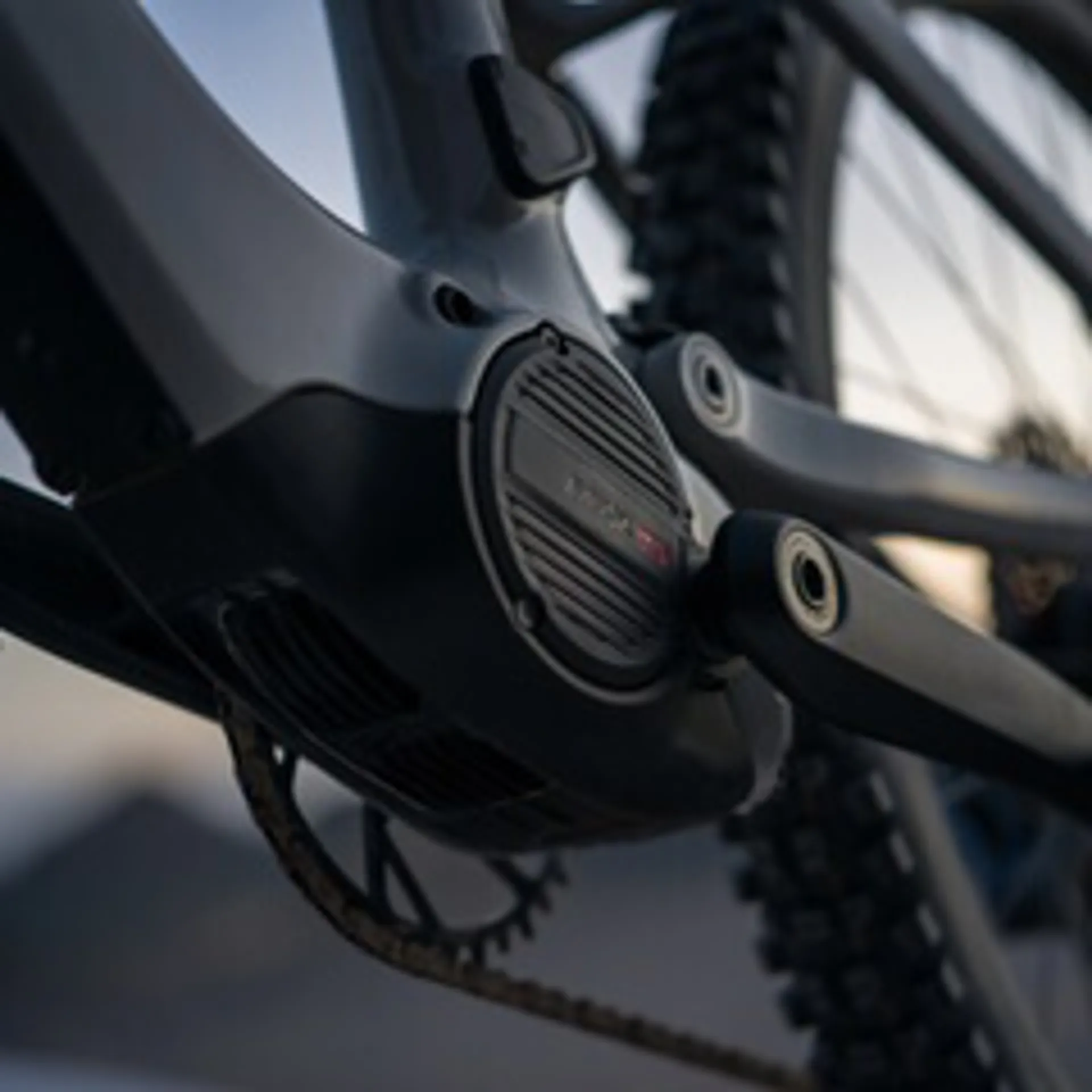

  • Avinox M2S Drive Unit: 130N·m nominal, 150N·m peak torque
  • 700Wh integrated battery with 12A/508W fast charger
  • 2-inch OLED control display and wireless controllers
  • FOX Float X Factory rear shock and FOX 36 Factory fork with 160mm travel
  • SRAM X0 Eagle Transmission drivetrain with 10-52T cassette
  • Magura Gustav Pro hydraulic disc brakes with 203mm rotors
  • Amflow XMC-30 carbon mullet wheelset
  • Amflow Enduro carbon handlebar with 800mm width
Technical Information
  • Frame

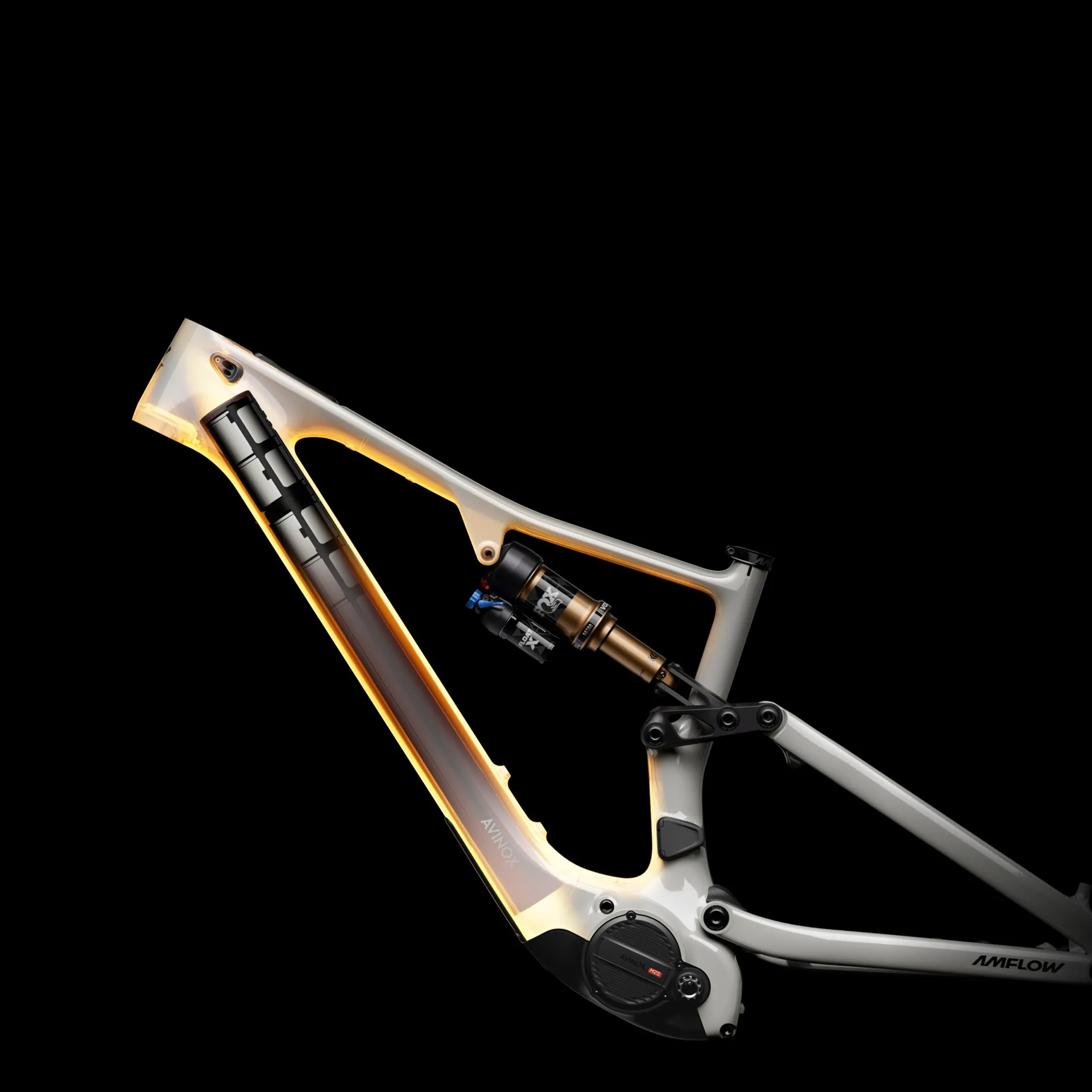

    Amflow PX Carbon Pro Frame
  • Geometry configurations
    40 adjustable configurations
  • Rear wheel compatibility
    27.5″ and 29″
  • Drive unit

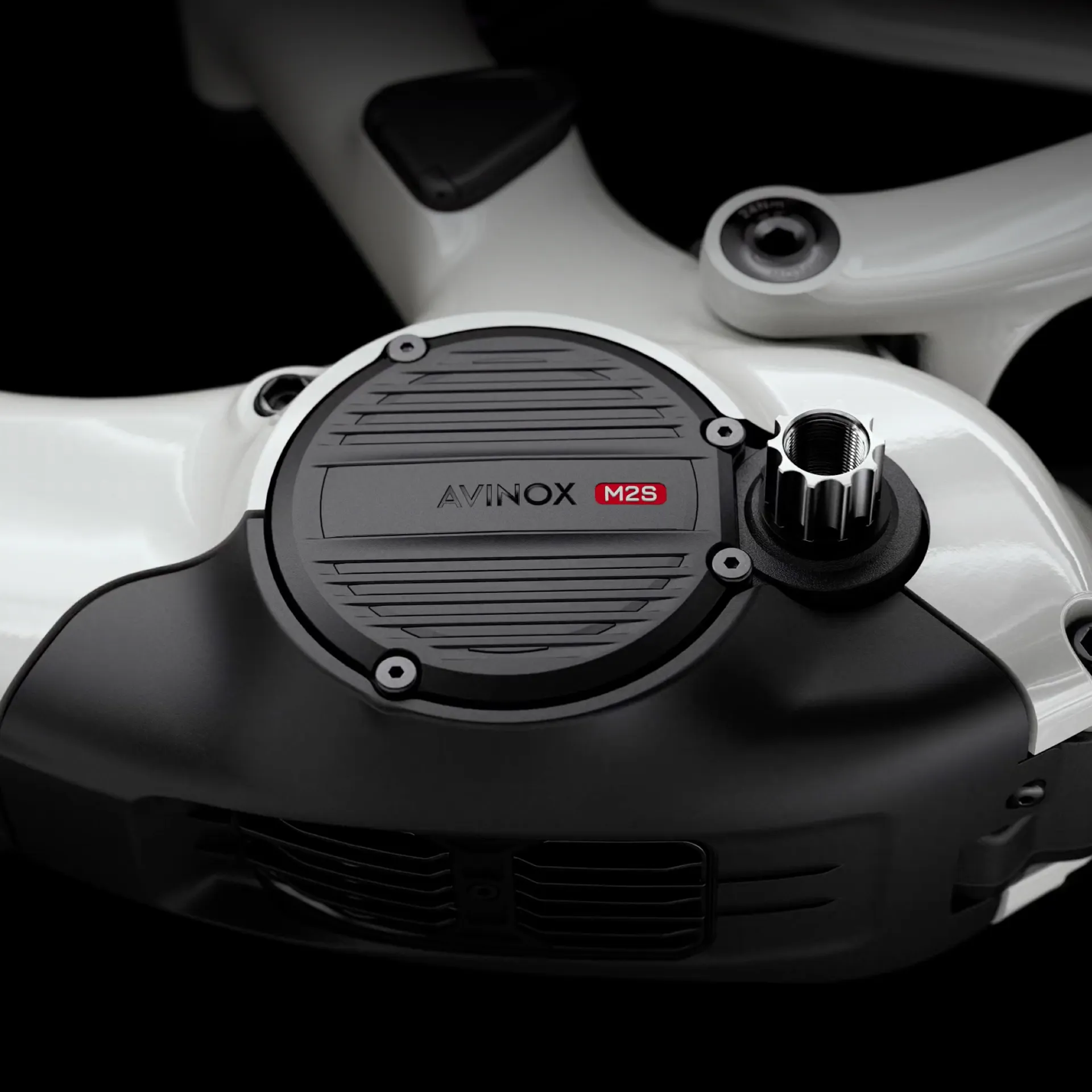

    Avinox M2S, 130N·m nominal, 150N·m peak
  • Display

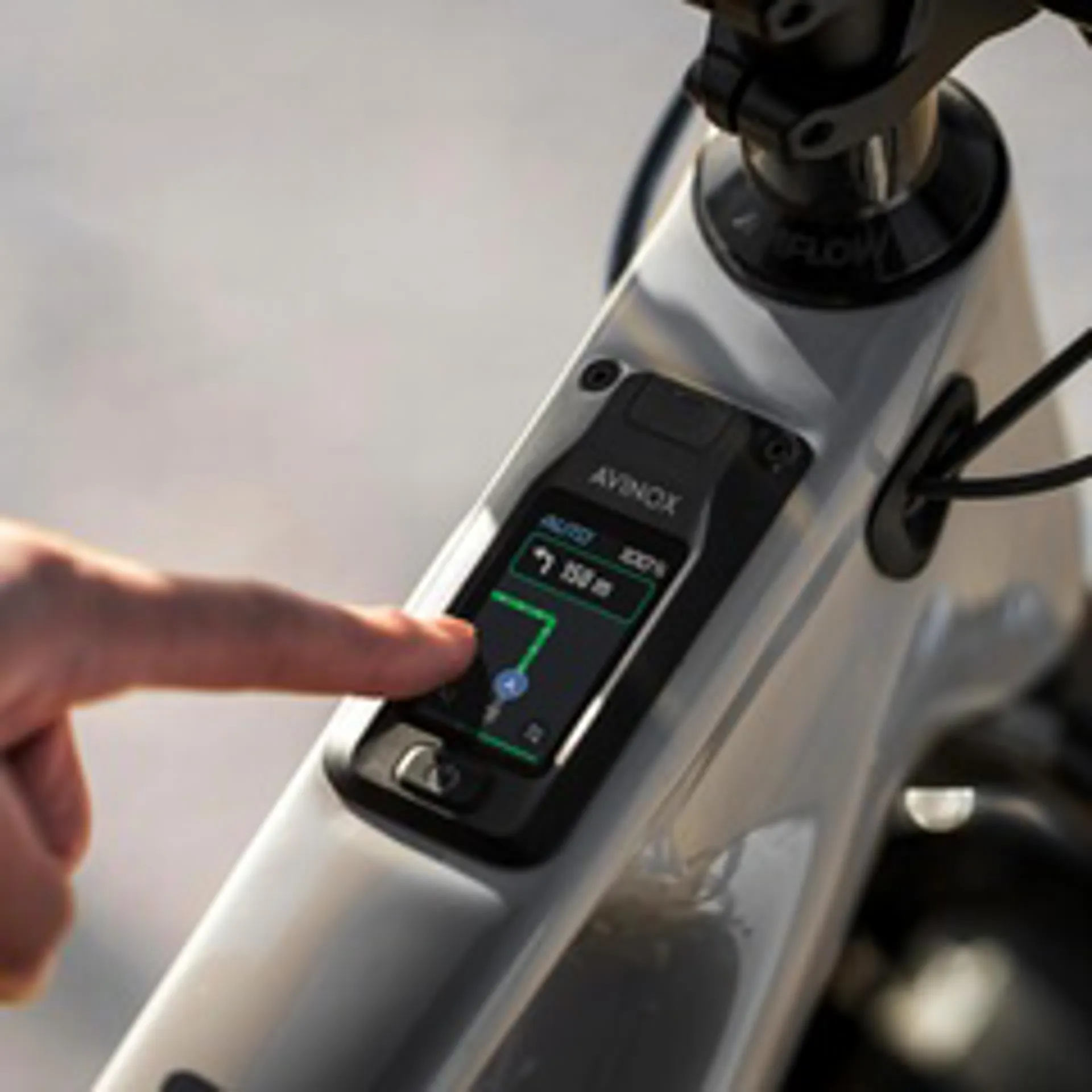

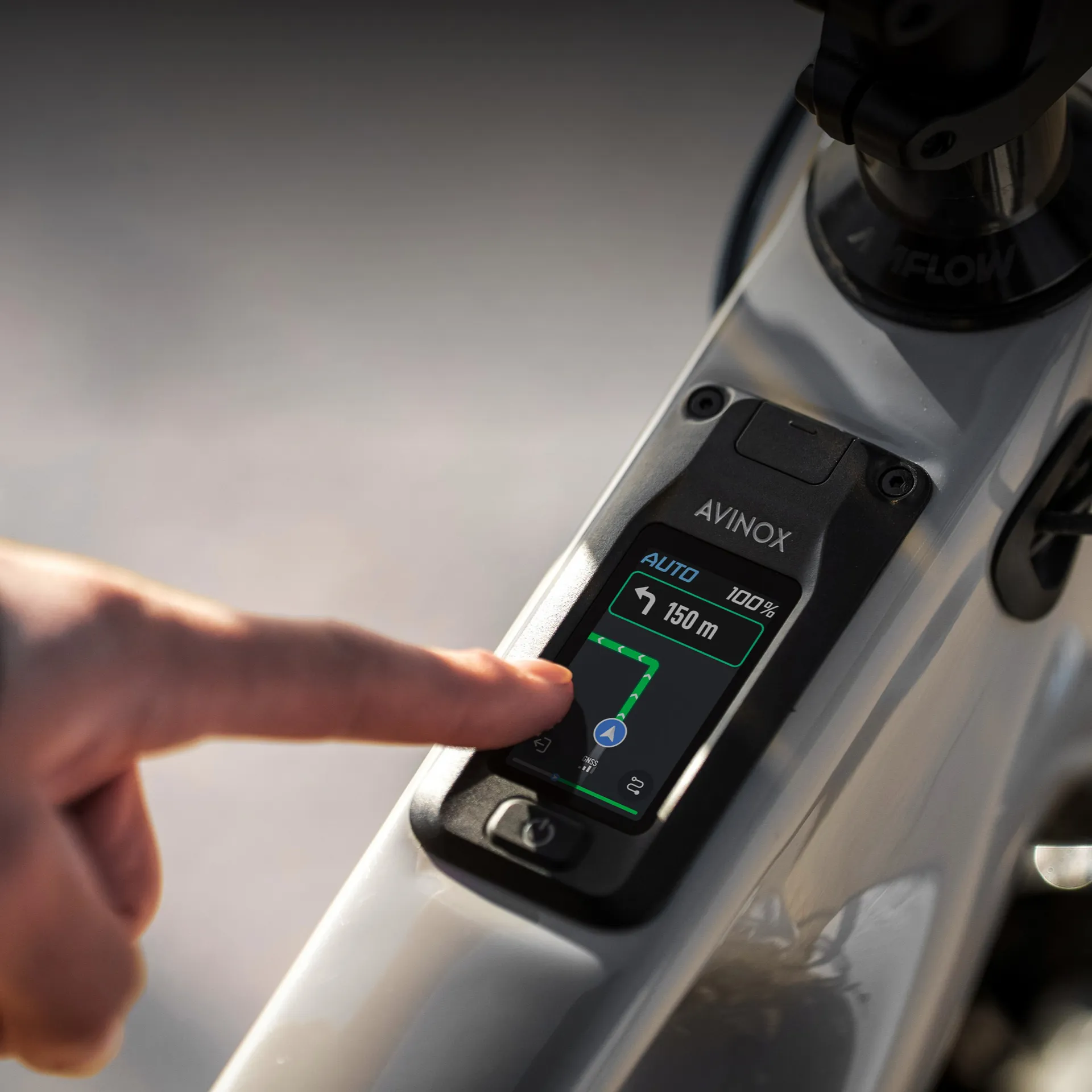

    Avinox 2-inch OLED control display
  • Battery
    Avinox integrated, 700Wh
  • Wireless controllers
    Right and left sides
  • Charger
    Avinox fast charger, 12A/508W
  • Rear shock

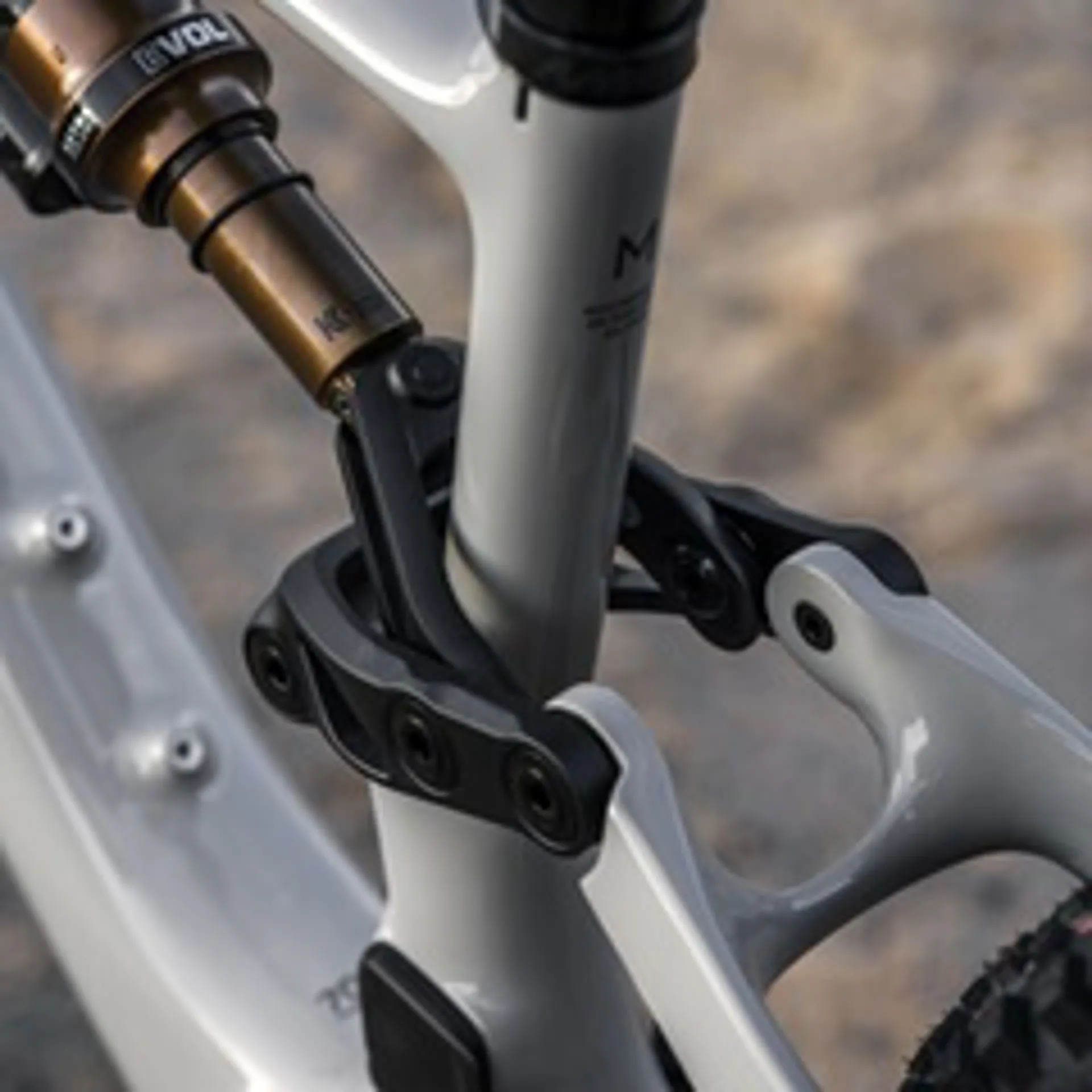

    FOX Float X Factory, 210×55mm, air shock
  • Rear shock adjustments
    2-position lever, custom tune, LSC & LSR adjustment
  • Fork

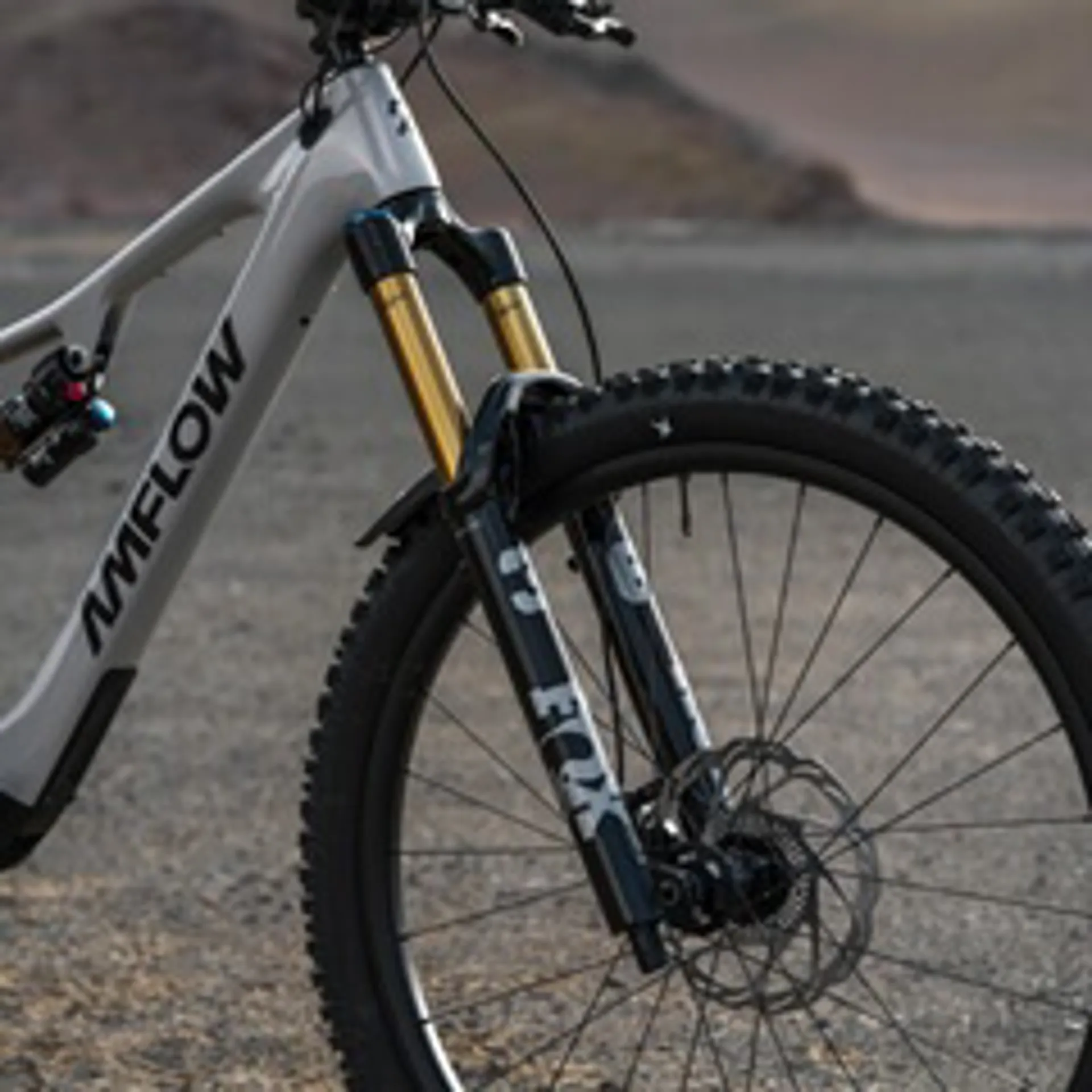

    FOX 36 Factory, 160mm travel
  • Fork specifications
    GRIP X2 damper, HSC/LSC/HSR/LSR adjustment, 15×110mm, 44mm offset
  • Rear derailleur
    SRAM X0 Eagle Transmission
  • Chainring
    SRAM Eagle Transmission DM, 38T
  • Shift levers
    SRAM AXS Pod Rocker Controller
  • Cassette
    SRAM XS-1295 Eagle Transmission, 10-52T
  • Chain
    SRAM X0 Eagle Transmission
  • Crankset
    Avinox SL, 155mm (M/L) or 160mm (XL/XXL)
  • Brakes
    Magura Gustav Pro hydraulic disc, 4-piston calipers
  • Rotors
    Magura sensor rotor, 203mm, 2.5mm
  • Wheelset
    Amflow XMC-30 Mullet
  • Front rim
    Carbon, 29″, 30mm inner width, 28H, tubeless ready
  • Rear rim
    Carbon, 27.5″, 30mm inner width, 32H, tubeless ready
  • Spokes
    SAPIM E-Light
  • Front hub
    Alloy, 2 sealed bearings, 15×110mm thru-axle, 28H, J-bend, 6-bolt
  • Rear hub
    Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, J-bend, 6-bolt, 6 pawls 60T, XD
  • Front tire
    Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready
  • Rear tire
    Schwalbe Albert Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready
  • Handlebar
    Amflow Enduro Carbon, 40mm rise, 800mm width, 35mm diameter
  • Handlebar sweep
    5-degree upsweep, 9-degree backsweep
  • Dropper post travel
    190mm (M/L), 210mm (XL), 230mm (XXL)
  • Included accessories
    Front light, bottle cage, IoT Nano SIM card, geometry adjustment system, valve conversion set, mud guard, travel spacers, rear light, frame protection film, shock pump
Sizing Information
Size Height (cm) Height (inch)
M 162 - 178 cm 5'4" - 5'10"
L 170 - 185 cm 5'7" - 6'1"
XL 175 - 191 cm 5'9" - 6'3"
XXL 185 - 201 cm 6'1" - 6'7"

Geometry M L XL XXL
Reach 455 mm 478 mm 503 mm 528 mm
Stack Height 622.1 mm 632.2 mm 645.9 mm 659 mm
Standover Height 780 mm 785 mm 790 mm 795 mm
Front Center 793.1 mm 820.9 mm 852 mm 883.9 mm
Fork Length 570 mm 570 mm 570 mm 570 mm
Wheelbase 1231.3 mm 1259.1 mm 1290.2 mm 1322.1 mm
Chainstay Length 438/451 mm 438/451 mm 438/451 mm 438/451 mm
Bottom Bracket Drop 10.5/23.7 mm 10.5/23.7 mm 10.5/23.7 mm 10.5/23.7 mm
Bottom Bracket Height 345.5 mm 345.5 mm 345.5 mm 345.5 mm
Effective Top Tube Length 586.9 mm 619.7 mm 642.8 mm 672.2 mm
Head Tube Angle 64.2° 64.2° 64.2° 64.2°
Head Tube Length 109 mm 120 mm 135 mm 150 mm
Actual Seat Tube Angle 72° 72° 72° 72°
Effective Seat Tube Angle 78° 78° 78° 77.7°
Seat Tube Height 415 mm 427 mm 447 mm 466 mm

Component M/L XL/XXL
Avinox SL Crank Length 155 mm 160 mm
Dropper Post Travel 190 mm 210 mm (XL) / 230 mm (XXL)
