The Addmotor M-66 R7 is a retro-styled step-thru electric bike featuring a 750W motor, 20Ah battery, and a range of up to 105+ miles for versatile city riding.
The Addmotor M-66 R7 is a retro-styled step-thru electric bike featuring a 750W motor, 20Ah battery, and a range of up to 105+ miles for versatile city riding.
Addmotor

Addmotor M-66 R7 Moped Electric Bike

$1,999.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Addmotor M-66 R7 Moped Electric Bike

Brand:Addmotor

Code:EB6685

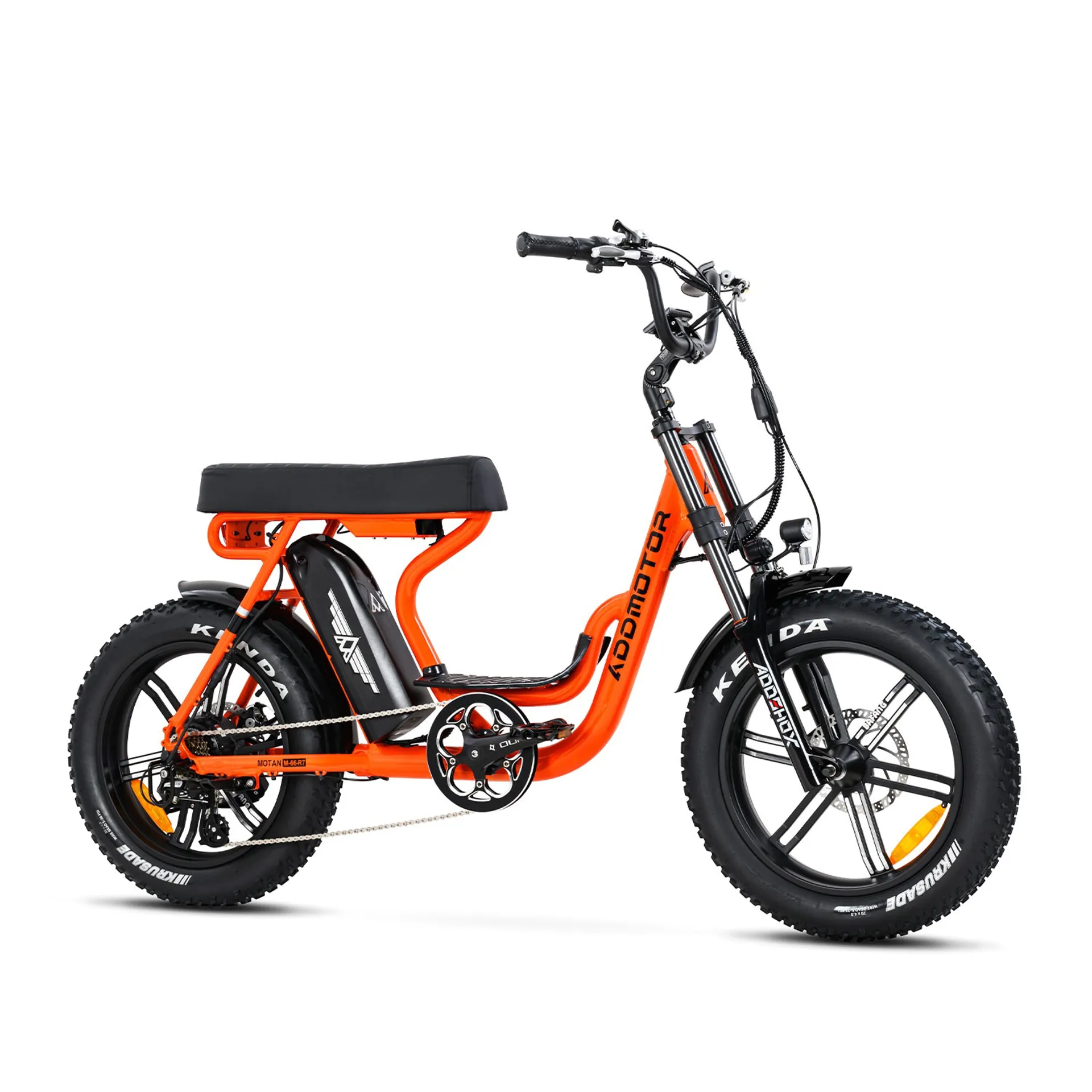

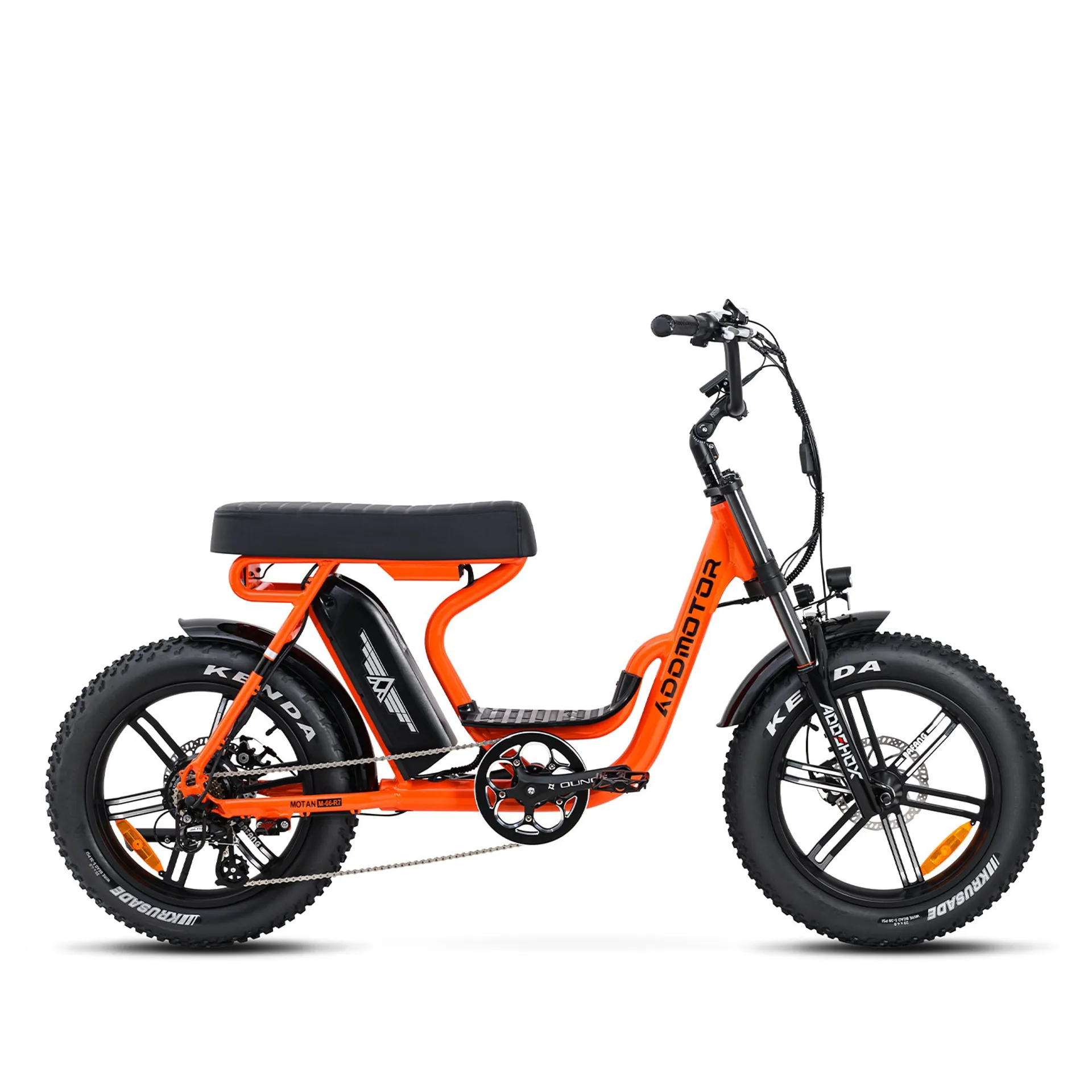

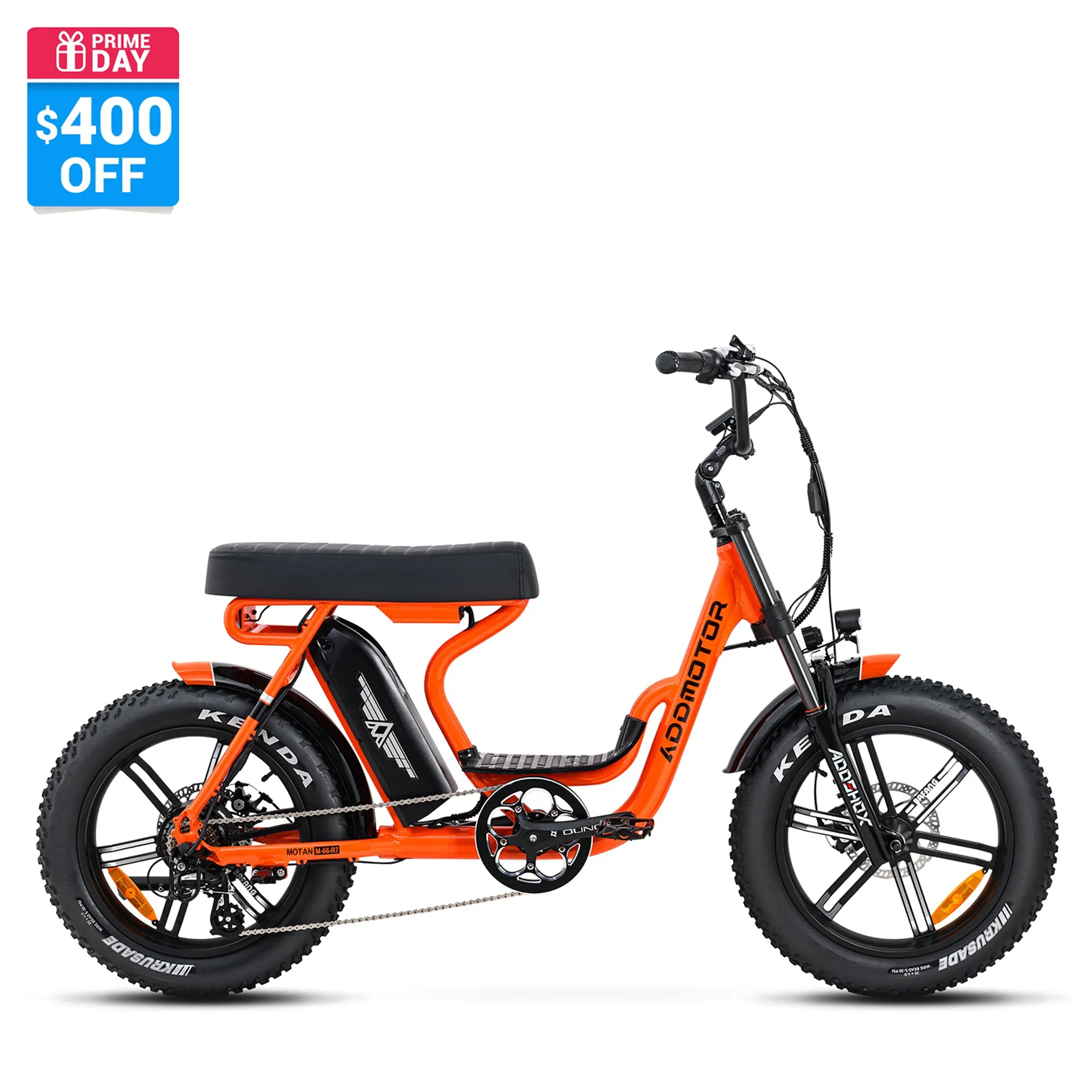

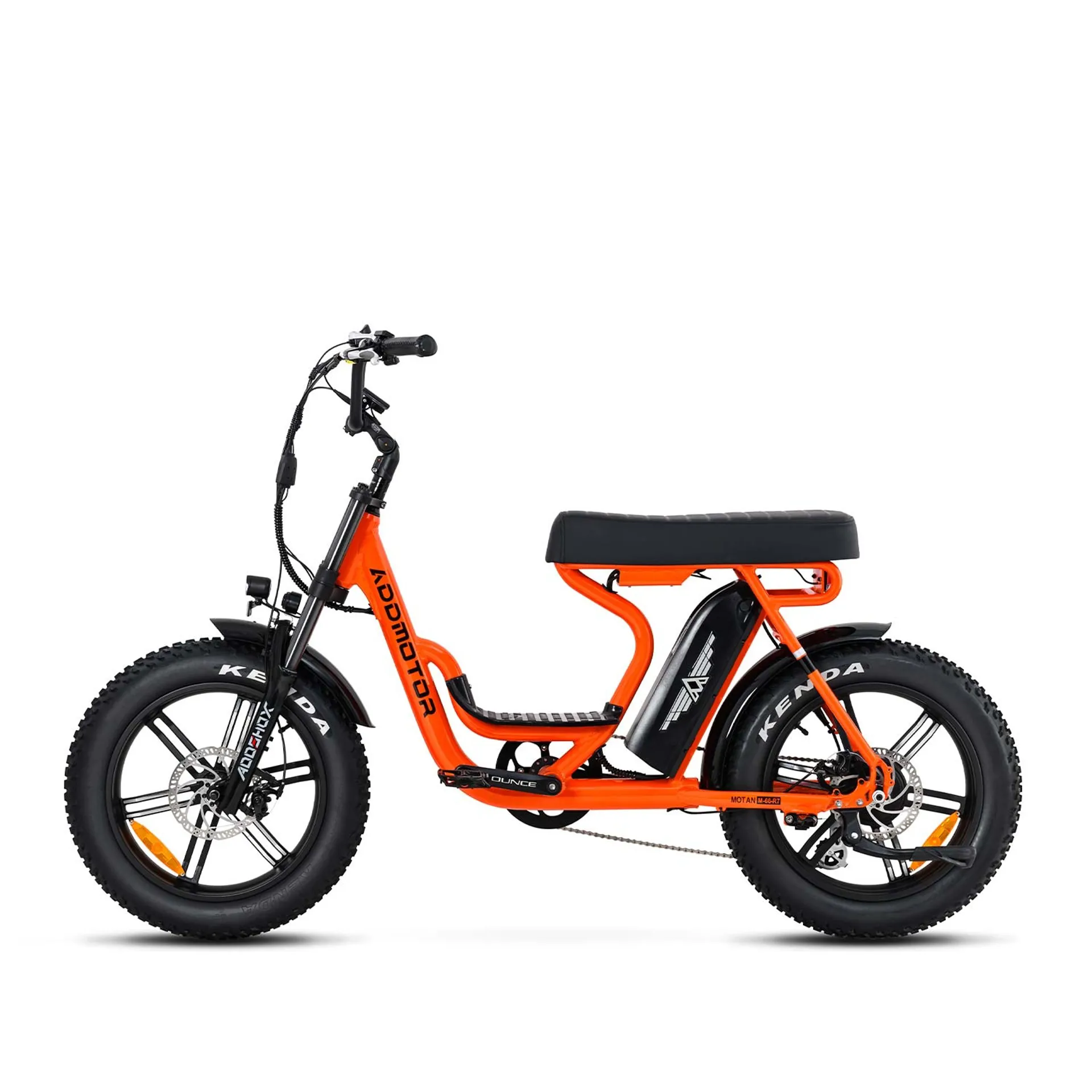

The Addmotor M-66 R7 is an impressive electric bike featuring a 1970's retro look and a step-thru frame.

This cruiser e-bike is designed to get you around the city efficiently, handling uphill climbs, uneven roads, beaches, and snow. It features a 6061 aluminum alloy step-thru frame and a long padded banana seat that provides plenty of room to find a comfortable riding position. The bike is powered by a 48-volt system and a 20Ah (960Wh) battery, offering a range of up to 105+ miles (PAS 1). The Addmotor controller uses an upgraded chip type to simplify circuit systems and reduce board space.

Safety and visibility are enhanced with a comprehensive lighting system comparable to motorcycles and automobiles, including driving lights, turn signals, danger lights, flashlights, and brake lights. The bike also features a customized electric horn and an IPX5 waterproof headlight. The display screen includes turn signal indicators, and the button design allows for easy distinction by touch.



Technical Information
  • Motor
    Bafang 48V 750W Rear Brushless Gear Motor, 80N·M Torque
  • Battery
    Samsung 20AH (960WH), 8-10 hours charge time, 1000-1500 cycles
  • Display
    Addmotor EB 2.0 LCD, 7 PAS
  • Controller
    Addmotor EB 2.0 25A, A-chip type
  • Throttle
    1/2 Twist with power-cut switch
  • Headlight
    40 lumens, 200m visible distance, 180° side view, IPX5 waterproof
  • Taillight
    UL certified, driving light, turn signals, danger light, flashlight, brake light
  • Charger
    48V 2.0Ah 5-pin US standard, 7-shaped head
  • Pedal Assist
    7 levels, speed sensor
  • Wiring
    Water-resistant connectors and wiring harness
  • Frame
    6061 Aluminum Alloy Step-Thru
  • Front Fork
    Addshox Spring Suspension, 80mm travel, 32.5mm stanchions, preload adjust, 135mm hub spacing
  • Brakes
    Tektro Aries Mechanical Disc, 180mm rotors, four-finger levers with motor inhibitors
  • Gearing
    7-speed Shimano Altus, 14-28T cassette
  • Cranks
    Ounce Alloy, 170mm length, 42T chainring
  • Pedals
    Wellgo Alloy Platform with pins
  • Headset
    Neco, threadless internal cups, 1-1/8”
  • Stem
    Promax Alloy, adjustable angle, 110mm length
  • Saddle
    Banana Seat, 23” x 8.5”
  • Rims
    Cast Alloy, double walled
  • Tires
    Kenda GIGAS 20" x 4.0" puncture-resistant
  • Handlebar
    Adjustable U style curved
  • Spokes
    12-gauge high-strength
  • Fenders
    Aluminum, front and rear
  • Horn
    Electric, 108 dB, 492 ft range
  • Shifter
    Shimano 7-speed SIS index system
Sizing Information

Rider and Bike Specifications

The Addmotor M-66 R7 is designed to accommodate riders in the height range of 5'2" - 6'2" with a maximum load capacity of 300 lbs.

Addmotor M-66 R7 Moped Electric Bike measurement diagram

Bike Dimensions

Measurement Type Dimension
Total Length 72"
Wheelbase 48"
Mini/Maxi Handlebar Height 42.5" / 48"
Bottom Bracket Height 12.4"
Standover Height 17"
Seat Height 32.5"
Saddle Size 23.5" x 8.5"
Reach 13.5"
Handlebar Width 30"
Lowset Seat to Lowest Pedal 27.2"
Bike Weight (excluding battery) 74 lbs
