The Troxus Lynx Folding Bike is a lightweight, easy-to-fold e-bike featuring a powerful 500W motor, 48V battery, and reliable 8-speed Shimano shifting.
The Troxus Lynx Folding Bike is a lightweight, easy-to-fold e-bike featuring a powerful 500W motor, 48V battery, and reliable 8-speed Shimano shifting.
Troxus

Troxus Lynx Folding Bike

$1,899.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

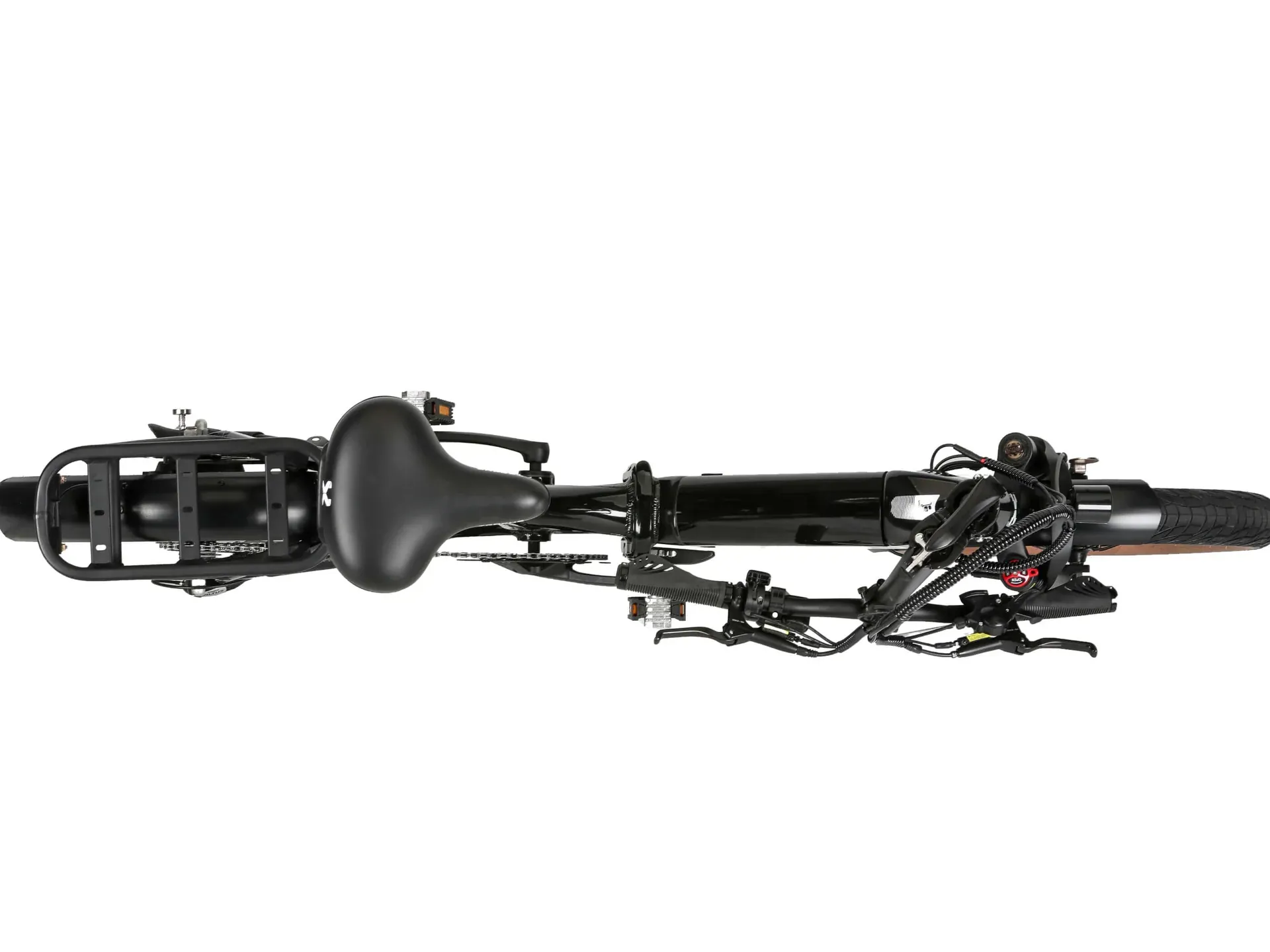

Troxus Lynx Folding Bike

Brand:Troxus

Code:Troxus - Lynx Folding

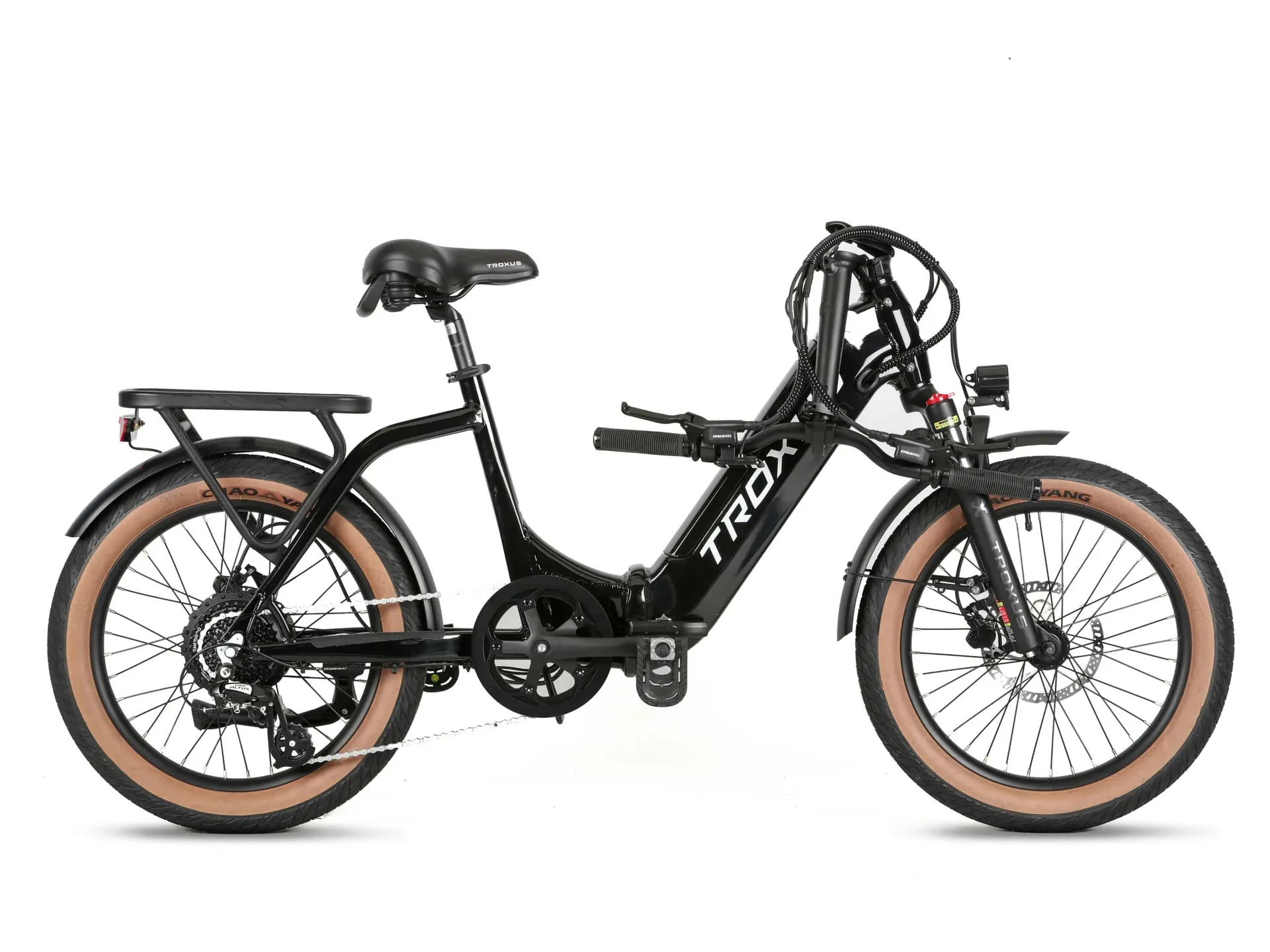

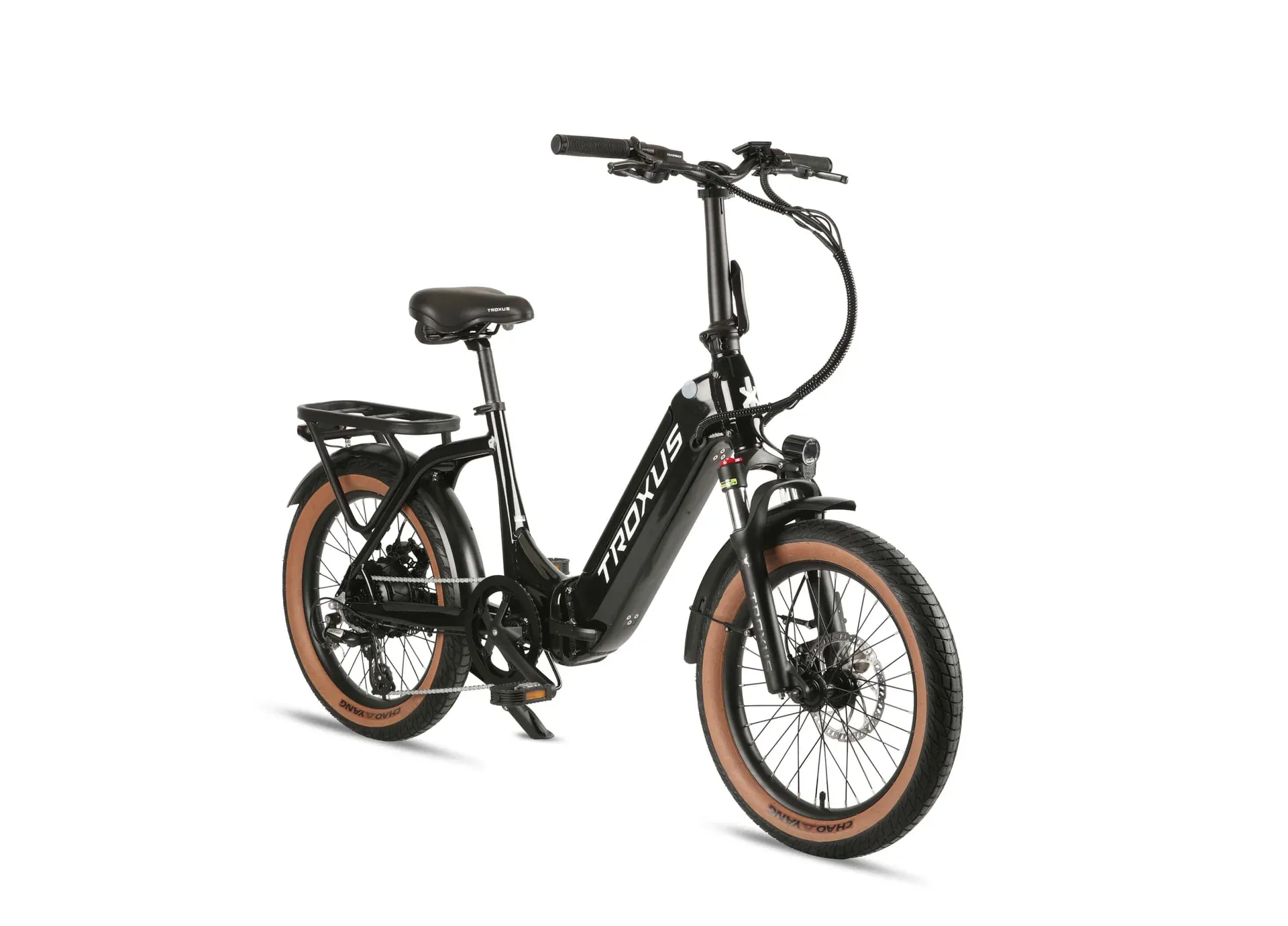

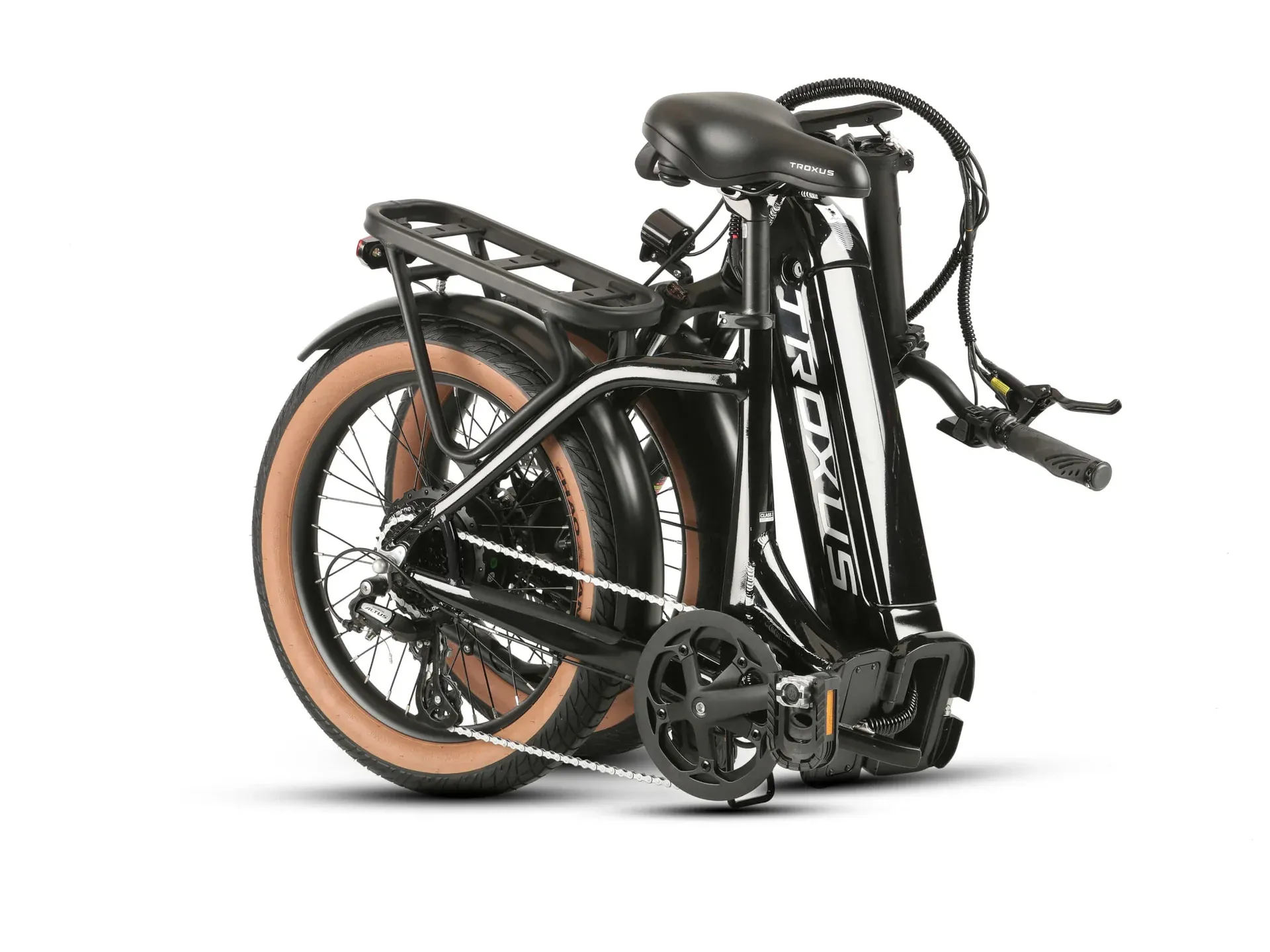

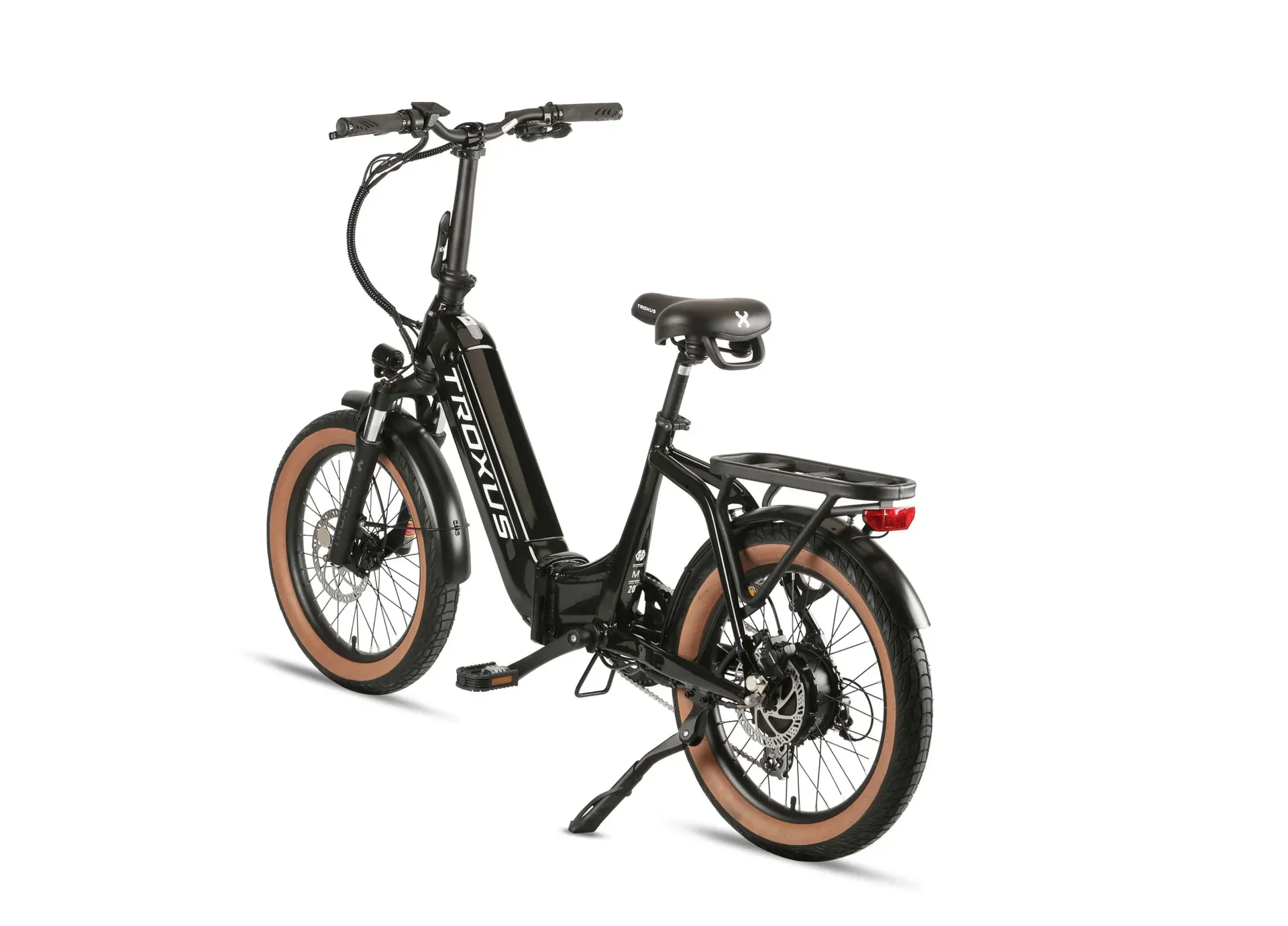

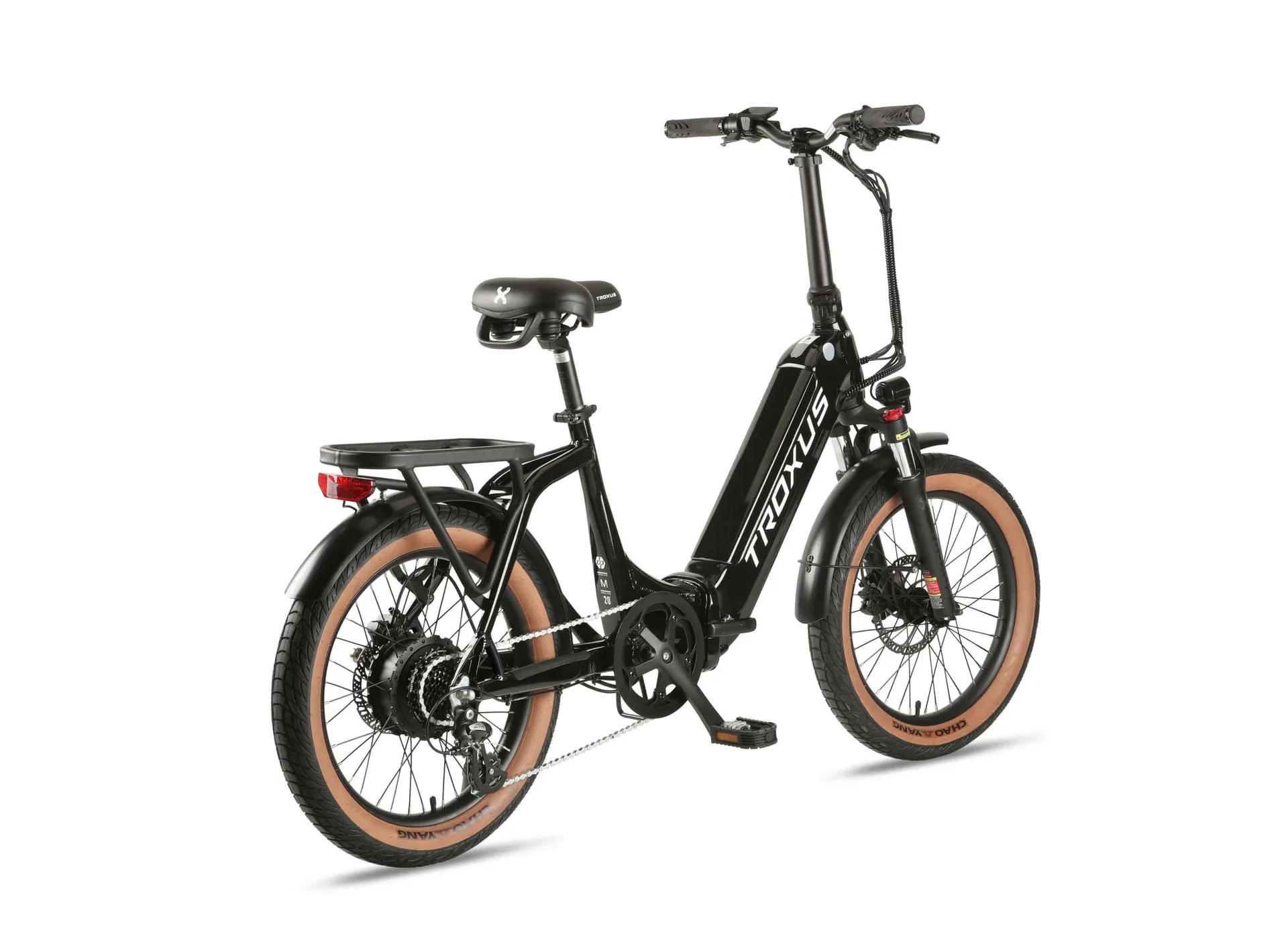

The Troxus Lynx Folding Bike is lightweight, easy to fold, and simple to transport.

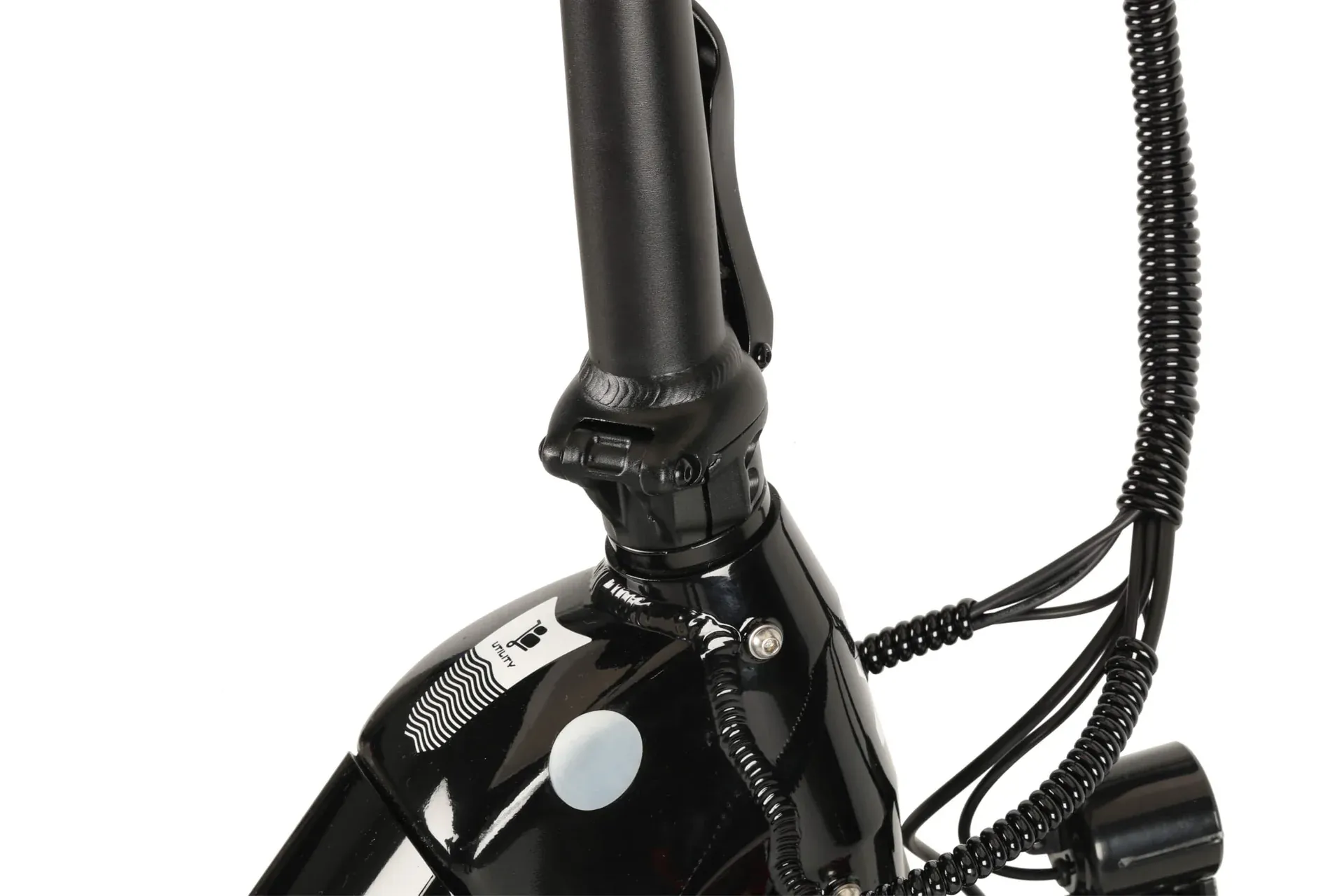

This e-bike features a powerful 48V / 500 Watt hub-drive motor with 65Nm of torque for cruising and climbing. The 6061 folding aluminum frame provides a simple and secure folding mechanism.

Features:

  • Jiabo® 500W hub motor for impressive power and lighter weight.
  • 480Wh / 48V 10Ah battery with Samsung® cells for up to 45 miles on a single charge.
  • Shimano® 8-speed shifting to match riding needs and terrain.
  • Tektro® hydraulic disc brakes for excellent stopping power and control.
  • Heavy-duty rear rack and fenders with an integrated taillight for safety and visibility.
Technical Information
  • Motor
    Jiabo® 48V/500W Hub-Drive Motor, 65Nm Max. Torque
  • Battery
    UL-2271 Certified / Internal / Removable / Lithium Ion, 48V / 10Ah 480Wh w/ Samsung Cells, + Option for 15Ah 720Wh model

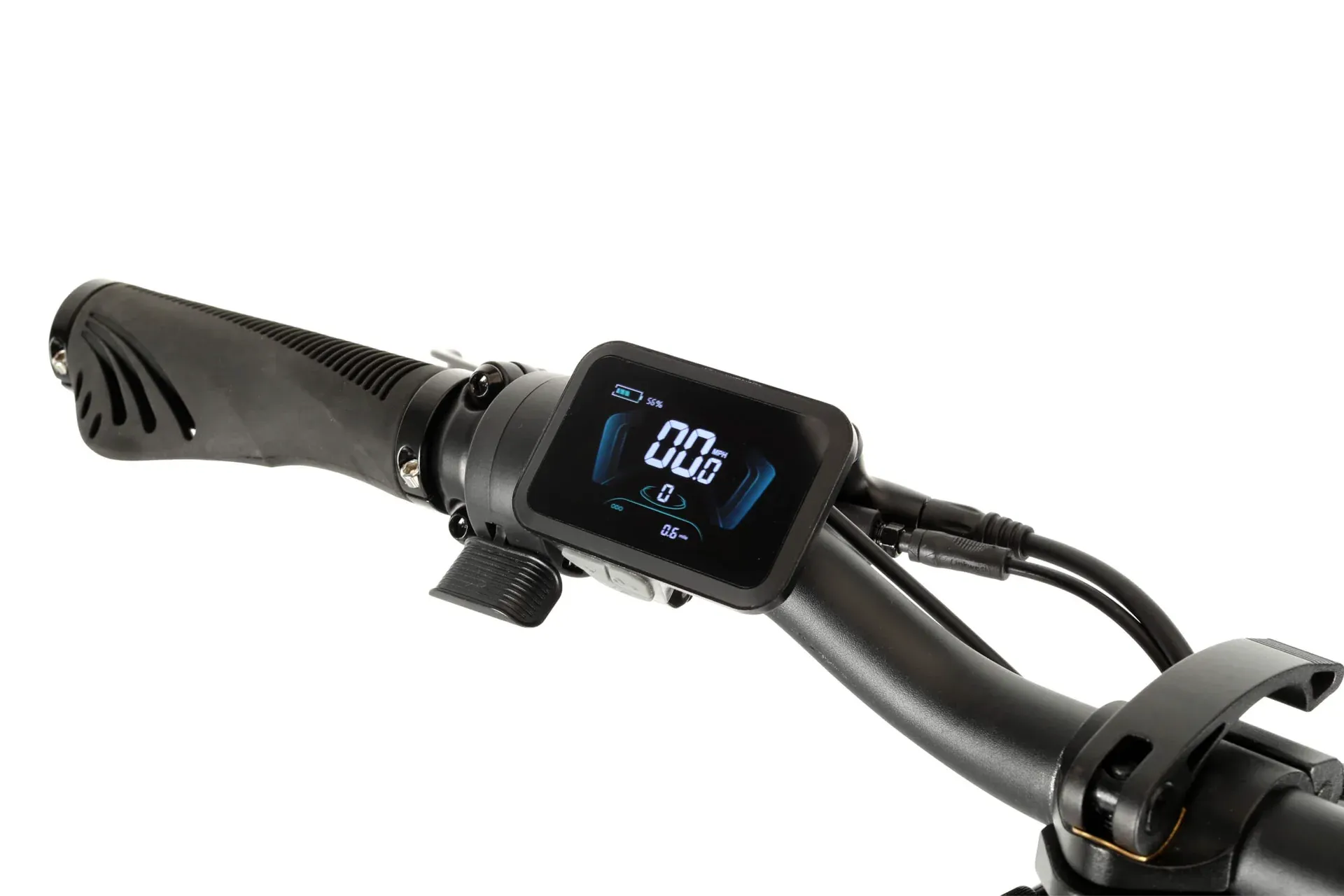

  • Display
    Color Display, w/ Multi-Function Remote
  • Throttle
    Thumb Throttle on Handlebar
  • Sensor
    Cadence
  • Pedal Assist
    0~5 Level Pedal Assist
  • Charger
    2A / 100-240V Input / 54.6V Output
  • Lights
    Front & Rear Lights
  • Controller
    48Vx18A/12V
  • Frame
    6061-T6 Aluminum Folding Step-Thru Frame
  • Fork
    Front Suspension Fork, 50mm Travel
  • Chain
    KMC® 1/2"x3/32"
  • Crankset
    Prowheel Aluminum, 46T, w/ Alloy Outer Chainguard, Square Taper, 165mm
  • Rear Derailleur
    Shimano® RD-M310-L, Altus, 8-Speed
  • Cassette
    Shimano® 8-Speed, 12-32T
  • Shifter
    Shimano® 8-Speed
  • Bottom Bracket Set
    Square Taper, Sealed Bearings
  • Tires
    20"x3.0"
  • Front Hub
    Alloy, 36H, 110mm, 3/8" Axle
  • Rear Hub
    Jiabo® 48V 500W/ 20 MPH. 65Nm
  • Rims
    Alloy Double Wall, 20"x3.0"
  • Spokes
    Stainless 13G. Front & Rear
  • Brakes
    Tektro® Hydraulic, w/ Brake Sensors
  • Rotors
    180mm / 160mm
  • Saddle
    Troxus Comfort w/ Back Handle
  • Seat Post
    Alloy, 28.6x400mm, Adjustable
  • Seat-Post Clamp
    Alloy, 35mm w/ Quick Release

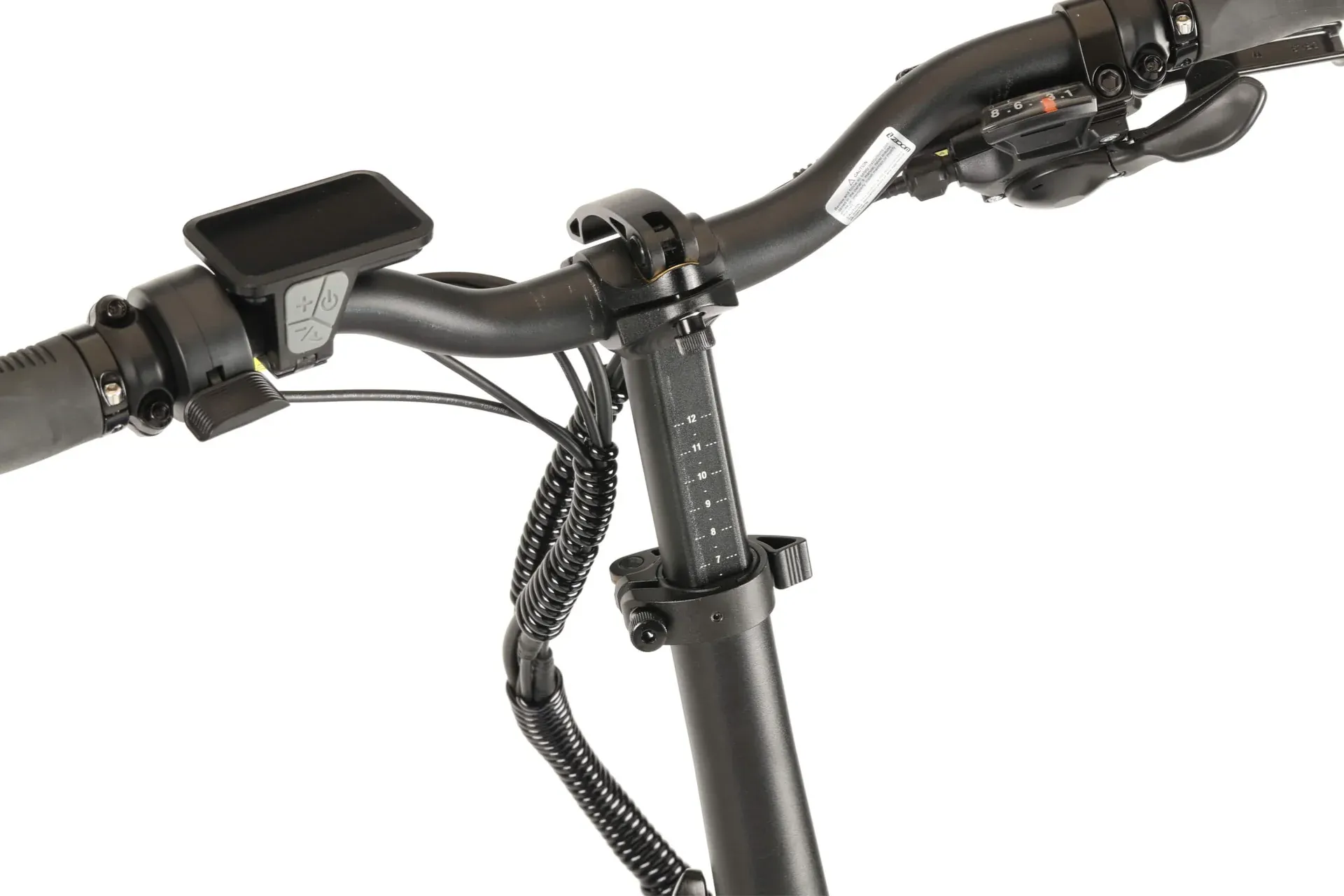

  • Stem
    Foldable w/ QR Lock, Upper: 200mm, Lower: 240mm, Bar-bore 25.4mm
  • Handlebar
    Alloy 6061-T6, 50mm Rise, 25.4mmx620mm Wide, 6 Deg. Backsweep
  • Grips
    Ergonomic Comfort
  • Pedals
    Folding, 9/16″ Alloy Platform with Reflectors
  • Headset
    Threadless, Locking Internal 1-1/8"
  • Max Speed
    Up To 20 MPH
  • Range
    10 Ah: Up To 45 Miles Per Charge
  • Weight Limit
    300 lbs
  • Net Weight
    62 lbs
  • Rack
    Semi-Integrated Alloy Rear Model
  • Fenders
    Plastic, 20"x3.0" w/ Alloy Hardware
  • Kickstand
    Adjustable Side Kickstand
Sizing Information

Size Information

Model Fit
Lynx Folding One Size Fits Most

Product Dimensions & Specifications

Specification Measurement
Maximum Load 300 lbs
Net Weight 62 lbs
Tire Size 20 in x 3.0 in
Seat Post 28.6 mm x 400 mm
Handlebar Width 620 mm
Crank Length 165 mm
Fork Travel 50 mm
