The Troxus Trax Sport is a sleek, fitness-focused commuter e-bike with a lightweight frame, 500W+ motor, and agile handling for urban environments.
The Troxus Trax Sport is a sleek, fitness-focused commuter e-bike with a lightweight frame, 500W+ motor, and agile handling for urban environments.
Troxus

Troxus Trax Sport

$1,599.00 $1,699.00 6% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Troxus Trax Sport

Brand:Troxus

Code:Troxus Trax Sport -

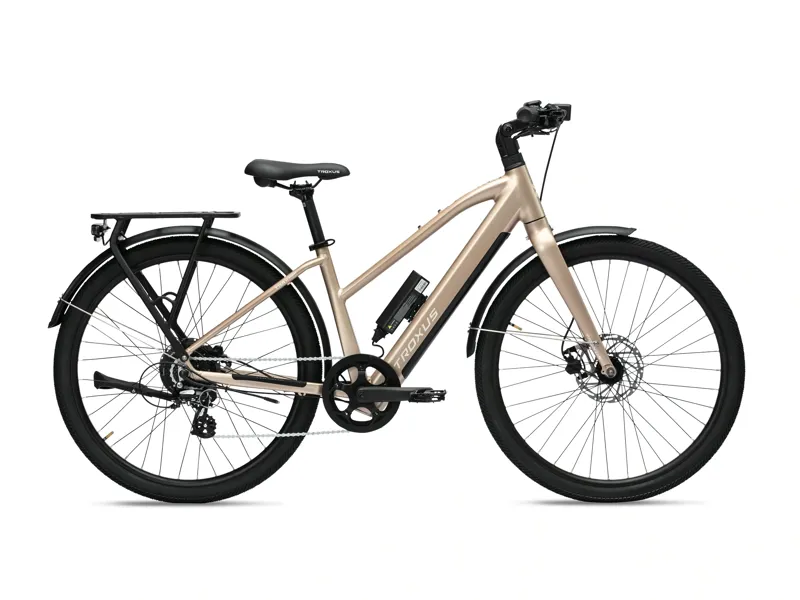

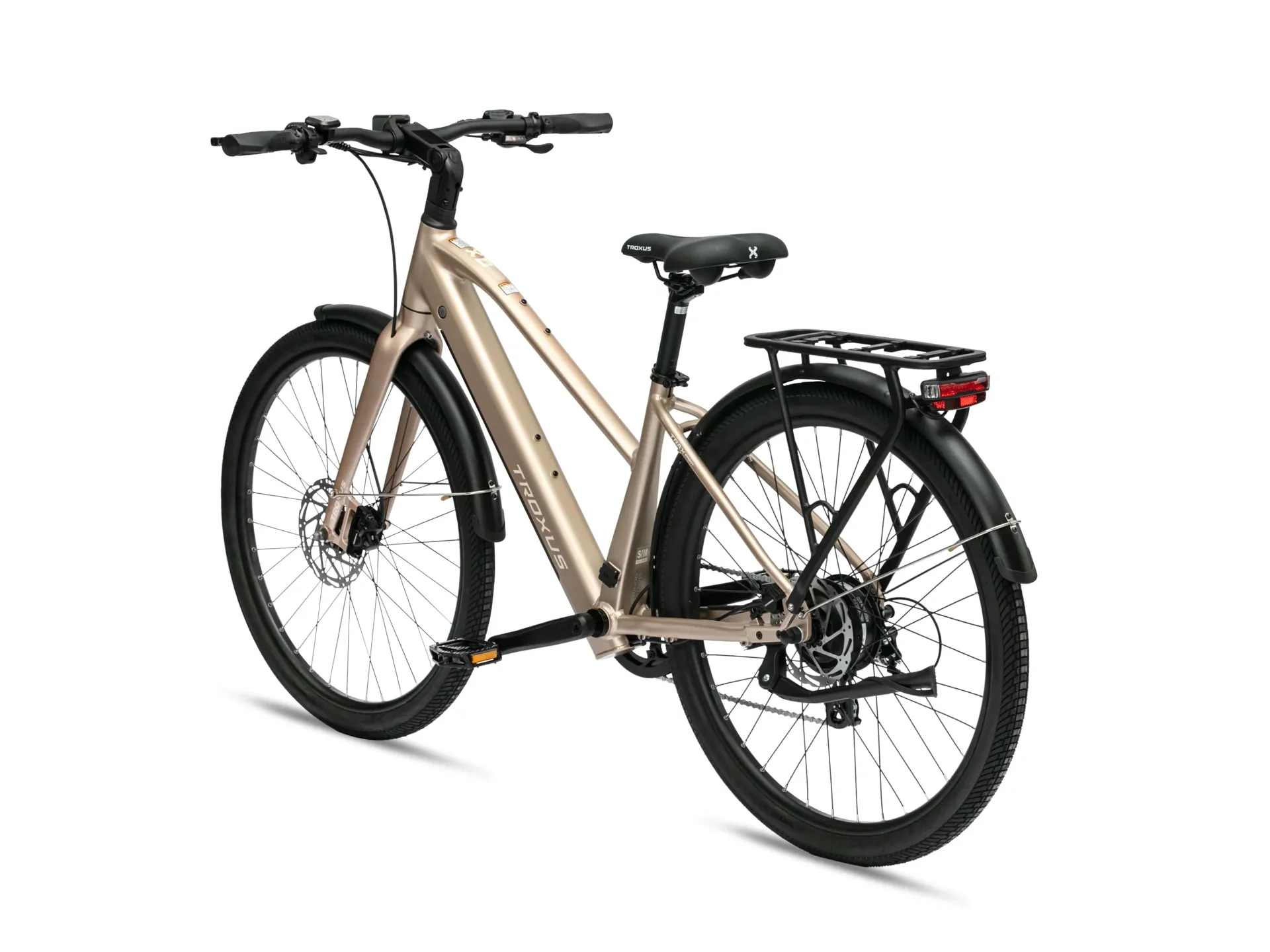

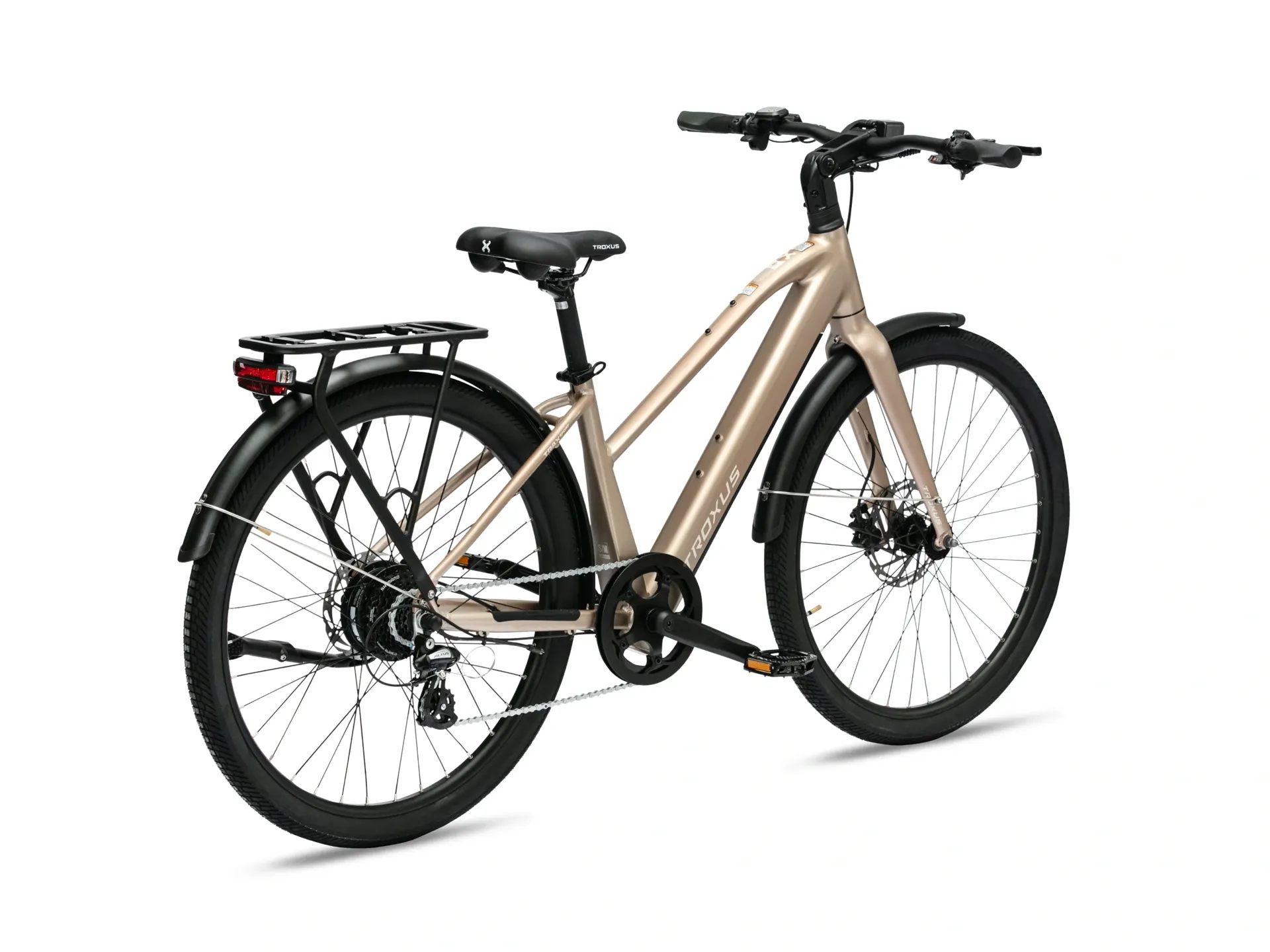

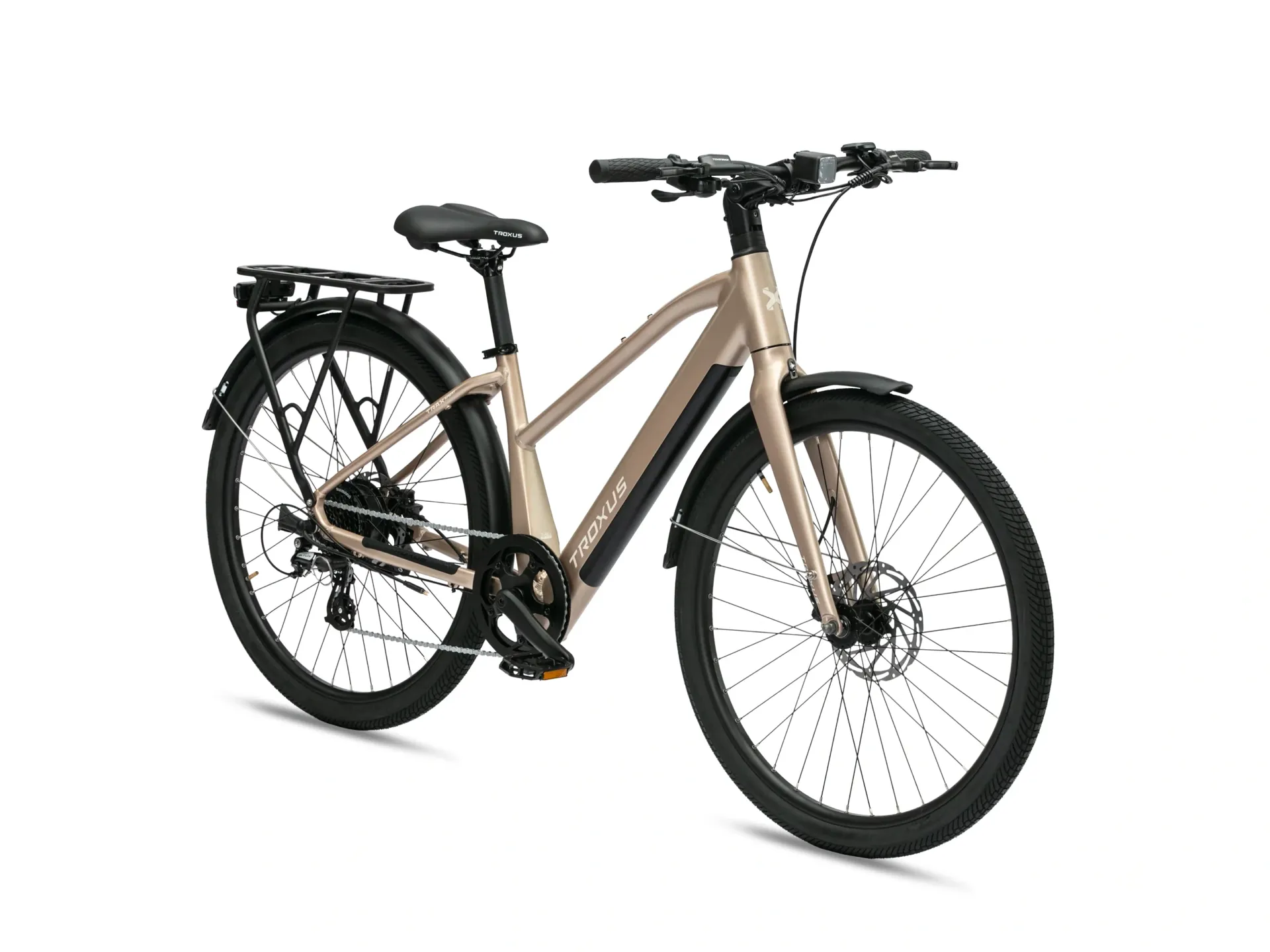

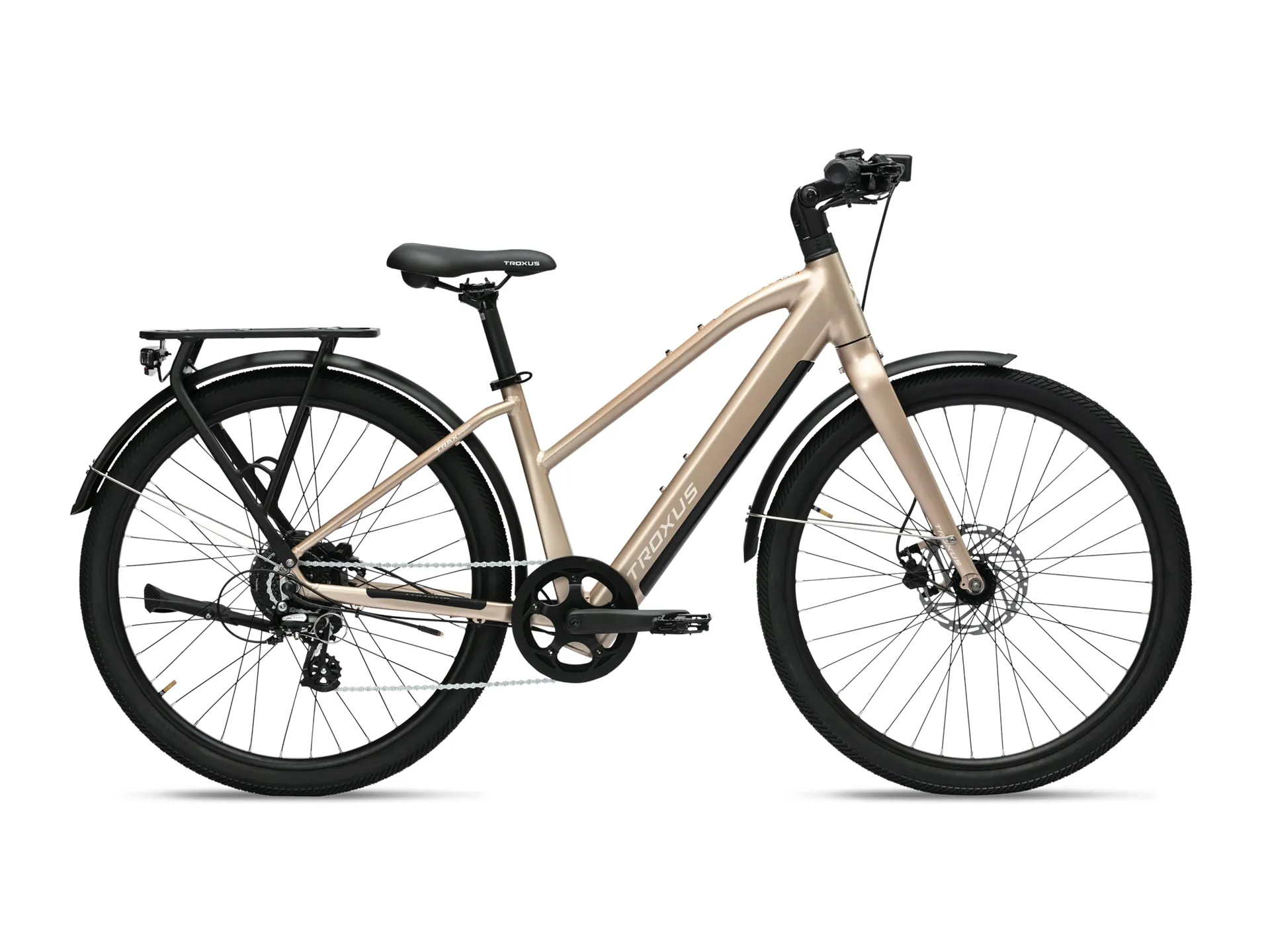

The Trax Sport is a sleek, fitness-focused commuter e-bike designed for city streets and urban agility.

Built with a lightweight frame and a rigid aluminum fork, this e-bike is designed for those who live fast and ride light. It features straighter handlebars for agile city handling and a maximum torque of 50Nm, delivering reliable power for quick takeoffs and confident hill climbs. Riders can switch seamlessly between torque and cadence sensor modes to match their preferred ride style.

The bike is equipped with a UL-2271 certified 10Ah battery with Samsung cells, suitable for daily urban rides. An optional 252Wh range extender is available for those needing extra distance. A vibrant color display with Bluetooth integration provides real-time data on speed, distance, and battery level, allowing for easy syncing with fitness and ride-tracking apps.

Technical Information
  • Wheel size
    27.5"x1.75"
  • Seat tube angle
    74˚
  • Head tube angle
    69˚
  • Bottom bracket height
    285mm
  • Bottom bracket drop
    62mm
  • Chainstay length
    455mm
  • Fork offset
    45mm
  • Fork travel
    0mm
  • Fork height
    420mm
  • Max speed
    Up to 20 MPH on throttle / Up to 25 MPH on pedal assist
  • Range
    Up to 45 miles per charge / Up to 65 miles with range extender
  • Weight limit
    300 lbs total (245 lbs rider / 55 lbs rear rack)
  • Net weight
    47 lbs
  • Motor
    Jiabo Hub-Drive 36V/500W+ peak power, 50Nm peak torque
  • Battery
    UL-2271 certified, 36V/10Ah (360Wh) lithium ion with Samsung cells

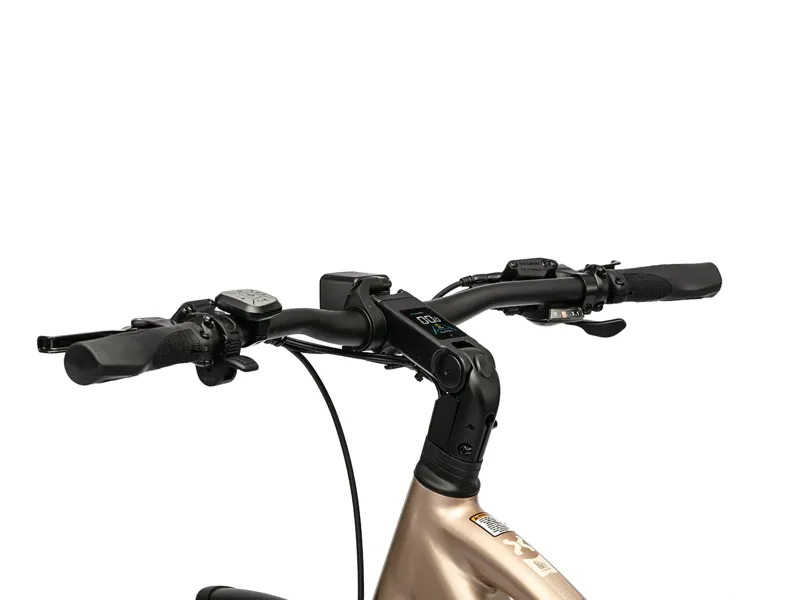

  • Display
    Stem-integrated color display with Bluetooth, turn signals, and multi-function remote
  • Sensor
    Switchable torque and cadence sensor modes
  • Pedal assist
    0-5 levels
  • Charger
    2A / 100-240V input / 42V output
  • Lights
    Front and rear
  • Controller
    36Vx15A/12V

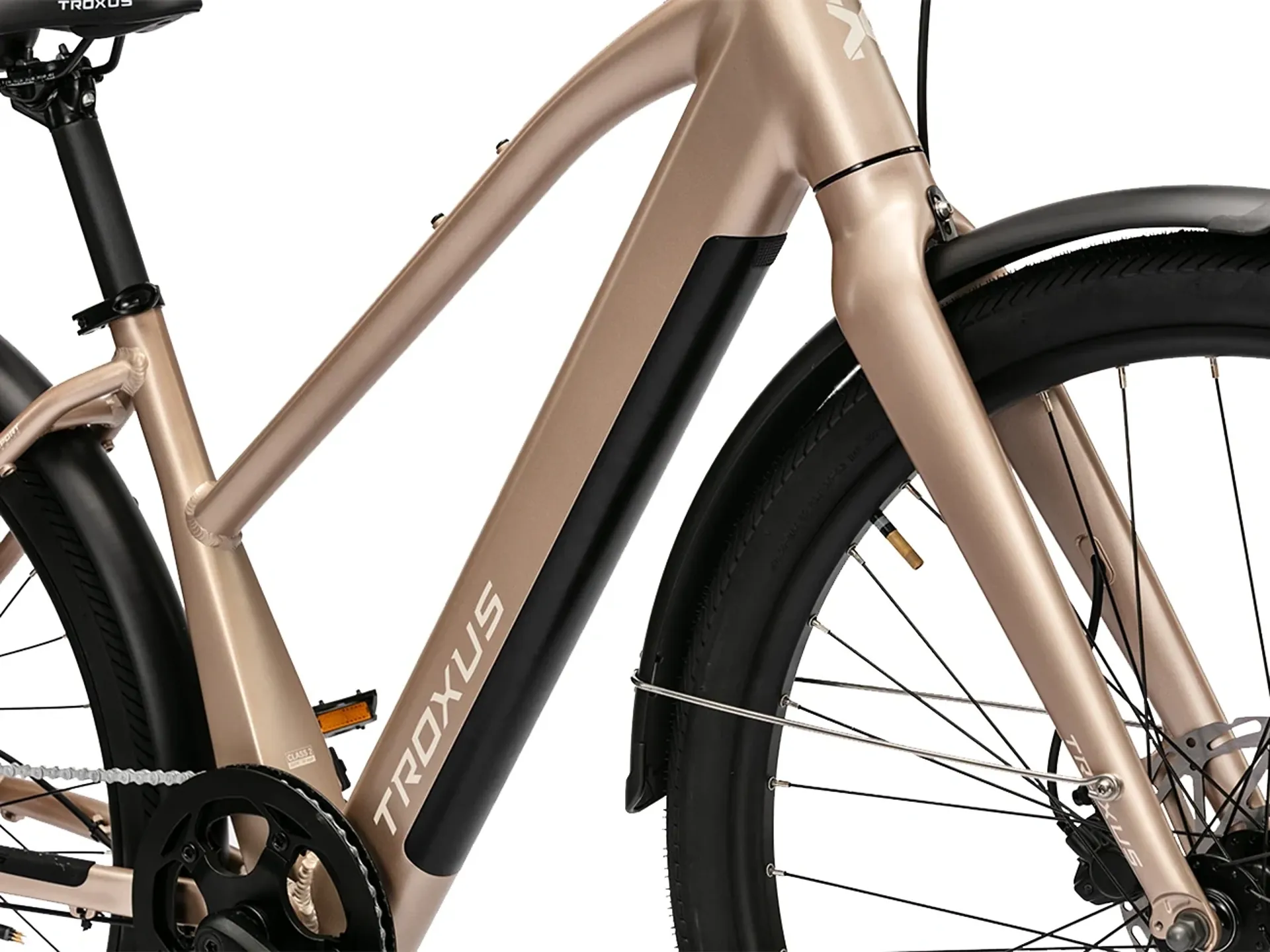

  • Frame
    6061-T6 aluminum
  • Fork
    Rigid aluminum, 700c, tapered 1.5-inch, internal front brake routing
  • Chain
    KMC 1/2"x3/32"
  • Crankset
    Aluminum, 46T, square taper, 170mm

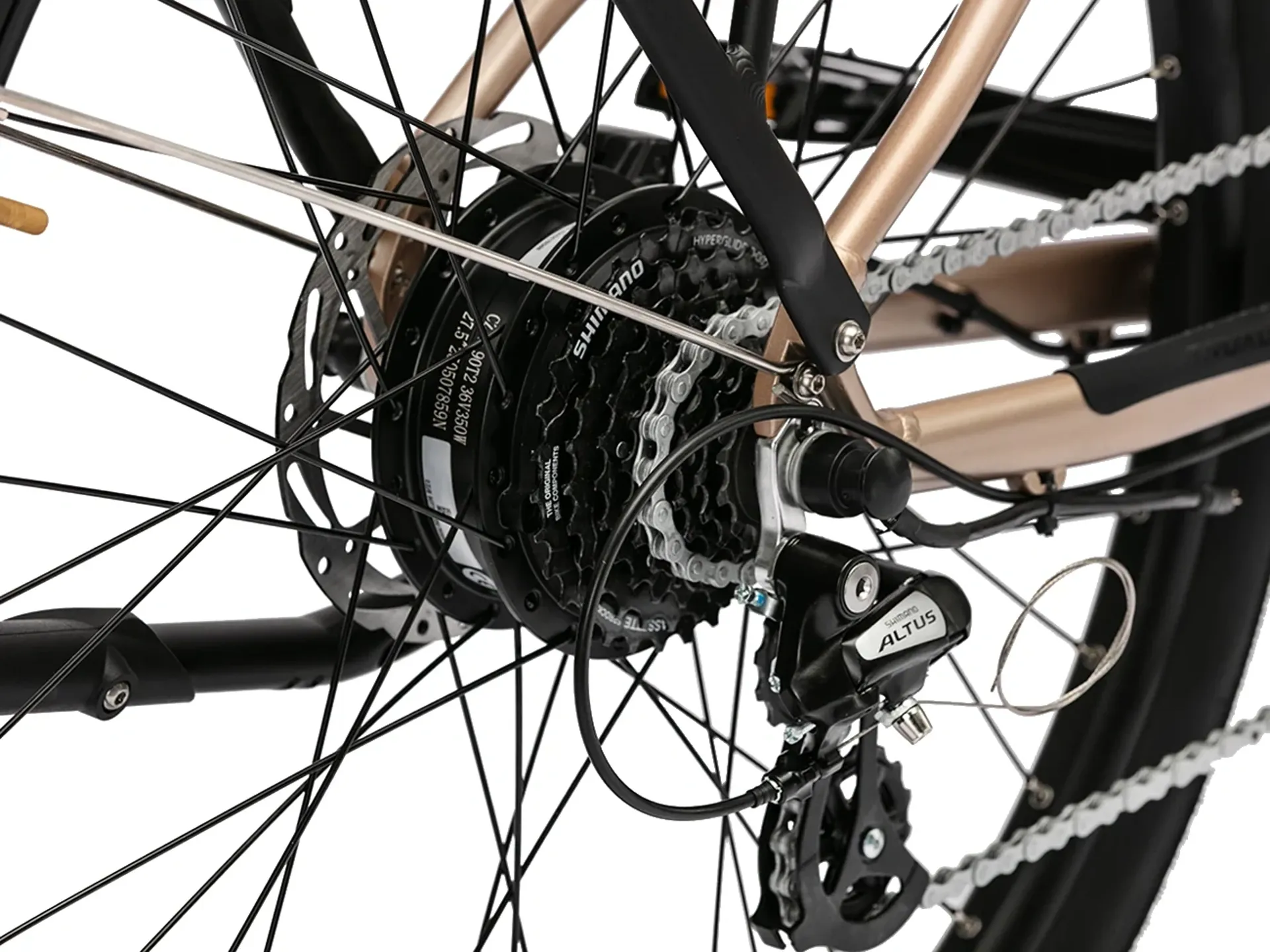

  • Rear derailleur
    Shimano Altus RD-M310-L, 8-speed
  • Cassette
    Shimano 8-speed, 12-32T
  • Shifter
    Shimano 8-speed
  • Bottom bracket
    Square taper sealed bearings
  • Tires
    KENDA K-1266 Urban 27.5"x1.75"
  • Front hub
    Alloy, 14Gx36H, 100mm O.L.D., 3/8-inch axle

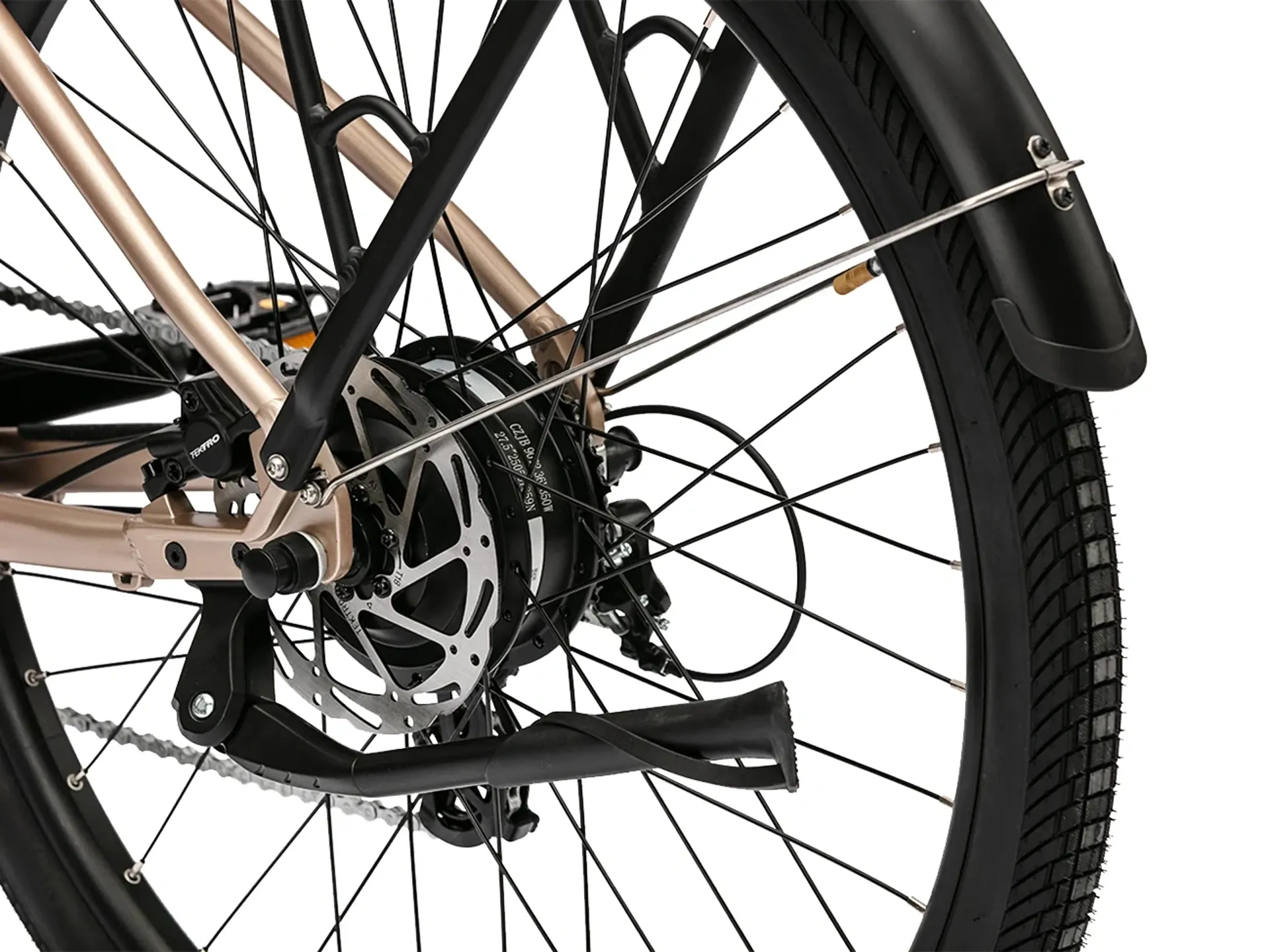

  • Rear hub
    Jiabo 36V 350W+, 50Nm
  • Rims
    Alloy double wall, 27.5"x2.0" with eyelets
  • Spokes
    Stainless 14G front / 13G rear

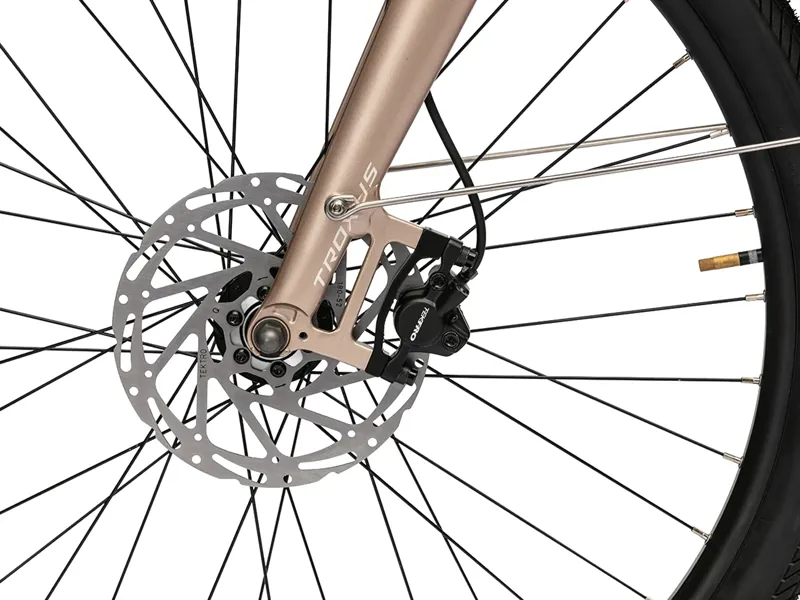

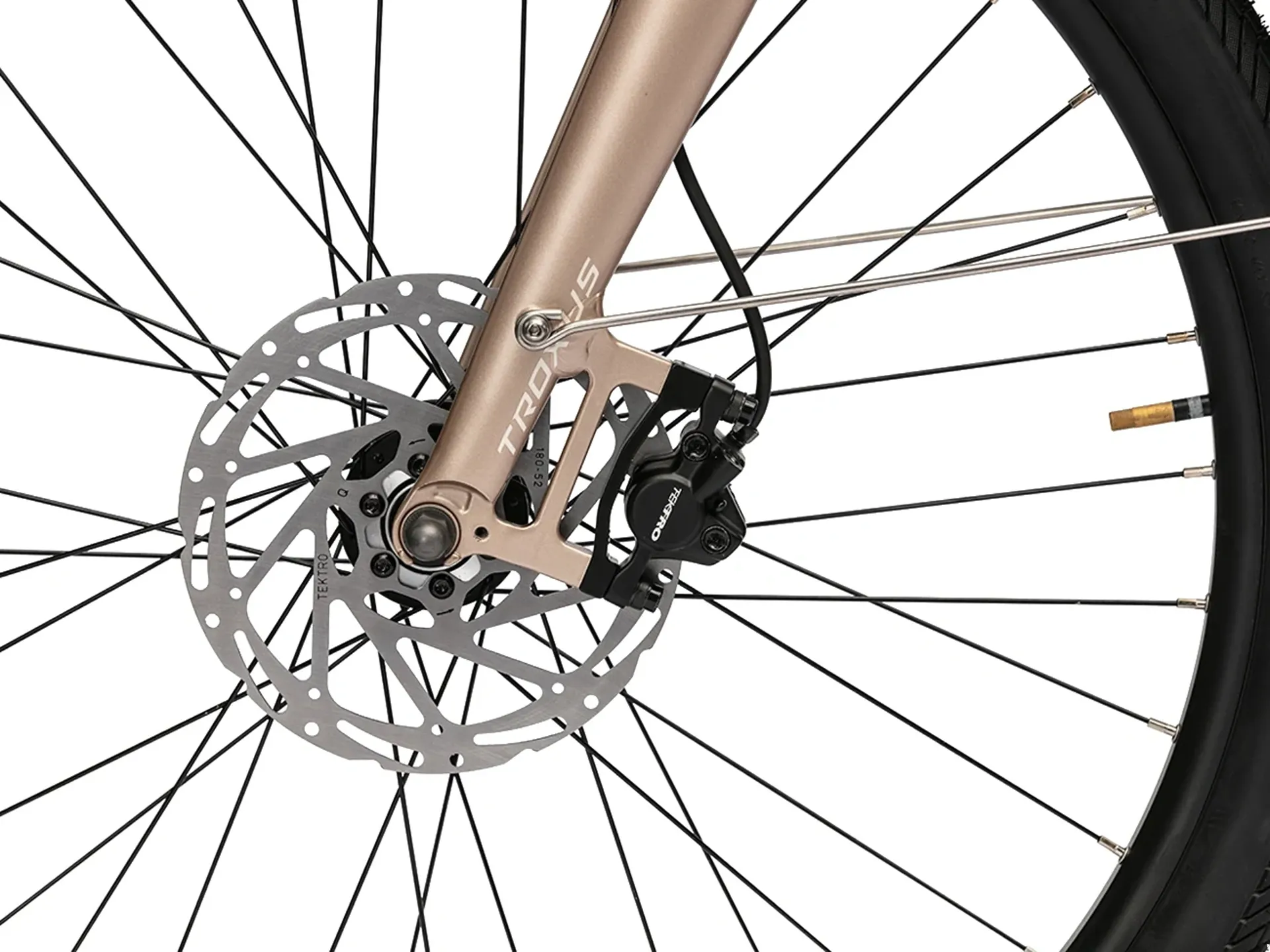

  • Brakes
    Tektro hydraulic with brake sensors
  • Rotors
    180mm / 160mm

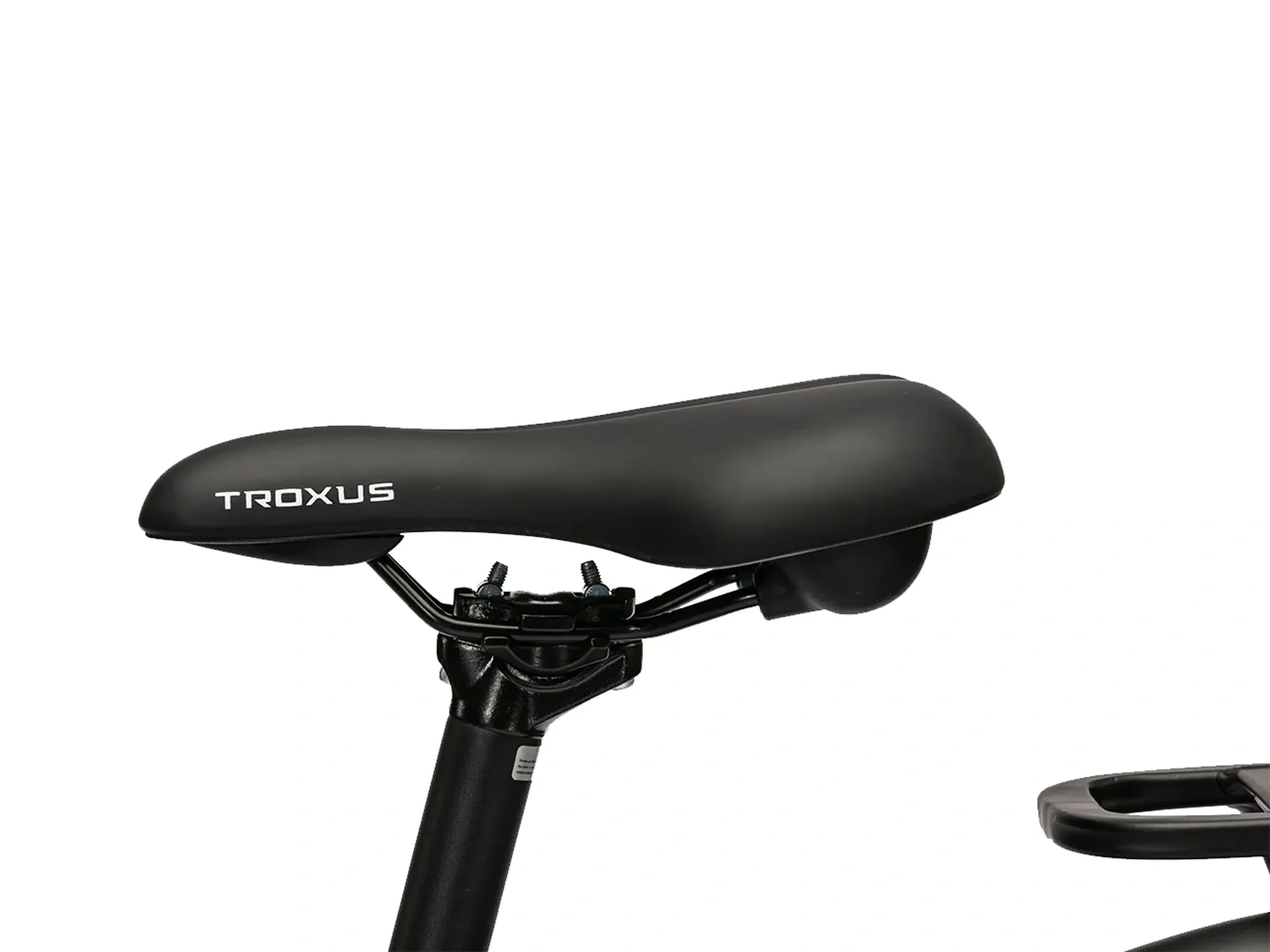

  • Saddle
    Troxus comfort, 195mm wide
  • Seat post
    Alloy, 30.9x400mm, adjustable
  • Seat post clamp
    Alloy, 35mm with quick release
  • Stem
    Alloy, forged, adjustable, 110mm extension
  • Handlebar
    Zoom alloy, 31.8mmx700mm, 20mm rise, 9-degree backsweep
  • Grips
    Ergonomic comfort
  • Pedals
    9/16-inch alloy platform with reflectors
  • Headset
    ICR type, threadless, internal 57/62mm

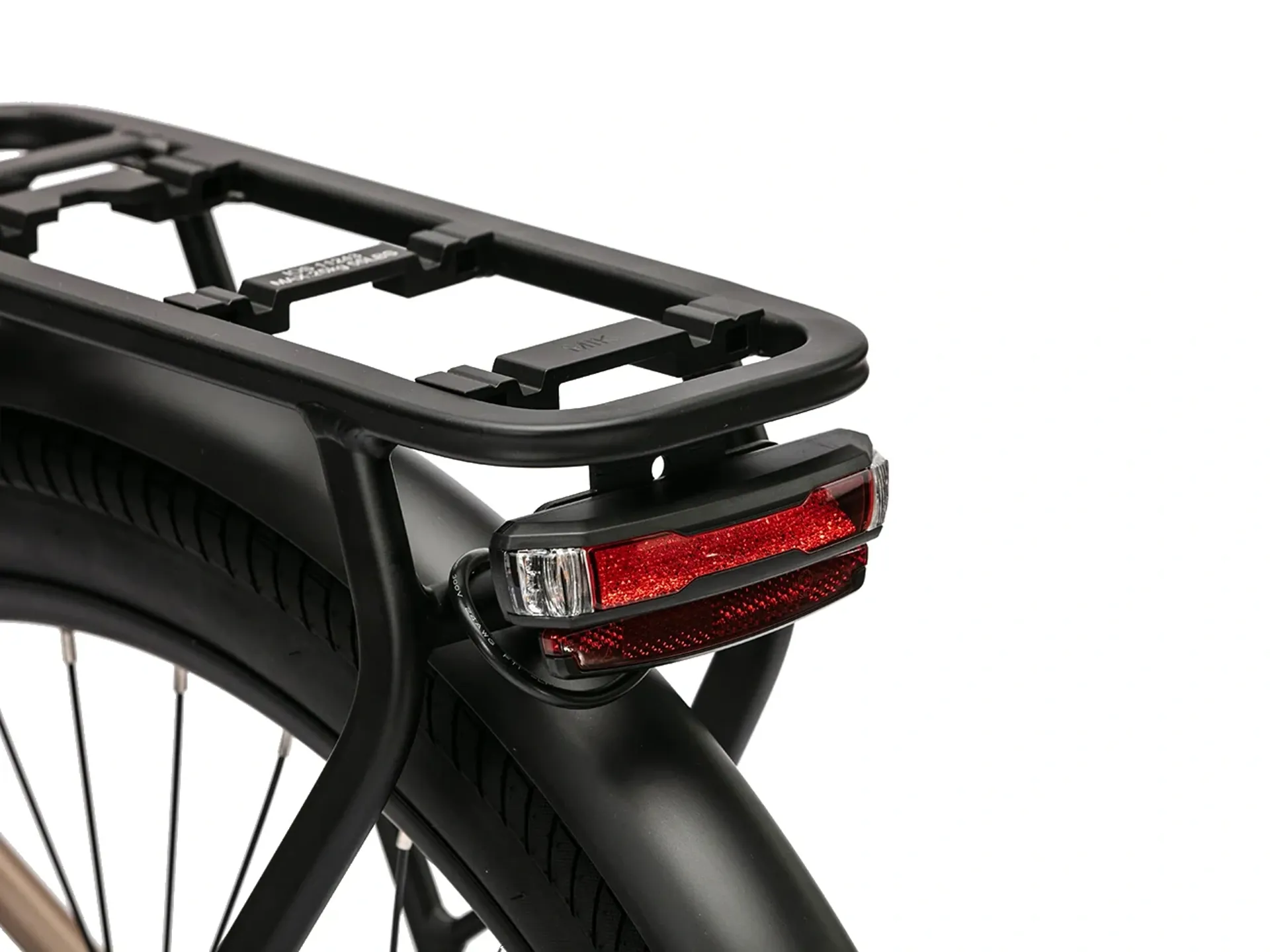

  • Rack
    Lightweight alloy, MIK-compatible
  • Fender
    Plastic 27.5"
  • Kickstand
    Adjustable side
Sizing Information
Size Small (Mid-Step) Medium (Step Over) Large (Step Over)
Frame Size 5'0" - 5'5" (153 - 166 cm) 5'5" - 5'10" (166 - 178 cm) 5'9" - 6'4" (176 - 193 cm)
Wheel Size 27.5"x1.75" 27.5"x1.75" 27.5"x1.75"
Seat Tube Length (mm) 394 445 495
Seat Tube Angle 74˚ 74˚ 74˚
Head Tube Length (mm) 140 145 155
Head Tube Angle 69˚ 69˚ 69˚
Effective Top Tube Length (mm) 552 590 609
Bottom Bracket Height (mm) 285 285 285
Bottom Bracket Drop (mm) 62 62 62
Chainstay Length (mm) 455 455 455
Fork Offset (mm) 45 45 45
Wheelbase (mm) 1082 1121 1141
Frame Reach (mm) 388 425 441
Frame Stack (mm) 571 576 585
Fork Travel (mm) 0 0 0
Fork Height (mm) 420 420 420

Specification Value
Max Load 300 lbs.
Rider Weight Limit 245 lbs.
Rear Rack Capacity 55 lbs.
Net Weight 47 lbs.
