The Troxus Lynx Cargo is a maneuverable cargo hauler with a 500lb capacity, 750W motor, 90-mile range, and heavy-duty racks for kids or gear.
The Troxus Lynx Cargo is a maneuverable cargo hauler with a 500lb capacity, 750W motor, 90-mile range, and heavy-duty racks for kids or gear.
Troxus

Troxus Lynx Cargo

$2,599.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Troxus Lynx Cargo

Brand:Troxus

Code:Troxus Lynx Cargo

Replace your SUV with this short tail, highly maneuverable cargo hauler.

The Troxus Lynx Cargo features up to 500 pounds of carrying capacity with heavy-duty front and rear racks included. It is built for hauling kids, cargo, or fun. The Bafang 750 Watt hub-drive motor provides 86Nm of torque to carry loads up steep hills. This bike is UL-2849 certified and includes a 960Wh long-range battery with Samsung cells for all-day adventures and a range of up to 90 miles on a single charge. The Bluetooth color display features integrated lights, turn signals, and is switchable between torque and cadence sensors.

Features:

  • Shimano 8-Speed shifting for matching your riding needs and terrain.

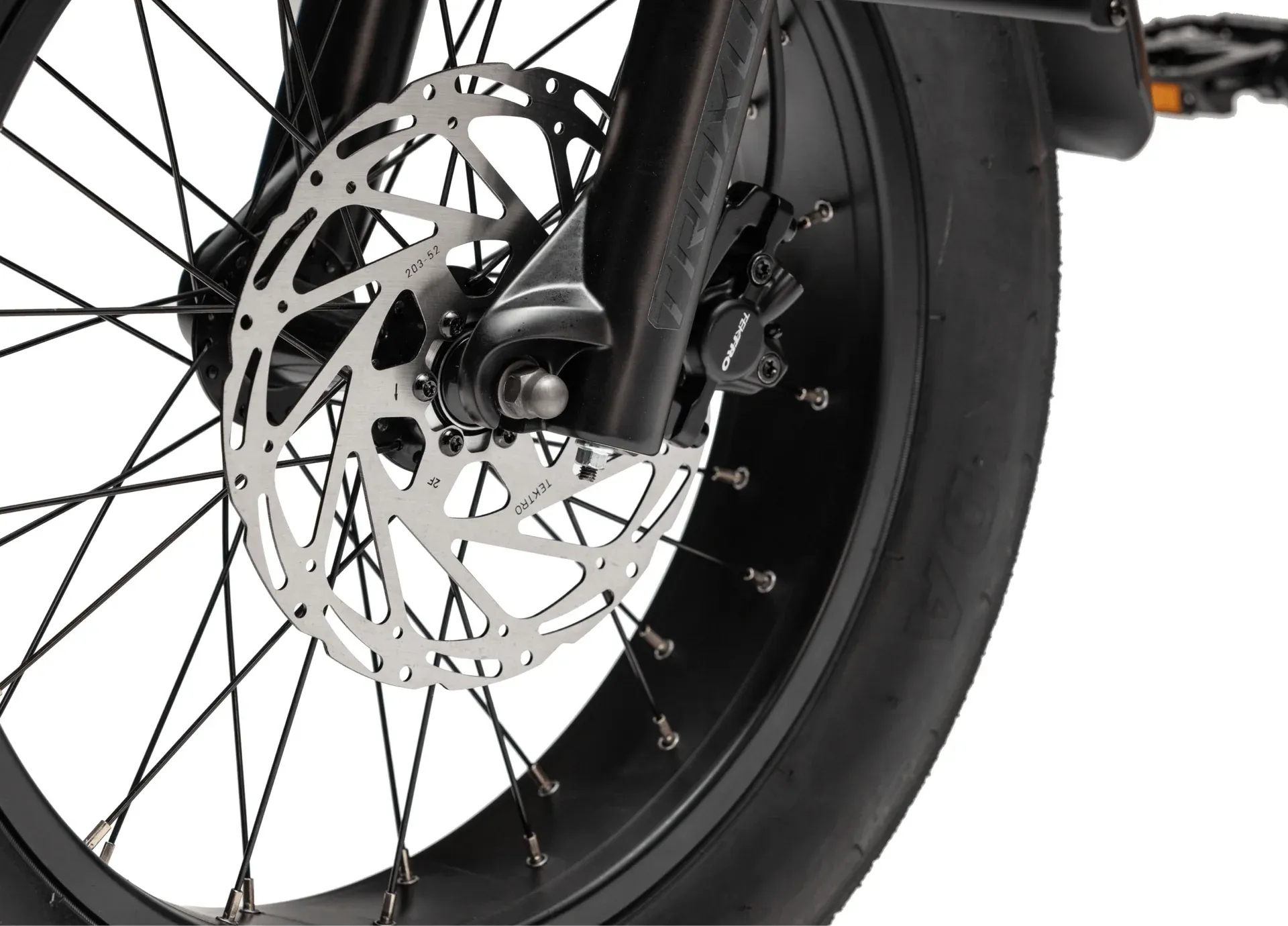

  • Tektro hydraulic disc brakes for excellent stopping power and control.
  • Kenda Cursor 20" x 4" tires with puncture resistance for speed and efficiency.
  • Integrated lighting system with front and rear lights, turn signals, and a daytime four-way flashing setting.
  • 6061 aluminum frame for lighter weight and durability.
  • 80mm suspension fork to improve comfort and control on rough surfaces.
Technical Information
  • Motor

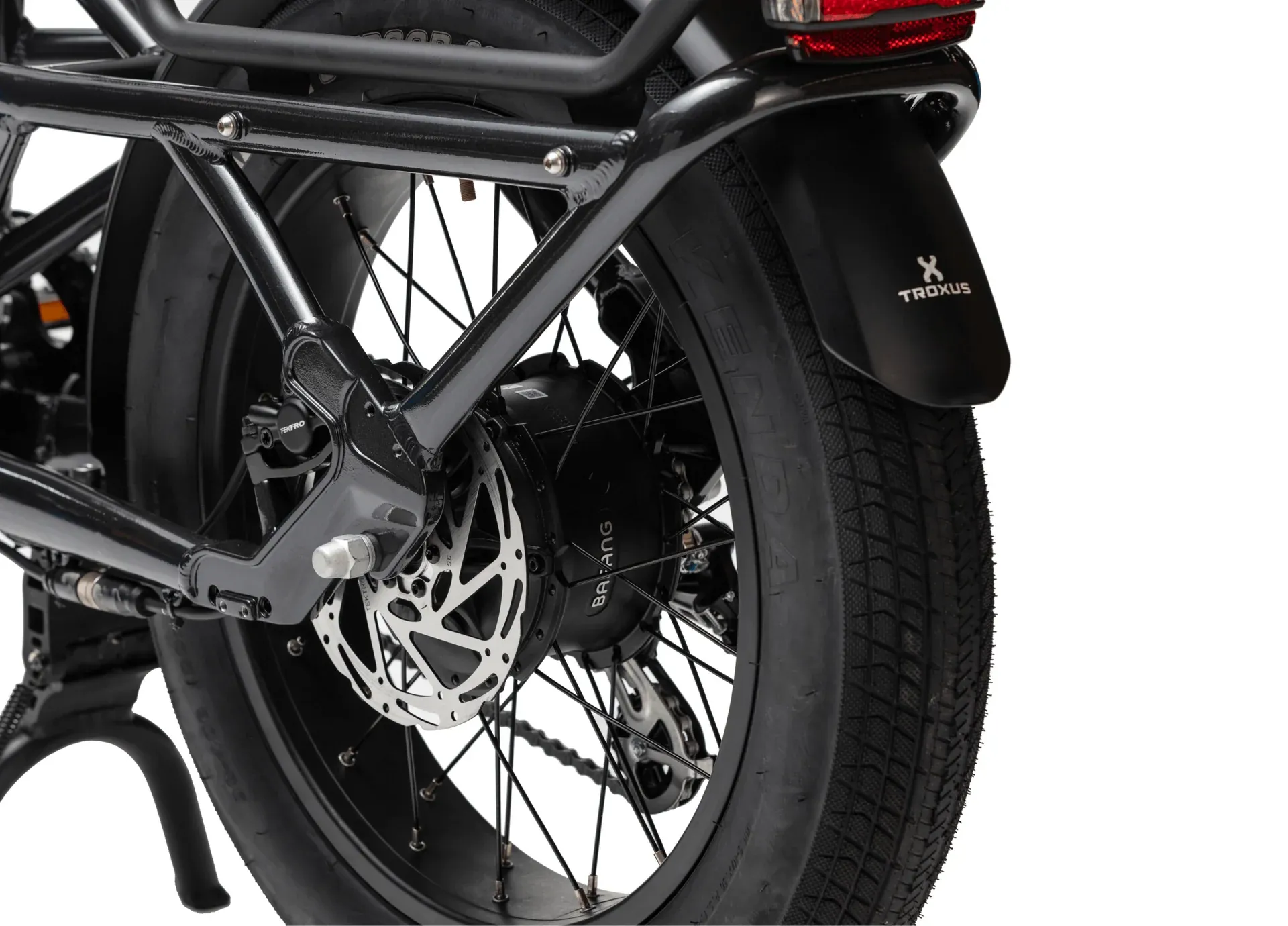

    Bafang 48V/750W Hub-Drive Motor, 86Nm Max. Torque
  • Battery
    UL-2271 and UL-2849 Certified, Internal, Removable, Lithium Ion, 48V/20Ah (960Wh) with Samsung Cells
  • Display
    Color Display, Bluetooth, with Turn Light Signals, Multi-Function Remote, USB Charging
  • Throttle
    Thumb Throttle on Handlebar
  • Sensor
    Switchable Torque and Cadence Sensor Modes
  • Pedal Assist
    0-5 Level Pedal Assist
  • Charger
    3A, 100-240V Input, 54.6V Output
  • Lights
    Front Light, Rear Light with Turn and Hazard Signals
  • Controller
    48Vx22A/12V
  • Frame
    6061-T6 Aluminum Step-Thru Cargo Frame
  • Fork
    Front Suspension Fork, 80mm Travel
  • Chain
    KMC 1/2"x3/32"
  • Crankset
    Aluminum, 46T, with Single Alloy Chainguard, Square Taper, 165mm
  • Rear Derailleur
    Shimano RD-M310-L, Altus, 8-Speed
  • Cassette
    Shimano 8-Speed, 12-32T
  • Shifter
    Shimano 8-Speed
  • Bottom Bracket Set
    Square Taper Sealed Bearings, Torque and Cadence Sensors Included
  • Tires
    Kenda Cursor 20"x4.0"
  • Front Hub
    Alloy, 36H, 110mm, 3/8" Axle
  • Rear Hub
    Bafang 48V 750W, 86Nm
  • Rims
    Alloy Double Wall, 20"x4.0" with Eyelets
  • Spokes
    Stainless 13G Front, 12G Rear
  • Brakes
    Tektro Hydraulic Disc, with Brake Sensors
  • Rotors
    203mm / 180mm
  • Saddle
    Troxus Comfort with Back Handle
  • Seat Post
    Alloy, 30.9x400mm, Adjustable
  • Seat-Post Clamp
    Alloy, 35mm with Quick Release
  • Stem
    Alloy, BMX style, Top-Load, 30 Deg. Angle, 50mm Extension
  • Handlebar
    Alloy 6061-T6, 31.8mmx680mm Wide, 261mm Rise
  • Grips
    Ergonomic Comfort
  • Pedals
    9/16" Alloy Platform with Reflectors
  • Headset
    Threadless, Locking Internal 1-1/8"
  • Max Speed
    Up to 20 MPH
  • Range
    Up to 90 miles per charge
  • Weight Limit
    500 lbs
  • Net Weight
    80.5 lbs
  • Rack
    Alloy, Front and Integrated Rear
  • Fenders
    Alloy, 20"x4.0" with Alloy Hardware
  • Kickstand
    Central Kickstand
Sizing Information

Sizing

Size Category Fit
One Size Fits Most

Technical Specifications

Component Measurement
Weight Limit 500 lbs
Net Weight 80.5 lbs
Tire Size 20 in x 4.0 in
Seat Post 30.9 mm x 400 mm
Handlebar Width 680 mm
Handlebar Rise 261 mm
Suspension Travel 80 mm
Brake Rotors 203 mm (front) / 180 mm (rear)
