The Troxus Trax Mid-Drive E-Bike features a 500W Bafang motor, 720Wh battery, and 11-speed Shimano CUES drivetrain for a range of up to 60 miles.
The Troxus Trax Mid-Drive E-Bike features a 500W Bafang motor, 720Wh battery, and 11-speed Shimano CUES drivetrain for a range of up to 60 miles.
Troxus

Troxus Trax Mid-Drive E-Bike

$3,299.00
Earn
in Customer Rewards when you buy this item today
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Troxus Trax Mid-Drive E-Bike

Brand:Troxus

Code:TROXUS Trax Mid-Drive

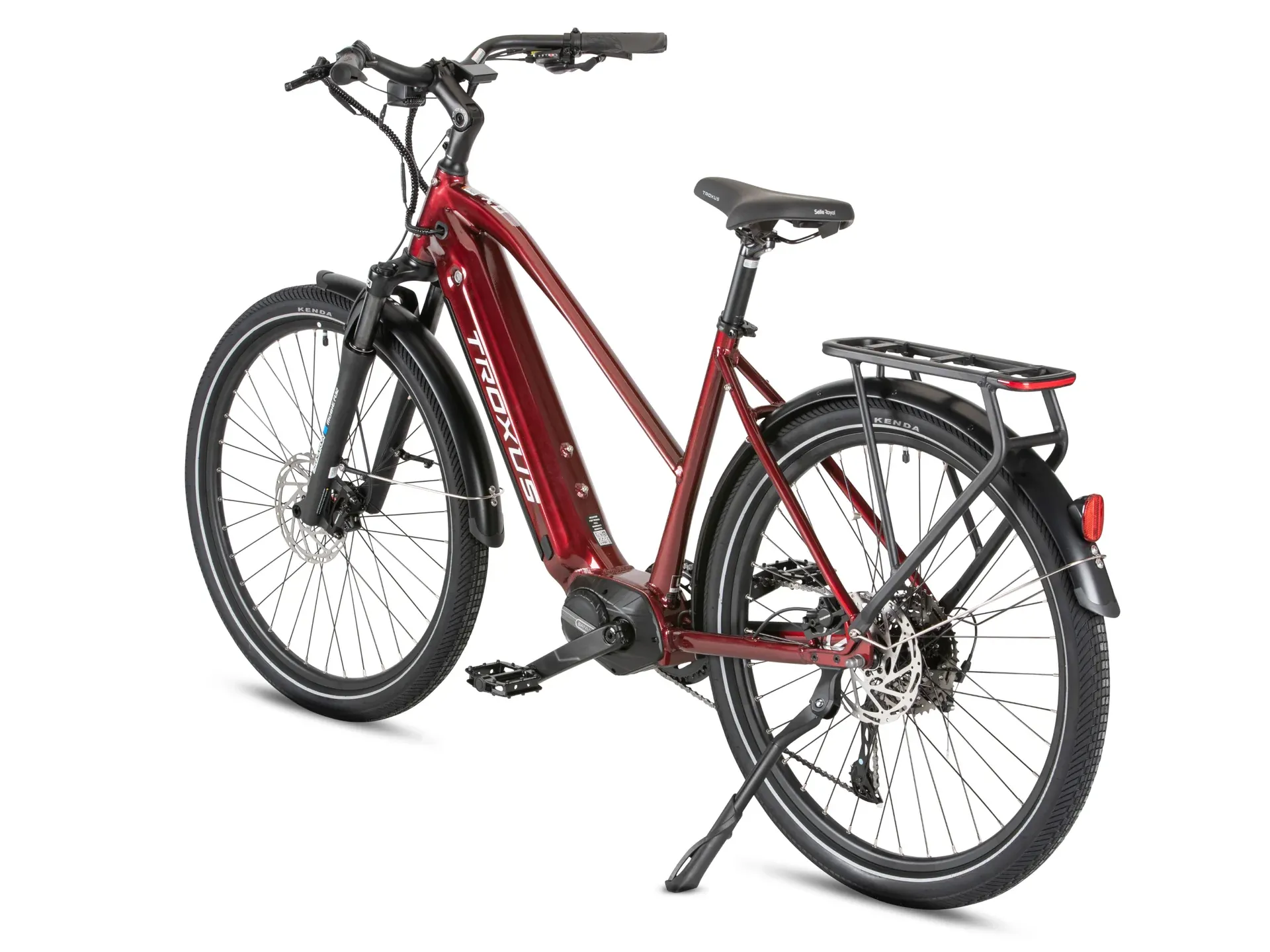

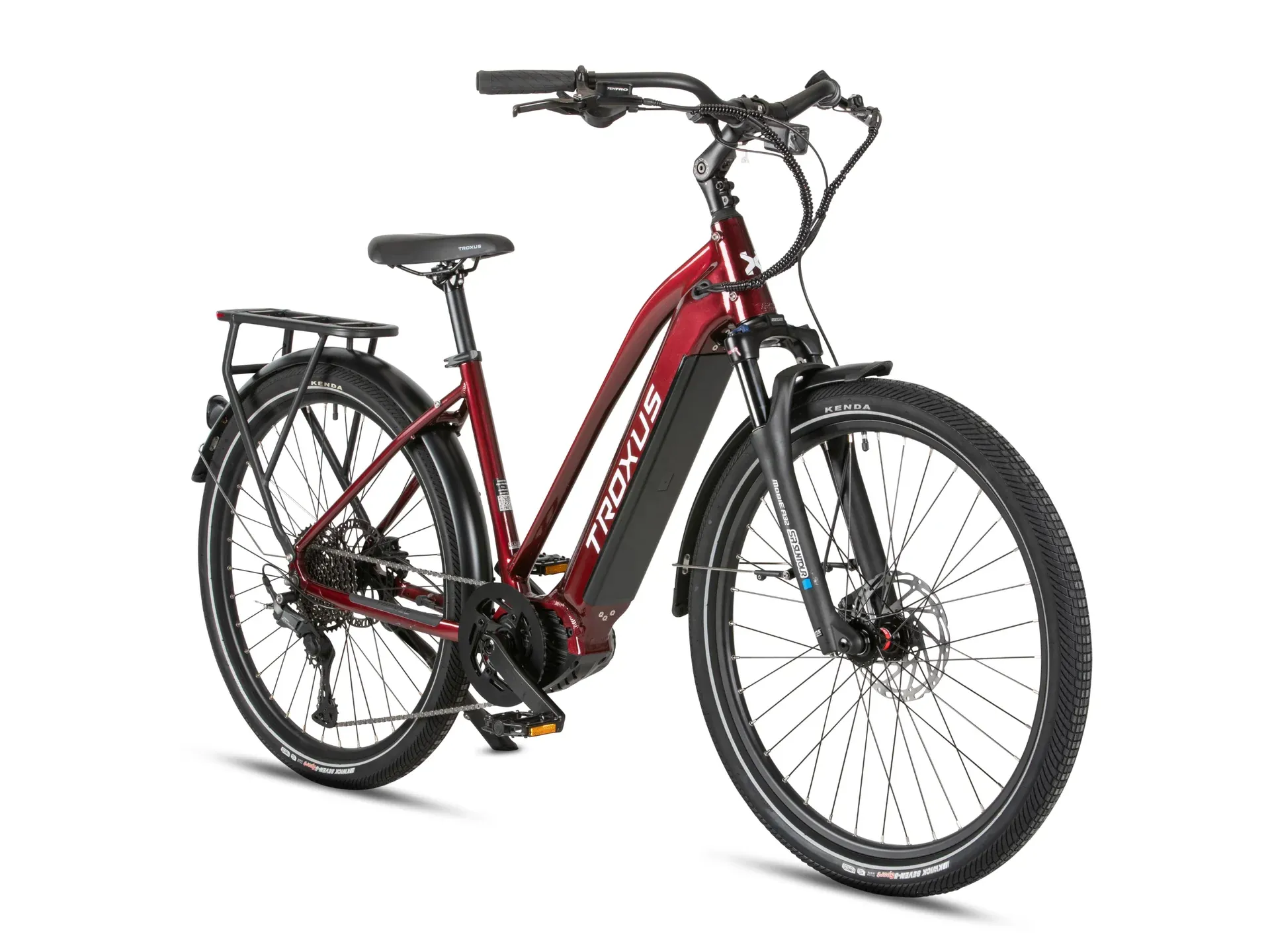

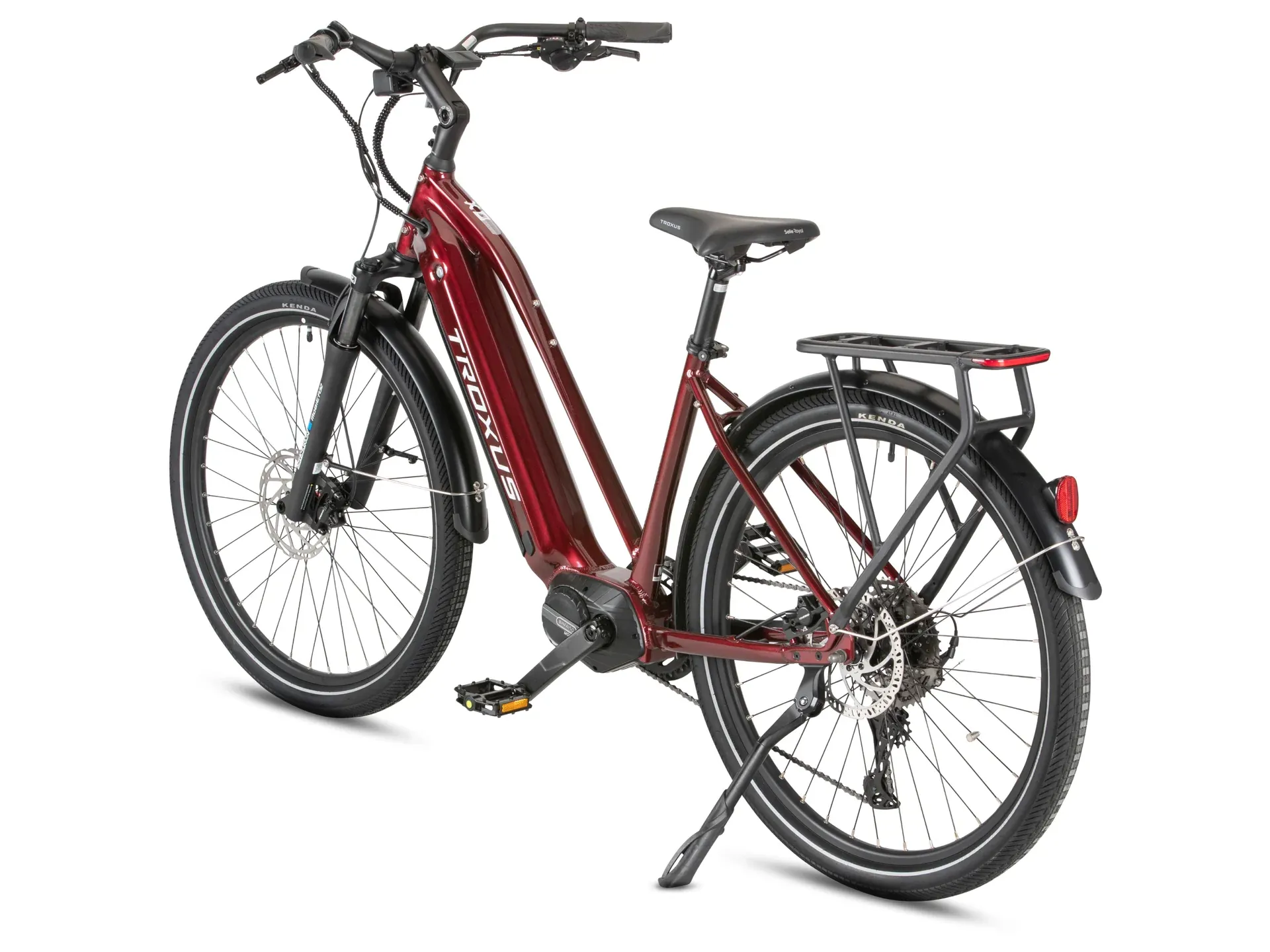

The Troxus Trax Mid-Drive E-Bike features a hand-crafted alloy frame and a powerful Bafang 500W mid-drive motor.

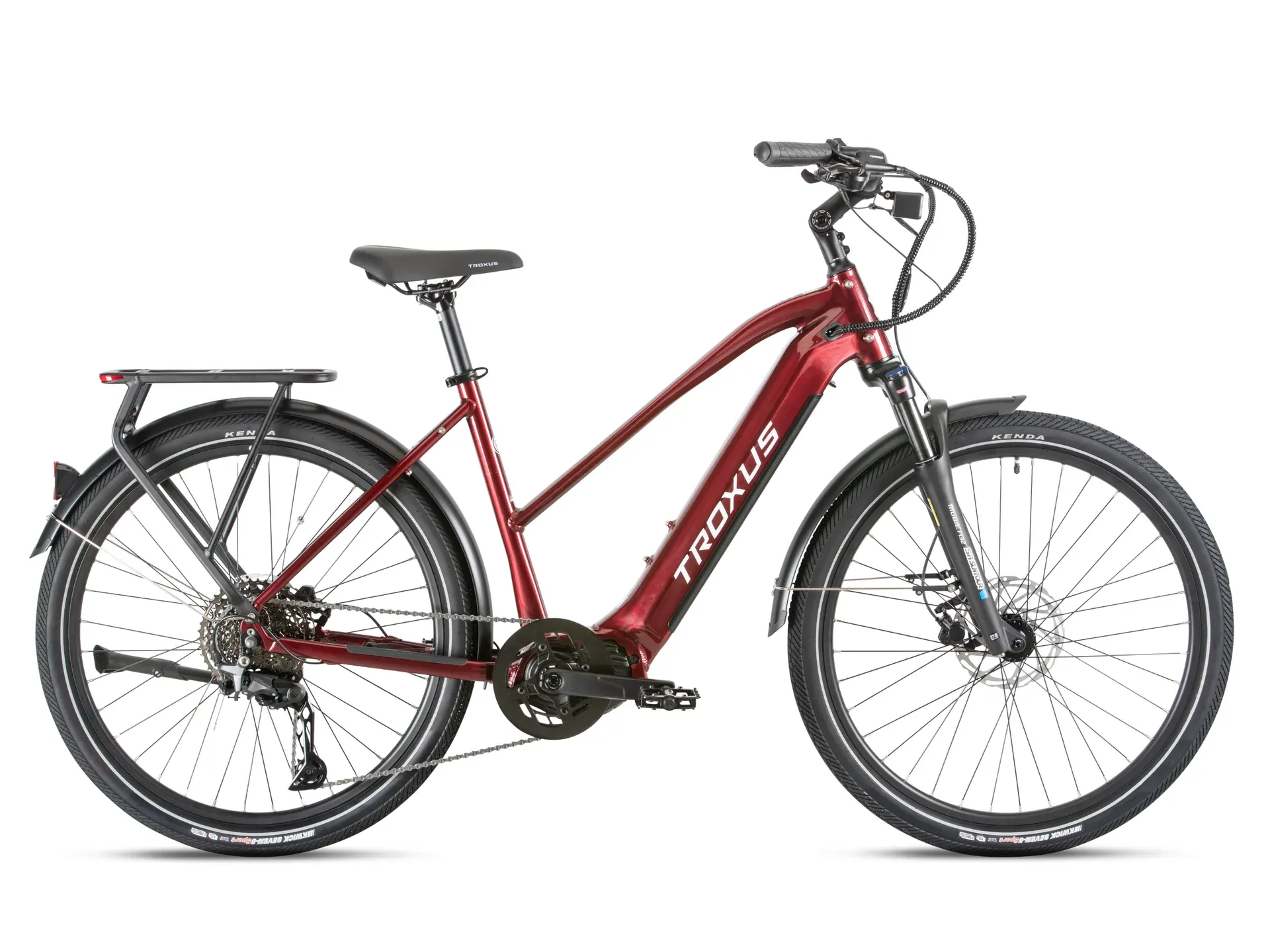

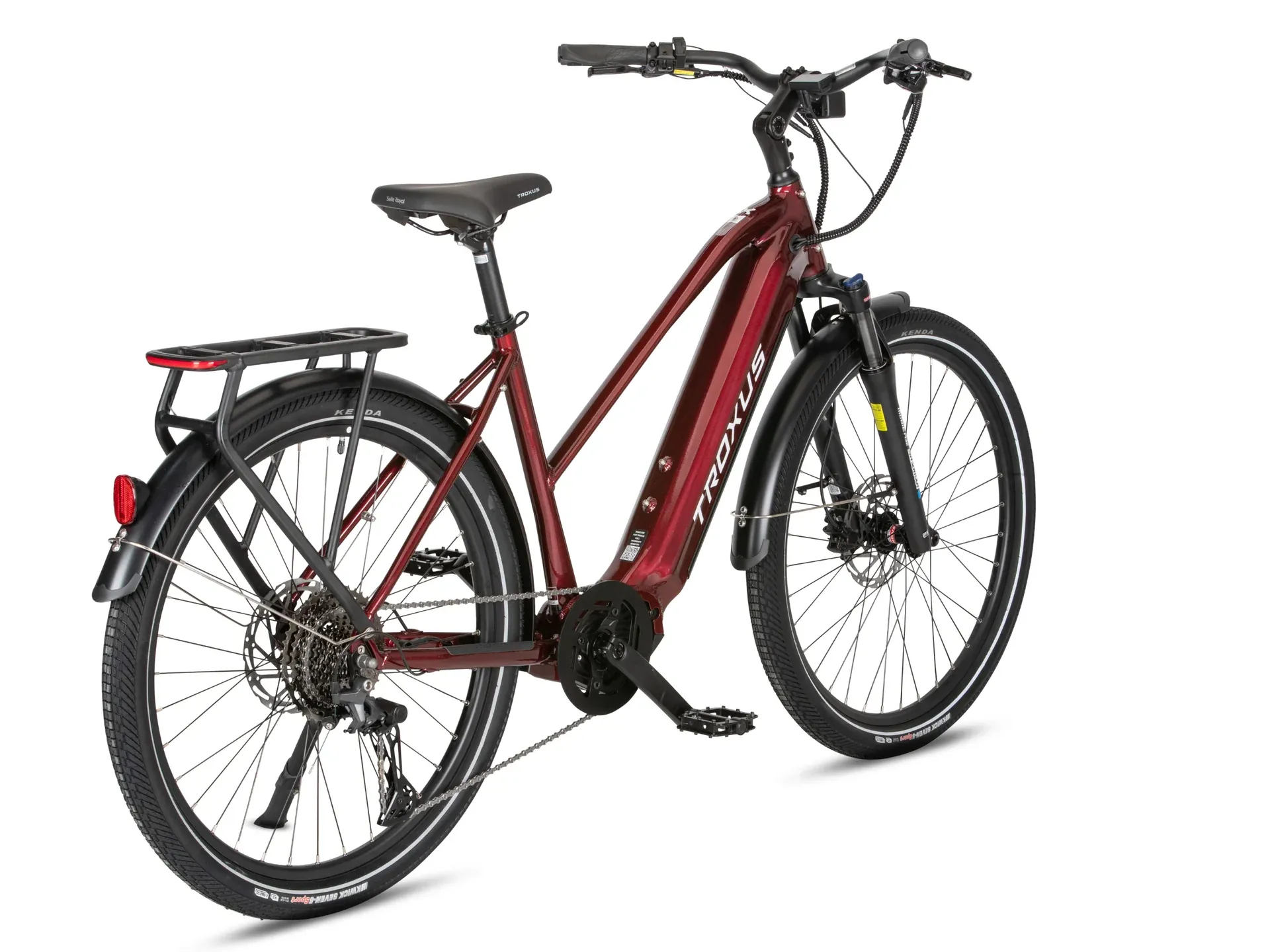

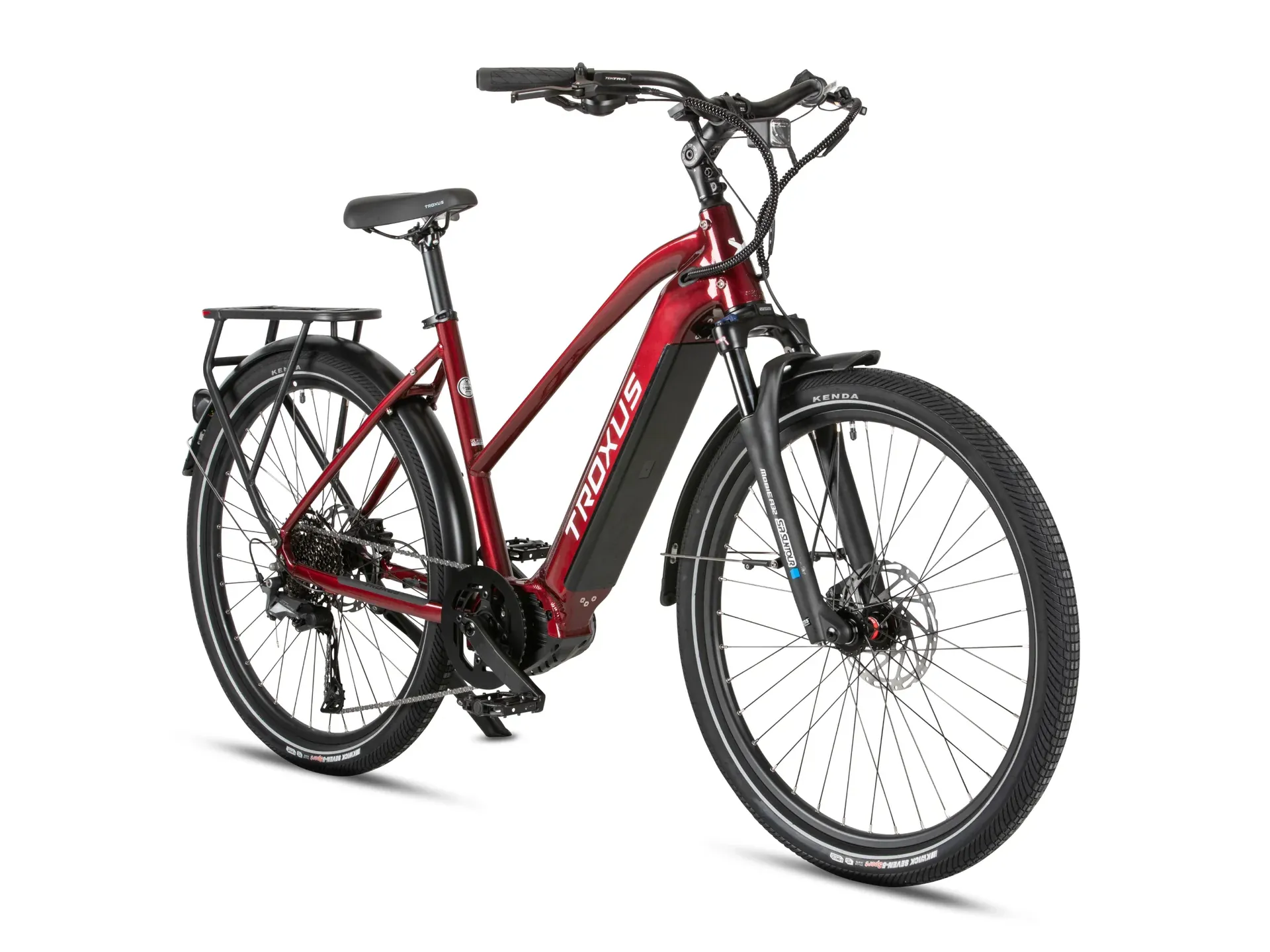

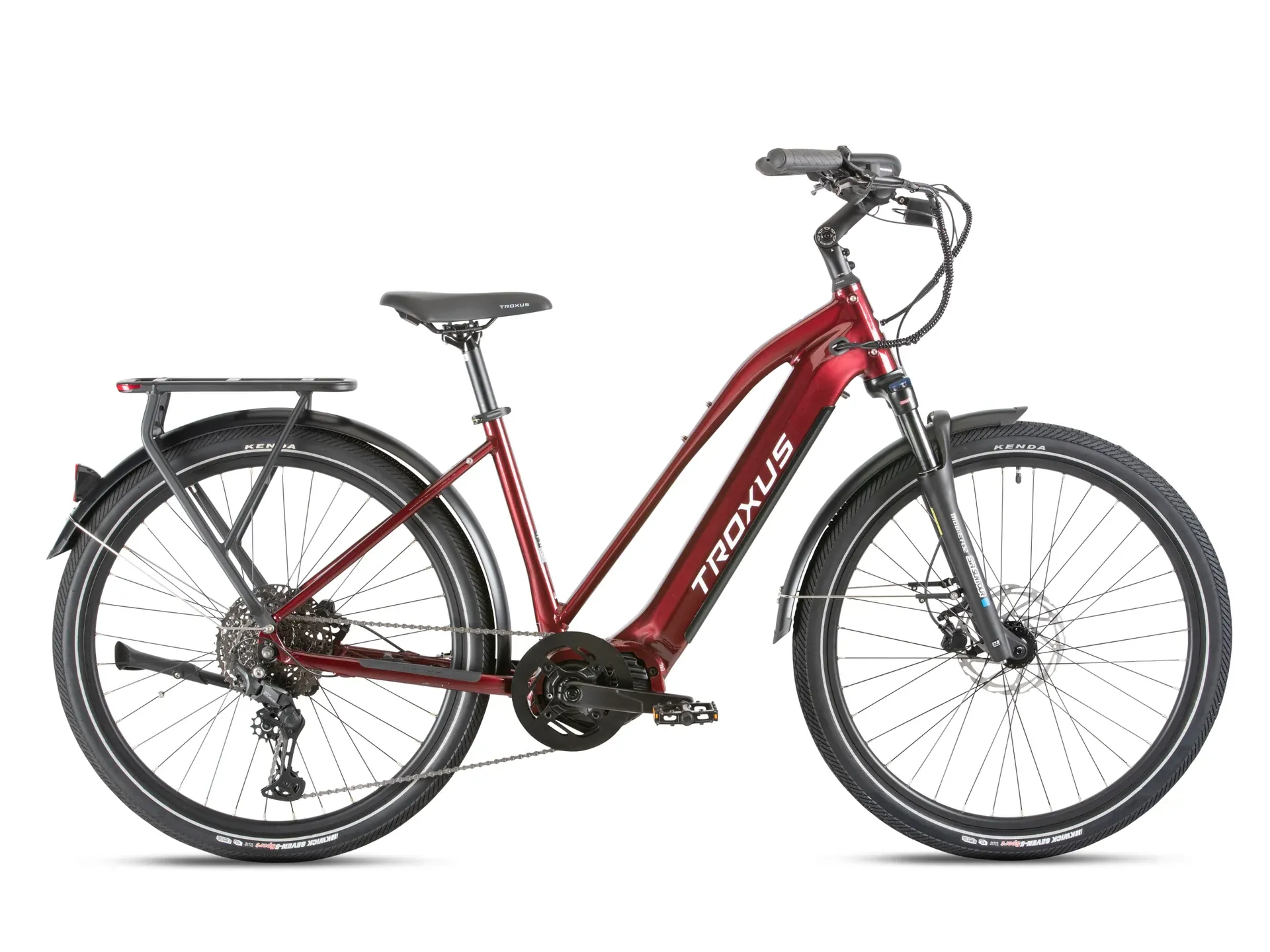

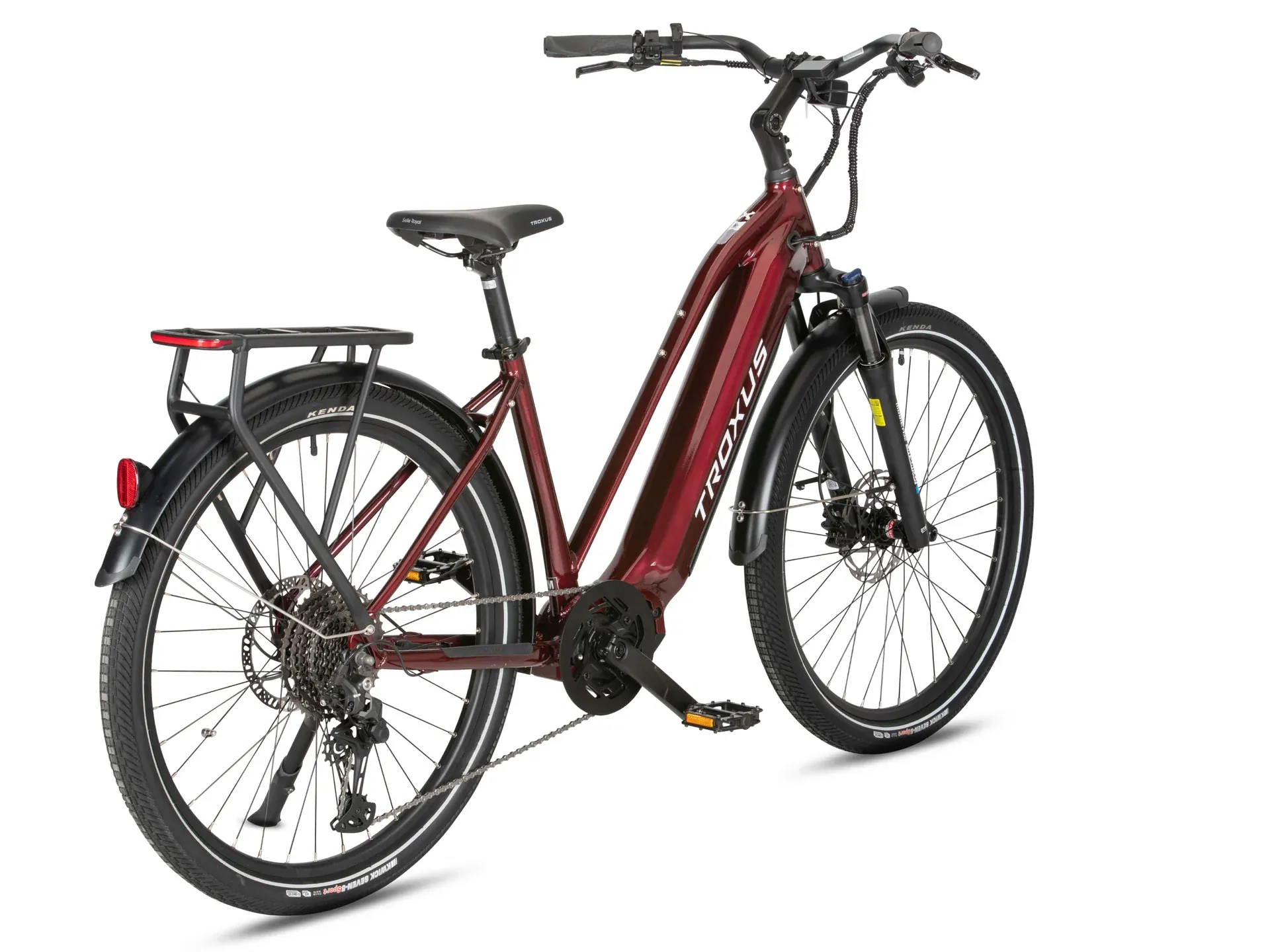

The Troxus Trax Mid-Drive E-Bike is built with a hand-crafted 6061 aluminum alloy frame featuring clean, smooth welds. It is equipped with a Bafang 500W mid-drive motor and a 48V 15Ah (720Wh) UL-certified battery with Samsung cells, providing intuitive pedal assistance and a range of up to 60 miles per charge. The Shimano CUES 11-speed wide-range drivetrain ensures smooth shifting for all riding needs. The bike reaches speeds up to 28 MPH and includes torque and cadence sensors integrated into the mid-motor for a responsive ride.

Features:

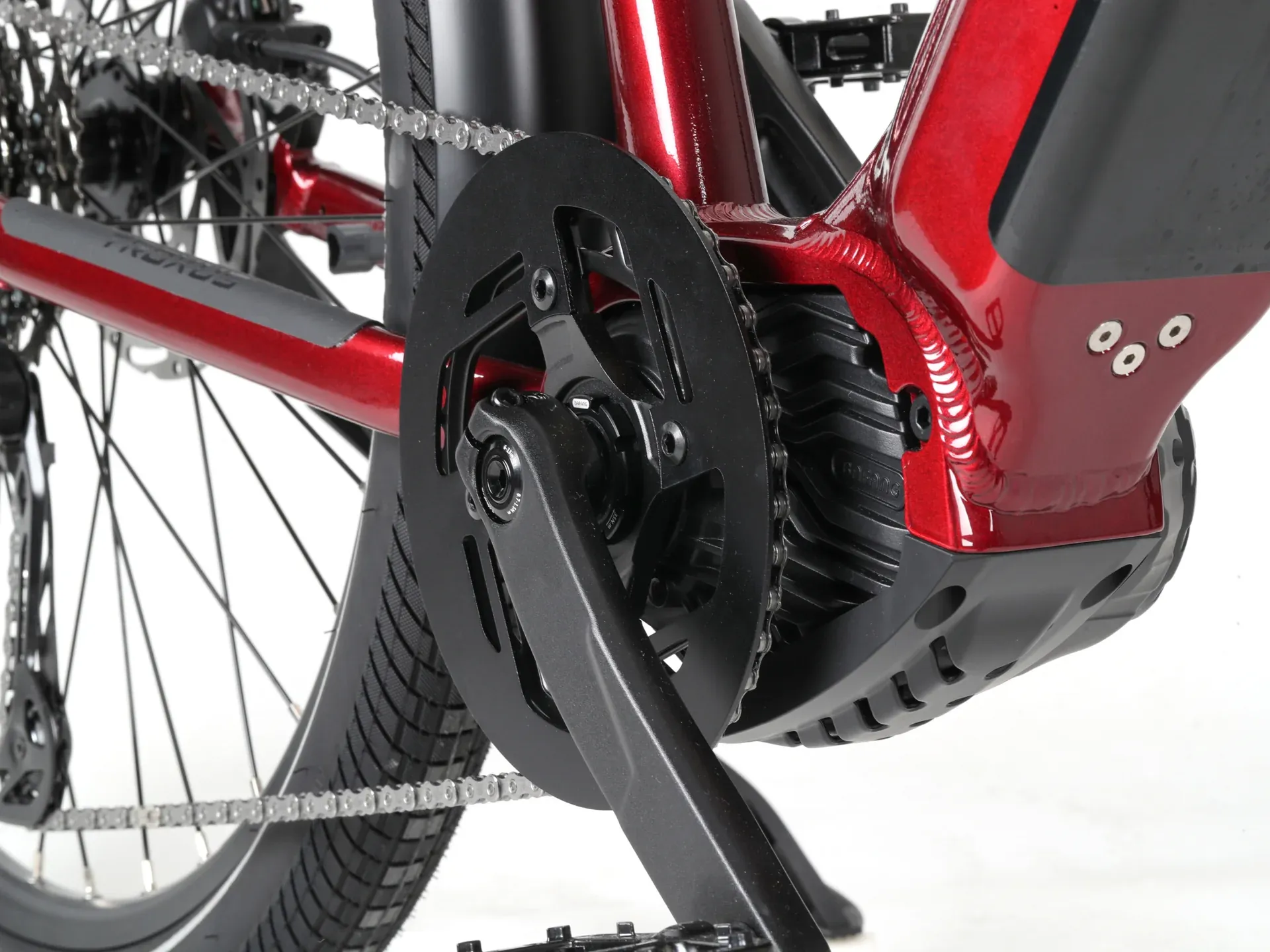

  • Bafang 500W mid-drive motor with torque and cadence sensors
  • 48V 15Ah (720Wh) battery with Samsung cells for up to 60 miles of range

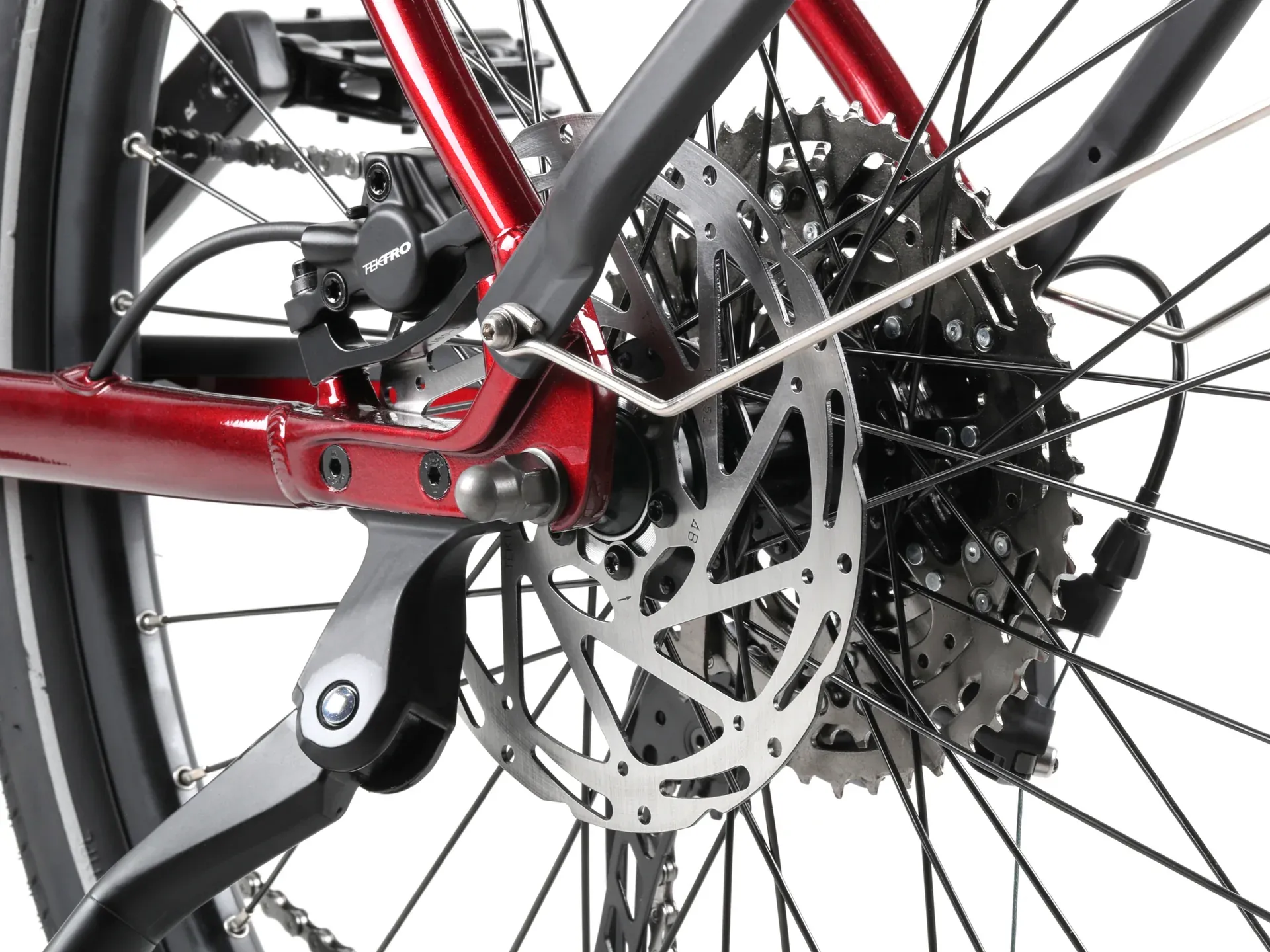

  • Shimano CUES 11-speed drivetrain
  • Suntour Mobie 32 suspension fork with 75mm travel
  • Kenda KwickSeven 27.5" x 2.2" (69.85cm x 5.59cm) tires with reflective stripes
  • 6061 aluminum frame with smooth welds
Technical Information

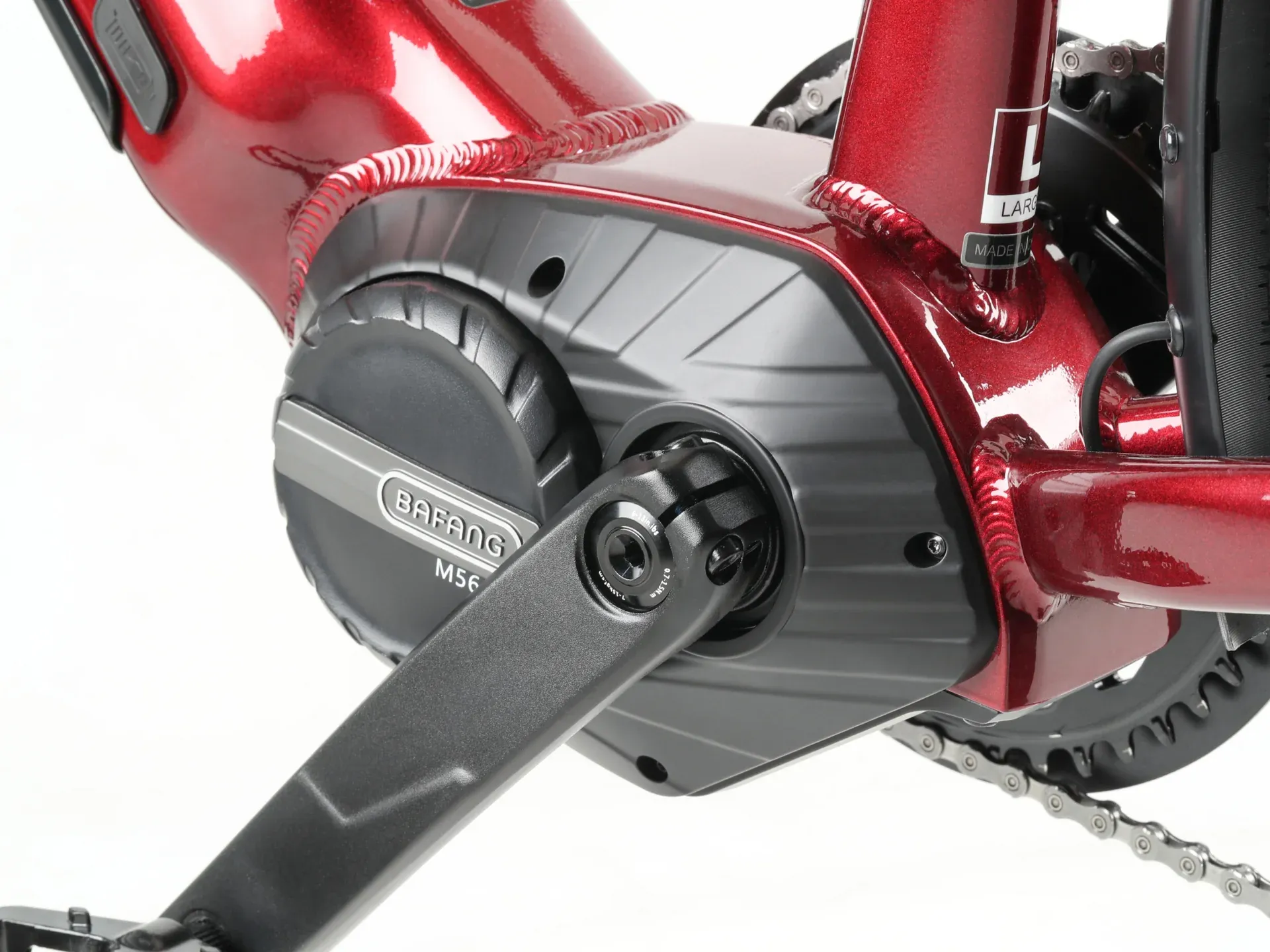

  • Motor
    Bafang® 48V/500W Mid-Motor, 130Nm Max. Torque
  • Battery
    48V/15Ah (720Wh) Lithium Ion, Samsung® Cells, UL-2271 Certified
  • Display
    Bafang® Color Display, Bluetooth, Multi-Function Remote
  • Throttle
    Thumb Throttle
  • Sensor
    Torque & Cadence Sensors
  • Pedal Assist
    5-Level (Eco, Tour, Sport, Sport +, Boost)
  • Charger
    3A, 100-240V Input, 54.6V Output

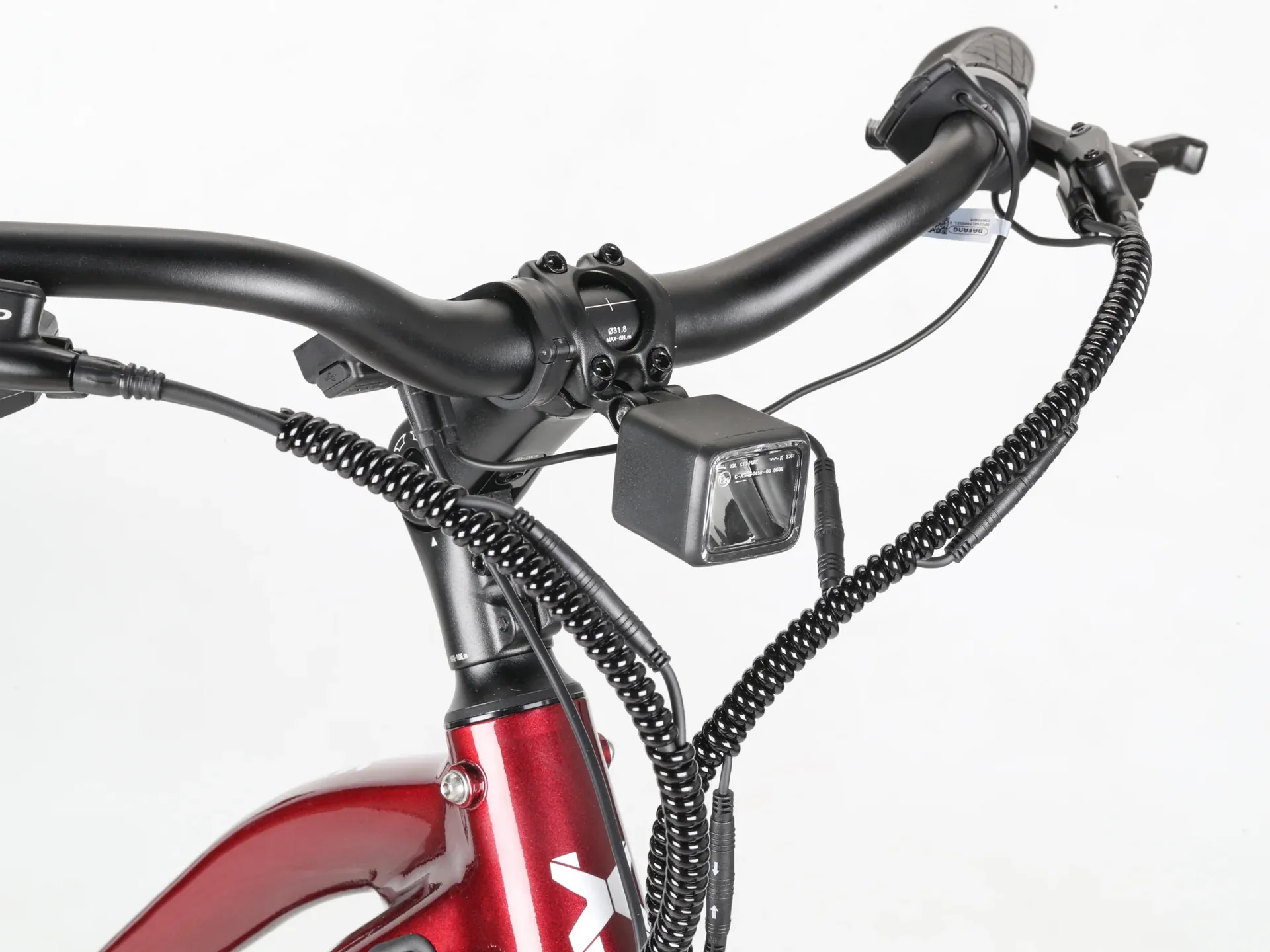

  • Lights
    80 Lux Front & Rear
  • Max Speed
    Up to 20 MPH (Throttle), 28 MPH (Pedal Assist)
  • Range
    Up to 60 miles
  • Weight Limit
    330 lbs
  • Net Weight
    61 lbs
  • Frame
    6061 Aluminum
  • Suspension Fork
    Suntour® Mobie 32, 75mm Travel
  • Drivetrain
    Shimano® CUES M6100 11-speed
  • Tires
    Kenda® KwickSeven 27.5" x 2.2"

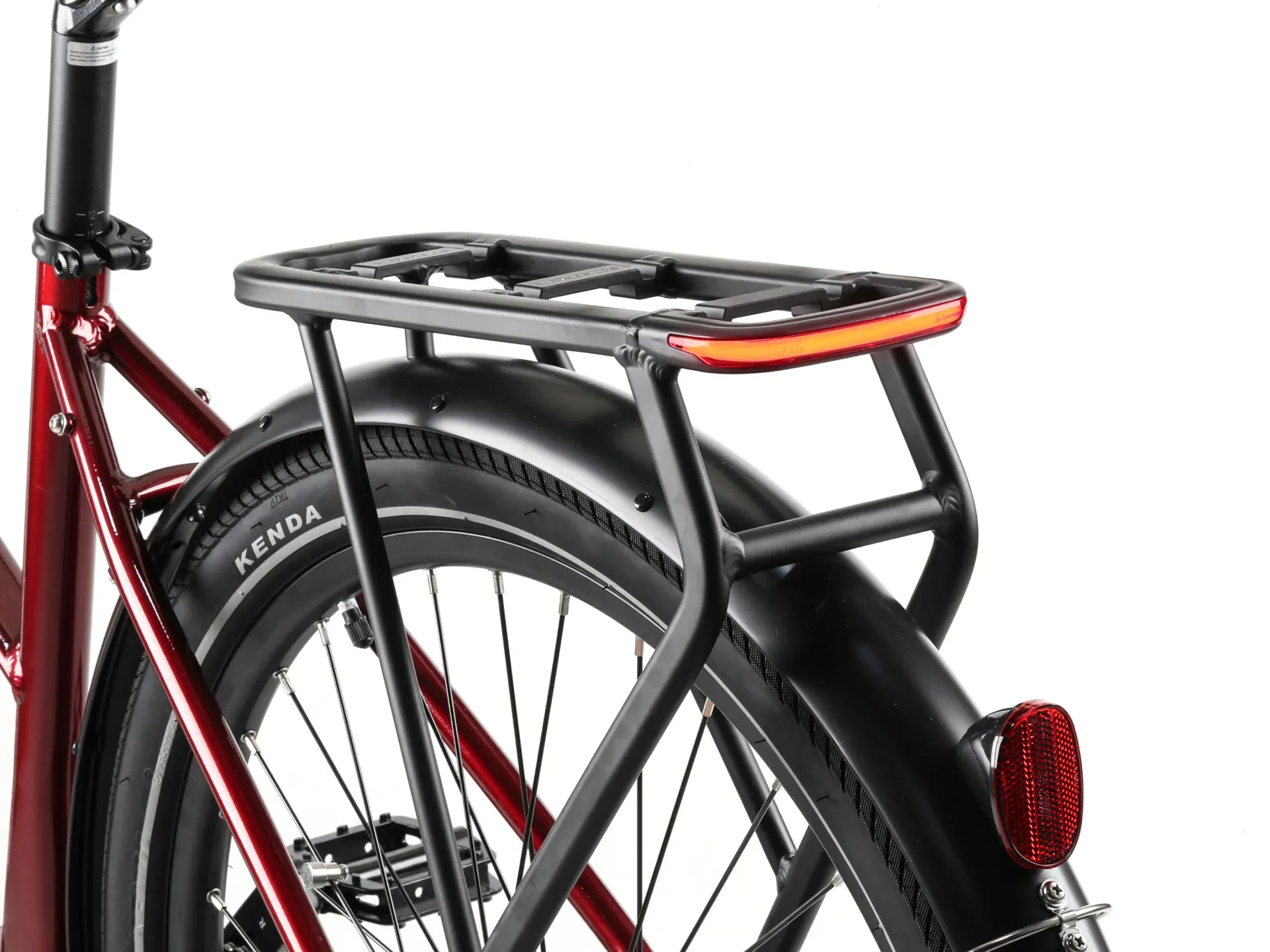

  • Rack
    Alloy Rear
  • Fenders
    27.5"
  • Kickstand
    Adjustable Side
Sizing Information

Recommended Height

Size Recommended Height
Small Low-Step 5'0" - 5'7" (153 - 171 cm)
Medium Low-Step 5'6" - 6'2" (168 - 185 cm)
Large Mid-Step 5'8" - 6'4" (173 - 193 cm)
